Product Certificates & Global Compliance

Independent NATA-Accredited & Third-Party Tested Door & Window Systems for Overseas Builders, Wholesalers, and Specifiers

Rigorous Testing & Verification

Certified Door & Window Systems Engineered for Global Building Codes

At SAGA Aluminum Doors & Windows Co., Ltd., product reliability and structural safety are validated through continuous annual audits, third-party laboratory physical testing, and strict compliance verification across major international markets.

AGWA Australian Glass and Window Association Accredited Compliance Certificate
Australia & Oceania

AGWA Accredited Compliance Certificate

As a verified member of the Australian Glass & Window Association (AGWA), SAGA Aluminum Doors & Windows Co., Ltd. undergoes rigorous annual factory audits by independent technical auditors. This certification guarantees that every window and door profile meets strict structural, acoustic, and water penetration criteria mandated by Australian building regulators.

Primary StandardAS2047:2014 Windows & External Doors
Glass SelectionAS1288:2021 Glass in Buildings
Building CodeNCC 2022 Compliance
Audit AuthorityNATA Accredited Independent Testing

Value for Importers & Builders: Eliminates risk of non-compliant site inspections or expensive structural replacements. Complete compliance certification packages are supplied with every order schedule.

Window Energy Rating Scheme WERS Certificate
Energy Rating & Thermal

Window Energy Rating Scheme (WERS)

The Window Energy Rating Scheme (WERS) rates whole-window thermal performance across heating and cooling climates. SAGA energy-efficient double and triple-glazed thermally broken systems are audited to ensure precise U-Value and Solar Heat Gain Coefficient (SHGC) ratings for green building projects.

Accrediting BodyAFRC (Australian Fenestration Rating Council)
Software CompatibilityNatHERS & FirstRate Approved
Thermal MetricsU-Value & SHGC Calculated
Climate AdaptationCooling & Heating Zones

Architectural Advantage: Enables specifiers and builders to calculate precise house energy efficiency stars prior to final product procurement.

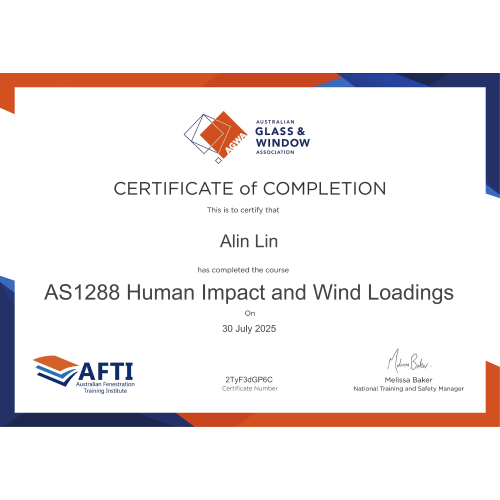

AS1288 Safety Glass Selection and Installation Certificate
Glazing Safety Standard

AS1288 Safety Glass Selection & Installation

AS1288 governs safety glass selection, human impact protection, structural design, and glazing installation rules across residential, commercial, and high-occupancy structures. SAGA supplies toughened safety glass, laminated acoustic glass, and insulated glass units (IGUs) fabricated strictly according to human impact risk ratings and regional design wind pressures.

Glazing ScopeToughened, Laminated & Insulating Glass
ApplicationsWindows, Doors, Balustrades, Pool Screens
Load CalculationsWind Loading per AS/NZS 1170
Safety RatingGrade A Human Impact Resistance

Safety Guarantee: All glass products are edge-stamped with permanent compliance identifiers, ensuring fast sign-offs by site certifiers.

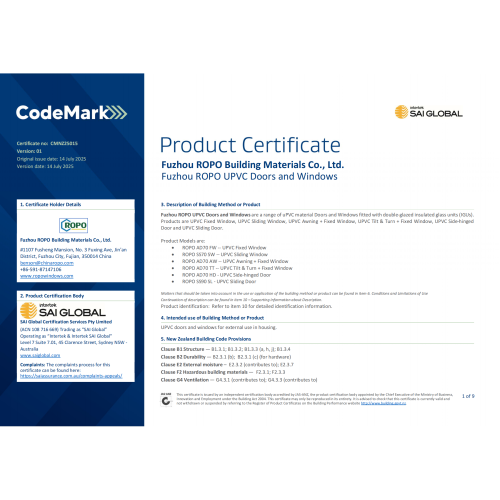

New Zealand Building Code NZBC Compliance Certificate
New Zealand Compliance

New Zealand Building Code (NZBC) & NZS4211

Tailored to New Zealand's challenging coastal weather, high wind pressures, and strict energy efficiency standards. SAGA window and door systems fully satisfy performance criteria regulated by the Ministry of Business, Innovation and Employment (MBIE) under the Building Act 2004.

Clause H1Energy Efficiency & Thermal R-Values
Clause E2External Moisture & Watertightness
Clauses B1 & B2Structural Wind Load & Durability
Tested StandardNZS4211:2008 Specification for Performance

Project Applicability: Fully certified for Climate Zones 1 through 6, incorporating high-performance thermal breaks and custom flashing configurations.

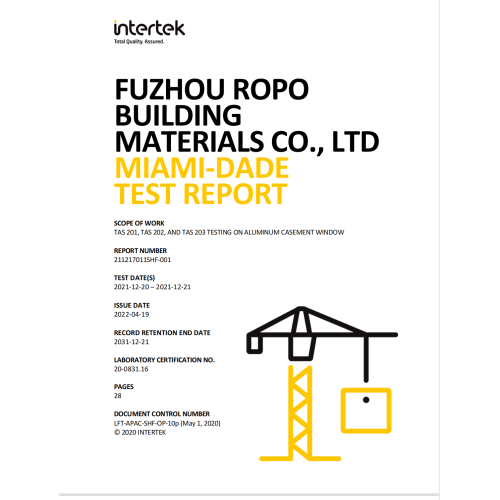

Miami Dade Hurricane Code Impact Test Certificate
North America & Caribbean

Miami-Dade Hurricane Impact Code (TAS 201/202/203)

Engineered for high-velocity hurricane zones (HVHZ) subject to extreme storm events, coastal wind loading, and windborne debris. SAGA impact-resistant window and door systems are subjected to severe missile strikes and thousands of cyclic pressure cycles to maintain envelope integrity during Category 5 hurricanes.

TAS 201-94Large Missile Impact Testing (9lb 2x4 @ 50ft/s)
TAS 202-94Uniform Static Air Pressure Test
TAS 203-94Cyclic Wind Pressure Loading (9,000 Cycles)
Zone QualificationHVHZ & Coastal Caribbean Requirements

Storm Protection: Utilizes heavy-gauge structural aluminum framing combined with laminated impact glass for extreme weather resilience.

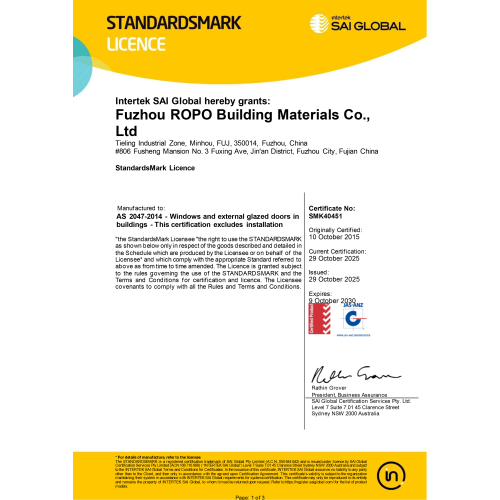

AS 2047 Windows and External Glazed Doors Test Report
Physical Laboratory Testing

AS 2047 Physical Performance Test Certification

Every standard profile system fabricated by SAGA Aluminum Doors & Windows Co., Ltd. is physically evaluated under AS/NZS 4420.1-2016 laboratory testing protocols to verify structural deflection, operating force, air infiltration, water penetration resistance, and ultimate limit state strength.

Deflection TestPositive & Negative Pressure Load
Operating ForceSash Opening & Hardware Durability
Air InfiltrationAir Tightness & Acoustic Sealing
Water ResistanceZero Water Leakage under High Pressure

Ultimate Limit State: Tested to 1.5 times design wind pressure to confirm frames will not fail during severe windstorm conditions.

Standardization Overview

Global Compliance & Testing Specifications Matrix

Comprehensive overview of technical test reports available to project certifiers, building surveyors, and wholesale buyers.

Technical Standard Verification Matrix
Target Region Mandatory Standard Performance Parameters Tested Verified SAGA Product Lines
Australia AS2047:2014 / AS1288:2021 / NCC 2022 Deflection, Operating Force, Air Infiltration, Water Resistance (up to 450Pa+), Ultimate Strength Aluminium Awning, Casement, Sliding, Bifold & Fixed Windows; Hinged & Sliding Doors
New Zealand NZS4211:2008 / NZBC Clauses B1, E2, H1 Structural Integrity, Durability, Air/Water Tightness, Thermal Performance (Zone 1 - Zone 6) Thermally Broken Aluminium & uPVC Tilt & Turn Windows, High-R-Value Double Glazing
North America NAFS (AAMA / WDMA / CSA 101/I.S.2/A440) Structural Design Pressure (DP), Water Ingress Resistance, Forced Entry Resistance uPVC & Aluminium Single/Double Hung, Sliding Patio Doors, Commercial Casement Systems
Florida & Caribbean Miami-Dade TAS 201 / 202 / 203 Large Missile Impact, Static Pressure Deflection, 9,000 Cycle Reversible Wind Load Hurricane Impact Aluminium Doors & Windows, Laminated Security Glass, Storm Shutters
Quality Management

Factory Quality Inspection & Order Audit Workflow

Our internal Quality Control (QC) department conducts multi-stage inspections before issuing final compliance documentation and dispatching shipments from Fuzhou or Xiamen ports.

1. Raw Material Audit

Audit aluminum extrusion alloy grades (6063-T5), uPVC profile wall thickness, EPDM gaskets, and hardware plating.

2. Dimensional Accuracy

Precision CNC cutting verification against approved shop drawings, ensuring zero variance on frame diagonals.

3. Assembly Testing

Pre-glazing frame assembly test, smooth hardware actuation check, corner joint crimping and seal integrity evaluation.

4. Compliance Pack

Issuance of serialised project compliance tags, factory inspection certificates, and protective export crate packing.

Need Test Reports or Compliance Documentation for Your Project?

Contact our engineering team with your window schedule or architectural plans. We provide full engineering support, section drawings, and accredited test certificates for council approval.
