SAGA Aluminum Doors & Windows Co., Ltd. designs, manufactures, and supplies custom-engineered glass railing systems. Utilizing high-grade Duplex 2205 stainless steel hardware, structural aluminium U-channels, and tested safety toughened or laminated glass, our systems meet strict building safety standards across Australia, New Zealand, North America, and Europe.

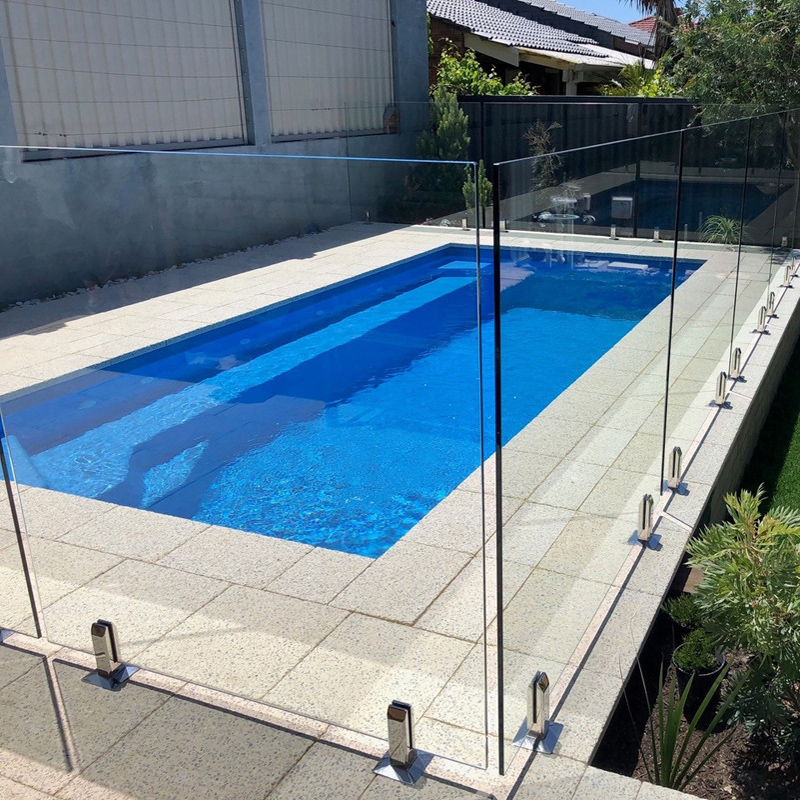

Precision-engineered pool safety glass fencing equipped with heavy-duty Duplex 2205 marine-grade stainless steel spigots. Designed for uninterrupted sightlines and extreme corrosion resistance near salt water or chlorinated pools.

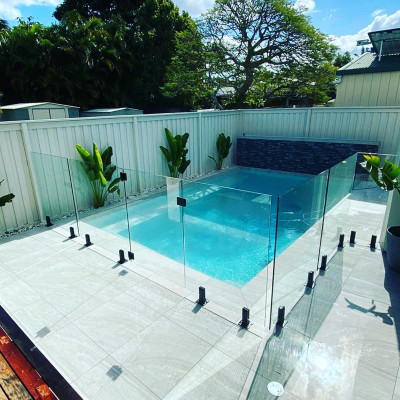

Tailored glass barrier panels custom cut and drilled to fit complex landscape curves, stepping slopes, and retaining walls. Available in clear, ultra-clear low-iron, or frosted privacy finishes.

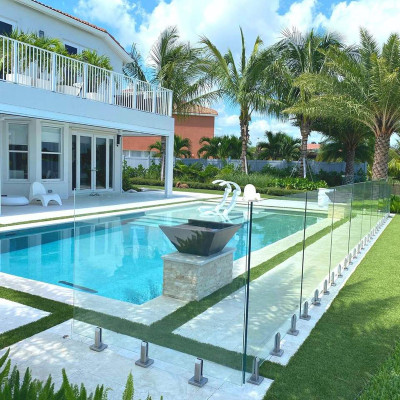

Complete modular pool fence kits standardizing soft-close hydraulic hinges, magnetic safety latches, and structural glass panels matched to municipal pool safety regulations.

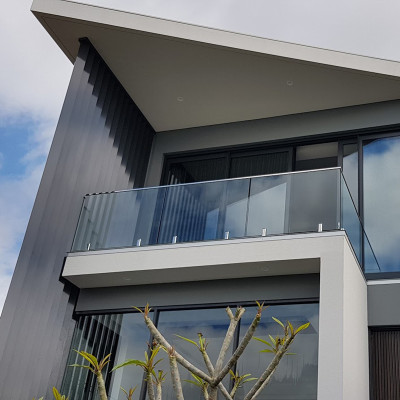

High-occupancy structural glass balustrades suitable for elevated residential balconies, terraces, and commercial outdoor dining decks. Built to withstand high wind load pressures.

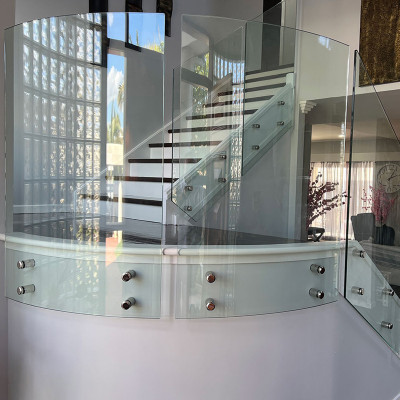

Custom rake-angled glass balustrade panels for interior staircases and exterior access steps. Fixed using side-mounted standoff pins or embedded channel tracks.

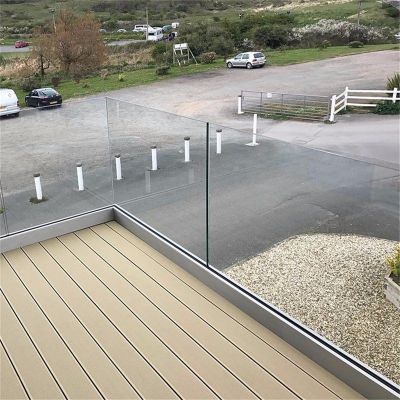

Continuous surface-mounted or recessed aluminium glazing channel systems. Features internal dry-glazing rubber seals and adjustable alignment wedges for seamless installation.
Our technical team coordinates exact glass selection, surface finishes, and mounting hardware options according to your project's local engineering and line-load requirements.
| System Component | Material / Grade | Available Specifications | Compliance Standards |
|---|---|---|---|
| Safety Glass Options | Monolithic Toughened Glass / SGP Laminated Safety Glass | 10mm, 12mm, 15mm Toughened; 13.52mm (6+0.89+6), 17.52mm (8+1.52+8) SGP Laminated | AS/NZS 2208:1996, ANSI Z97.1, EN 12150, BS 6180 |
| Hardware Spigots | Duplex 2205 Stainless Steel (Poured Cast or Solid Machined) | Square Baseplate, Core-Drilled Round, Side-Mount Heavy Duty Spigots | ASTM A240 / EN 10088-2 (High Salt/Chlorine Corrosion Resistance) |
| Glazing U-Channel | Extruded T6 6063 Architectural Aluminium Alloy | Top-Mount Channel, Side-Fascia Mount Channel, Sub-Floor Recessed Track | Powder-Coated RAL Colors, Anodized Satin / Silver, Matte Black |
| Handrail Accessories | 316 Stainless Steel / Aluminium Slim Slot Cap Rail | 25mm x 21mm Micro Slot Rail, 50mm Round Slot Rail, Offset Bracket Handrails | Line Load Load Testing up to 1.5 kN/m per building code requirements |
Engineering Note: Shop drawings detailing glass drill hole centers, edge polishing specs, and structural fixing points are generated for client sign-off prior to CNC glass tempering.
As a single-source manufacturer, SAGA Aluminum Doors & Windows Co., Ltd. controls the entire workflow—from CAD design to automated CNC glass cutting, tempering, and seaworthy export crating.
Certified impact resistance and structural integrity adhering to Australian, New Zealand, North American, and European safety standards.
Superior spigot casting technology ensuring zero rust staining or pitting in harsh coastal regions and swimming pool perimeters.
Complete project-based engineering support including custom glass layout drawings, panel numbering schedules, and installation guides.
For ground-level frameless pool fencing, 12mm monolithic toughened glass is standard. For elevated balcony balustrades, 13.52mm or 17.52mm SGP toughened laminated glass is recommended to satisfy structural line-load safety codes.
Duplex 2205 grade stainless steel offers twice the pitting corrosion resistance of standard 316 stainless steel, ensuring long-term structural durability in salt-water coastal environments and chlorinated pool enclosures.
We supply full turnkey custom packages (pre-drilled glass panels + spigots/channels + caps + hinges/latches) as well as bulk standalone hardware shipments for local fabricators and glass wholesalers.
Each glass panel is fitted with plastic corner protectors, interleaved with foam layers, and sealed inside fully enclosed, heavy-duty fumigated wooden crates designed for forklift unloading.
