CE Certified Anti-Burglar & Architectural Glazing Systems
Explore our high-performance window and door solutions, certified to international security, hurricane, and thermal standards.
Modern Aluminum Alloy Horizontal Sliding Window for Hotel and Apartment Use with Soundproof Performance
Contact Us
Complete Aluminum Window Door System | Exterior Whole House Glazing Solution 5 Year Warranty for Residential Projects Architects
Contact Us
Custom Manufactured Sondproof Aluminum Inside Door Thermal Insulation Design for Bedroom
Contact Us
Hihaus Aluminum Window Shutter Tempered Glass Louver Window for House and Apartment
Contact Us

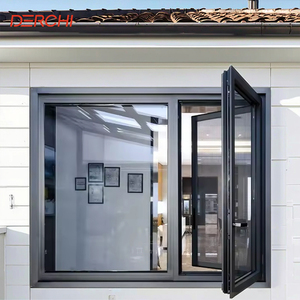

NFRC Hurricane Proof Impact Window Energy Saving Low E Glass Thermal Break Casement Aluminum windows and Doors for House
Contact Us
Rustic Design Gray Tempered Glass Aluminum Framed French Front Steel Swing Door Crittal Glass Door for Interior
Contact Us
2026 AS2047 CE NFRC Wholesale Double Glazed Waterproof Glass Aluminum Sliding Windows with Fly Screens
Contact Us

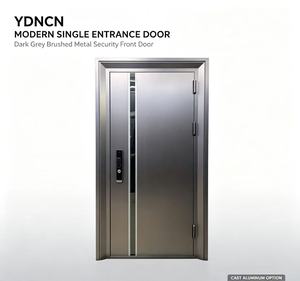

Modern Cast Aluminum Front Entrance Door Dark Grey Brushed Security Exterior Door With Vertical Anti-Theft Custom Main Entry Door
Contact UsAnatomy of CE Certified Aluminium Burglar Windows: Structural & Physical Security Integration
Modern architectural design demands a delicate balance between maximum daylighting, thermal efficiency, and uncompromised physical security. As a leading specialized CE certified aluminium burglar windows factory and supplier, SAGA integrates mechanical resistance engineering directly into the architectural extrusion profiles rather than relying on unsightly superficial add-ons like exterior iron bars or external grilles.
CE certification under European Standard EN 14351-1 (covering windows and external pedestrian doorsets) combined with burglar resistance testing according to EN 1627 to EN 1630 requires fenestration products to withstand deliberate, violent intrusion attempts utilizing technical tools including crowbars, heavy screwdrivers, manual drills, and mechanical wedges. Achieving Resistance Class 2 (RC2) and Resistance Class 3 (RC3) ratings requires comprehensive engineering across four vital subsystems:
1. High-Tensile Alloy Extrusions
Profiles extruded strictly from 6063-T5 or high-rigidity 6063-T6 primary aluminium billets. Wall thickness ranges from 1.8mm up to 3.0mm at high-stress mechanical anchor zones, preventing profile warping or pry-bar deflection under structural load.
2. Multi-Point Perimeter Locking
Engineered hardware channels accommodating continuous steel drive rods connected to mushroom-head locking cams. These cams interlock into hardened stainless steel keep-plates positioned every 400mm around the full sash frame perimeter.
3. Laminated Security Glass Units
Structural double or triple glazing combining outer toughened safety glass with inner laminated glass utilizing multi-layer PVB (Polyvinyl Butyral) or SGP (SentryGlas®) interlayers (minimum 1.52mm thickness) that prevent penetration even if shatter occurs.
Information Gain Insight: Acoustic, Thermal & Security Synergy
Architects frequently assume that specifying burglar-resistant glass compromises thermal insulation (U-value) or acoustic performance (STC/Rw). In reality, SAGA’s dual-sealed, thermally broken aluminium profiles paired with SGP laminated glass units naturally deliver triple benefits: thermal transmittance down to U = 1.1 W/m²K, sound insulation up to STC 44 dB, and forced entry protection meeting European RC3 standards.
Security Level Classification & Specification Comparison
Detailed performance matrix for commercial developers, contractors, and architectural specifiers.
| Security Classification | EN 1627 Test Standard | Profile Construction & Alloy | Glass Makeup Standard | Hardware & Locking Points | Target Application |
|---|---|---|---|---|---|
| Standard Residential (RC1N) | Basic manual levering test | 1.4mm - 1.6mm 6063-T5 Aluminium | 5mm + 12Ar + 5mm Toughened Glass | 2 to 3 Point Locking System | Low-risk upper-floor apartments |
| Enhanced Security (RC2 / EN 1627) | 3-Minute tool test (screwdrivers, pliers, wedges) | 1.8mm - 2.0mm Thermally Broken T6 Aluminium | 6mm Toughened + 12Ar + 6.76mm Laminated PVB | 4 to 6 Point Mushroom Cam Locking | Ground floor suburban villas, luxury hotels |
| High-Security Commercial (RC3 / EN 1627) | 5-Minute heavy tool test (crowbars, drills, hand saws) | 2.2mm - 3.0mm Reinforced Steel-Core Extrusion | 8mm Toughened + 16Ar + 11.52mm SGP Laminated | Continuous Perimeter Multi-Point Steel Gear | High-end retail, embassy residences, banks |
| Extreme Security / Impact Hybrid | Miami-Dade TAS 201/202/203 + RC3 Standard | 3.0mm Heavy-Duty Heavy Wall Extrusion | 12mm Toughened + Air Gap + 13.52mm Structural SGP | Heavy-Duty Stainless Friction Hinge & Lock | Coastal regions, hurricane zones, high-risk villas |
Future Procurement & Industry Development Trends (2026–2030)
How global architectural standards, carbon neutral mandates, and smart building technology are transforming aluminium burglar window manufacturing.
1. Convergence of Smart Access & Mechatronic Locks
The global market is shifting away from purely mechanical key operation toward concealed electrical multi-point locking mechanisms integrated with smart home protocols (Zigbee, Matter, Biometric Access). SAGA’s future-ready profile channels incorporate pre-routed wiring pathways for invisible sensor deployment.
2. Ultra-Slim Sightlines with Structural Glass Bonding
Architectural intent strongly favors minimal frame visibility. Future burglar-resistant windows rely on structural silicone bonding (SSG) technology where the glass unit is bonded permanently to the hidden aluminium sash frame, providing structural anti-pry stability while maximizing daylight area.
3. Hybrid Multi-Hazard Certification Requirements
Importers and international developers no longer accept single-attribute performance. Procurement contracts increasingly demand dual or triple cross-certification: combining European CE EN 1627 RC3 burglar ratings with Australian AS2047 weatherproofing and North American NFRC energy ratings into a single unified window schedule.
Why Global Builders & Wholesalers Partner with SAGA
Factory-direct manufacturing reliability, rigorous compliance audits, and total supply chain control.
16+ Years Experience
Over a decade and a half focused exclusively on export-grade custom aluminium, uPVC, and aluminium-timber joinery for over 25 countries.
Global Accreditation
Audited compliance under AGWA (AS2047/AS1288), NZS4211, NAFS test standards, CE EN 14351-1, and Miami-Dade TAS 201/202/203.
Direct Logistics
Custom crate packaging with direct container dispatch from Fuzhou or Xiamen port, ensuring zero transit breakage and seamless customs entry.
Full Engineering CAD/BIM
Every project receives customized shop drawings, section profiles, and structural calculation support before production approval.
Integrated Global Hardware & Material Partners
We collaborate with world-class component suppliers including German ROTO, Siegenia Aubi, Veka, Rehau, Kinlong, and Zhongcai to guarantee profile stability and hardware endurance exceeding 50,000 operation cycles.
Frequently Asked Questions for B2B Importers & Contractors
Direct answers regarding technical specifications, certifications, custom ordering, and trade terms.
A window is officially CE certified when it passes mandatory initial type testing under EN 14351-1, verified by an accredited laboratory for air permeability, water tightness, structural wind resistance, and forced entry testing according to EN 1627-1630 (RC2/RC3 ratings).
We utilize premium AkzoNobel or PPG architectural powder coatings applied through automated electrostatic lines. This provides superior salt-spray corrosion resistance (qualicoat Class 2 certified) preventing fading, chalking, or peeling even in aggressive marine environments.
Standard production lead time is 35 to 50 days following final CAD shop drawing sign-off and deposit confirmation. Prototype sample evaluation units can be dispatched in 15 to 20 days.
Yes. Our engineering department routinely customizes extrusions, glass makeup, and hardware schedules to comply precisely with Australian (AGWA AS2047/AS1288), New Zealand (NZS4211), North American (NAFS), or Florida Hurricane Impact (Miami-Dade) building codes.
We accept T/T bank transfers and Alibaba Trade Assurance contracts. Orders are shipped under FOB, CIF, or DDP terms from loading ports in Fuzhou or Xiamen, China.
Yes. We offer free standard corner cut samples or full-size window sample units (freight paid by buyer) to assist architects, certifiers, and developers in evaluating frame thickness, finish, and hardware operation.
Ready to Secure Your Next Building Project?
Contact our structural fenestration engineers today for CAD shop drawing support, custom profile specifications, and factory-direct pricing for CE certified aluminium burglar windows.
