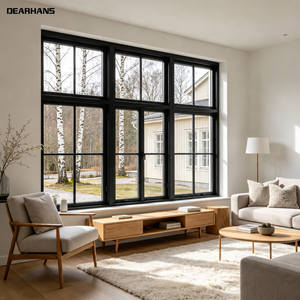

Black Aluminum Casement Windows with Screens Thermal Break Low-E Double Glazed French Casement Windows for House Villa
Send an Inquiry
Modern House Designs Wooden Aluminium Casement Arch Window Custom Special Shape Glass Windows
Send an Inquiry
HUACAI North American Red Oak Aluminum Wood Composite Tilt and Turn Window 1.8mm Profile Triple Glazed Soundproof System Window
Send an InquiryYears Engineering Expertise
Global Export Markets
Harmonized European Standard
Ultra-Low U-Value Potential
Understanding CE Certified Aluminium Cottage Pane Doors Engineering
In contemporary architectural design, the demand for CE Certified Aluminium Cottage Pane Doors (frequently designated as Georgian grid doors or multi-lite French doors) has escalated rapidly across European and international markets. Combining timeless heritage aesthetic lines with state-of-the-art thermal break metallurgy, modern aluminium cottage pane systems overcome the historic maintenance, rotting, and structural deflection vulnerabilities associated with classic timber joinery.
CE marking under Harmonized Standard EN 14351-1 (Windows and external pedestrian doorsets) is not merely a regulatory compliance checkmark; it represents a comprehensive proof of structural integrity, air tightness, water penetration resistance, and thermal performance. As leading OEM/ODM manufacturers, SAGA Doors & Windows engineers custom cottage pane door systems using 6063-T6 architectural grade aluminium extrusions integrated with high-density polyamide thermal barrier strips. This whitepaper provides commercial buyers, developers, contractors, and architectural specifiers with an exhaustive analysis of structural grid configurations, performance benchmarks, future procurement trends, and quality assurance protocols.
Anatomy of Modern Aluminium Cottage Pane Door Systems
The structural integrity and visual authentic profile of a cottage pane door rely heavily on the engineering approach used to construct the divided lites (muntin bars). Buyers can choose between three primary manufacturing methodologies depending on thermal requirements and architectural specifications.
Simulated Divided Lites (SDL)
SDL technology utilizes CNC precision-cut aluminium grid profiles adhered permanently to the external and internal surfaces of a single, continuous Insulated Glass Unit (IGU). An internal duplex spacer bar is aligned inside the glass unit beneath the surface bars to create the convincing illusion of individual glass panes.
- Thermal Efficiency: Maximizes IGU performance by eliminating thermal bridging through frame joints.
- Structural Strength: Retains full structural strength of a single tempered glass pane.
- Ideal For: High-wind coastal zones and energy-restricted residential projects.
True Divided Lites (TDL)
TDL doors feature structural transom and mullion aluminium profiles that physically divide the door sash into individual sub-frames. Each cottage pane houses its own separate double-glazed or triple-glazed sealed unit.
- Aesthetic Authenticity: Exact historical reproduction for heritage-listed restorations.
- Maintenance Flexibility: Individual damaged glass panes can be replaced independently.
- Ideal For: Premium luxury estate entrances and historic conservation zones.
Grids Between Glass (GBG)
GBG systems place decorative powder-coated or anodized aluminium grid bars entirely within the hermetically sealed cavity of the double-glazed unit. The exterior glass surfaces remain completely flat and unobstructed.
- Zero Maintenance: Dust and debris cannot accumulate on grid edges; effortless cleaning.
- Cost Optimization: Most economical procurement option for volume commercial projects.
- Ideal For: High-density multi-family developments and commercial shopfronts.
Material & Performance Matrix: Aluminium vs. Alternative Materials
Evaluating the Total Cost of Ownership (TCO) and mechanical properties for architectural cottage pane door procurement.
| Performance Attribute | Thermal Break Aluminium (SAGA) | Traditional Hardwood | Standard uPVC Profile | Structural Steel |
|---|---|---|---|---|
| CE Certification Standard | EN 14351-1 Compliant | Varies by Timber Joiner | EN 14351-1 Compliant | EN 14351-1 / EN 1090 |
| Thermal Transmittance ($U_w$) | 1.1 - 1.5 W/m²K | 1.6 - 2.0 W/m²K | 1.2 - 1.6 W/m²K | 2.2 - 3.0 W/m²K |
| Frame Wall Thickness | 1.8mm - 2.2mm (High Yield 6063-T6) | 55mm - 70mm Solid Section | 2.8mm - 3.0mm Multi-Chamber | 1.5mm - 2.0mm Cold Formed |
| Corrosion & Weather Resistance | Qualicoat Class 2 Powder Coat (3000hr Salt Spray) | Requires Sanding/Repainting every 3 Years | Prone to UV Yellowing over time | Requires Hot-Dip Galvanizing & Touchup |
| Wind Load Resistance (EN 12210) | Class C5 / B5 (up to 3000 Pa) | Class C3 (Deflection vulnerable) | Class C3 / C4 | Class C5 (Heavyweight) |
| Acoustic Insulation ($R_w + C_{tr}$) | 38 dB - 44 dB (with Laminated IGU) | 30 dB - 35 dB | 34 dB - 40 dB | 32 dB - 38 dB |
| Expected Lifespan | 40+ Years (10-Yr Factory Guarantee) | 15 - 20 Years (Maintenance dependent) | 20 - 25 Years | 30+ Years |
Metallurgical Precision & Thermal Barrier Engineering
How SAGA engineers achieve low operational U-values while maintaining slim sightlines for heritage cottage pane designs.
High-Yield 6063-T6 Alloy Extrusions
Aluminum frames used in CE certified cottage doors must withstand significant dynamic forces without frame twisting or corner joint racking. SAGA utilizes primary billet 6063-T6 alloy boasting a minimum tensile strength of 205 MPa and a yield strength of 170 MPa.
Precision miter joints are chemically cold-welded using structural two-component epoxy adhesive and mechanically crimped with German-engineered pneumatic corner cleats. This ensures water tightness and structural stability even under severe wind loads (EN 12210 Class C5).
PA66-GF25 Thermal Break Strips
Aluminum is a natural thermal conductor. To meet strict European energy regulations (such as German GEG or UK Building Regulations Part L), our thermal break profiles integrate 24mm to 34mm multi-chamber Polyamide 66 reinforced with 25% glass fiber (PA66-GF25).
This thermal barrier matches the linear coefficient of thermal expansion of aluminium, eliminating structural shearing when subject to extreme differential temperatures between indoors (-10°C) and outdoors (+40°C).
Future Procurement Trends for Aluminium Cottage Pane Doors (2026–2030)
Strategic insights for volume importers, wholesalers, developers, and architects planning upcoming supply chains.
1. Ultra-Slim Interlocking Sightlines
Architectural preference is shifting rapidly away from bulky, heavy frame extrusions toward ultra-slim profile designs. Modern buyers specify cottage pane doors with sash sightlines as narrow as 35mm to 48mm. This maximizes solar heat gain and natural daylight admittance while preserving delicate Georgian grid aesthetics.
2. Decarbonized & Recycled Aluminium
With the implementation of the EU Carbon Border Adjustment Mechanism (CBAM) and strict Scope 3 emission targets for tier-1 contractors, sourcing cottage pane doors manufactured from low-carbon billet (smelted using hydroelectric power or containing ≥75% post-consumer recycled scrap) has become a key competitive bid parameter.
3. Smart Lock & Biometric Integration
Traditional lock escutcheons on cottage doors are being replaced by concealed multi-point motorized locks compatible with smart home ecosystems (Zigbee, Matter, and Apple HomeKit). Concealed wiring channels within the thermal break profile allow seamless installation of biometric fingerprint sensors and keypads.
Why Partner With SAGA Doors & Windows?
As an internationally recognized manufacturer specializing in high-specification fenestration systems, SAGA Aluminum Doors & Windows Co., Ltd. operates state-of-the-art CNC production lines delivering factory-direct precision to over 25 countries.
Global Audited Certifications
Our manufacturing facilities and system designs are third-party audited under internationally accredited schemes, including the Australian AGWA program for AS2047:2014 & AS1288:2021, New Zealand Building Code compliance (NZS4211:2008), North American NAFS test standards, and Florida Miami-Dade Hurricane Impact certifications (TAS 201/202/203).
Complete Shop Drawing & Engineering Support
We don't just supply off-the-shelf doors; we provide custom CAD/BIM architectural section drawings, structural wind-load calculation reports, and site installation manuals tailored to your project location. Every order undergoes 100% pre-shipment dry assembly to ensure perfect lock alignment and sash operation.
Frequently Asked Questions by Importers & Specifiers
Technical and commercial answers to simplify your supply chain decision-making process.
Q: What documentation is provided with CE Certified Cottage Pane Doors?
Every shipment includes an official Declaration of Performance (DoP) detailing essential characteristics under EN 14351-1: thermal transmittance ($U_w$), air permeability (Class 1-4), watertightness (Class 1A-9A), resistance to wind load (Class A1-C5), and dangerous substances compliance.CE labels are permanently etched onto glass units and frame profiles.
Q: What is the typical lead time for custom aluminium cottage pane door orders?
Standard production lead time is 35 to 50 days from the date final CAD shop drawings are approved and deposit is received. Accelerated schedules can be negotiated for project tenders. Ocean shipping duration depends on destination port (e.g., 18-25 days to European main ports, 14-20 days to Australia/US West Coast).
Q: How are grid dimensions customized for specific architectural ratios?
Our CAD engineering team custom-calculates muntin bar spacing based on your overall structural opening dimensions to ensure perfectly proportioned rectangular or square lites. We accommodate custom bar widths ranging from 18mm slim Georgian profiles up to 45mm heavy-duty structural transoms.
Q: Which hardware brands and multi-point locking systems are integrated?
We equip our doors with world-class German hardware systems including ROTO Frank, Siegenia-Aubi, G-U (Gretsch-Unitas), or custom heavy-duty SAGA stainless steel multi-point locking gear designed to resist forced entry up to European RC2 / RC3 burglar resistance standards.
Q: What powder coating standards and surface warranties are offered?
We apply Qualicoat Class 2 standard thermosetting architectural powder coatings or PVDF 3-coat fluorocarbon finishes with film thicknesses ranging from 60μm to 90μm. This ensures exceptional resistance to fading, chalking, and salt-spray corrosion backed by a 10 to 25 year surface guarantee depending on environmental exposure.
Q: How are doors packaged to prevent damage during ocean transit?
Door sashes and frames are wrapped individually in protective PE stretch film, corner-protected with high-density EVA foam blocks, and encased inside fully enclosed fumigated plywood crates with integrated steel lifting straps suitable for forklift offloading on job sites.
