CE Certified Aluminium Hatch Door Factory & Suppliers

Engineering-Grade Access Hatch Systems & High-Performance Architectural Joinery for Global B2B Procurement

Factory Direct Catalog

Featured Engineering Windows & Hatch Systems

Explore our top-tier CE compliant aluminium doors, windows, and heavy-duty structural access hatches designed for commercial, residential, and marine applications.

Safety Glass Equipped Aluminum Swing Door Anti Theft Structure for Commercial Office Room Entry Application

Safety Glass Equipped Aluminum Swing Door Anti Theft Structure for Commercial Office Room Entry Application

Get a Quote

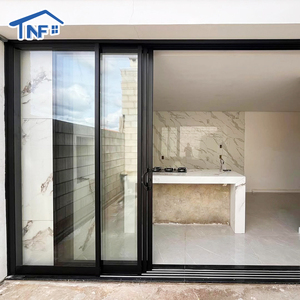

Custom Large Opening Panoramic Hurricane Impact Multi-Panel Aluminum Stacker Double Glazed Sliding Glass Doors with Fly Screen

Custom Large Opening Panoramic Hurricane Impact Multi-Panel Aluminum Stacker Double Glazed Sliding Glass Doors with Fly Screen

Get a Quote

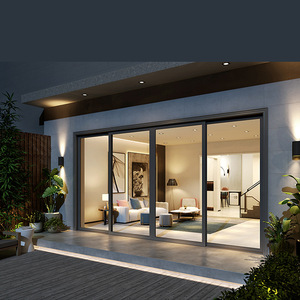

2025 Modern Slim Frame Black Aluminum Double Glazed Tempered Glass Patio Sliding Door Hurricane Impact Resistant Sliding Patio

2025 Modern Slim Frame Black Aluminum Double Glazed Tempered Glass Patio Sliding Door Hurricane Impact Resistant Sliding Patio

Get a Quote

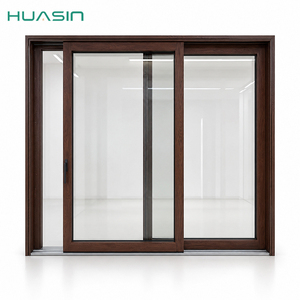

Huasin High Performance Aluminum Clad Wood Sliding Door for Residential Buildings Aluminum Wood Lift and Slide Door

Huasin High Performance Aluminum Clad Wood Sliding Door for Residential Buildings Aluminum Wood Lift and Slide Door

Get a Quote
American Replacement Single Hung Windows Aluminum Vertical Sliding Single Hung Windows With Full Insect Screen

American Replacement Single Hung Windows Aluminum Vertical Sliding Single Hung Windows With Full Insect Screen

Get a Quote

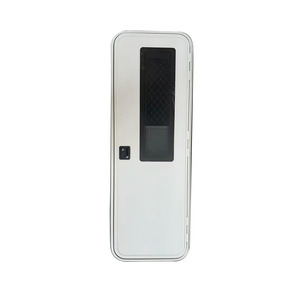

Whole Sale Aluminium Alloy Trailer White RV Camper Door

Whole Sale Aluminium Alloy Trailer White RV Camper Door

Get a Quote

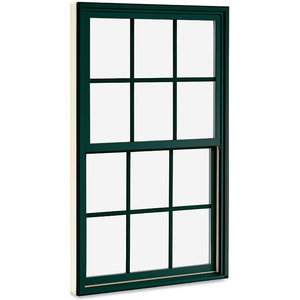

Arch Australia Standard Aluminium Double Tempered Glass Glazed Hung Vertical Sliding Window

Arch Australia Standard Aluminium Double Tempered Glass Glazed Hung Vertical Sliding Window

Get a Quote
Wholesale Traditional Custom Aluminum Wooden Window Frames Design Tripple Glazed Wood Windows

Wholesale Traditional Custom Aluminum Wooden Window Frames Design Tripple Glazed Wood Windows

Get a Quote
16+
Years Manufacturing Excellence
25+
Export Destination Markets
100%
CE EN 14351-1 & AGWA Audited
10-Yr
Structural & Weathering Warranty
Technical Whitepaper

CE Certified Aluminium Hatch Door Engineering: Standards & Architectural Specifications

In modern industrial, commercial, and high-end residential architecture, CE Certified Aluminium Hatch Doors serve as vital access points, roof exit hatches, floor inspection doors, and marine envelope penetrations. Compliance with the European Union’s Construction Products Regulation (CPR 305/2011) and EN 14351-1 harmonized standards is not merely a legal requirement—it represents a benchmark for air permeability, watertightness, wind resistance, and structural load safety.

Key Engineering Standard: CE EN 14351-1 mandates stringent testing for operational forces, thermal transmittance (U-value), acoustic isolation, and structural deflection under extreme wind loads (up to Class C5 per EN 12210).

As a direct-factory manufacturer, SAGA Aluminum Doors & Windows Co., Ltd. custom engineers every hatch door using architectural-grade 6063-T6 or marine-grade 5083-H111 aluminium extrusions. By incorporating poly-amide (PA66GF25) thermal breaks and continuous triple EPDM weather gaskets, our hatches prevent thermal bridging and eliminate condensation risks in climate-controlled roofscapes and sub-floor voids.

Specifier's Matrix

Comparative Engineering Analysis of Access Hatch Classifications

Selecting the correct aluminium hatch profile and alloy tempering depends heavily on structural load mandates, acoustic requirements, and atmospheric exposure.

Hatch Category Alloy & Temper CE & International Code Structural Load Rating Thermal U-Value Primary Industrial Application
Thermal Roof Access Hatch 6063-T6 Powder Coated EN 14351-1 / EN 12207 Class 4 3.5 kN/m² Uniform Load 0.78 - 1.2 W/m²K Commercial roofs, HVAC access, skylight exits
Heavy-Duty Floor Hatch 6061-T6 Heavy Plate EN 124 Class C250 / D400 140 kN - 400 kN Point Load 1.6 W/m²K (Insulated) Utility vaults, equipment rooms, parking decks
Acoustic Flush Wall Hatch 6063-T5 Anodized EN ISO 10140-2 (Rw 45dB) 1.5 kN/m² Impact Resistance 1.4 W/m²K Data centers, recording studios, MEP shafts
Marine & RV Trailer Hatch 5083-H111 Corrosion Resistant CE Marine Directive / ISO 12216 5.0 kN/m² Wave Slamming 1.8 W/m²K Yachts, RV campers, naval vessels, coastal units
Enterprise Core Competencies

Why B2B Specifiers & Importers Partner With SAGA

From custom shop drawings to audited batch production, SAGA bridges factory-direct cost efficiency with global compliance standards.

CE & AGWA Certified Audits

Factory production control (FPC) audited independently under CE CPR 305/2011, Australian AGWA (AS2047/AS1288), and North American NAFS standards.

Gas-Strut Torque Engineering

Precision Newton-calibrated gas spring actuators ensure one-handed opening forces (< 30N) with integrated automatic hold-open safety arms.

BIM & Shop Drawing Support

Dedicated engineering department providing CAD cross-sections, 3D BIM Revit models, and structural calculation sheets prior to production sign-off.

Advanced Surface Finishes

Qualicoat Class 2 fluorocarbon (PVDF) powder coating and 25-micron marine anodizing tested to withstand 2,000+ hours salt spray (ASTM B117).

Integrated Security Locks

Multi-point anti-theft locking systems, Euro-profile cylinder locks, and access-control strike compatibility for high-security commercial installations.

Direct Export Logistics

Full container load (FCL) and custom reinforced wooden crate packing shipped direct from Fuzhou or Xiamen ports within 35 to 50 days lead time.

Industry Insight

Future Procurement Trends in Aluminium Hatch Doors (2025–2030)

The global demand for high-performance architectural access hatches is undergoing a technological transformation driven by carbon-neutral building codes, smart facility management, and dynamic weather protection.

1. Smart BMS Integration & Motorized Actuation

Modern commercial complexes are phasing out manual access hatches in favor of 24V DC electric linear actuators linked directly to Building Management Systems (BMS). Automated hatches allow micro-climate ventilation cycles and serve as certified Natural Smoke and Heat Exhaust Ventilators (NSHEV) complying with EN 12101-2.

2. Ultra-Low Carbon Billets & EPD Transparency

Importers in Europe and Oceania increasingly require Environmental Product Declarations (EPD). Future-ready factories utilize hydro-powered smelted aluminium billets with carbon intensities under 4.0 kg CO₂/kg Al, enabling projects to secure LEED v4 and BREEAM sustainability credits.

3. Multi-Hazard Blast & Hurricane Resilience

With intensifying extreme weather events, coastal developments specify access hatches verified under Miami-Dade TAS 201/202/203 missile impact tests. High-strength laminated glass infills and internal structural web reinforcements protect critical roof and sub-grade infrastructures.

4. Prefabricated Modular Envelope Integration

To drastically reduce on-site labor costs, hatch units now feature factory-integrated pitch curb flashing skirts, dual-layer insulation panels, and pre-drilled anchoring flanges tailored to standing seam roofs and prefabricated concrete slabs.

Manufacturing Discipline

SAGA 7-Step Precision Manufacturing Matrix

Every aluminium hatch door and custom joinery order passes through a standardized, fully documented quality assurance procedure.

1
Engineering
CAD & BIM shop drawing sign-off
2
Sample Audit
Standard sizing sample verification
3
Material Cut
CNC precision double-head cutting
4
Assembly
Corner crimping & gasket insertion
5
QC Testing
Air/Water pressure & lock audit
6
Crate Packing
Protected wooden crate loading
7
Port Export
FCL shipping from Fuzhou/Xiamen
Procurement Guidance

Frequently Asked Questions by Commercial Buyers

Detailed answers regarding technical specifications, CE compliance verification, lead times, and global shipping.

What specific CE test reports and certificates accompany SAGA aluminium hatch doors?
SAGA provides complete Declaration of Performance (DoP) documents under CE EN 14351-1. Our test reports cover air permeability (EN 12207 Class 4), watertightness (EN 12208 Class E1200), resistance to wind load (EN 12210 Class C5), and operating forces (EN 12217). Additionally, projects for Oceania receive AGWA audited certificates for AS2047/AS1288, and North American projects receive NAFS and Miami-Dade TAS test reports.
How does SAGA calculate gas strut counterbalancing for heavy custom hatch doors?
Our engineering software calculates gas spring stroke length, pivot points, and Newton rating based on cover weight, frame depth, opening angle (typically 80° to 90°), and wind resistance. This guarantees an effortless manual lifting effort of under 30 N while ensuring the automatic hold-open arm locks securely under high gust conditions.
Can SAGA produce flush-mounted floor hatch doors capable of handling heavy equipment loads?
Yes. SAGA manufactures heavy-duty aluminium alloy floor access hatches engineered to EN 124 standards. Utilizing 6061-T6 structural grade aluminium tread plates reinforced with internal structural box sections, our floor hatches can achieve point load capacities ranging from Class B125 (12.5 ton) up to Class D400 (40 ton) for industrial utility chambers and driveways.
What surface treatment options are available for extreme coastal or marine environments?
For marine or severe coastal exposure (within 1 km of ocean waters), we recommend our 25-micron anodized finish or Qualicoat Class 2 fluorocarbon (PVDF) powder coating. These treatments pass 2,000+ hours of continuous salt spray testing under ASTM B117, completely resisting pitting, chalking, and filiform corrosion.
Which types of B2B buyers does SAGA supply custom windows, doors, and hatches to?
We directly supply building material wholesalers, regional window fabricators, commercial developers, general contractors, architects, and marine outfitters. Every client receives comprehensive shop drawings, structural calculations, and custom packing tailored to their jobsite or retail requirements.
What is the production lead time for customized orders?
Standard production lead time is 35 to 50 days following the formal sign-off of technical shop drawings and order confirmation. Shipping durations vary depending on the destination sea route from our primary loading ports in Fuzhou or Xiamen, China.
Can SAGA supply physical window or hatch section samples for client evaluation?
Yes. We supply standard sample corner sections or complete small-scale window sample units to evaluate profile thickness, thermal break assembly, gasket seal quality, and hardware finishes. Sample units are provided free of charge, with ocean/air freight covered by the buyer.
What payment terms and order protection methods are supported?
We accept standard telegraphic bank transfer (T/T) and Alibaba Trade Assurance, offering complete trade security and delivery verification for international buyers.

Ready to Specify CE Certified Aluminium Hatch Doors for Your Next Project?

Consult directly with SAGA’s senior engineering team. Get custom CAD drawings, technical compliance verification, and factory-direct wholesale pricing within 24 hours.
