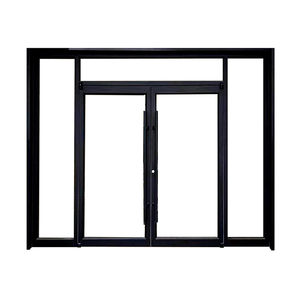

White Bi Fold Sliding Doors Double Glazed Balcony Aluminium Frame Fluted Glass Patio Shower Door
good price aluminium kitchen cabinet design sliding wardrobe doorsextruded Aluminum profiles

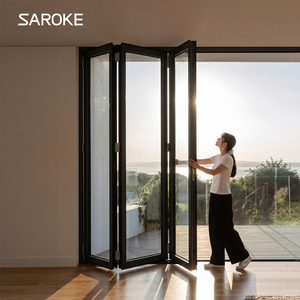

Villa Waterproof Custom 6 Panels Aluminum Glass Alloy Frame Folding Door for Outdoor
Soundproof Energy Saving Swing Double Glazing Triple Glazed Aluminum Casement Windows For Apartment Passive House Luxury Hotels
Modern Triple Link Aluminum Weatherproof Folding Door for Hotel and Restaurant Patio Easy Maintenance

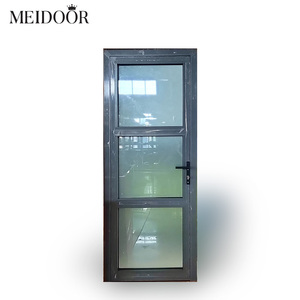

Australian Standard Storm Security Aluminum Hinged Double Glazing Glass French Doors with Fiberglass Screen for Apartment Use

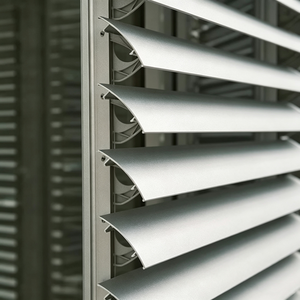

China Supplier OEM ODM Factory Price Modern Aluminum Extrusion Profile Window Door Custom Aluminum Door Window Villa Outdoor
Industrial Engineering Analysis: CE Certified Aluminium Roll-Up Door Architecture
In modern commercial logistics, industrial facilities, high-end residential garages, and hurricane-prone coastal structures, access automation demands rigorous mechanical precision. A CE Certified Aluminium Roll Up Door serves as a vital environmental, structural, and security barrier. CE marking according to the European Harmonized Standard EN 13241-1 mandates stringent compliance across operational safety, mechanical resistance, thermal insulation ($U$-value performance), and wind load withstand capacities under EN 12424.
As a specialized factory-direct manufacturer, SAGA engineers custom aluminium roll-up shutter systems utilizing high-yield 6063-T5 and 6063-T6 architectural grade aluminium alloys. Unlike conventional galvanized steel roll-up doors—which suffer from progressive atmospheric oxidation, excessive dead weight, and high motor fatigue—extruded aluminium profile assemblies deliver an unprecedented strength-to-weight ratio, superior coastal anti-corrosion resilience, and acoustic dampening qualities essential for urban and industrial envelope integration.
Every motorized roll-up door leaving our manufacturing plant undergoes mandatory Declaration of Performance (DoP) audits. Key safety features include integrated Anti-Drop Safety Brake Mechanisms (EN 12604), Optical Bottom-Edge Safety Contact Sensors (EN 12453), and Emergency Manual Override (Declutching systems) to prevent mechanical entrapment during localized power grid failure.
Whether specifying single-wall extruded security slats, double-wall polyurethane (PU) foam-filled thermal profiles, or high-velocity hurricane-resistant wind-lock assemblies, structural calculations must balance wind pressure resistance with deflection dynamics. Our engineering team utilizes Finite Element Analysis (FEA) to verify slat geometry under dynamic pressure loads exceeding 2,400 Pa (equivalent to Class 5 wind resistance), guaranteeing structural integrity under severe tempest conditions.
Comprehensive Slat & System Specification Guide
Compare engineered slat profiles, thermal break values, wind resistance capabilities, and motorization systems for optimal project specification.
| Profile Specification | Slat Profile Geometry | Core Insulation / Material | Max Wind Load (EN 12424) | Thermal Coeff ($U$-Value) | Primary Commercial Application |
|---|---|---|---|---|---|
| Series 55 PU Insulated | 55mm x 13.5mm Double Wall | High-Density CFC-Free PU Foam | Class 3 (up to 1,000 Pa) | ~3.2 W/m²K | Residential Garages & Retail Shopfronts |
| Series 77 Heavy Thermal | 77mm x 19mm Double Wall | 45 kg/m³ Polyurethane Foam Core | Class 4 (up to 1,400 Pa) | ~2.4 W/m²K | Cold Chain Logistics & Warehousing |
| Series 100 Extruded Security | 100mm x 1.2-2.0mm Heavy Extrusion | Solid 6063-T6 Aluminium Alloy | Class 5 (> 2,000 Pa) | ~5.6 W/m²K | Industrial Factories & High-Security Depots |
| Series 120 Wind-Lock Storm | 120mm Interlocking Double Slat | Reinforced Webbed Alloy + Wind Clips | Class 5+ (TAS 202 Impact Tested) | ~4.8 W/m²K | Coastal Windward & Hurricane-Zone Terminals |
| Series 80 Vision Punch / Louver | 80mm Perforated / Acrylic Insert | Anodized Extruded Aluminium | Class 2 (up to 600 Pa) | N/A (Ventilated) | Underground Parking & Commercial Malls |
Enterprise Manufacturing Capabilities & Compliance Standards
SAGA (SAGA Aluminum Doors & Windows Co., Ltd.) operates a state-of-the-art 45,000 m² automated manufacturing facility situated in the Tieling Technical and Economic Development Zone, Fuzhou, Fujian. With over 16 years of direct factory export experience to more than 25 sovereign markets, our factory combines advanced metallurgy, precision CNC profile machining, and rigorous quality management systems audited under international accreditation frameworks.
AGWA Accredited Compliance
Audited under the Australian Glass and Window Association program for compliance with AS2047:2014, AS1288:2021, and National Construction Code (NCC 2022) structural requirements.
New Zealand Code Certified
Formally certified under NZS4211:2008 covering NZ Building Code clauses B1 (Structure), B2 (Durability), E2 (External Moisture), and H1 (Energy Efficiency).
North American NAFS Standard
Verified through independent laboratory testing for uniform load structural deflection, air infiltration leakage, water penetration, and forced-entry security resistance.
Miami-Dade Hurricane Impact
Engineered to withstand High-Velocity Hurricane Zone (HVHZ) conditions, passing TAS 201-94 (Impact), TAS 202-94 (Static Air), and TAS 203-94 (Cyclic Wind Load).
Our factory features fully automated vertical powder coating lines certified by AkzoNobel Interpon and Qualicoat Class 2, ensuring that aluminium surface finishes resist severe solar UV degradation, atmospheric salt-spray corrosion (tested to ASTM B117 3,000-hour exposure), and chalking in severe tropical maritime conditions. Integrated side guide channels with dual EPDM weather-stripping and nylon brush seals eliminate operational chatter, damp wind-induced noise, and maintain airtight environmental seals.
Future Procurement & Sourcing Trends in Commercial Roll-Up Doors
Insights for global EPC contractors, architectural specifiers, and building material importers navigating evolving building standards and smart infrastructure demands.
1. Smart IoT & BMS Integration
Global procurement is shifting decisively toward smart-enabled drive motors featuring RS485/Modbus interfaces. Commercial roll-up doors are now expected to feed real-time status data (cycle counts, thermal overload warning, obstruction detection) directly into automated Building Management Systems (BMS).
2. Decarbonization & Low-Carbon Aluminum
With carbon border adjustments (such as EU CBAM) taking full effect, developers require Environmental Product Declarations (EPDs). SAGA utilizes low-carbon aluminium billets smelted using renewable hydro-power, cutting embedded carbon footprints by up to 60% compared to coal-fired smelting.
3. Extreme Weather Mitigation Engineering
Climate volatility has increased demand for wind-lock retention clips capable of preventing curtain derailment during 250 km/h hurricane gusts. Future procurement specifications prioritize multi-point mechanical end-locks over standard friction inserts.
4. BIM & DfMA Modular Manufacturing
B2B importers and general contractors require 3D BIM (Revit) objects and Design for Manufacture and Assembly (DfMA) precision. Prefabricated cassette assemblies reduce on-site installation labor costs by over 40%.
Technological Trends: High-Speed Actuation & Thermal Insulation Breakthroughs
The technological evolution of aluminium roll-up shutter systems centers around operational velocity, acoustic isolation, and thermal efficiency. Traditional slow-speed motor drives (operating at 0.15 m/s) are rapidly being superseded by Brushless DC (BLDC) Variable-Frequency Intelligent Drives capable of smooth acceleration profiles up to 1.5 m/s. High-speed cycle performance minimizes conditioned air exchange in temperature-controlled warehouses, resulting in substantial HVAC energy conservation.
Furthermore, advances in polymer science have introduced multi-chamber polyurethane foam core formulations that eliminate thermal bridging across profile joints. By combining continuous polyamide (Nylon 66) thermal break strips within dual-extruded aluminium curtain slats, heat transfer coefficients ($U$-values) are significantly lowered, fulfilling stringent net-zero building energy targets (such as Passive House and Australian NCC Section J requirements).
Our patent-pending slat articulation hinge geometry incorporates self-lubricating polyoxymethylene (POM) insert glides. This technology attenuates operational vibration noise to under 52 dB during high-speed opening cycles, representing a dramatic noise reduction over conventional steel rolling shutters.
Frequently Asked Questions for B2B Importers & Engineers
Detailed technical answers addressing compliance, testing verification, OEM tooling, trade terms, and logistics coordination.
Q1 What compliance documentation is provided to verify CE Certification under EN 13241-1?
Every shipment of SAGA CE Certified Aluminium Roll Up Doors includes a formal Declaration of Performance (DoP), factory production control (FPC) audit reports, and accredited third-party test certificates. Testing documentation details compliance with EN 12604 (Mechanical Aspects), EN 12453 (Safety in Use for Power Operated Doors), EN 12424 (Wind Load Resistance), and EN 12428 (Thermal Transmittance). This documentation ensures frictionless customs clearance and certifier approval across EU member states and global jurisdictions enforcing European building directives.
Q2 How does SAGA handle custom OEM/ODM profile extrusions for specific architectural briefs?
We operate in-house die design and precision extrusion tooling shops. Customers submitting CAD or BIM specifications can have custom aluminium slat geometries, guide rail profiles, or box cover housings prototyped within 12 to 15 days. Once sample profiles pass dimensional tolerance checks (compliant with ISO 2768-mK) and anodizing/powder-coating adhesion testing, mass production commences. Custom color matching is available for RAL, Dulux, and Interpon color libraries.
Q3 What are the structural mechanisms used to achieve Wind Pressure Class 5 rating?
To achieve Class 5 wind load resistance (capable of resisting static wind pressures above 2,000 Pa), our engineering team utilizes heavy-duty extruded aluminium slats (wall thickness 1.5mm to 2.2mm) fitted with heavy steel wind-lock retention clips riveted to alternate slat ends. These wind locks run inside deep-flanged side guide channels equipped with internal steel structural ribs, preventing curtain pull-out even when subject to severe hurricane suction forces.
Q4 Which motor automation brands and drive options can be integrated?
We integrate global drive systems based on project requirements, including French Somfy tubular motors, German GFA Elektromaten side-mount industrial drives, and specialized high-speed inverter systems. Standard electrical configurations support 220V/50Hz single-phase, 380V/50Hz three-phase, or 110V/60Hz North American power supplies. Drive controls can include radar motion detection, infrared photocells, wireless pushbuttons, magnetic loop detectors, and RS485 smart gateway modules.
Q5 What is the standard production lead time and loading port logistics?
Typical manufacturing lead times range from 35 to 50 days following shop drawing sign-off and deposit receipt. Orders are securely packed in heavy-duty fully enclosed fumigated wooden crates or steel frame cradles designed for export containerization. Shipments are loaded directly from Fuzhou Port or Xiamen Port in Fujian Province, China, offering direct ocean freight routes to major international ports across Australia, North America, Europe, and the Middle East.
Q6 Do SAGA aluminium roll-up doors comply with Australian AS2047 and New Zealand NZS4211 standards?
Yes. SAGA products undergo independent annual audits under the AGWA (Australian Glass and Window Association) program, verifying structural deflection, air infiltration, and water penetration resistance per AS2047:2014 and AS1288:2021 glass glazing rules. For New Zealand, our compliance testing covers NZS4211:2008 and relevant building code clauses (B1, B2, E2, F2, G4, G7, and H1 energy efficiency requirements).
Q7 What quality guarantees and warranty terms cover commercial orders?
We provide a 10-Year Factory Warranty covering structural aluminium extrusion integrity and surface finish adhesion (against peeling, cracking, or abnormal fading). Mechanical drive motors and electronic control accessories are backed by a 5-year replacement warranty. Spare parts continuity is guaranteed for a minimum of 15 years to support long-term facility maintenance networks.
Q8 Can samples be provided for architectural evaluation and certifier review prior to full project ordering?
Yes. We regularly supply sample corner sections (showcasing slat profile cross-sections, guide channel gaskets, thermal break construction, and surface finish options) or full standard-size sample shutters for certifier review and laboratory testing. Sample units are provided free of charge, with the buyer covering international express freight charges.
