Engineered Product Portfolio
CE Certified Aluminum Bifold & Architectural Systems
Explore our precision-engineered, factory-direct aluminum windows and doors built to meet demanding European, Australian, and North American building codes.

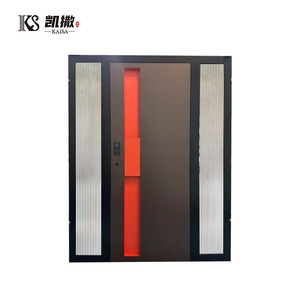

Aluminum Door with Side Windows Thermal Break, Fireproof, Soundproof, Waterproof for Commercial Office & Company Building
Customized for Engineering Projects Aluminum Window Double Tempered Glass NFRC AS2047 Hurricane Certification Casement Window

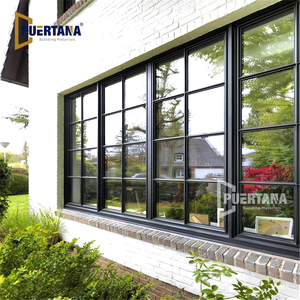

Crittall Style Industrial Old Steel Look Window Design Slimline Thermally Broken Aluminum Slim Frame Casement Window for Home

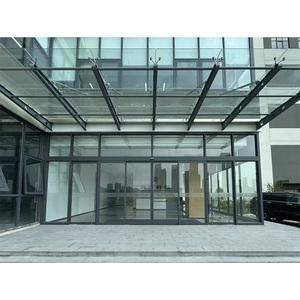

Office Building Aluminum Framed Entrance Door & Restaurant Aluminum Glass Commercial Door - Retail Store Front Aluminum Door

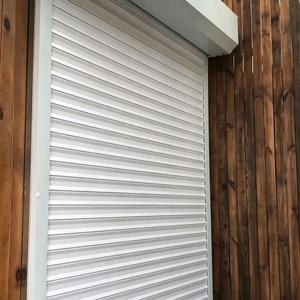

Custom Garage Aluminum Door Roll Windproof Modern Design Door Anti Theft Roller Shutter for Factory Warehouse Farmhouse

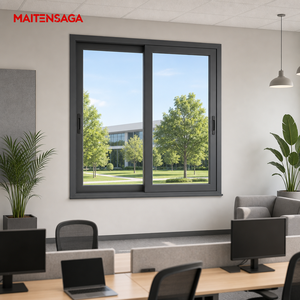

Custom Design Aluminum Sliding Window Double Glazed Waterproof Anti-Theft Energy Star Qualified Custom Size Available Kitchen

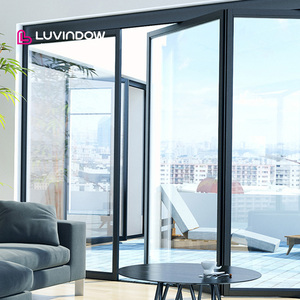

Australian Standard AS2047 Double Glazed Aluminium Accordion Folding Patio Doors Modern Exterior Bifold Glass for Outdoor Living
Engineering Authority & Information Gain
CE Certified Aluminum Bifold Windows: Technical Whitepaper
A comprehensive analysis of structural integrity, thermal physics, air/water tight seal mechanics, and mandatory European compliance parameters for modern architectural joinery.
Understanding CE Certification (EN 14351-1) for Architectural Bifold Systems
For commercial developers, facade engineers, and building material importers operating within the European Economic Area (EEA) and global markets accepting harmonized standards, CE marking under EN 14351-1:2006+A2:2016 is not merely a label—it is a mandatory legal requirement verifying load-bearing capacity, safety, and energy efficiency.
At SAGA Aluminum Doors & Windows Co., Ltd., our bifold window and folding door assemblies undergo rigorous initial type testing (ITT) conducted by accredited notified bodies. This guarantees that every profile extrusions, glass unit, and mechanical carriage assembly performs under extreme environmental stresses.
- EN 12207 Air Permeability: Achieves Class 4 tightness (600 Pa test pressure) eliminating unwanted draft infiltration.
- EN 12208 Watertightness: Tested up to Class E1050 (1050 Pa continuous water pressure without envelope breach).
- EN 12210 Wind Load Resistance: Structural deflection rating reaching Class C5/B5 under severe gust pressures.
- EN ISO 10077-2 Thermal Transmittance: Thermally broken polyamide (PA66GF25) strips achieving total U-values ($U_w$) down to 1.1 W/m²K.
Precision Hardware & Material Selection
High-Performance Profile Engineering
Discover the structural components that give our folding window systems exceptional durability, zero-sag operational smoothness, and extreme weatherproofing.
Alloy 6063-T6 Extrusions
Utilizing high-tensile 6063-T6 architectural aluminum alloy with profile wall thickness ranging from 1.8mm to 3.0mm. Provides superior torsional rigidity for large-span multi-panel folding configurations.
Polyamide PA66GF25 Thermal Break
Engineered with 24mm to 34mm fiberglass-reinforced polyamide thermal barrier strips. Drastically stops conductive thermal bridging, reducing winter heating loss and summer solar heat gain.
Heavy-Duty Stainless Steel Rollers
Bottom-loaded or top-hung quad-wheeled carriage rollers crafted from SUS304/SUS316 stainless steel. Tested for over 50,000 continuous opening and closing cycles without mechanical hysteresis.
Multi-Point Security Gear
Integrated German-engineered hardware systems (ROTO / Siegenia / Kinlong) featuring shoot-bolts and anti-lift pin lockouts for superior anti-burglary protection certified to RC2/PAS24 standard.
Triple EPDM Weather Seals
Continuous vulcanized EPDM rubber compression gaskets surrounding all panel perimeters. Eliminates air infiltration and water ingress even during storm-force coastal weather events.
Advanced Surface Finishes
Qualicoat-certified powder coating, fluorocarbon PVDF painting, or high-definition anodic oxidation finishes offering high resistance against UV fading and salt spray corrosion.
Engineering Matrix
System Performance Matrix & Specification Standards
Comparative technical breakdown of SAGA CE-Certified Aluminum Bifold Windows against industry benchmark standards.
| Performance Parameter | Standard Non-Thermal Bifold | SAGA CE Certified Thermal Break Bifold | Testing / Compliance Standard |
|---|---|---|---|
| Thermal Insulation ($U_w$) | 3.5 – 4.2 W/m²K | 1.1 – 1.8 W/m²K (Double/Triple Low-E) | EN ISO 10077-1 / EN ISO 10077-2 |
| Air Permeability | Class 2 (300 Pa) | Class 4 (600 Pa) | EN 12207 / AS2047 |
| Watertightness Rating | Class 3A (150 Pa) | Class E1050 (1050 Pa) | EN 12208 / NZS4211 |
| Wind Load Resistance | Class C2 (800 Pa) | Class C5 (2000+ Pa) | EN 12210 / Miami-Dade TAS 202 |
| Acoustic Sound Reduction ($R_w$) | 22 – 28 dB | 38 – 45 dB (Acoustic Interlayer Glass) | EN ISO 140-3 / EN ISO 717-1 |
| Max Panel Height / Width | 2200mm / 800mm | up to 3500mm / 1200mm per panel | Custom Factory Structural Calculation |
| Burglary Resistance | Standard Latch | RC2 / PAS24 Certified Multi-Point Locking | EN 1627 – EN 1630 |
Market Foresight & Procurement Strategy
Future Procurement Trends in Aluminum Bifold Windows (2025–2030)
Strategic insights for international buyers, developers, and wholesalers preparing for evolving carbon regulations and modern architectural shifts.
1. Decarbonization & Low-Carbon Aluminum Billets
With Europe enforcing the Carbon Border Adjustment Mechanism (CBAM) and stricter national EPBD (Energy Performance of Buildings Directive) targets, global buyers are rapidly shifting procurement toward Low-Carbon Recycled Aluminum Billets. SAGA works with raw material suppliers utilizing hydro-electric smelters, reducing embedded carbon emissions from the global average of 16.5 kg CO₂/kg Al down to under 4.0 kg CO₂/kg Al.
2. Ultra-Narrow Sightlines with Concealed Hinges
Architectural design aesthetics lean heavily toward minimalist fenestration. Traditional bulky frame margins (120mm+) are being superseded by ultra-slim frame profiles featuring 88mm to 105mm sightline junctions. Furthermore, hidden roller tracks and embedded threshold sills allow seamless transition between interior living areas and exterior outdoor patios.
Smart Building Integration
The integration of motorized hidden actuators, smart home automation interfaces, and automated magnetic sensors allows large bifold window spans to be controlled remotely via smartphone apps or centralized BMS (Building Management Systems).
Aerogel & Vacuum Insulating Glass (VIG)
Next-generation bifold glazing is transitioning from standard double-glazing to ultra-thin Vacuum Insulating Glass (VIG). VIG yields $U_w$ values under 0.6 W/m²K within a 10mm glass envelope, permitting passive house performance without frame overload.
Digital BIM & Supply Chain Traceability
Importers and architects now demand complete BIM Level 2 Revit objects and material digital passports for every window schedule to verify provenance, carbon footprint, and warranty compliance before order placement.
Manufacturing Capability
Why Partner with SAGA Aluminum Doors & Windows Factory?
Direct manufacturer advantage backed by 16+ years of international export experience, certified lab testing, and end-to-end technical support.
45,000 m² Advanced Production Facility in Fuzhou, China
SAGA Aluminum Doors & Windows Co., Ltd. operates state-of-the-art extrusion processing, thermal break strip insertion lines, double glazing automated sealing lines, and multi-axis CNC machining centers. Located in Minhou County, Fuzhou, we ship directly from Fuzhou and Xiamen ports to lower global shipping overheads.
- Global Audited Accreditations: AGWA Audited (AS2047 / AS1288), NZS4211 New Zealand Certificate, NAFS North American Standard, and Miami-Dade TAS 201/202/203 Impact Certification.
- Free Engineering CAD / CAD Shop Drawings: Every customized bifold window order receives comprehensive section drawings, elevation details, and anchor point installation guides prior to manufacturing.
- 100% Pre-Assembly & Testing: Every folding frame assembly is pre-rigged on factory test frames to verify zero-gap alignment, roller smooth gliding, and locking pin engagement.
- Export-Grade Crate Packaging: Fully sealed plywood crates with foam interleaving and corner guards, guaranteeing damage-free delivery to site or ocean freight containers.
Our Standardized 7-Step Manufacturing Workflow
1
Design & CAD
Architectural drawing review & wind load verification
2
Corner Sample
Sample approval for profile, glass & finish color
3
Order Sign-Off
Final shop drawing & hardware specification lock
4
CNC Machining
Precision cutting, thermal crimping & milling
5
Glazing Assembly
Automated insulated glass unit silicone sealing
6
Pre-Ship Rig Inspection
Dimensional check & water/air pressure test
7
Crate Delivery
Plywood crating & port dispatch (Fuzhou/Xiamen)
Buyer Knowledge Base
Frequently Asked Questions for Importers, Builders & Architects
Clear, authoritative technical answers to common B2B procurement, structural engineering, and compliance inquiries.
Why is CE Certification essential when importing aluminum bifold windows to European and international markets?
CE Certification under standard EN 14351-1 ensures that external windows and doorsets comply with mandatory European safety, mechanical strength, thermal performance, and environmental protection regulations. Importing non-CE compliant joinery into CE-regulated zones can lead to customs impoundment, failure of local building inspections, legal liability, and insurance invalidation. SAGA provides full Factory Production Control (FPC) documentation and Declaration of Performance (DoP) certificates for every shipment.
What is the typical production lead time and shipping process for customized bifold window orders?
Standard factory production lead time is 35 to 50 calendar days starting from the official sign-off of CAD shop drawings and receipt of deposit. Ocean shipping duration varies by destination port (e.g., 14–20 days to Australian ports; 25–35 days to European main ports; 20–30 days to US West/East Coasts). All orders ship in steel-reinforced, fully enclosed fumigated plywood crates directly from Fuzhou or Xiamen ports.
Can SAGA custom manufacture bifold windows to specific project dimensions and opening configurations?
Yes. As a 100% custom OEM/ODM manufacturer, we engineer bifold window configurations from 2-panel folding units up to 16-panel continuous folding systems spanning over 18 meters wide. Opening styles include 330, 431, 550, 651, 770, and custom corner-folding setups (90-degree postless corner bifolds) with inward or outward folding panel direction.
How does SAGA prevent water leakage on low-profile flush bottom threshold sills?
We offer two main sill options: Weatherproof High-Lip Sills and Flush Recessed Sub-Sills with Integrated Drainage Channels. For exposed exterior installations subject to driving rain, our high-lip stepped sills feature continuous EPDM pressure gaskets and hidden sub-frame drainage slots equipped with anti-backflow check valves, achieving certified watertightness up to 1050 Pa (EN 12208).
What glass configurations are available for optimal energy efficiency and sound reduction?
We offer a wide range of high-performance glass units: Double Glazed (5mm + 12Ar + 5mm), Triple Glazed (5mm + 9Ar + 5mm + 9Ar + 5mm), Low-E Hard/Soft coat glass, Argon gas filling, Warm Edge Spacers, Laminated Safety Glass (PVB / SGP interlayers for impact resistance), and Acoustic Interlayer Glass capable of sound attenuation up to 45 dB.
What warranties and technical support does SAGA provide after order dispatch?
We provide a 10-Year Comprehensive Factory Quality Guarantee on aluminum profiles, surface coatings, and insulated glass units, alongside a 5-Year Warranty on mechanical hardware and carriage rollers. We provide step-by-step installation manuals, exploded 3D section assembly diagrams, and real-time video engineering consultation for installation crews.
Can we request standard corner samples or hardware evaluation samples before placing full project orders?
Yes. We supply standard profile section samples and mini-bifold functional corner samples free of charge for engineering evaluation, quality auditing, and architect presentation. The buyer only covers courier freight charges, which are fully credited back upon bulk project contract confirmation.
Partner with a Leading CE Certified Bifold Windows Manufacturer
Whether you are specifying a high-end residential build, importing bulk window joinery, or seeking an audited OEM/ODM factory partner—our engineering team is ready to review your schedules and deliver factory-direct pricing within 24 hours.
