Featured Commercial & Residential Double Door Systems
Explore our certified aluminum double front doors, patio sliding doors, and architectural entrance solutions engineered for global export markets.
Customizable Aluminum Double Tempered Insulated Glass Waterproof Sliding Door BT200 for Outdoor Balcony Courtyard Hurricane
Get Catalog
Top Brand Modern Simple Aluminum Swing Door Black Aluminum Frame High Quality Alloy Material For Bedroom Custom Minimalist
Get Catalog
Customized Aluminum Double Tempered Glass Sliding Door Minimalist Design Kitchen Fire Prevention High Interior Supermarket
Get Catalog
Aluminum Sliding Doors Slim Line Design High Permeability Glass Sliding Door for Kitchen
Get Catalog
SUNGYE Exterior Bifold Door Aluminum Foldable Patio Door Double Tempered Glass Folding Partition Door Soundproof Accordion Door
Get Catalog
SAROKE Custom Thermal Break Aluminum Entrance Casement Door Security Exterior Double Glazed Glass Swing Main Door for House
Get Catalog
Limited Time Offer High Quality Acm Sheet 3 Aluminum Composite Panels Door
Get Catalog

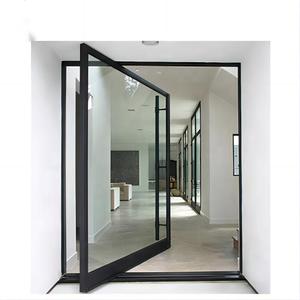

Modern Pivot Front Doors For Houses Aluminum Frame Glass Pivot Door
Get CatalogEngineering Compliance & Structural Integrity of CE-Certified Double Entry Systems
Understanding the rigorous testing standards, thermal break performance, and material specifications required for modern B2B fenestration projects in the EU and global construction sectors.
CE Harmonized Standard EN 14351-1
For architectural entry doors entering the European Economic Area (EEA), compliance with EN 14351-1:2006+A2:2016 is mandatory under Construction Products Regulation (CPR 305/2011). CE certified aluminum double front doors undergo rigorous third-party auditing to verify key performance characteristics:
- Air Permeability (EN 12207): Class 4 high-compression EPDM gasket sealing.
- Watertightness (EN 12208): Tested up to Class E1050 under severe driving rain.
- Wind Load Resistance (EN 12210): Rated up to Class C5/B5 for high-rise facade applications.
- Thermal Transmittance (EN ISO 10077-2): U-values achieved down to 1.1 W/(m²·K).
6063-T6 Extrusion & Polyamide Thermal Break
Structural reliability starts with profile geometry. Our factory utilizes high-grade 6063-T6 architectural aluminum alloy with profile wall thicknesses ranging from 2.0mm to 3.0mm depending on door height and load dynamics.
To eliminate thermal bridging, dual-chamber profiles feature imported PA66GF25 (25% fiberglass reinforced polyamide) barrier strips. This structural design insulates interior environments against extreme outdoor temperature swings while maintaining high torsional rigidity against thermal expansion forces (the bi-metal effect).
Multi-Point Hardware & Anti-Intrusion (RC2/RC3)
Double front doors present unique structural challenges at the center meeting stile (astragal). SAGA double entrance doors incorporate precision-engineered hardware systems from top global suppliers including ROTO, Siegenia, and Kinlong.
- Automated Top & Bottom Shootbolts: Secure the slave leaf effortlessly into steel frame keeps.
- 5-Point Hook Locks: Main active leaf engages heavy-duty hardened steel hooks to counter pry-bar force.
- 3D Adjustable Heavy-Duty Hinges: Rated for leaf weights up to 250kg per panel with 1,000,000 cycle testing.
Comprehensive Technical Performance Matrix
Detailed specification benchmarks for architectural specifiers, contractors, and international procurement managers.
| Technical Parameter | Standard Configuration | High-Performance / Passive Option | Testing Standard |
|---|---|---|---|
| Frame Profile Depth | 70mm – 80mm Structural Depth | 90mm – 100mm Super-Thermal System | ISO 9001 / EN 755 |
| Profile Wall Thickness | 2.0mm Heavy-Duty Architectural Aluminum | 2.5mm – 3.0mm High-Load Reinforced Extrusion | GB 5237 / EN 12020 |
| Glass Specification | 5mm+12Ar+5mm Double Toughened Low-E | 6mm+16Ar+6mm+16Ar+6mm Triple Insulated Laminated | EN 12150 / EN 1279 |
| Thermal Insulation (U-Value) | 1.6 W/(m²·K) – 1.8 W/(m²·K) | 0.9 W/(m²·K) – 1.2 W/(m²·K) | EN ISO 10077-2 |
| Acoustic Rating (Rw) | 36 dB Noise Reduction | 42 dB – 48 dB Soundproof Acoustic Glass | EN ISO 717-1 |
| Surface Coating | AkzoNobel Qualicoat Powder Coating (60–80μm) | Fluorocarbon (PVDF) 3-Coat System / Anodized 25μm | Qualicoat Class 2 / AAMA 2605 |
| Air & Water Infiltration | Class 4 (Air) / Class 9A (Water 600Pa) | Class 4 (Air) / Class E1050 (Water 1050Pa) | EN 12207 / EN 12208 |
Future Procurement Trends in B2B Aluminum Entrance Door Systems
How strict carbon neutral targets, smart access automation, and minimalist architectural styles are reshaping global supply chains for commercial and residential doors.
1. Decarbonization & Recycled Low-Carbon Aluminum
Global developers and municipal buyers are increasingly specifying green building credentials such as LEED, BREEAM, and DGNB. Sourcing double front doors manufactured using low-carbon hydro-powered aluminum billets with high scrap-recycled content cuts embodied carbon by up to 70% compared to traditional smelting processes.
2. Smart Home Integration & Biometric Access
Modern commercial and high-end residential double front doors are evolving beyond pure mechanical locking. Integrated electronic access control—including 3D facial recognition, biometric fingerprint scanners, keyless keypad entry, and Matter/Zigbee smart home protocol connectivity—is now a standard request in B2B project tenders.
3. Ultra-Slim Sightlines & Oversized Pivot Panels
Architectural design language favors invisible structural frames. Demand is shifting rapidly toward slim-line double doors and oversized aluminum pivot doors exceeding 3.5 meters in height. These systems utilize floor-concealed hydraulic closers and heavy-duty load-bearing pivot pins to handle large structural glass panels smoothly.
Require Custom BIM/CAD Drawings or Architectural Specifications?
Our technical engineering desk provides standard section drawings, wind-load calculation sheets, and customized door schedules within 24 hours.
Why Leading Global Wholesalers & Contractors Partner with SAGA
Combining 16 years of direct manufacturing experience with strict international compliance audits for Australia, North America, Europe, and coastal hurricane zones.
Direct Factory Manufacturing
Located in Fujian, China, operating automated CNC cutting centers, precision corner-crimping machines, and double-glazing production lines to ensure complete quality control from billet extrusion to final crate packing.
Comprehensive Testing Protocols
Audited under the AGWA program for Australian Standards (AS2047 / AS1288), New Zealand NZS4211, North American NAFS standards, and Florida Miami-Dade TAS 201/202/203 hurricane impact protocols.
Export Logistics & Steel Crate Packaging
Every double front door order is wrapped in protective foam film, corner-guarded, and secured in fumigation-free wooden or steel pallet crates. Direct ocean freight shipping loaded from Fuzhou or Xiamen ports.
Flexible OEM/ODM Customization
From architectural woodgrain finishes and anodized surfaces to specialized thermal breaks, custom frame depths, glass tints, and integrated sunshade louvers tailored to your brand's catalog.
Frequently Asked Questions by Commercial Buyers & Importers
Get instant clarity on certification verification, manufacturing timelines, minimum order quantities, and technical customisations.
Ready to Elevate Your Building Project with Certified Aluminum Double Doors?
Download our full architectural product catalog, engineering section details, and wholesale price lists. Contact our engineering team for instant technical evaluation.
