Architectural Systems & Featured Products
Explore our factory-direct CE-marked aluminum windows, glass partitions, thermally broken swing systems, and commercial entrance assemblies manufactured to rigorous European and global building specifications.
1. Technical Whitepaper: Engineering CE Certified Aluminum Storefront Systems
Commercial storefront windows and entrance systems serve as the structural and thermal boundary for modern non-residential infrastructure. Sourcing CE-certified aluminum storefront windows directly from specialized manufacturers requires an in-depth understanding of European Norms (EN), structural wind load pressures, thermal transmittance calculations (U-values), and mechanical durability standards. Under the European Construction Products Regulation (CPR No 305/2011), external pedestrian doorsets and windows must strictly conform to EN 14351-1:2006+A2:2016. This technical whitepaper establishes the engineering requirements, material specifications, and quality assurance framework required for sourcing high-performance commercial facade joinery.
1.1 Profile Metallurgy & Extrusion Alloy Integrity
The structural integrity of a commercial aluminum storefront is anchored in the quality of its extruded profiles. High-traffic commercial envelopes and large-span glass storefronts utilize 6063-T5 or 6063-T6 architectural aluminum alloys. T6 temper heat-treatment increases tensile yield strength to over 210 MPa, allowing for narrow sightlines without compromising frame deflection under severe wind loads.
Wall thickness plays a critical role in fastener retention, structural rigidity, and dynamic door hinge cycles. While residential windows often utilize 1.4mm profile thickness, commercial CE-certified storefront systems mandate structural main profile thicknesses ranging between 2.0mm to 3.0mm for load-bearing mullions, transom bars, and heavy-duty commercial entrance sashes.
1.2 Advanced Thermal Break Integration (Polyamide PA66 GF25)
Uninsulated aluminum exhibits high thermal conductivity (k ≈ 160 W/m·K), leading to significant heating and cooling losses across commercial building envelopes. Modern CE-compliant storefront windows eliminate thermal bridging by inserting high-performance structural thermal breaks. Our factory utilizes multi-chamber Polyamide PA66 GF25 (25% glass fiber reinforced) thermal struts produced by leading engineering partners such as Technoform.
Compared to cheaper pour-and-debridge polyurethane fills, PA66 GF25 strips match the thermal expansion coefficient of aluminum extrusions (2.3 × 10⁻⁵ /K), preventing shear separation, frame warping, or structural delamination during extreme temperature swings ranging from -30°C to +80°C. Combined with low-emissivity double or triple insulated glass units (IGUs) filled with 90%+ Argon gas, structural U-factors for complete window assemblies (Uw) reach optimized values between 0.8 to 1.4 W/m²K.
Wind Load Resistance
Tested to EN 12210 Class C5 (Design pressure up to 2000 Pa, with minimal relative frontal deflection under L/300 limits).
Watertightness Performance
Tested to EN 12208 Class E1500 (Exceptional water tightness under severe unshielded wind-driven static rain exposure up to 1500 Pa).
Air Infiltration Control
Conforms to EN 12207 Class 4 standards, minimizing unwanted exfiltration/infiltration to less than 0.5 m³/h·m² at 600 Pa test pressure.
2. Commercial Product Recommendations & Architectural Application
Different commercial typology requires specific fenestration geometries, opening mechanisms, and glazing solutions. Below is an engineering recommendation matrix matching our CE-certified storefront series to high-demand commercial scenarios:
| Product Line / System | Core Technical Feature | Target Building Typology | Compliance & Certification |
|---|---|---|---|
| LEAWOD Wood-Aluminum Smart Window | Motorized integrated actuators, timber interior, exterior aluminum shield | Luxury Offices, Executive Suites, High-End Retail Facades | CE EN 14351-1, IPX5 Electric Drive Protection |
| EEHE Modern Arched Casement System | Bespoke curved aluminum framing, thermal insulation, acoustic glazing | Bespoke Commercial Villas, Boutique Hotels, Architectural Landmarks | NFRC Certified, CE Compliant, Acoustic STC 42dB |

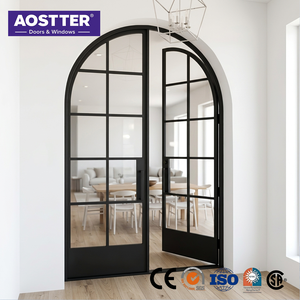

| AOSTTER AS2047 Minimalist Crittall French Door | Ultra-slim sightlines, interior glass partitioning, high-load hinges | Corporate Headquarters, Interior Commercial Partitioning | AS2047 Audited, CE Certified Safety Glazing (EN 12600) |

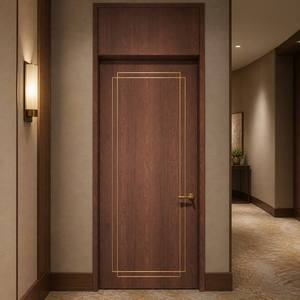

| WH-Certified Aluminum Wood Fire Door | Fire-rated composite core, IPX5 waterproof surface, structural smoke seal | Commercial Apartments, Office Corridors, Public Stairwells | Warnock Hersey (WH) Listed, CE Fire Rated Class E30/EI60 |
| Low-Profile Bevel Anthracite Facade Window | Flush bevel frame, Qualicoat Class 2 powder coating, top-hung friction stays | Multi-Story Office Facades, Modern Commercial Storefronts | CE EN 14351-1, Qualicoat Architectural Surface Standard |
3. Future Procurement & Technological Trends (2025–2030)
The global commercial fenestration market is undergoing a structural transformation driven by stringent net-zero carbon mandates, smart building automation, and automated supply chain tracing. B2B procurement managers and architects must align their sourcing criteria with the following emerging industry trends:
1. Low-Carbon Recycled Aluminum
Decarbonization policies require Environmental Product Declarations (EPDs). Sourcing certified primary billets refined via hydro-electric energy or utilizing >75% post-consumer recycled aluminum cuts embodied carbon footprints by up to 70% per metric ton.
2. IoT & Smart BMS Integration
Modern storefronts incorporate concealed electronic locking mechanisms, automated sash actuators, dynamic electrochromic glass (ECG), and real-time status feedback sensors directly connected to Building Management Systems (BMS).
3. BIM-Native Parametric Customization
Commercial architects now demand Level of Development (LOD) 400 BIM models (Revit/IFC) prior to contract execution, accelerating shop drawing approval and eliminating site collision issues during glass installation.
4. SAGA Enterprise Advantages & Factory Execution Strengths
SAGA Aluminum Doors & Windows Co., Ltd. operates as a leading factory-direct manufacturing powerhouse with 16+ years of export experience across more than 25 countries and regions. Our engineering capabilities bridge the gap between architectural vision and industrial scale execution.
Precision CNC Processing
Equipped with 5-axis automated CNC machining centers for milling, drilling, corner-crimping, and notch welding, ensuring dimensional tolerances within ±0.5mm on heavy commercial frames.
Global Supply Chain Integration
Strategic partnerships with premium global hardware providers (ROTO, Siegenia Aubi, Kinlong) and world-class profile formulators (Veka, Rehau, Zhongcai) guarantee hardware longevity.
Streamlined Export Shipping
Direct containerized loading out of Fuzhou or Xiamen ports with custom steel-framed wooden crate packaging engineered to withstand cross-ocean freight without glass breakage.
5. Frequently Asked Questions (Commercial Procurement FAQ)
Clear, direct technical responses for builders, commercial contractors, real estate developers, and importing wholesalers.
Accelerate Your Commercial Facade Procurement
Connect with our senior engineering team to review architectural elevation plans, calculate structural wind loads, request sample kits, or obtain detailed commercial pricing estimates within 24 hours.
