Factory Direct Catalog
Featured Architectural Windows & Doors Solutions
Explore our top-rated custom aluminium and structural glass systems manufactured to exceed rigorous international building standards (AS2047, NZS4211, NAFS, Miami-Dade).

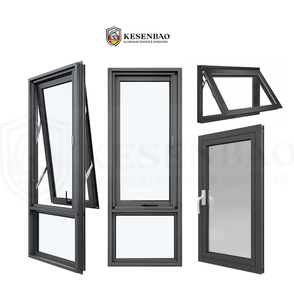

Soundproof Aluminum Casement Windows With Screens Aluminum Awning Casement Tilt and Turn windows For Residential
Inquire Now

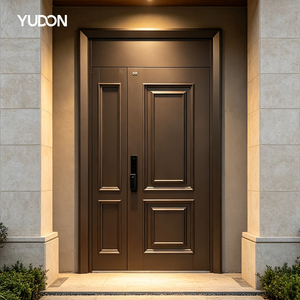

Luxury Smart Multi Lock Entrance Door Aluminum Single Front Entry Anti Theft Exterior Security Doors Pivot Front Door Villa Gate
Inquire Now

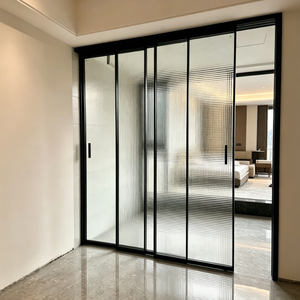

Modern Design Aluminum Frame Custom Art Glass Kitchen Living Room Sliding Door Ultra-thin Double-layer Glass Indoor Sliding Door
Inquire Now

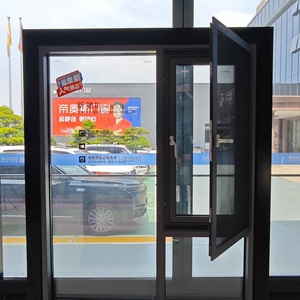

Deioux Soundproof Double Safety Glass Aluminum Clad Wood Crank Open Double Glazed Louver Windows Magnetic Screen Graphic Design
Inquire Now
Custom Villa House Project Window And Door Thermal Break Insulated Window Soundproof Double Glazed Aluminum Casement Windows
Inquire Now

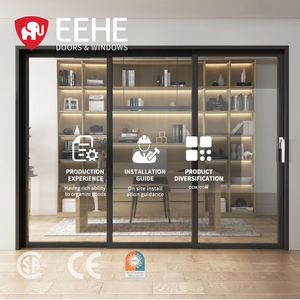

EEHE CSA Certified Aluminum Sliding Glass Doors Cold Regions Exterior Sliding Door for Residential Indoor Outdoor Living Rooms
Inquire Now

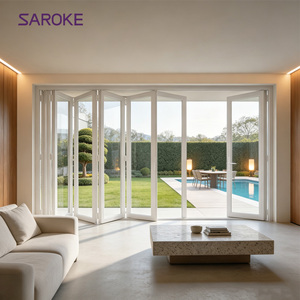

Large 4 Meter White Nfrc Out Exterior Aluminium Folding Bifold Patio Doors
Inquire Now16+
Years Manufacturing Excellence
25+
Global Export Markets
10-Yr
Quality Assurance Warranty
100%
AGWA / NAFS Audited Integrity
Industry Whitepaper
Aluminium Bifold Windows & Doors Sourcing Guide
An authoritative technical analysis for architectural specifiers, general contractors, commercial developers, and regional distributors purchasing custom Chinese joinery.
1. Architectural Significance & Engineering Fundamentals of Aluminium Bifold Windows
In modern architectural design, the demand for seamless transitions between indoor living environments and outdoor landscapes has positioned Aluminium Bifold Windows (Folding Windows) as a cornerstone solution for high-end residential, hospitality, and commercial developments. Unlike traditional sliding or casement windows, bi-fold folding systems allow an entire wall aperture to be retracted cleanly, providing up to a 95% unobstructed clear opening.
From an structural engineering perspective, designing high-span aluminium bifold window systems requires strict control over frame rigidity, weight distribution, weatherproofing gaskets, and thermal conductivity. Leading Chinese manufacturers like SAGA Aluminum Doors & Windows Co., Ltd. utilize precision-extruded primary aluminum alloys (6063-T5 and 6063-T6) with profile wall thicknesses ranging from 2.0mm to 3.0mm. This structural wall depth ensures that multi-sash folding systems remain structurally sound under severe wind pressure loads up to 4500 Pa (equivalent to Category 5 cyclone wind forces).
To eliminate the historical thermal bridging vulnerability of metal window frames, modern high-performance bifold windows incorporate polyamide (PA66 GF25) thermal barrier strips. Reinforced with 25% glass fiber, these polyamide thermal breaks mechanically join the interior and exterior extrusion profiles, reducing overall frame U-factors to as low as 1.2 W/m²K when combined with double or triple insulated glass units (IGUs).
2. Future Procurement Trends in Aluminium Bifold Systems (2025–2030)
As global building energy codes tighten—such as Australia's NCC 2022, New Zealand's H1 Energy Efficiency standards, and North America's IECC requirements—procurement managers and architects must evaluate several emerging trends when sourcing aluminium bifold windows from China:
Ultra-Low U-Value Glazing Integration
Adoption of warm-edge spacers, argon/krypton gas filling, and triple Low-E coated tempered safety glass to achieve Passive House performance metrics.
Concealed & Flush Sill Architectural Hardware
Embedded drainage channels combined with zero-threshold track profiles that guarantee barrier-free accessibility without compromising water penetration resistance.
Motorized & Smart Home Automation
Integrated electric servo actuators allowing heavy bifold sashes (up to 150kg per sash) to be folded seamlessly via smart home automation networks or weather sensor commands.
3. Material Science, Hardware Engineering & Surface Treatments
The operational longevity of an aluminium bifold window depends heavily on its roller assembly, track mechanism, and protective coating finishes. Premium Chinese exporters utilize quad stainless steel (316 marine grade) bogie rollers that slide along heavy-duty track extrusions. This prevents track pitting and ensures smooth, whisper-quiet operation over 50,000+ opening cycles.
For coastal and high-humidity environments, standard powder coatings are inadequate. SAGA applies Qualicoat Class 2 standard electrostatic powder coatings or 3-coat Fluorocarbon (PVDF) spray finishes resistant to salt spray exposure for over 3,000 hours without chalking, blistering, or color fading.
Specification Matrix
Technical Comparison: SAGA Bifold Windows vs. Standard Exporters
Compare raw engineering parameters, component grades, and testing verification standard differences.
| Performance / Feature Parameter | SAGA Premium Factory Specification | Standard Market Exporter | Architectural Benefit / Compliance |
|---|---|---|---|
| Aluminium Alloy & Wall Depth | Primary 6063-T6 Alloy (2.0mm - 3.0mm wall thickness) | Recycled Alloy (1.4mm - 1.6mm wall thickness) | High structural integrity, withstands extreme wind pressure (AS2047 / NAFS CW-PG50) |
| Thermal Break Insulation | PA66 GF25 Polyamide Nylon Strip (24mm - 34mm) | Cheap PVC or Non-Thermal Aluminum Profile | Superior thermal separation, U-value down to 1.2 - 1.8 W/m²K |
| Hardware & Roller Systems | 316 Stainless Steel Top-Hung & Bottom Heavy Bogie Rollers | Standard Carbon Steel / Nylon Single Rollers | Supports sashes up to 150kg, smooth operation for 50,000+ opening cycles |
| Glazing Specification | AS1288 / IGCC Certified Double/Triple Tempered Low-E + Argon | Non-Certified Standard Double Glazing | Optimal solar heat gain control (SHGC), noise reduction up to STC 42dB |
| Sealing Gaskets | Continuous EPDM Weather Gaskets (Triple Sealing System) | Single PVC Gaskets / Low-grade rubber | Prevents water penetration at test pressures > 450 Pa |
| Surface Finish Assurance | Qualicoat Class 2 Powder Coat / PVDF (10-Yr Guarantee) | Standard Commercial Powder Coating | Resists UV degradation, chalking, and coastal marine salt spray corrosion |
Why Partner With SAGA
Enterprise Strengths & Compliance Accreditations
SAGA Aluminum Doors & Windows Co., Ltd. brings 16+ years of specialized manufacturing experience, providing direct factory supply, tailored CAD shop drawings, and audited regulatory compliance for buyers worldwide.
Comprehensive Audited Certifications
Our products undergo annual third-party audits to guarantee compliance with Australian Standard AS2047:2014 & AS1288:2021, New Zealand NZS4211:2008, North American NAFS, and Florida's stringent Miami-Dade TAS 201/202/203 hurricane impact requirements.
Complete BIM & CAD Technical Support
Every project is backed by our in-house fenestration engineering team. We supply full shop drawings, structural section details, anchorage calculations, and installation guides before production authorization.
Export Crating & Quality Control
Products are 100% pre-assembled and tested for smooth operation in our factory prior to shipping. Extrusions are wrapped in protective film and secured in steel-reinforced fumigated A-frame wooden crates for ocean transit.
Procurement Knowledgebase
Frequently Asked Questions (FAQ)
Answers to common technical, regulatory, and logistics queries from global building material importers, contractors, and architects.
Q1: What structural load testing and wind pressure standards do SAGA aluminium bifold windows comply with?
Our aluminium bifold windows are engineered and laboratory-tested to comply with major international building codes. For the Australian and New Zealand markets, our products meet AS2047:2014 and NZS4211:2008 standards, achieving high Ultimate Limit State (ULS) wind pressure ratings up to 4500 Pa and Serviceability Limit State (SLS) ratings that suit extra-high wind zones (N6 rating). For North American imports, our fenestration assemblies meet NAFS structural standards as well as Miami-Dade TAS 201, 202, and 203 cyclic wind pressure load and large missile impact resistance requirements.
Q2: How does a thermally broken aluminium bifold window differ from a non-thermal profile?
Aluminium is naturally a highly conductive material. A non-thermal frame allows heat to transfer easily between inside and outside, leading to energy loss and interior condensation. A thermally broken profile features a structural polyamide nylon strip (PA66 GF25) inserted between the interior and exterior aluminum extrusions. This break interrupts conductive heat flow, dramatically lowering the overall window U-value, eliminating condensation risk, and fulfilling energy efficiency compliance standards like NCC 2022 H1 requirements.
Q3: What is the standard production lead time for custom aluminium bifold window orders?
Typical factory production lead time is 35 to 50 calendar days following official customer approval of detailed CAD shop drawings and deposit receipt. Lead times vary slightly based on custom powder coating colors, special high-performance glass units (such as triple laminates or custom tints), and order volume. Transit times via ocean freight depend on the destination port, typically ranging from 12-18 days to Australia/New Zealand, 20-30 days to North America, and 25-35 days to European or Caribbean ports.
Q4: Which types of buyers does SAGA supply custom joinery products to?
We supply a diverse range of international B2B client roles, including building material wholesalers, regional window dealers, commercial property developers, general contractors, architectural firms, and luxury residential builders. Every project receives dedicated engineering assistance, custom CAD shop drawings, and tailored export packaging designed to match the buyer's local installation methods and regulatory certifier demands.
Q5: Can SAGA provide physical product samples for quality evaluation prior to bulk contract confirmation?
Yes. We regularly supply standard-size window corner samples or full mini-window samples to evaluate extrusion wall thickness, polyamide thermal break integration, hardware smoothness, and powder coat finish quality. While sample corner units are provided free of charge, air express freight charges are covered by the buyer.
Q6: Where is your port of loading, and what payment terms are supported?
All shipments originate from Fuzhou Port or Xiamen Port in Fujian Province, China. We accept wire transfer (T/T) terms as well as Alibaba Trade Assurance protection to ensure complete transaction security for our international importers.
