Tight Space Solution
Surfence Double Sliding Door With Upper Glide Track Wide Access In Tight Spaces
Upper suspension glide track, zero-threshold option, multi-point lock mechanism.
Factory-Direct Catalog
Featured Aluminium Double Sliding Door Systems
Engineered for extreme structural load resistance, high thermal efficiency, and sleek architectural profiles. Evaluated for luxury residential, high-rise commercial, and coastal hurricane applications.
Exterior Flush Patio
Modern Design Sliding Patio Door System Exterior Flush Aluminum Alloy Double Glazing Tempered Glass
Waterproof EPDM gasket seal, 5mm+12A+5mm tempered double glass, weather-resistant finish.
Luxury Villa Lift & Slide
Panoramic Aluminum Lift and Slide Door Heavy Duty Double Glazed Sliding Glass Doors with Slim Frame
Lift-and-slide heavy-duty tandem bogie rollers, slim 18mm sightlines, payload up to 400kg/sash.
5m Wide Span Entrance
Suppliers Double Glazed Entrance Security Aluminum Wood Frame Sliding Glass Patio Door For 5m Width
Composite aluminium-timber structural frame, anti-burglary multi-point locking, acoustic insulation.
Thermal Break High-Wind
Wind Resistant Double Glazed Thermal Break Balcony Glass Patio Aluminum Sliding Doors for Houses
PA66 GF25 thermal barrier strip, wind pressure tested to AS2047 high-rise structural criteria.
AS2047 & CE Acoustic
AS2047 CE Soundproof Aluminum Sliding Door Double Glazed Aluminum Sliding Doors For Balcony
Certified to AS2047 & CE standards, sound reduction up to STC 42dB, heavy-duty weatherstrip.

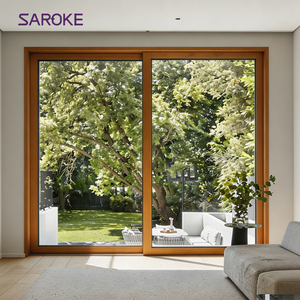

Aluminium-Clad Wood
Luxury Design Energy Efficient Tempered Glass Aluminum Clad Wooden Sliding Patio Doors For Villa
Natural oak/pine interior interior finish with powder-coated exterior aluminium storm shield.

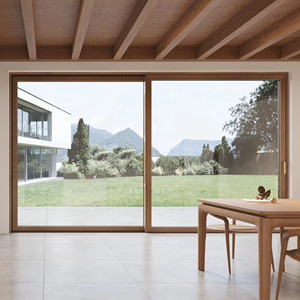

MLT155 Thermal System
LEAWOD MLT155 Modern Luxury Aluminum Wood Composite Sliding Door Double Tempered Glass
155mm structural depth, multi-cavity thermal insulation, customizable grand dimensions.
16+
Years Engineering Expertise
25+
Global Export Markets
10-Yr
Factory Warranty Protection
4500Pa
Max Wind Load Testing
Manufacturing Authority
Why Global Developers & Importers Partner with SAGA
SAGA Aluminum Doors & Windows Co., Ltd. combines advanced CNC precision fabrication with comprehensive international fenestration code compliance, serving builders, architectural firms, and wholesalers worldwide.
Certified Code Compliance
Fully audited under AGWA for Australian Standards AS2047:2014 & AS1288:2021, NZS4211 for New Zealand, NAFS for North America, and Miami-Dade TAS 201/202/203 for hurricane zones.
Precision CNC Fabrication
Automated 45-degree corner crimping, German-engineered multi-point hardware integration, and zero-leakage corner sealing ensure lifetime structural integrity.
Export Logistics & Packing
Shipped directly from Fuzhou or Xiamen ports in steel-reinforced, fully enclosed plywood crates with moisture-barrier wrapping for zero ocean damage.
Full Engineering & CAD Support
In-house architectural technicians generate shop drawings, structural wind calculation reports, and section details before production begins.
Engineering Whitepaper
Technical Dynamics of Modern Aluminium Double Sliding Systems
An exhaustive guide to structural dynamics, thermal break physics, acoustic isolation, and hardware kinematic engineering for enterprise procurement managers.
Thermal Mechanics
Polyamide PA66 GF25 Thermal Breaks
Standard aluminium profiles exhibit high thermal conductivity ($k \approx 160 \text{ W/m}\cdot\text{K}$), leading to thermal bridging. SAGA incorporates PA66 GF25 (25% glass-fiber reinforced polyamide) barrier strips. This structural separation drops overall frame thermal transference by over 65%, achieving window U-factors down to 1.3 W/m²K when paired with double Low-E argon-filled glazing.
Structural Wind Load
Wind Pressure & Water Penetration
High-rise residential and coastal projects demand strict compliance with deflection limits ($\text{L}/175$ and $\text{L}/250$). Our sliding systems feature heavy-duty interlocking mullions capable of withstanding ultimate limit state (ULS) pressures exceeding 4500 Pa under AS2047 testing, with stepped sill drainage channels preventing water ingress under 600 Pa cyclic rain simulation.
Acoustic Isolation
Acoustic Attenuation & EPDM Seals
Urban noise mitigation requires continuous perimeter air-tightness. Utilizing multi-layer continuous EPDM gaskets and double-glazed units with varied glass thickness (e.g., 6mm + 12A + 8mm PVB laminated glass), our double sliding doors deliver Sound Transmission Class (STC) ratings from 38 dB to 44 dB, effectively isolating low-frequency traffic noise.
Material & Performance Engineering Matrix
| System Classification | Frame U-Factor (W/m²K) | Max Wind Pressure (Pa) | Acoustic Rating (STC) | Max Sash Weight | Primary Application Target |
|---|---|---|---|---|---|
| Standard Double Sliding | 4.5 – 5.8 | 1500 – 2500 Pa | 28 – 32 dB | 150 kg / sash | Standard residential balconies, interior partitions |
| Thermally Broken Double Sliding | 1.6 – 2.4 | 2500 – 4000 Pa | 35 – 40 dB | 250 kg / sash | Energy-efficient residential villas, mid-rise apartments |
| Heavy-Duty Lift & Slide System | 1.2 – 1.8 | 3500 – 5000+ Pa | 38 – 45 dB | 400 kg / sash | Grand luxury villas, coastal high-rises, wide openings |
| Aluminium-Wood Composite Sliding | 1.1 – 1.6 | 2500 – 3500 Pa | 40 – 46 dB | 300 kg / sash | High-end architectural homes requiring warm timber interiors |
Strategic Procurement
Future B2B Procurement Trends in Aluminium Sliding Doors
How evolving international building codes, sustainability mandates, and architectural aesthetics are reshaping the global procurement landscape for door and window importers.
1. Micro-Slim Sightlines & Panoramic Glazing
Commercial and high-end residential architects are increasingly specifying structural interlock widths under 20mm. Buyers are shifting toward hidden outer frame profiles embedded within plaster lines to maximize daylight transmission without sacrificing structural wind resistance.
2. Strict Net-Zero & Energy Code Mandates
With the implementation of Australia's NCC 2022 7-Star efficiency requirements, New Zealand's updated H1 thermal standards, and US Title 24 regulations, standard non-thermal windows are being rapidly phased out. Sourcing thermally broken frames with Warm Edge technology is now a mandatory purchasing criteria.
3. Automated Smart Motorization Integration
Heavy double sliding panels weighing 250kg to 400kg are demanding motorized linear actuators with soft-start motion, rain sensors, and smartphone app control. Modern factory suppliers must pre-engineer internal wire conduits and concealed motor housings.
Industry Evolution
Technological Breakthroughs in Double Sliding Door Manufacturing
Innovation trajectory over the past decade: transforming sliding doors from basic barrier panels into high-tech architectural building envelope solutions.
Lift-and-Slide Mechanical Kinematics
Unlike conventional sliding doors that drag continuously across weather strips, Lift-and-Slide systems compress gaskets upon closing and lift sashes off tracks during operation, reducing gear wear by 80% and extending mechanical lifespan.
Zero-Threshold Flush Drainage
Advancements in subterranean stainless steel drainage channels allow seamless indoor-to-outdoor floor transitions without compromising water penetration barrier ratings under hurricane rain conditions.
High-Velocity Hurricane (HVHZ) Glass
Laminated impact glass featuring SentryGlas® (SG) interlayers combined with reinforced heavy-gauge aluminium profiles ensures doors remain intact even when hit by flying storm debris under Miami-Dade TAS 201 tests.
Qualicoat Powder Coating Surfaces
Surface treatments have evolved from basic anodizing to Qualicoat Class 2 fluorocarbon (PVDF) powder coatings, preventing frame chalking, corrosion, and UV fading even in aggressive marine salt-air environments.
Standard Operating Procedure
SAGA 7-Step B2B Procurement Workflow
A transparent, fully audited manufacturing and quality-assurance process designed for foreign buyers, architects, and quantity surveyors.
1
Design & Plans
Architectural schedule review & wind pressure evaluation.
2
CAD Drawings
Detailed section drawings & fixing point validation.
3
Sample Sign-off
Standard size profile sample quality check.
4
CNC Fabrication
Precision cutting, corner crimping & glass assembly.
5
100% QC Audit
Dimensional, water-seal & hardware testing.
6
Plywood Crating
Seaworthy steel-framed wooden packing.
7
Global Delivery
Port shipping from Fuzhou/Xiamen + site guidance.
Buyer Knowledge Base
Aluminium Double Sliding Door Procurement FAQs
Expert answers to common engineering, shipping, certification, and customization queries submitted by international purchasing managers.
Q: Do SAGA aluminium double sliding doors comply with Australian AS2047 and AS1288 standards?
Yes. Our aluminium sliding door systems are fully audited and accredited under the Australian Glass and Window Association (AGWA) compliance scheme. They meet AS2047:2014 (Windows and doors in buildings) for structural deflection, water penetration, and air infiltration, as well as AS1288:2021 for glass selection and safety glazing under NCC 2022 requirements.
Q: What is the standard factory lead time for custom B2B bulk orders?
Typical production lead time is 35 to 50 calendar days following shop drawing confirmation and initial deposit receipt. Custom color matching, specialized hurricane impact glass, or complex arch-top configurations may extend manufacturing by 7–10 days. Ocean freight times depend on destination ports (e.g., 14–20 days to Australian main ports, 25–35 days to US West Coast).
Q: How does SAGA ensure zero ocean-freight shipping damage?
All door frames and glass panels are wrapped in protective polyethylene film, fitted with heavy-duty corner protectors, and packed into fully enclosed, fumigated ISPM-15 compliant plywood crates with internal steel box-section bracing. Crates are loaded via fork-truck directly into FCL sea containers at our Fuzhou/Xiamen manufacturing facility.
Q: What hardware brands are integrated into SAGA double sliding doors?
We partner with premier global hardware manufacturers based on project specification: German ROTO, Siegenia-Aubi, and high-performance Kinlong multi-point lock systems. Tandem stainless steel roller assemblies feature heavy-duty sealed needle bearings designed for smooth operation over 100,000 opening cycles.
Q: Can you supply hurricane impact sliding doors certified for Florida/Caribbean regions?
Yes. SAGA manufactures specialized hurricane impact double sliding doors tested under Miami-Dade protocols TAS 201 (Large Missile Impact), TAS 202 (Uniform Static Air Pressure), and TAS 203 (Cyclic Wind Pressure Loading). These systems utilize heavy-wall aluminum extrusions and SentryGlas® laminated glass assemblies designed for extreme coastal storm zones.
Q: What custom surface finishes and RAL colors are available?
We offer standard powder coating finishes in Matte Black, Monument Gray, Pearl White, and architectural Anodized Bronze. Custom RAL color matching, Qualicoat Class 2 outdoor coatings, and realistic timber grain thermal transfer foils (Oak, Teak, Walnut) are available upon project specification.
Q: What technical drawings and documents are provided prior to contract signing?
Our engineering department provides full structural CAD shop drawings, glass stress calculations, thermal calculation reports ($U_w$ / SHGC values), frame cross-section installation details, and sub-frame anchorage diagrams to facilitate certifier approval before manufacturing commences.
Q: What are the accepted international payment terms and trade protection mechanisms?
We accept T/T (Telegraphic Transfer) with a standard 30% deposit upon order confirmation and 70% balance prior to container dispatch. For buyer security, we also accept Alibaba Trade Assurance, providing full payment protection, scheduled delivery guarantees, and independent third-party quality inspection support.
