Factory Direct Catalog
Featured Commercial & Villa Aluminium Pivot Doors
Engineered for luxury estate entries, commercial lobbies, and architectural builds. Fully customizable with thermal break extrusions, double/triple tempered glazing, and smart biometric security.
Heat Insulated Aluminum Double Glazed Glass Pivot Door
Thermal Break Energy Efficient Villa Entry Glass Pivot Door
Security Exterior Main Glass Pivot Door with Custom Tempered Glass
Modern Aluminium Entrance Front Glass Pivot Door for Houses
Heavy-Duty Soundproof Double Glass Pivot Door for Hotel & Villa

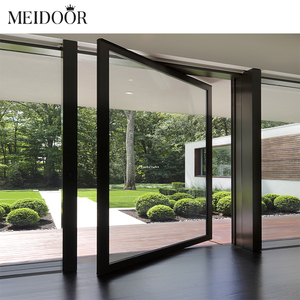

Commercial Grade Floor-Spring Aluminium Glass Pivot Entrance Door
Anti-Theft Back-Painted Glass Cast Aluminium Security Pivot Door
Architectural Whitepaper: Engineering Next-Generation Aluminium Glass Pivot Entrance Systems
In contemporary high-end residential and commercial architecture, front entry doors have evolved from functional access points to defining architectural centerpieces. Traditional side-hinged doors are mechanically constrained by perimeter weight transfer, limiting panel dimensions, glass infill mass, and thermal performance. In contrast, architectural aluminium glass pivot doors transfer structural deadweight vertically onto heavy-duty top and bottom pivot pins set directly into the slab and header.
This structural paradigm allows architects and developers to specify monumental entry portals reaching up to 3000mm in width and 6000mm in height while maintaining effortless physical operation. As China's leading specialized OEM/ODM manufacturer, SAGA Doors & Windows integrates precision CNC aluminium fabrication, thermal break extrusion design, multi-cavity EPDM perimeter sealing, and advanced glazing technologies to engineer pivot entrance doors compliant with stringent global standards including AS2047, NZS4211, NAFS, and Miami-Dade hurricane codes.
-
Structural Integrity: 6063-T6 architectural aluminium alloy profiles with wall thickness up to 3.0mm to eliminate flex under heavy wind loads.
-
Thermal Decoupling: High-density PA66-GF25 polyamide thermal break strips preventing heat bridge transmission across frame profiles.
-
Hydraulic Pivot Control: Floor springs with 90° hold-open, adjustable closing speeds, and self-closing mechanics tested for over 500,000 cycles.
-
Acoustic & Weather Barrier: Concealed drop-down bottom weather seals and multi-layered EPDM continuous rubber gaskets achieving sound reduction up to 45 dB.
Data Benchmarks
Technical Specification & Performance Comparison
Comprehensive engineering benchmarks comparing standard exterior doors against SAGA's custom aluminium glass pivot systems.
| Performance Parameter | Standard Hinged Front Door | SAGA Heavy-Duty Glass Pivot Door | SAGA Cast Aluminium Security Pivot |
|---|---|---|---|
| Max Panel Dimensions | 1200mm W x 2400mm H | Up to 3000mm W x 6000mm H | Up to 2200mm W x 4500mm H |
| Load Capacity (Pivot Hinge) | 80 kg - 120 kg (Jamb hinges) | 500 kg - 1000 kg (Concealed floor spring) | 800 kg - 1200 kg (Heavy floor spindle) |
| Thermal Transmittance (U-Value) | 2.8 - 4.5 W/m²K | 1.2 - 1.8 W/m²K (Double/Triple Low-E) | 1.5 - 2.2 W/m²K (Polyurethane filled) |
| Wind Pressure Resistance | 1500 Pa - 2500 Pa | 4500 Pa - 6000 Pa (AS2047 / NAFS compliant) | 6000+ Pa (Miami-Dade Hurricane Tested) |
| Air Infiltration & Water Seal | Basic sweep seal | Automatic drop-down acoustic seal + double EPDM | Triple continuous weather barrier gaskets |
| Locking System Integration | Single/Dual mechanical latch | Multi-point electric strike / Biometric smart lock | 5-Point anti-theft motorized deadbolts |
| Surface Coating Standards | Standard anodizing / powder coat | AkzoNobel Interpon / Fluorocarbon PVDF coating | Cast solid aluminium + PVDF UV resistant coating |
Engineering Excellence
Key Structural Components & Innovations
Why premier global architects and commercial builders source custom entry solutions directly from SAGA China manufacturing facilities.
Cast Aluminium & Anti-Theft Panels
Utilizing high-density solid cast aluminium infills combined with multi-point smart locking mechanisms. Resists physical intrusion, ballistic impacts, and extreme thermal expansion.
Advanced Thermal Break Profiles
Engineered with German-standard PA66 GF25 glass-fiber reinforced polyamide strips, effectively decoupling interior and exterior temperatures to satisfy stringent energy codes (NCC 2022 / Title 24).
High-Performance Insulated Glazing
Custom glass makeups including 6mm+12Ar+6mm tempered Low-E, SGP hurricane laminated glass, ceramic back-printed decorative glass, and privacy smart electrochromic glass configurations.
Heavy Spindle Hydraulic Floor Springs
Concealed bottom pivot hardware supporting up to 1000kg panel weights. Built-in hydraulic dampeners provide smooth closing cycles with 90° dual hold-open options.
Smart Biometric & Keyless Entry
Seamless integration with modern access control systems: 3D facial recognition scanners, hidden capacitive fingerprint sensors, Bluetooth/Wi-Fi smart locks, and motorized electric strikes.
Acoustic & Weather Defense Seals
Equipped with automatic mechanical bottom drop seals that engage upon door closure, eliminating drafts, water infiltration, and street noise for ultimate occupant comfort.
Industry Insight
Future Sourcing & Architectural Trends for Pivot Doors
Analysis of emerging technological shifts driving wholesale procurement, architectural specifications, and luxury estate developments worldwide.
1. Monumental Scale & Ultra-Slim Sightlines
Modern architectural designs are shifting towards maximum glass ratios with minimal perimeter aluminium sightlines. Procurement demand for offset pivot entry doors exceeding 3 meters in width is rising dramatically. Manufacturers capable of maintaining structural rigidity using internal steel reinforcements and structural silicone bonding are dominating the luxury market segment.
2. Fully Integrated Smart Actuation Systems
Manual door operation is rapidly yielding to motorized automatic opening mechanisms. Next-generation pivot doors incorporate concealed electro-mechanical drives synchronized with smart home automation platforms (KNX, Control4), radar proximity sensors, and encrypted facial recognition entry, providing effortless touchless access.
3. Aerogel Thermal Fillers & Passive House Standards
With global building codes enforcing stricter carbon reduction mandates (such as NCC 2022 in Australia and Title 24 in California), thermal performance standards for large glass entryways are tighter than ever. Incorporating aerogel insulation within the profile chambers allows aluminium pivot doors to achieve Passive House U-values below 1.0 W/m²K.
4. Custom Artistic Finishes & Back-Painted Toughened Glass
Developers are moving away from plain painted surfaces toward bespoke tactile finishes. High-demand textures include CNC 3D carved cast aluminium, real timber veneer cladding over thermal break aluminium bases, metallic PVDF bronze patinas, and customized back-painted ceramic fritted glass designs.
Why SAGA Doors & Windows is China's Premier Pivot Door Manufacturer
With 16+ years of specialized fenestration manufacturing experience, SAGA Aluminum Doors & Windows Co., Ltd. operates a state-of-the-art production complex in Fujian, China. We supply custom architectural windows, heavy-duty pivot entry doors, and structural glass curtain walls to builders, importers, wholesalers, and architects across more than 25 countries and regions.
AGWA & AS2047 Certified
Audited annually under the Australian Glass & Window Association scheme. Complies with AS2047, AS1288, and NCC 2022 regulations.
NAFS & Miami-Dade Audited
Rigorous missile impact (TAS 201/202/203) and uniform structural pressure testing for coastal and hurricane-prone zones.
Full In-House CAD/BIM Support
Every custom pivot door order receives 3D shop drawings, section details, and structural calculation reports prior to CNC milling.
Buyer Knowledge Base
Frequently Asked Questions for B2B Sourcing
Direct technical answers to help importers, general contractors, and architects make informed procurement decisions.
What is the maximum size SAGA can manufacture for an aluminium glass pivot door?
We can engineer custom single-panel pivot doors up to 3000mm in width and 6000mm in height. Our heavy-duty floor spring mechanisms support single leaf weights up to 1000 kg, engineered with internal steel rib reinforcements to maintain frame stability under severe wind loads.
How do pivot doors perform against air and water infiltration compared to hinged doors?
Pivot doors do not press continuously against a 4-sided rebate jamb like traditional doors. However, SAGA resolves this by integrating concealed automatic drop-down bottom weather seals, top brush gaskets, and multi-cavity EPDM perimeter compression seals. Our systems achieve water resistance up to 450 Pa and wind pressure resistance up to 6000 Pa.
Are SAGA pivot doors compliant with Australian (AS2047) and North American (NAFS) standards?
Yes. SAGA products undergo strict independent laboratory testing. We hold AGWA accredited compliance certificates for AS2047:2014, AS1288:2021, and NCC 2022 in Australia, as well as NAFS structural test reports for North America and Miami-Dade hurricane impact certifications for Florida and the Caribbean.
What custom glass options are available for exterior pivot entrance doors?
We offer double and triple glazed insulated glass units (IGUs) with Low-E coatings, argon gas fill, toughened safety glass, back-painted decorative glass, privacy electrochromic smart glass, and SGP laminated hurricane impact glass tailored to your climate zone and security requirements.
What is the standard production lead time and shipping process?
Manufacturing lead time is typically 35 to 50 days following final CAD shop drawing sign-off and deposit receipt. Products are packed in fully enclosed plywood crates with protective foam corner guards and shipped via ocean freight directly from Fuzhou or Xiamen ports, China.
Partner with China's Premier Pivot Door Engineering Team
Whether you are sourcing for a luxury private villa, a high-density architectural residential development, or expanding your wholesale dealership network, SAGA provides factory-direct pricing, custom engineering, and global door certification.
