Featured Architectural Aluminum Clad Doors & Windows
Explore SAGA's precision-engineered door and window systems tested to Australian AS2047, NZS4211, North American NAFS, and Miami-Dade TAS high-velocity hurricane specifications.
Aluminum Back Door with Dog Hole Openable Panel to Go Out 316 Stainless Steel Hinged Support Swing Door
Integrated pet access panel with dual EPDM weather seals, marine-grade 316 stainless steel hinges, and reinforced security locking.
Extremely Narrow Glass Door Folding Door Black Sliding Door Aluminum Alloy Hanging Rail Movable Partition
Ultra-slim 18mm sightlines with heavy-duty top-hung roller track system for seamless spatial division and high acoustic dampening.
Heavy Duty Aluminum Front Entry Doors Security Large Anti-Theft Exterior Modern Entrance Pivot Door for Villa
Bespoke grand entrance system featuring German multi-point gear locking, high-load offset pivot hardware, and insulated thermal core.
Modern Aluminium Window Design Energy Efficient Noise Reduction Casement Windows For Home Office
Multi-chamber polyamide PA66 thermal barrier paired with double Low-E argon-filled IGUs delivering U-values down to 1.1 W/m²K.
Modern Entry Doors Aluminum Entrance Door for Houses Villa Main Front Glass Pivot Door
Architectural luxury glass entrance doors with anodized fluoropolymer finish, hidden floor spring closers, and high air-tightness rating.
OUNA European Cast Aluminum Anti-Theft Security Exterior Door With Residential Design Front Main Door for House
Heavy casting aluminum door leaves engineered for extreme anti-burglar defense, coastal weatherproofing, and luxury aesthetic appeal.

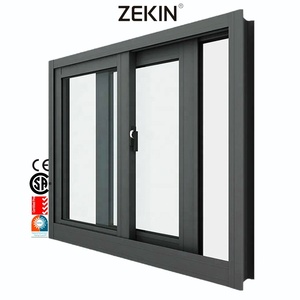

Customized Aluminum Sliding Windows Energy Efficient NFRC AS2047 Tempered Glass Hurricane Certification Aluminum Sliding Window
Audited under AGWA standards for AS2047 compliance. Heavy-gauge structural extrusions with 4500Pa wind pressure load rating.

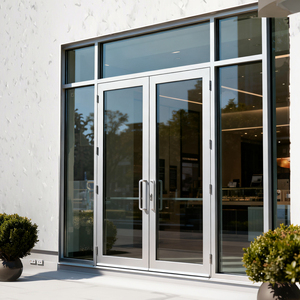

Double Aluminum Alloy Glass Door Commercial Store Front for Mall Entry
High-traffic commercial storefront portal engineered with continuous hinge assemblies, impact-resistant safety glass, and panic hardware.
Anatomy of Modern Aluminum Clad Door & Window Systems
Understanding the mechanical synergy between exterior structural aluminum profiles, interior solid timber aesthetics, and advanced polyamide thermal barriers.
Alloy Selection & Structural Extrusions
SAGA utilizes high-precision 6063-T6 architectural grade aluminum extrusions with profile wall thicknesses ranging from 1.6mm to 3.0mm depending on structural load requirements. 6063-T6 provides an exceptional tensile strength ($\ge 205 \text{ MPa}$) and yield strength ($\ge 170 \text{ MPa}$), ensuring zero structural deflection under extreme wind loads.
Thermal Barrier & Insulation Mechanics
The bridge between interior and exterior profiles features PA66GF25 polyamide thermal strips enriched with 25% glass fiber. This material matches the thermal expansion coefficient of aluminum ($1.2 \times 10^{-5} / \text{K}$), eliminating stress fatigue while dropping frame thermal conductivity ($U_f$) to below $1.3 \text{ W/m}^2\text{K}$.
Interior Solid Timber Cladding
For interior spaces, solid sustainably sourced timber—such as American White Oak, Teak, or Larch—is joined to the aluminum frame via snap-in nylon fasteners. This floating connection accommodates differential thermal expansion between wood and metal without warping or delamination.
Comparative Performance Analysis: Frame Material Matrix
When specifying Fenestration packages for high-end residential villas or commercial developments, select frame configurations tailored to regional environmental stress:
| Performance Metric | Standard Aluminum | Thermally Broken Aluminum | Aluminum Clad Timber |
|---|---|---|---|
| Frame U-Factor ($U_f$) | $5.0 - 6.5 \text{ W/m}^2\text{K}$ | $1.6 - 2.2 \text{ W/m}^2\text{K}$ | $1.0 - 1.4 \text{ W/m}^2\text{K}$ |
| Acoustic Rating (STC / Rw) | 28 - 32 dB | 36 - 42 dB | 40 - 48 dB |
| Structural Load Limit | Up to 3000 Pa | Up to 4500 Pa | Up to 5500 Pa |
| Interior Aesthetic Finish | Powder Coat / Anodized | Powder Coat / Woodgrain Powder | Natural Solid Hardwood (Oiled/Varnished) |
| Weathering Maintenance | Ultra-Low (Wipe Clean) | Ultra-Low (Wipe Clean) | Exterior Zero Maintenance / Interior Timber Care |
| Primary Application | Mild Climate Commercial | High-Rise & Coastal Residential | Luxury Villas & Net-Zero Passive Houses |
Global Procurement Trends in Aluminum Clad Fenestration
Key technological shifts and international regulatory drivers impacting high-volume door and window sourcing for developers, wholesalers, and architects.
1. Net-Zero Carbon & Passive House Mandates
Strict energy efficiency building codes (such as Australia’s NCC 2022 H1 requirements and North American NESC directives) mandate overall window assembly U-values below $1.2 \text{ W/m}^2\text{K}$. SAGA responds by integrating triple-glazed argon-filled Low-E insulated glass units (IGUs) featuring warm-edge Technoform spacers.
2. Coastal Extreme Weather & Impact Resilience
With rising tropical storm frequencies, importers in Florida, the Caribbean, and coastal Australia require mandatory Miami-Dade TAS 201/202/203 missile impact testing and AS2047 cyclic wind pressure performance. Laminated SGP (SentryGlas®) interlayers are rapidly becoming standard spec for exterior entry doors.
3. Ultra-Slim Sightlines & Large Format Glass
Architectural preferences lean heavily toward floor-to-ceiling glass expanses with concealed frame profiles. Modern aluminum clad sliding and pivot doors utilize heavy-duty stainless steel carriage hardware capable of supporting single panels up to 400kg with effortless push-pull operation.
4. Automated Production & BIM File Integration
Direct integration of factory CAD/CAM automation allows seamless transformation of architect-provided Revit / IFC building models into CNC cutting and corner-crimping coordinates, reducing manufacturing tolerances to $\le 0.5\text{mm}$.
5. Direct Factory Sourcing vs Local Fabrication
Commercial builders increasingly bypass middle-man distributors to establish direct supply chains with certified Chinese OEMs like SAGA. This strategy yields 30% to 45% cost efficiency while securing custom profile extrusions and factory-certified testing documentation.
6. Fluoropolymer AAMA 2605 Surface Finishes
To combat harsh UV radiation and oceanic salt spray, exterior aluminum faces are treated with 70% PVDF fluoropolymer resin coatings compliant with AAMA 2605 standards, guaranteeing 20+ years of color retention and zero chalking.
Why SAGA Leads China's Aluminum Clad Door Export Sector
Backed by 16 years of dedicated manufacturing experience, factory-direct pricing, and third-party audited compliance certifications for global construction markets.
Rigorous Compliance Audits
SAGA products undergo rigorous annual audits under the Australian Glass and Window Association (AGWA) compliance scheme for AS2047:2014 and AS1288:2021, as well as New Zealand NZS4211:2008 and North American NAFS standards.
Dual-Port Sea Logistics
Strategically located in Minhou, Fuzhou, Fujian, our logistics operations ship directly from Fuzhou Port or Xiamen Port. All window and door units are packed in fully enclosed ISPM-15 compliant fumigated plywood crates with corner protection.
100% Pre-Shipment Trial Assembly
Before crate sealing, every custom door frame and sash undergoes 100% trial assembly in the factory to audit dimensional accuracy, seal compression, hardware smooth movement, and air tightness.
Procurement & Technical FAQ for International Buyers
Essential guidance for commercial builders, architects, window dealers, and project contractors importing custom fenestration systems from China.
Q1 How do SAGA aluminum clad doors comply with Australian AS2047 & NCC 2022 standards?
Our window and door profiles undergo independent physical testing accredited under AGWA (Australian Glass and Window Association). We test for structural deflection (Ultimate Limit State up to 4500Pa), air infiltration resistance, water penetration resistance (up to 600Pa), and glass safety compliance under AS1288:2021.
Q2 What is the typical lead time from shop drawing sign-off to port loading?
Standard factory production lead time is 35 to 50 calendar days following shop drawing approval and deposit confirmation. Custom profile extrusion colors or specialized glass configurations (such as SGP hurricane interlayers) may require an additional 7–10 days.
Q3 Can SAGA provide engineering shop drawings and CAD/BIM support before production?
Yes. Every order receives comprehensive technical shop drawings—including frame elevation drawings, cross-sectional details, anchor placement specs, and wall opening flashing integration—prepared by our senior fenestration engineers for local council or certifier review.
Q4 How does the factory handle sample orders for quality evaluation?
We supply standard-sized corner sample sections or full-scale window/door sample units for client and certifier evaluation. Sample fabrication is free of charge; the buyer covers express air freight or ocean sample freight costs.
Q5 What glass options are offered for energy efficiency and sound insulation?
We offer double and triple insulated glass units (IGUs) equipped with Low-E soft coatings, argon gas fill (minimum 90% concentration retention), warm-edge spacers, laminated acoustic PVB interlayers (for STC ratings up to 48dB), and tempered safety glass conforming to international standards.
Q6 What hardware brands are integrated into SAGA exterior doors?
We partner with premier global hardware manufacturers including ROTO (Germany), Siegenia-Aubi (Germany), Kinlong, and Doric (Australia). Multi-point locking mechanisms, heavy-duty concealed hinges, and smart biometric entry options are available based on project specs.
Q7 How are door units protected against moisture and breakage during sea freight?
Each unit is wrapped in protective shrink film, buffered with shock-absorbing corner guards, and sealed inside heavy-duty, fully fumigated plywood crates. Desiccant packs are inserted to absorb ambient container humidity during long ocean transit.
Q8 What trade payment terms and financial guarantees are supported?
We accept standard wire transfers (T/T with 30% deposit upon order confirmation and 70% balance prior to container dispatch) as well as Alibaba Trade Assurance for complete buyer payment protection.
