Executive Summary: The Architectural Evolution of Large-Span Aluminium Big Doors
Modern architectural philosophy emphasizes seamless spatial continuity, maximal natural daylighting, and thermal envelope integrity. Aluminium big doors—encompassing heavy-duty lift-and-slide portals, oversized architectural pivot doors, slimline multi-panel sliding systems, and wide-span bifold configurations—have transitioned from luxury design statements to essential structural elements in high-performance building design.
As a premiere Chinese manufacturer and exporter, SAGA Aluminum Doors & Windows Co., Ltd. (ROPO) combines state-of-the-art 6063-T5/T6 extrusion metallurgical technology, multi-chambered polyamide thermal barriers (PA66-GF25), and structural silicone glazing to deliver fenestration systems capable of spanning panel heights over 3.5 meters and resisting extreme acoustic, thermal, and wind loads. This whitepaper provides commercial developers, architects, general contractors, and B2B importers with an authoritative technical framework for specifying, evaluating, and sourcing high-grade aluminium big doors directly from China’s leading production hubs.
Featured Heavy-Duty Aluminium Big Doors & Glazing Systems
Precision-manufactured joinery solutions tested to rigorous Australian (AS2047/AS1288), New Zealand (NZS4211), North American (NAFS), and Miami-Dade hurricane impact performance criteria.
System Typologies & Structural Mechanics of Aluminium Big Doors
Engineering massive glass openings requires rigorous structural calculations, profile moment of inertia ($I_x/I_y$), and specialized hardware integration.
Heavy-Duty Lift & Slide Systems
Engineered for panel weights reaching up to 400kg–600kg. The lifting mechanism disengages EPDM weather gaskets during operation, allowing effortless finger-touch movement of massive double/triple-glazed panels. When lowered, multi-point locking drives the gaskets into compression for superior air sealing and water tightness (up to 1000 Pa).

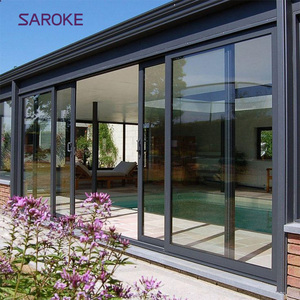

Minimalist Ultra-Slimline Sliding Doors
Featuring interlock sightlines as narrow as 20mm–25mm, these systems maximize transparency while embedding structural steel reinforcements inside the aluminum mullion profiles to withstand high wind pressures (AS2047 ratings up to N6/C4 cyclonic conditions).
Architectural Pivot & Bifold Portals
Designed for grand entranceways and seamless outdoor transitions. Bifold doors feature heavy-duty top-hung or bottom-load carriage rollers (Siegenia/ROTO hardware) capable of folding up to 10 panels smoothly. Pivot doors incorporate concealed hydraulic floor springs and 5-point automatic locking systems.
Technical Parameter Comparison Matrix: Big Door Systems vs Standard Patio Doors
Before issuing structural shop drawings, our engineering department calculates deflection limits under local building codes (e.g., NCC 2022, NAFS 11/17). Below is a comparative performance metric analysis:
| Performance Indicator | Heavy-Duty Lift & Slide | Slimline Architectural Sliding | Multi-Panel Bifold Door | Commercial Shopfront Entrance |
|---|---|---|---|---|
| Profile Wall Thickness | 2.0mm – 3.0mm Extrusion | 2.0mm – 2.5mm Reinforced | 2.0mm Heavy Extrusion | 2.5mm – 3.0mm Commercial |
| Max Panel Dimensions | 3.5m (H) x 3.2m (W) | 4.0m (H) x 3.0m (W) | 3.2m (H) x 1.2m (W/panel) | 3.8m (H) x 1.8m (W/leaf) |
| Max Glass Thickness | Up to 44mm Triple Glazed | Up to 38mm Double/Laminated | Up to 32mm Double Glazed | Up to 28mm Laminated/IGU |
| Thermal Insulation (U-Value) | 1.2 – 1.8 W/m²K (Thermally Broken) | 1.4 – 2.0 W/m²K | 1.6 – 2.2 W/m²K | 1.8 – 2.5 W/m²K |
| Acoustic Rating (STC/Rw) | Rw 38dB – 44dB | Rw 35dB – 42dB | Rw 34dB – 40dB | Rw 32dB – 38dB |
| Water Tightness Rating | 600 Pa – 1000 Pa | 450 Pa – 700 Pa | 300 Pa – 600 Pa | 450 Pa – 750 Pa |
Future Sourcing & Procurement Trends in Big Aluminium Doors
Key technological shifts shaping the next decade of commercial fenestration procurement and sustainable architectural construction.
01. Passive House & Ultra-Low U-Value Mandates
With international energy codes enforcing strict carbon reduction targets (such as Australia’s NCC 2022 7-Star housing thermal requirements and European NZEB standards), procurement of big aluminium doors is rapidly pivoting toward multi-chambered polyamide strips (PA66-GF25), aerogel profile insulation, and argon-filled Low-E triple glazing achieving system U-values below 1.1 W/m²K.
02. Motorized Automation & Smart Building Integration
Manual operation of massive 500kg panels is being replaced by concealed electric actuators, magnetic drive motors (Linear Drive technology), and smart home IoT controllers. Modern big door specs increasingly require integrated motorized drives compatible with KNX, Crestron, or mobile automation apps with obstacle-detection safety sensors.
03. Severe Weather & Hurricane Impact Resilience
Global climate volatility has expanded demand for extreme wind-load and missile-impact tested big doors. B2B buyers in North America, the Caribbean, and Australasia are prioritizing suppliers whose profiles comply with Miami-Dade TAS 201/202/203 missile impact standards and AS2047 cyclonic testing (up to 4500 Pa structural pressure).
SAGA Doors & Windows: Precision Manufacturing Excellence
SAGA Aluminum Doors & Windows Co., Ltd. (ROPO) operates a world-class manufacturing facility situated in No. 1 Phase, Tieling Technical and Economic Development Zone, Minhou County, Fuzhou, Fujian, China. With 16 years of direct export experience, SAGA has delivered code-compliant architectural glass and aluminum Joinery to over 25 countries worldwide.
Our infrastructure features 5-axis CNC machining centers, automated corner crimping lines, precision double-head cutting saws, and automated IGU glass processing lines. SAGA maintains strict compliance certifications audited under the Australian Glass and Window Association (AGWA) program for AS2047:2014, AS1288:2021, New Zealand NZS4211:2008, NAFS, and Miami-Dade TAS impact standards.
Rigorous Factory QC Protocol:
- ✓ 100% Dimensional Tolerance Checks (±0.5mm)
- ✓ Hydrostatic & Air Infiltration Chamber Testing
- ✓ Hardware Cycle Testing (100,000 Cycles)
- ✓ EPDM Gasket Compression Verification
- ✓ Export Wooden Crate Packing Inspection
Frequently Asked Questions (FAQ) for Big Door Sourcing
Direct technical and commercial answers for developers, architects, and joinery importers looking to source custom big doors from China.
1. Which buyer categories does SAGA supply custom big doors to?
SAGA supplies custom aluminium big doors and window solutions directly to B2B building material wholesalers, regional window fabricators, commercial property developers, general contractors, architectural firms, and luxury residential builders. Every project is provided with custom engineering shop drawings and structural recalculations tailored to local building codes.
2. What is the typical lead time for manufacturing customized big doors?
Production lead time for customized aluminium big doors typically ranges between 35 and 50 days, depending on profile powder-coat finishes (such as Interpon/AkzoNobel architectural coatings), glass configuration (e.g., custom laminated impact glass or triple Low-E IGU), and order volume. Manufacturing begins immediately upon formal sign-off of CAD shop drawings and hardware specifications.
3. How are SAGA big doors packaged to prevent damage during ocean transit?
Because big door panels involve large glass surface areas, SAGA utilizes heavy-duty fully enclosed steel-framed wooden A-frame crates. Glass surfaces are protected with scratch-resistant polyfilm, corners are fitted with reinforced rubber bumpers, and desiccant packs are enclosed within moisture-sealed plastic wrappings to withstand temperature shifts during sea freight from Fuzhou or Xiamen ports.
4. Do SAGA aluminium door systems comply with Australian AS2047 and US NAFS standards?
Yes. Our window and door profiles have undergone independent third-party lab testing and annual factory quality auditing under the AGWA program for Australian Standards AS2047:2014, AS1288:2021, and NCC 2022. For North American markets, our products meet NAFS structural and water penetration performance metrics, alongside Miami-Dade TAS 201/202/203 impact standards for Florida hurricane zones.
5. Can SAGA provide structural engineering calculations and sample corner sections?
Absolutely. We provide full technical shop drawings, structural mullion deflection calculations ($I_x/I_y$), cross-sectional details, and installation flashing recommendations. Standard profile corner samples finished in specified powder-coat or anodized colors can be dispatched via express courier for engineering review prior to mass production.
Partner with China's Premier Aluminium Big Doors Manufacturer
Consult with our engineering team today to receive detailed CAD shop drawings, acoustic & thermal performance data, and factory-direct wholesale pricing for your project.
