Featured Commercial & Residential Aluminium Double Door Systems
Engineered to international building standards (AS2047, NZS4211, NAFS, Miami-Dade TAS 201/202/203), our factory-direct double door systems deliver exceptional thermal isolation, structural rigidity, and architectural elegance.

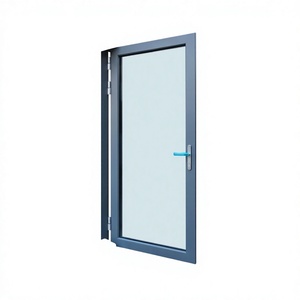

Aluminum Magnesium Alloy Thermal Break Hinged Patio Door Double Glazing Insulated Glass Balcony Entry Door Customizable
Thermal Break Aluminum Folding Door Double Glazing Glass Patio Entrance Multi-Point Locking
YUDON DOOR Aluminum Double Door Front Entry Door Main Door Anodized Finish with Smart Lock Ready for Duplex House
Custom Aluminum French Doors Double Glass Exterior Entry Doors for Villas Hotels Patios and Residential Renovation
Commercial Double Doors KFC Waterproof Supermarket Storefront Shop Black Double Glaze Aluminum Entry Exterior Commercial Door
USA Hot Sale Modern Aluminum Front Sliding Back Doors for House Thermal Break Multi Panel Glass Sliding Door Patio
Wazzor Customized High Quality American Style Aluminium Alloy Frame Residential Double Tempered Glass Sliding Windows
Customized Latest Design Soundproof Bi Fold Doors Aluminium Frameless Folding Glass Doors
Future Procurement Trends in Global Architectural Aluminium Double Doors (2025–2030)
As international energy regulations tighten and urban architectural typologies evolve, real estate developers, commercial contractors, and fenestration importers must align their procurement strategies with four macro-industry shifts.
1. Decarbonization & Low-Carbon Extrusions
Global building codes (such as the Australian NCC 2022 NatHERS 7-Star mandates and EU Green Deal directives) are pushing demand toward low-embodied-carbon aluminium extrusions. Modern procurement prioritizes primary billet produced via renewable hydropower or recycled post-consumer scrap, integrated with PA66GF25 polyamide thermal barriers to achieve whole-assembly Uw ratings under 1.4 W/m²K.
2. Mechatronic & Smart Building Integration
The traditional entrance door is evolving into a secure IoT node. B2B buyers now mandate factory-milled wire channels, motorized multipoint gearboxes (such as ROTO E-Tec or Siegenia Genius), concealed magnetic reed switches for building management systems (BMS), and biometric access control integration (fingerprint, facial recognition, or RFID keypad) directly out of the manufacturing facility.
3. Extreme Weather & Impact Resilience
Driven by escalating coastal storm events across the Caribbean, Gulf Coast, and coastal Australasia, fenestration specs require dual certification. Importers are migrating away from basic tempered glass to structural laminated assemblies featuring SentryGlas® (SGP) interlayers capable of passing Miami-Dade TAS 201 (Large Missile Impact) and TAS 203 (Cyclic Wind Pressure Loading).
Technical Innovation & Manufacturing Evolution in Aluminium Joinery
Exploring the material science, structural engineering, and automated fabrication methods that define next-generation commercial and residential double doors.
Metallurgical Precision: 6063-T6 vs 6061-T6 Extrusions
Our manufacturing facility exclusively uses high-purity architectural grade 6063-T6 aluminium alloy for door frames and sashes. This alloy provides an optimal strength-to-weight ratio, tensile strength exceeding 205 MPa, and exceptional extrusion surface quality ideal for high-durability anodizing and PVDF fluorocarbon coatings.
For high-load structural storefronts and oversized double pivot configurations, heavy-wall reinforced extrusions (profile wall thickness ranging from 2.0mm to 3.5mm) are combined with internal corner cleats crimped under pneumatic pressure exceeding 10 tons to prevent joint deflection over time.
Advanced Glazing Tech & Acoustic Decoupling
Thermal performance relies heavily on glass matrix design. Standard double-glazed doors incorporate 6mm + 12Ar + 6mm double-tempered units featuring Low-Emissivity (Low-E) soft coatings, warm-edge composite spacers, and 95% Argon gas fill.
To reduce sound transmission in hospitality and luxury residential settings, we employ asymmetric glass thickness (e.g., 8.38mm laminated exterior glass + 12mm air gap + 6mm interior tempered glass), achieving acoustic insulation values up to Rw 42 dB / STC 40.
Surface Finishing Rigor for Coastal & High-UV Environment Exposure
Architectural doors installed in coastal zones face accelerated degradation from salt fog, industrial pollutants, and solar ultraviolet radiation. Our factory maintains certified finishing lines compliant with international standards:
- Qualicoat Class 2 & 3 Powder Coatings: Formulated with super-durable architectural polyester powders (AkzoNobel / Tiger Drylac), offering up to 25 years of color retention and chalking resistance under Florida sun conditions.
- Grade 25 Anodizing (25-Micron Thickness): Creates an integral aluminum oxide layer that guarantees zero peeling or flaking, perfect for modern minimalist entrance designs and harsh marine environments.
- PVDF Fluorocarbon Spray (70% Kynar 500 Resin): Multi-coat wet painting systems providing maximum chemical resistance and color uniformity across bulk export shipments.
Fenestration System Performance & Specification Matrix
A comprehensive engineering breakdown comparing key architectural specs across our four main double door operating styles.
| Performance Metrics | Thermal Break Hinged Entry | Heavy-Duty Lift & Slide | Bi-Fold / Folding System | Commercial Storefront Double |
|---|---|---|---|---|
| Profile Depth | 70mm – 90mm | 120mm – 160mm (2/3 Track) | 75mm – 80mm | 100mm – 150mm |
| Thermal Transmittance (Uw) | 1.2 – 1.6 W/m²K | 1.3 – 1.8 W/m²K | 1.4 – 1.9 W/m²K | 1.8 – 2.4 W/m²K (Non-TB opt.) |
| Acoustic Rating (Rw) | Rw 38 – 42 dB | Rw 35 – 40 dB | Rw 32 – 38 dB | Rw 30 – 36 dB |
| Max Wind Pressure (Pascal) | 4500 Pa (N6 / C4 Rating) | 5000 Pa (Structural Ultimate) | 3600 Pa | 4000 Pa |
| Water Penetration Resistance | 600 Pa – 900 Pa | 750 Pa – 1050 Pa | 450 Pa – 600 Pa | 400 Pa – 600 Pa |
| Max Leaf Dimensions (W×H) | 1100mm × 3000mm | 2500mm × 3500mm | 1000mm × 3200mm | 1200mm × 2800mm |
| Hardware Origin Options | ROTO, Siegenia, Kinlong | CMECH, ROTO, Hoppe | CMECH, Siegenia, Kinlong | DorMakaba, Kinlong, LCN |
Why Partner with SAGA Aluminum Doors & Windows Co., Ltd.
Factory-direct manufacturing, rigorous compliance audits, and full engineering support tailored for importers, builders, developers, and architects worldwide.
1. Multi-National Certified Compliance
Our manufacturing lines operate under audited quality management standards with formal credentials covering target markets globally:
- Australia & NZ: AGWA audited, AS2047:2014, AS1288:2021, and NZS4211:2008 compliance (covering NZBC B1, B2, E2, F2, G4, G7, H1).
- North America: NAFS certified for air infiltration, structural deflection, and water resistance.
- Caribbean & Florida: Miami-Dade TAS 201-94, TAS 202-94, and TAS 203-94 impact approvals.
2. End-to-End Engineering & BIM Support
We bridge the gap between architectural concept and jobsite installation. For every order, our engineering team generates detail drawings, profile cross-sections, glass load calculations, and anchorage details so project teams can secure fast certifier approval before production starts.
3. Dual-Port Logistics & Export Packaging
Situated in Minhou County, Fuzhou, Fujian, China, our factory offers logistics efficiency via direct container loading from Fuzhou Port or Xiamen Port. All door leaves are individually film-wrapped, corner-protected, and packed into steel-belted plywood crates to eliminate transit damage across ocean freight lines.
Flexible Financial & Procurement Terms
We support diverse international commercial arrangements designed to minimize counterparty risk for commercial buyers and dealers. Standard payment terms include standard Wire Transfer (T/T) structures as well as Alibaba Trade Assurance protection, guaranteeing order accuracy, production milestones, and shipment integrity.
Frequently Asked Questions for Importers & Contractors
Expert technical answers covering custom specs, compliance standards, order lead times, and global shipping logistics.
Ready to Spec Your Aluminium Double Door Order?
Contact our fenestration engineering team today for shop drawing reviews, structural wind-load assessments, material samples, and factory-direct pricing for your upcoming commercial or high-end residential build.
