Featured Commercial & Architectural Shop Doors
Precision-engineered extruded aluminum entrance systems manufactured to international wind-load, thermal, and security standards.
Engineering Standards for Commercial Aluminium Shop Doors
When sourcing commercial store entrance systems from Chinese OEM manufacturers, technical compliance and structural longevity are non-negotiable. Below is an expert breakdown of profile engineering, glazing thermal performance, and compliance metrics.
Alloy Selection: 6063-T5 vs 6061-T6
Commercial store entrances demand high structural yield strength combined with flawless surface anodizing capability. Leading Chinese manufacturers utilize primary ingot 6063-T5 aluminum extrusions with profile wall thicknesses ranging between 2.0mm and 3.0mm for heavy-duty commercial framing.
Thermal Break & Barrier Integration
To mitigate thermal bridging in extreme northern European or North American climates, continuous PA66-GF25 (25% fiberglass reinforced polyamide) thermal barrier strips are crimped between inner and outer extruded aluminum profiles, reducing door assembly overall U-factors down to 1.4 W/m²K.
Impact & Wind-Load Resistance
Storefront doors in hurricane-prone zones (such as Florida and the Caribbean) are tested to Miami-Dade TAS 201, 202, and 203 guidelines. Laminated glass configurations (e.g., 6mm Toughened + 1.52mm SGP/PVB + 6mm Toughened) withstand large missile impacts and cyclic wind pressures up to 4500 Pa.
According to international fenestration standards (AS2047 / NAFS), high-traffic commercial shopfront doors must maintain structural deflection limits strictly under L/175 of the clear span under ultimate wind pressure. Ensure your Chinese factory supplier provides verified finite element stress analysis (FEA) and physical test reports prior to mass production tooling.
Comprehensive Material & System Comparison Matrix
Compare structural frame solutions to select the ideal system for your commercial retail plaza, hotel entrance, or industrial office front.
| Door Frame System | Structural Profile Depth | Thermal Transmittance (U-Value) | Acoustic Insulation (Rw) | Primary Commercial Application |
|---|---|---|---|---|
| Thermally Broken Aluminium Sliding Door | 120mm - 190mm System | 1.5 - 2.0 W/m²K | 35 - 42 dB | High-end resort balconies, luxury automobile showrooms, commercial patios |
| Heavy-Duty Commercial Hinged / Swing Door | 50mm - 75mm Heavy Wall | 2.2 - 2.8 W/m²K | 30 - 36 dB | Retail shopfront entrances, high-traffic plaza doors, office towers |
| Insulated Aluminium Folding (Bi-fold) Door | 70mm - 80mm Multi-Chamber | 1.4 - 1.8 W/m²K | 36 - 40 dB | Restaurant storefront openings, outdoor dining frontage, hotel event halls |

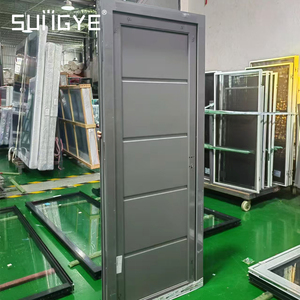

| Solid Aluminum Honeycomb Core Door | 45mm - 55mm Flush Panel | 1.8 - 2.4 W/m²K | 38 - 45 dB | High-security commercial backdoors, hospital cleanrooms, acoustic hotel partitions |
| Aluminium-Timber Composite Casement Door | 85mm - 110mm Hybrid Frame | 1.1 - 1.4 W/m²K | 40 - 46 dB | Northern European luxury retail boutiques, villa main entrances, passive buildings |
Future Procurement & Development Trends in Commercial Doors
As global building codes shift toward net-zero targets and smart building automation, commercial store door manufacturing is undergoing a structural evolution.
Smart Automation & Access Integration
Future commercial entrances seamlessly integrate direct motorization with building management systems (BMS). Expect growing buyer demand for heavy-duty hidden overhead concealed operators, facial recognition access control, and auto-sealing acoustic sills.
Vacuum Insulated Glass (VIG) & Low-E
To meet strict energy policies like NCC 2022 in Australia or Title 24 in California, storefront doors are adopting VIG units (8mm thickness with U-values < 0.6 W/m²K), allowing slim profile shopfronts to achieve unprecedented thermal efficiency.
Ultra-Narrow Sightlines & Minimalist Aesthetics
Modern retail architecture favors concealed outer frames with interlocking mullion sightlines as thin as 21mm. Importers are expanding orders for high-strength aluminum-lithium profiles that offer extreme rigidity with minimal visual bulk.
EPD & Embodied Carbon Auditing
Institutional developers increasingly require Environmental Product Declarations (EPD). Leading Chinese OEM factories now provide verified carbon-footprint data covering recycled aluminum content (up to 75% secondary aluminum extrusions).
Why Top Global Brands Partner With SAGA Doors & Windows
Operating 16+ years of specialized export manufacturing, our production complex delivers complete fenestration solutions backed by international accreditations.
Rigorous International Certifications
Our manufacturing systems undergo audited testing compliance including AGWA compliance (AS2047 / AS1288 / NCC 2022) for Australia, NZS4211 for New Zealand, NAFS for North America, and Miami-Dade impact rating for storm zones.
Precision CNC & Corner Crimping
Equipped with 5-axis German CNC machining centers, profile cutting tolerances are maintained within ±0.1mm. Corner joints utilize heavy cast aluminum corner keys combined with dual-component structural epoxy injection for zero frame racking.
Tier-1 Hardware Supply Chain
We partner with premier global hardware manufacturers—including ROTO, Siegenia-Aubi, Kinlong, Veka, and Rehau—to ensure operating cycles exceed 100,000 continuous opening tests with zero sag.
Frequently Asked Questions (FAQ) for Importers & Contractors
Detailed answers regarding technical shop drawings, ocean freight packaging, compliance validation, and custom fabrication timelines.
Ready to Source High-Performance Aluminium Shopfront Doors?
Send us your project architectural drawings, window schedules, or specification brief today. Our technical engineering team will return a comprehensive price quotation and section drawing review within 24 hours.
