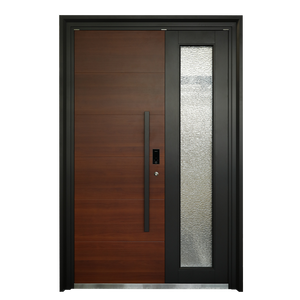

Aluminum Security French Door - Waterproof Exterior Entry Door for Hotel Apartment Villa Use
Frame: 6063-T6 Extruded Aluminum
Glazing: Double Tempered Low-E Glass
Security: Multi-Point German Lock System
Direct-Factory Catalog
Featured Wholesale Aluminum External Doors & Window Systems
High-performance architectural joinery precision-engineered in China for commercial developers, B2B wholesalers, and luxury custom builders worldwide.
Luvindow European Style Standard Size Thermal Break Aluminium Wood Triple Pane House Glass Casement Windows
Thermal Strip: PA66 Polyamide Barrier
U-Factor: ≤ 0.85 W/m²K Passive Standard
Interior: Solid Oak / Walnut Composite
Custom Glass Aluminum Hinged Door Modern Exterior Front Entry French Doors
Extrusion Depth: 70mm Heavy-Duty Profile
Weathering: EPDM Dual Density Gaskets
Finish: Qualicoat Powder Coating
OUNA Hurricane Proof High Impact Black Aluminum Alloy Thin Profile Aluminium Windows And Doors Casement Window S For USA
Rating: Miami-Dade TAS 201/202/203
Glass: SGP Interlayer Impact Laminated
Sightline: Ultra-Slim Minimalist Profile

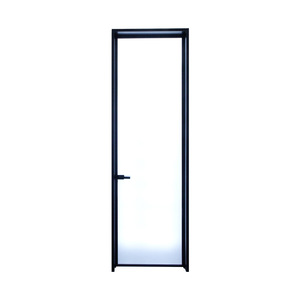

Factory Customized Design Aluminum Modern Waterproof Sliding Aluminum Alloy Glass Apartment Bathroom Door for Toilet Shower
Track: Heavy-Duty Soft-Close Track
Glazing: Privacy Frosted Toughened Glass
Moisture: 100% Anti-Corrosion Treatment
Customized America Standards Fire Prevention Aluminum Alloy Security Door Front Pivot Entry Doors Aluminum Entrance Door
Mechanism: Heavy Load Floor Spring Pivot
Fire Core: Mineral Wool Insulation Core
Compliance: NAFS Tested & Certified
ZEKIN Customized Folding Glass Door Internal Cavity Bi-fold Doors NFRC AS2047 Energy Efficient Aluminum Stacking Folding Doors
Audit: AGWA Audited AS2047 & NFRC
Roller: Stainless Steel Bottom Carriage
Opening: Up to 12m Span Custom Bifold
Australian Standard Storm Security Aluminum Hinged Double Glazing Glass French Doors with Fiberglass Screen for Apartment Use
Standard: AS2047 / AS1288 Verified
Screen: High-Tensile Security Flyscreen
Seal: Dual EPDM Perimeter Weather Stripping
16+
Years Export Manufacturing
25+
Global Export Destination Markets
10-Yr
Structural & Coating Quality Assurance
100%
Pre-Shipment Factory QC Inspection
Architectural Metallurgy & Thermal Break Engineering in China Manufacturing
When sourcing from a China wholesale aluminum external doors manufacturer, evaluating raw material composition and thermal barrier technology is critical for ensuring long-term structural integrity and building envelope performance. SAGA Doors & Windows utilizes high-precision 6063-T5 and 6063-T6 architectural grade aluminum extrusions engineered to exceed severe international structural wind load requirements.
01
Aluminum Alloy Grade Selection
Standard commercial doors utilize 6063-T5 aluminum for fine extrusion profiles. For heavy-duty exterior entry pivot doors and hurricane impact systems, SAGA specifies 6063-T6 temper profiles offering a minimum tensile strength of 205 MPa and yield strength of 170 MPa, preventing sash sag over decades of operation.
02
Polyamide PA66 Thermal Barriers
Aluminum is inherently conductive. To meet modern energy standards (such as Australia's NCC 2022 H1 or US Energy Star), SAGA integrates Technoform Polyamide PA66 GF25 (25% glass fiber reinforced) thermal break strips. This mechanical barrier isolates the inner profile from the outer frame, dropping U-values from 5.8 W/m²K down to ≤ 1.4 W/m²K.
03
Surface Coating Durability
For coastal buildings exposed to high salt spray (C4/C5 marine environments), door frames are treated with AkzoNobel or PPG Qualicoat Class 2 / Class 3 fluorocarbon (PVDF) powder coatings. This delivers resistance to UV degradation, chalking, and salt corrosion verified up to 3,000 hours of continuous salt spray testing.
Future Procurement & Industry Development Trends for Aluminum External Doors
The global market for wholesale architectural joinery is undergoing rapid transformation driven by carbon neutrality targets, extreme weather events, and digital manufacturing integration. B2B importers, real estate developers, and architects must align their procurement strategies with five macro trends shaping the industry:
| Procurement Trend | Industry Driver | Technical Impact on Aluminum Doors | SAGA Engineering Solution |
|---|---|---|---|
| 1. Ultra-Low U-Value Mandates | Stringent global building codes (NCC 2022, ASHRAE 90.1, EU Passive House) | Shift from standard double glazing to warm-edge triple pane Low-E insulated glass units (IGUs) filled with 95% Argon gas. | Multi-cavity thermal break extrusions with integrated Aerogel insulation cores delivering U-values as low as 0.78 W/m²K. |
| 2. Minimalist Ultra-Slim Sightlines | Architectural demand for maximum natural light and seamless indoor-outdoor transition | Requirement for heavy-duty structural hardware capable of supporting larger glass weights (up to 500kg per sash) with frame sightlines under 30mm. | Concealed heavy-load stainless steel hinges and motorized lift-and-slide carriage tracks engineered for oversized openings. |
| 3. Extreme Weather & Hurricane Resilience | Increased frequency of severe storms, typhoons, and coastal hurricanes | Mandatory high static pressure testing (TAS 202) and cyclic wind loading (TAS 203) with high-impact laminated glass. | SGP (SentryGlas®) ionoplast interlayer laminated glazing systems certified to Miami-Dade NOA standards for high-velocity hurricane zones. |
| 4. Smart Access & Automation Integration | Rise of luxury smart homes, hospitality automation, and contactless entry | Transition from mechanical keys to motorized multi-point electronic locksets, biometric sensors, and building management system (BMS) integration. | Factory-milled wire channels, hidden wiring conduits, and integrated German Siegenia motorized multi-point locking solutions. |
| 5. Green Aluminum & Carbon Auditing | Scope 3 carbon emission reporting and LEED / BREEAM green building certifications | Preference for aluminum suppliers utilizing hydro-powered primary smelters and high post-consumer recycled content. | Transparent Environmental Product Declarations (EPDs) and low-carbon primary billet sourcing verified for international sustainability credits. |
Multi-Standard Certification & Compliance Guide for Importers
Importing custom architectural windows and doors into regulated markets requires strict adherence to local building codes. SAGA maintains continuous independent audit programs to ensure every door system ships with certified test documentation ready for certifier sign-off.
Australia & New Zealand
Standards: AS2047:2014, AS1288:2021, NZS4211:2008, NCC 2022 H1.
Audited under the AGWA (Australian Glass and Window Association) program. Verifies structural wind deflection (PAS), water penetration resistance (up to 600 Pa), and air infiltration.
North America (USA & Canada)
Standards: NAFS (AAMA/WDMA/CSA 101/I.S.2/A440), NFRC Energy Ratings.
Comprehensive testing covering structural performance class (CW/AW), uniform static load, water infiltration, air tightness, and forced entry resistance.
Florida & Caribbean HVHZ
Standards: Miami-Dade NOA, TAS 201-94, TAS 202-94, TAS 203-94.
High-Velocity Hurricane Zone (HVHZ) certification involving large missile impact testing (firing 9-lb 2x4 lumber at 50 ft/s) and 9,000 cycles of positive/negative wind pressure loading.
European Union
Standards: CE Marking, EN 14351-1, ISO 9001 Factory Quality Management.
Evaluates acoustic reduction index (Rw dB ratings), thermal transmittance (Uw), wind load resistance (Class C5), and hazardous chemical safety.
Factory Operating Procedure
SAGA 7-Step Precision Manufacturing & Quality Control Workflow
From initial CAD drafting to container loading, every wholesale order follows a strict quality assurance protocol at our Fujian manufacturing facility.
01
1. CAD & Shop Drawings
Detailed section drawings and schedule sign-offs tailored to target building codes prior to material allocation.
02
2. Prototype Sampling
Physical corner keys or full-size window/door samples dispatched to verify profile dimensions and finish quality.
03
3. CNC Milling & Crimping
Automated Elumatec CNC profile cutting and corner hydraulic crimping with dual-component corner adhesive injection.
04
4. Glazing & Sealing
Automated glass placement with continuous EPDM gaskets and structural silicone sealing to prevent water entry.
05
5. Pressure & QC Testing
In-house chamber testing for water tightness, air infiltration, dimensional tolerance, and hardware action.
06
6. Crate Packaging
Fully enclosed fumigated plywood crates with protective foam wrap and steel strapping for container shipment.
07
7. Port Logistics & Support
Direct shipment from Fuzhou or Xiamen ports with full bill of lading, customs clearance documents, and 10-year warranty technical support.
Buyer Knowledge Base
Frequently Asked Questions by Importers & Commercial Buyers
Detailed answers to structural, logistics, pricing, and technical specification queries regarding China wholesale aluminum external doors manufacturing.
Which types of buyers does SAGA supply custom aluminum doors and windows to?
We supply B2B wholesalers and dealers, commercial developers, custom residential builders, general contractors, architects, and direct project owners. Each project is assigned a dedicated engineering team that prepares CAD shop drawings, wind load calculations, and technical specifications matched to the buyer's local building authority and certifier requirements.
What is the standard production lead time for customized wholesale orders?
Typical factory production lead time is 35 to 50 days following final CAD shop drawing sign-off and deposit receipt. Lead times vary depending on frame extrusion complexity, special powder coat color approvals (e.g., custom RAL matching), and specialized glazing requirements such as SGP hurricane interlayers or triple pane Low-E units.
Can SAGA supply physical window and door samples for certifier evaluation?
Yes. We supply full-frame corner cutaways showing profile wall thickness, thermal break assembly, gasket seals, and glass make-up, as well as standard-size sample windows for physical lab or certifier testing. Standard sample units are supplied free of charge, with the buyer covering international express freight.
What technical documentation and engineering support are included with an order?
Every project order includes detailed architectural CAD shop drawings, cross-sectional drawings, installation fixing details, structural wind pressure calculation reports, glass NFRC/AS1288 energy certificates, and maintenance manuals to ensure seamless installation by site crews.
How do SAGA doors comply with Australian AS2047 and AS1288 standards?
Our door and window systems are independently audited and certified under the AGWA (Australian Glass and Window Association) program. Testing verifies compliance with AS2047:2014 (Mandatory performance for windows and doors in buildings) for structural deflection, water penetration, and air infiltration, combined with AS1288:2021 human impact safety glazing standards.
What are the primary loading ports and accepted international trade payment terms?
Wholesale shipments are exported directly from Fuzhou Port or Xiamen Port in Fujian Province, China. Standard payment terms are T/T (Telegraphic Transfer) 30% deposit upon order confirmation and CAD drawing approval, with the balance paid against the Bill of Lading (B/L) copy, or via Alibaba Trade Assurance for full payment protection.
What surface finishes, powder coat colors, and hardware brands are offered?
We provide standard powder coat colors (Matt Black, Monument Gray, Pearl White, Anodized Silver) as well as custom RAL color matching, fluorocarbon PVDF finishes, and realistic heat-transfer woodgrain foils. Hardware options include premium German brands (ROTO, Siegenia-Aubi, Hoppe) and top-tier Asian commercial hardware (Kinlong) backed by up to 10-year operational warranties.
Partner with China's Premier Aluminum Door Manufacturer
Simplify your supply chain with factory-direct pricing, certified structural compliance, and custom architectural engineering from SAGA Aluminum Doors & Windows Co., Ltd. Submit your window schedule or project elevation drawings for a rapid technical proposal within 24 hours.
