Featured Commercial & Architectural Fenestration Systems
Precision-engineered aluminum sliding windows, heavy-duty thermal break doors, ultra-slim minimalist casements, and HVAC access solutions manufactured for wholesale export.
Aluminum Made With Standard Powder Coated White Finish Camlocked HVAC Access Door
Inquire Now

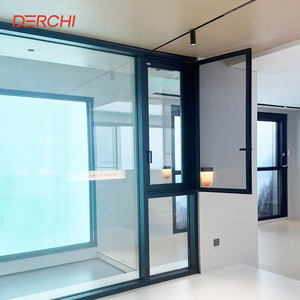

Minimalism Series Window Ultra Double Glass Aluminum Alloy Line Fixed Slimline Window Slim Profile Aluminium Casement Windows
Inquire Now
Slim Frame Aluminum Casement Window Stainless Steel Double Glass Thermal Break Modern Swing High End Architectural Minimalist
Inquire Now
High Quality Factory Price Customized Double Aluminum Alloy Glass Door French Doors Aluminum Casement Door French Entrance Door
Inquire Now
Modern Commercial Storefront Door Glass Swing Entry Aluminium Door
Inquire Now
Heavy Duty Thermal Insulated Aluminum Folding Door Double Tempered Glass Bi-Fold Doors Soundproof Accordion Door
Inquire Now
NFRC Certification Soundproof Interior Dividers Aluminum Glass Sliding Doors with Screen
Inquire Now
EOKO Thermal Break Aluminum Sliding Patio Door U-Value 1.2W/m²K Energy Efficient Glass Sliding Door With Screen For Balcony
Inquire NowTechnical Specification White Paper: Sourcing China Wholesale Aluminum Sliding Windows
Evaluating Structural Metallurgy, Thermal Conductivity Metrics, Acoustic Insulation, and Surface Finishing Technologies for Global B2B Importers
High-Grade 6063-T5 Extrusions
Our architectural aluminum slide windows utilize primary 6063-T5 aluminum alloy extrusions with a minimum wall thickness ranging from 1.4mm to 2.0mm in strict compliance with GB5237 standards. Tensile strength exceeds 160 MPa, delivering ultimate resistance against structural deflection under extreme wind-loads.
Polyamide PA66-GF25 Thermal Break
To prevent thermal bridging, high-performance sliding window profiles integrate PA66-GF25 polyamide thermal barrier strips (25% glass fiber reinforced). This reduces overall window U-values down to 1.2–1.6 W/m²K, exceeding North American NAFS and European Passive House energy parameters.
Double & Triple Insulated Glass Units
Glazing options incorporate argon-filled double/triple-glazed IGUs featuring Low-E coatings, warm edge spacer bars, and toughened safety glass certified under AS/NZS 2208, ANSI Z97.1, and EN 12150 standards, optimizing acoustic attenuation up to STC 42 dB.
Global Building Code Compliance & Testing Matrix
A comprehensive audit of SAGA aluminum window and door testing protocols across main export destinations.
| Target Export Market | Required Standard / Code | Tested Engineering Parameters | SAGA Factory Technical Verification |
|---|---|---|---|
| Australia & New Zealand | AS2047:2014, AS1288:2021, NZS4211:2008, NCC 2022 | Deflection (N1-N6), Air Infiltration, Water Penetration Resistance (150-600 Pa), Ultimate Strength. | AGWA accredited compliance certificates; independent NATA-audited lab test reports. |
| USA & Canada | NAFS (AAMA/WDMA/CSA 101/I.S.2/A440), NFRC Energy Rating | Structural Loading, Air Leakage, Operating Force, Forced Entry Resistance, U-Factor & SHGC ratings. | Certified thermal modeling, NFRC energy performance listings, and physical NAFS lab test reports. |
| Florida & Caribbean Region | Miami-Dade TAS 201, TAS 202, TAS 203 (High Velocity Hurricane Zone) | Large & Small Missile Impact, High Static Air Pressure, Cyclic Wind Pressure Loading up to ±100 PSF. | Heavy-wall impact aluminum profiles with laminated hurricane-resistant safety glass combinations. |
| European Union | CE Marking, EN 14351-1:2006+A2:2016 | Wind Load Resistance (EN 12210), Watertightness (EN 12208), Thermal Transmittance (EN ISO 10077-2). | Factory Production Control (FPC) verified; full Declaration of Performance (DoP) provided. |
Future Procurement Trends in Global Wholesale Fenestration (2025–2030)
How B2B Importers, Commercial Builders, and Wholesalers can optimize their supply chain strategy ahead of changing global regulatory frameworks.
1. Carbon-Neutral Manufacturing & Low-Embodied Carbon Profiles
As Western nations implement stricter Embodied Carbon regulations (such as the EU's Carbon Border Adjustment Mechanism - CBAM, and Australia's Green Star ratings), window procurement is rapidly shifting toward manufacturers using recycled hydroelectric aluminum billets. SAGA is pioneering low-carbon extrusion technologies, pairing green-smelted aluminum alloys with third-party verified Environmental Product Declarations (EPD). Overseas importers prioritizing lower EPD metrics will capture preferential margins in public and commercial tenders over the coming decade.
2. Digital Twin Integration & BIM Specification Workflows
The era of static paper shop drawings is closing. Future procurement demands direct integration between wholesale factory CAD/CAM automation and architectural Building Information Modeling (BIM) software (Revit, ArchiCAD). SAGA provides full 3D BIM object libraries for our entire aluminum sliding window and thermal door line. This enables general contractors and developers to detect spatial clashes, verify solar heat gain coefficients (SHGC), and validate wind load stresses digitally before committing to factory tooling.
3. Direct-from-Factory Supply Chain Resiliency
Middlemen and regional brokers increase total landed fenestration costs by 30% to 50%. Future wholesale procurement relies heavily on factory-direct partnerships established directly with OEM/ODM extruders in China who manage the full production vertical: alloy melting, die extrusion, anodizing, powder coating, thermal break assembly, glazing, and sea-freight logistics. Establishing direct channels mitigates lead-time volatility and ensures 100% compliance traceability.
4. Smart Hardware & Motorized Architectural Sliding Glass
Procurement trends show exponential growth in motorized slimline sliding doors and automated high-level windows connected to smart building management systems (BMS). Hidden automated actuators, integrated rain sensors, multi-point electronic locking mechanisms, and concealed track drainage channels represent the fastest-growing high-margin category for window distributors worldwide.
Architectural & Engineering Development Trends in Aluminum Sliding Windows
Key technological advancements transforming modern aluminum fenestration design and performance metrics.
Ultra-Slim Sightlines & Hidden Frames
Architectural demand favors maximum glass surface area. Modern aluminum sliding window systems feature interlock sightline widths reduced down to just 18mm–21mm without compromising structural moment of inertia ($I_x$). Frame tracks can be fully embedded flush into surrounding masonry and flooring for zero-threshold indoor-outdoor transitions.
High-Performance Concealed Drainage Systems
Traditional sliding windows suffered water penetration through exposed track weep-holes under severe storm conditions. Modern engineering utilizes step-down concealed cascade drainage tracks fitted with non-return valves. This ensures water head pressures up to 600 Pa are managed efficiently without wind back-drafting into interior spaces.
Advanced Surface Finishes & Durability
From fluorocarbon PVDF coatings for aggressive coastal regions to real woodgrain sublimated foils and Qualicoat Class 2 ultra-durable powder coatings (such as AkzoNobel and Jotun series), modern aluminum windows withstand high UV exposure and salt-spray corrosion for over 25 years without chalking or fading.
SAGA Factory Advantage & Enterprise Manufacturing Strength
Vertically Integrated Production Capabilities Engineered for High-Volume B2B Supply Chains
Automated CNC Machining & Precision Assembly
Operating out of an expansive modern industrial facility in Fujian, China, SAGA employs 5-axis CNC double-head cutting saws, automatic corner-crimping machines, and computerized glass loading lines. Profile tolerance is maintained within ±0.5mm, ensuring exact squareness, airtight corner sealing, and smooth hardware operation on every single unit.
- 16+ Years specialized manufacturing for ocean-export markets.
- Custom Shop Drawings (AutoCAD, 3D Revit models) provided within 48 hours.
- Strict 100% pre-shipment trial assembly and dimensional QC verification.
- Reinforced export-grade plywood crate packaging designed for container handling.
Global OEM/ODM Customization Capabilities
Whether you require customized extruded die profiles tailored to regional architectural designs, specialized hardware integration (ROTO, SIEGENIA, HOPO, KINLONG), or specific acoustic laminated glass configurations, SAGA offers complete ODM project support. Our engineering desk acts as an extension of your procurement team.
Frequently Asked Questions (FAQ) for Global Buyers & Importers
Detailed engineering, commercial, and technical answers addressing common procurement questions.
Which types of commercial buyers and trade partners does SAGA supply to?
SAGA primarily supplies direct factory orders to wholesale building material distributors, window dealers, general contractors, commercial developers, architectural specifiers, and fabricators. We tailor complete technical documentation, window schedules, shop drawings, and custom branding/packaging to align seamlessly with your distribution model.
What is the standard production lead time for custom aluminum sliding window orders?
Standard manufacturing lead times range from 35 to 50 days following final sign-off of shop drawings and deposit confirmation. For custom extruded profile dies or special non-standard powder-coating powder colors, initial die fabrication and sample approval requires an additional 12 to 15 days.
Can SAGA provide sample units for local building certifier or engineering evaluations?
Yes. We routinely fabricate full-scale sample window units or corner structural cutaways demonstrating thermal break construction, EPDM gasket sealing, hardware mechanisms, and profile finish quality. Standard samples are provided free of charge, with express air courier fees covered by the buyer.
What engineering and design documentation is included before mass production starts?
Every order receives complete CAD shop drawings, section profiles, frame anchor installation details, water drainage schematics, glass schedules, and wind load deflection calculations. Mass production never begins until your technical team or project architect reviews and formally approves these drawings.
How do SAGA aluminum sliding windows comply with Australian (AS2047) and New Zealand (NZS4211) standards?
Our products undergo annual independent audits under the Australian Glass and Window Association (AGWA) program. Our windows meet AS2047:2014, AS1288:2021, and NCC 2022 building code mandates. For New Zealand, our certification covers NZS4211:2008 and Building Code performance clauses B1 (Structure), B2 (Durability), E2 (External Moisture), F2, G4, G7, and H1 (Energy Efficiency).
Which primary loading ports are utilized for ocean container shipping?
Orders are consolidated, crated, and shipped directly from either Fuzhou Port or Xiamen Port in Fujian Province, China. Both are major deep-water international ports offering direct shipping lines to North America, Australia, New Zealand, Europe, and the Caribbean.
What payment terms and financial security options are accepted for wholesale orders?
We accept standard Telegraphic Transfer (T/T - 30% deposit upon shop drawing approval, 70% balance prior to container loading or against Bill of Lading copy) as well as Alibaba Trade Assurance payment channels, which offer comprehensive buyer protection and escrow security.
What surface finishes, anodizing thickness, and powder coating colors are available?
We offer standard RAL architectural powder colors (Matt Black, Monument Gray, Gloss White, Anthracite), anodic oxidation finishes (15µm to 25µm film thickness), PVDF fluorocarbon coatings for marine environments, and heat-transfer sublimated woodgrain finishes. Custom color matching is available upon request using AkzoNobel or Interpon powders.
How does SAGA handle quality assurance and pre-shipment inspections?
Our multi-stage QA protocol includes raw aluminum wall-thickness caliper checks, coating adhesion cross-hatch testing, glass seal integrity inspection, and 100% full-frame assembly testing on specialized vertical racks prior to packing. Photographic and video inspection logs are sent to the client before container sealing.
Can SAGA supply specialized hurricane impact sliding windows for coastal high-wind zones?
Yes. Our hurricane impact product lines feature heavy-gauge aluminum profile extrusions integrated with SentryGlas (SGP) or PVB laminated impact glass combinations tested to Miami-Dade TAS 201 (Large Missile Impact), TAS 202 (Static Air Pressure), and TAS 203 (Cyclic Wind Pressure) standards.
Ready to Upgrade Your Fenestration Supply Chain?
Submit your project window schedule or technical architectural elevations today. Our engineering desk will deliver full CAD shop drawings and factory-direct pricing within 24 hours.
