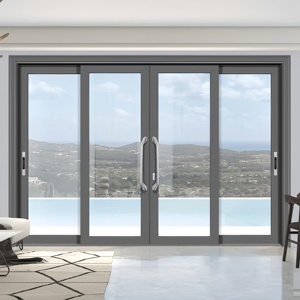

Customized Thermal Break Aluminum Lift & Sliding Patio Glass Doors
Heavy-duty track mechanism, dual thermal barrier, high acoustic insulation.
Factory Direct Portfolio
High-Performance Custom Aluminium Windows & Doors
Explore our certified OEM fenestration solutions engineered for extreme structural wind loads, high thermal resistance, and flawless architectural integration.
Heavy Duty Aluminum Spiral High Speed Windproof Entrance Door
Anti-theft rapid actuation, reinforced structural alloy for commercial portals.

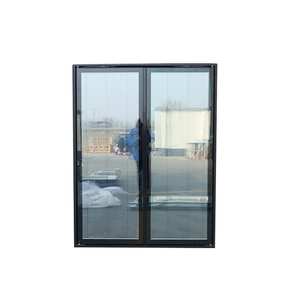

Electric Heating Anti-Condensation Aluminum Alloy Commercial Glass Door
Concealed heating element, condensation-free technology for hospitality & display.

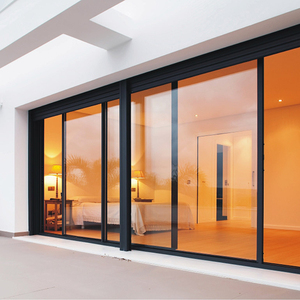

High-Efficiency Aluminium Double Tempered Three-Rail Sliding Glass Wall
Multi-track configuration, stainless steel mesh integration, energy rating compliant.

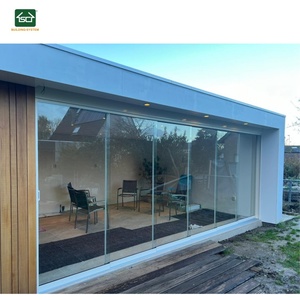

CE Approved Veranda Aluminium Alloy Profile Frameless Sliding Glass Wall
Ultra-clear panorama design, heavy-duty weather seals, terrace system integration.

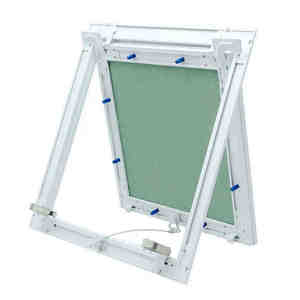

Seamless Hidden Recessed Acoustic Aluminium Access & Inspection Portal
Flush mounting, dual perimeter seal, acoustic rating up to 42dB.
Architectural Aluminium Pivot Door with Concealed Heavy-Duty Hinge System
Impact-resistant frame, multi-point lock core, grand entrance scale capabilities.

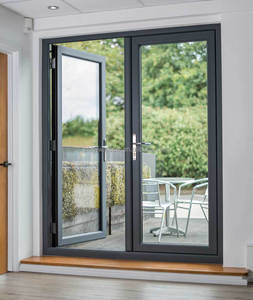

Hurricane-Proof Structural Aluminium Casement Front Entrance System
High wind-load rated profile, laminated impact glass, corrosion-proof coating.
Architectural Engineering Whitepaper
Structural Engineering & Thermal Mechanics of Big Windows
An in-depth technical breakdown of window profile wall thickness, inertia moments, polyamide thermal breaks, and structural deflection compliance for mega-glazing facades.
Structural Wind Load Capacity
Large-format window openings experience exponential wind load pressures ($P = 0.613 \times V^2$). OEM aluminum profiles must maintain a strict deflection limit of L/175 to L/250 to prevent glass stress fracture during extreme weather.
PA66-GF25 Thermal Break Barriers
Eliminating conductive heat transfer, high-strength 25% glass fiber reinforced polyamide (PA66-GF25) strips mechanically join outer and inner extruded profiles, achieving U-values down to 0.8 - 1.4 W/m²K.
Acoustic & Air-Tight Sealing
Continuous triple-layer EPDM gaskets combined with multi-point locking systems guarantee air infiltration resistance beneath 0.1 L/s·m² and acoustic attenuation up to STC 45 dB.
16+
Years Manufacturing Mastery
25+
Global Export Markets
10-Yr
Factory Structural Warranty
35-50
Days Turnaround Lead Time
1. Moment of Inertia ($I_x$) & Profile Reinforcement Science
When designing custom OEM big windows (panoramic fixed windows, floor-to-ceiling casements, or high-span lift & slide doors), the structural mullions must be engineered according to the moment of inertia. Standard standard-size windows rely on 1.4mm to 1.6mm wall thickness. However, architectural big windows manufactured by SAGA utilize primary structural aluminum profile walls ranging from 2.0mm to 3.0mm high-grade 6063-T5 or 6061-T6 aluminum alloy.
For high-rise residential towers or coastal luxury villas subjected to cyclical cyclone pressure, internal steel sleeve reinforcements or heavy vertical mullion profiles are specified. This prevents structural deflection under ultimate limit state (ULS) wind pressure up to 5000 Pa (equivalent to Category 5 hurricanes).
2. Thermal Performance & Advanced Glazing Architectures
Oversized glass expanses represent the primary vector for building solar heat gain and thermal radiation loss. Achieving strict compliance with modern building codes (such as NCC 2022 in Australia, NZ Building Code H1 energy requirements, or US NFRC standards) requires custom structural glazing configurations:
- Double & Triple IGU Assemblies: Outer 6mm/8mm Low-E Toughened Glass + 12mm/16mm Argon Gas Gap (Warm Edge Spacer) + Inner 6mm/8mm Toughened Clear Glass.
- SentryGlas® Laminated Impact Assemblies: High-penetration resistant structural interlayers designed for Miami-Dade hurricane impact compliance (TAS 201/202/203).
- Electrochromic & Low-E Coatings: Spectrally selective solar control coatings minimizing Solar Heat Gain Coefficient (SHGC) down to 0.22 while preserving visual light transmittance (VLT) above 65%.
Specifier Data Sheet
Custom OEM Aluminium Big Window Engineering Matrix
Compare performance parameters across our primary architectural aluminum big window and portal systems.
| System Category | Profile Depth & Alloy | Max Glass Unit Height | Thermal Transmittance (U-Value) | Design Wind Pressure (Pa) | Acoustic Rating (STC/Rw) |
|---|---|---|---|---|---|
| Heavy-Duty Thermal Break Casement | 75mm / 6063-T5 (2.0mm) | up to 3,200 mm | 1.2 - 1.6 W/m²K | 4,500 Pa (AS2047 / NAFS) | 40 - 44 dB |
| Architectural Lift & Slide Doors | 160mm Triple Track / (2.5mm) | up to 3,800 mm per sash | 1.4 - 1.8 W/m²K | 3,800 Pa | 38 - 42 dB |
| Ultra-Slim Sightline Panoramic Fixed | 120mm Recessed Frame / (3.0mm) | up to 6,000 mm single span | 0.9 - 1.3 W/m²K | 5,000 Pa | 42 - 46 dB |
| Hurricane Impact Structural Window | 90mm Heavy System / (3.0mm) | up to 3,000 mm | 1.5 - 2.0 W/m²K | 9,000 Pa (Miami-Dade TAS 202) | 42 - 45 dB |
| Gas-Strut Awning & Servery Window | 65mm Commercial / (2.0mm) | up to 2,400 mm width | 1.8 - 2.2 W/m²K | 2,500 Pa | 32 - 36 dB |
*Note: All values verified via accredited laboratory testing (AGWA, NAFS, Miami-Dade). Customized hardware options include ROTO, Siegenia, and Kinlong multi-point locks.
Industry Insight
Future Procurement Trends in Global Fenestration (2025–2030)
Key market vectors shaping how commercial developers, general contractors, and architects source custom aluminum big windows.
1. Decarbonization & Low Embodied Carbon Aluminium
Global building regulations increasingly audit Life Cycle Assessments (LCA) and Environmental Product Declarations (EPD). Modern OEM sourcing demands aluminium extrusions smelted using renewable hydro-electric power, reducing embodied carbon from 18 kg CO₂/kg Al down to under 4.0 kg CO₂/kg Al.
2. Prefabricated Unitized Assemblies
On-site labor inflation in Australia, North America, and Europe has accelerated demand for fully prefabricated, factory-glazed unitized big window systems. SAGA’s complete pre-assembled sub-frames with integrated anchor brackets reduce job site installation time by up to 60%.
3. Extreme Climate Resilience Engineering
With increasing frequency of extreme hurricane and cyclone activity, global procurement specifications now integrate severe-weather resilience standard compliance across high-risk zones, making Miami-Dade TAS 201/202/203 missile impact standards a baseline requirement for island and coastal developments.
Why Partner With SAGA
Enterprise Capabilities & Manufacturing Superiority
SAGA Aluminum Doors & Windows Co., Ltd. delivers factory-direct custom OEM window manufacturing tailored to strict international building codes.
16+ Years OEM Experience
Dedicated production facility located in Tieling Technical Zone, Fuzhou, Fujian, specializing in custom export joinery.
Rigorous AGWA & NAFS Audits
Annual independent compliance audits under AGWA (AS2047/AS1288/NCC 2022) and North American NAFS standards.
Dual Port Loading Flexibility
Direct ocean container shipping directly from Fuzhou Port or Xiamen Port, optimizing logistics schedules worldwide.
10-Year Structural Guarantee
Comprehensive decade-long factory warranty covering surface coatings (PVDF/powder coating), seals, and profile integrity.
Global Hardware & Profile Component Partners
Global Regulatory Standards
Verified Testing & International Code Compliance
Ensure smooth building certifier approvals and council sign-offs with complete documented test evidence.
AUSTRALIA
AS2047 & AS1288
Audited under the AGWA program for structural wind deflection, water penetration resistance (up to 450Pa+), air infiltration, and safety glazing compliance under NCC 2022.
NEW ZEALAND
NZS4211:2008
Full compliance certification spanning NZ Building Code Clauses B1 (Structure), B2 (Durability), E2 (External Moisture), F2 (Hazardous Materials), and H1 (Energy Efficiency).
USA & CARIBBEAN
NAFS & Miami-Dade
Rigorous test reports covering NAFS structural loading and Miami-Dade TAS 201/202/203 missile impact tests for hurricane zone deployment.
Architectural Procurement FAQ
Frequently Asked Questions by Global Importers & Builders
Technical solutions and procurement clarifications direct from our senior engineering team.
Which types of buyers does SAGA supply custom windows and doors to?
We supply commercial developers, custom home builders, glass & fenestration dealers/wholesalers, architects, and direct project importers. Every order receives full architectural shop drawings matched to your local structural building code.
What is the typical production lead time for custom OEM big window orders?
Standard factory manufacturing lead time ranges between 35 and 50 days following shop drawing sign-off and color sample approval. Ocean container shipping duration varies depending on the final port of destination.
Can SAGA supply corner cut samples or full-size test samples?
Yes. We supply standard profile structural cross-section samples free of charge (buyer pays courier freight). Full-size sample windows can be manufactured for laboratory mock-up testing upon request.
What technical engineering support is included prior to order confirmation?
Our engineering office provides comprehensive window schedules, 2D/3D CAD section drawings, structural mullion deflection calculations ($I_x$), anchor installation details, and thermal simulation reports before production starts.
Do SAGA windows comply with Australian AS2047 and New Zealand NZS4211 standards?
Yes. Our window systems are independently tested and accredited under the AGWA program for AS2047:2014, AS1288:2021, and NCC 2022. Our New Zealand certification satisfies NZS4211:2008 and NZBC Clauses B1, B2, E2, F2, G4, G7, and H1.
Which ocean ports serve as your primary points of shipment loading?
All factory orders are packed in heavy-duty export plywood crates with air-cushioned protective wrappings and loaded into FCL containers via Fuzhou Port or Xiamen Port in Fujian, China.
What payment methods and trade terms are supported for overseas orders?
We accept T/T bank transfers and Alibaba Trade Assurance contracts. Standard commercial trade terms include FOB China ports, CIF destination ports, or DDP direct to job site upon agreement.
What surface finishing options and anodizing colors are available for OEM profiles?
Available surface treatments include Qualicoat-certified powder coatings (Interpon / AkzoNobel), PVDF fluorocarbon coatings for marine coastal environments, anodized finishes (up to 25 microns), and sublimated architectural woodgrain foils.
Bring Your Architectural Vision to Life with Custom OEM Precision
Submit your project window schedule, architectural drawings, or technical specification brief today. Our engineering desk will deliver a comprehensive structural design proposal and factory-direct quote within 24 hours.
