Engineered OEM Aluminium Mosquito Net & Glazing Systems
Direct-from-factory architectural doors and window systems, engineered to stringent international standards (AS2047, NZS4211, NAFS, Miami-Dade) with integrated fly screen mesh options.

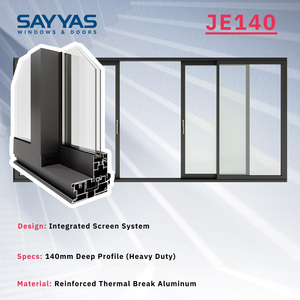

Customized Modern Heavy Duty Aluminum Lift and Slide Door Integrated Screen Double Glazing Tempered Glass Sayyas Windows JE140
Contact Us

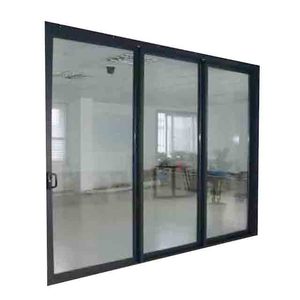

Sliding System Air Tight Sliding Door Aluminium Sliding Door Thailand Barn Doors Sliding for Bedroom Balcony Sliding Doors Glass
Contact Us

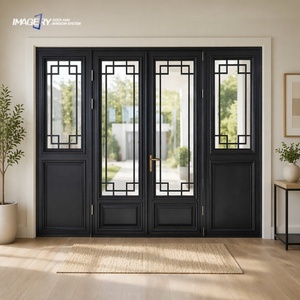

Best Aluminum Double Casement Genuine Antique Glass Doors with Built-in Glass Grilles Design for Sale Manufacturer
Contact Us
EOKO Energy Star Soundproof Bi-Fold Patio Door Aluminum Glass Combined Sliding Folding Door System for Hotel Commercial
Contact Us

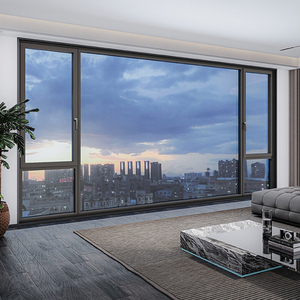

Custom Large Picture Windows For Modern Villas And Large Projects, Floor-to-Ceiling Aluminum Frames, Double Or Triple Glazing
Contact Us
YY Florida Approval 10 Year Warranty Wholesale Exterior Patio Black Aluminum Frame Glass Stack Bifold Folding Door
Contact Us
Modern Panoramic Sliding Folding Patio Door with Internal Lockable Aluminum Bifold Double Glass-Internal Accordion Design
Contact Us
YDN Modern Aluminium Alloy Sliding Windows & Doors with Thermal Break Double Glazed Soundproof for Villa & Office
Contact UsTechnical Specifications for Custom OEM Aluminium Mosquito Net Door Manufacturing
An in-depth analysis of structural alloy extrusion, micro-mesh selection matrix, hardware endurance, and thermal performance for international B2B buyers and specifiers.
High-Tensile Aluminium Alloy Profiles
Utilizing primary 6063-T5 and structural 6061-T6 aluminum billets. Profile wall thicknesses range from 1.4mm for residential casements to 2.5mm heavy-duty commercial multi-track sliding systems. Multi-chamber designs accommodate PA66GF25 thermal insulation strips for strict energy compliance.
Stainless Steel & High-Clear Mesh Integration
Factory options include marine-grade 304 and 316 stainless steel woven mesh (0.8mm wire gauge, 11 mesh count) providing dual insect protection and forced-entry shear resistance. High-transparency PET and durable fiberglass meshes are available for high-visibility applications.
Architectural Surface Treatments
Equipped with vertical powder coating lines applying AkzoNobel architectural coatings (60–80 micron thickness). Anodized finishes (15–25 microns) and PVDF fluorocarbon coatings ensure long-term salt spray resistance, engineered specifically for harsh coastal climates.
Insect Screen Mesh Specification Matrix for OEM Door Systems
Selection criteria utilized by our engineering team to balance ventilation, structural integrity, optical clarity, and vector control.
| Mesh Category | Material Composition | Wire Gauge / Thickness | Aertial Transparency | Primary Technical Advantage | Recommended Application |
|---|---|---|---|---|---|
| 316 Marine Stainless Steel | AISI 316 Grade Stainless Alloy | 0.80 mm (11 Mesh) | 62% Optical Pass | Extreme knife-shear resistance & anti-corrosion | Coastal Security Doors, High-Risk Mosquito Zones |
| 304 Security Mesh | AISI 304 Grade Stainless Alloy | 0.70 mm - 0.80 mm | 65% Optical Pass | Impact barrier & vector intrusion protection | Residential Sliding & French Fly Screen Doors |
| High-Transparency Invisible Mesh | PET Coated High-Density Monofilament | 0.20 mm - 0.28 mm | 88% High Clarity | Maximum airflow & unobstructed architectural views | Luxury Villa Panoramic Bifold & Lift-Slide Doors |
| Heavy-Duty Fiberglass Screen | PVC-Coated Filament Glass Fiber | 0.33 mm (18x16 Mesh) | 75% Standard | Flexible memory retention, non-combustible base | Commercial Pleated Retractable Accordion Screens |
Custom OEM Aluminium Mosquito Net Door Solutions
Custom OEM manufacturing allows seamless integration of insect screens into heavy-duty structural doors without compromising architectural aesthetics or operational smoothness.
Integrated Lift & Slide Systems (JE140 Series)
Designed for large spans in modern residential and commercial projects. The JE140 system features dual or triple tracks allowing a heavy double-glazed door leaf to operate alongside a dedicated sliding stainless steel mosquito net sash. Lift-and-slide hardware mechanisms drop the sash onto internal seals for tight weather protection when locked.
Panoramic Accordion Bifold Fly Screen Doors
Engineered for seamless indoor-outdoor living. Incorporates hidden top-hung or bottom-guided retractable pleated fly screens that collapse neatly into the door jamb when open. Thermal break aluminum frames ensure U-factors meet low-energy construction codes across North America, Australia, and Europe.
Hurricane Impact Dual-Barrier Swing Doors
Built for severe coastal weather regions including Florida and the Caribbean. Certified to Miami-Dade TAS 201/202/203 testing standards. Features laminated impact glass paired with heavy-duty 316 stainless steel insect security screens to resist high wind pressure and flying debris while ensuring ventilation.
Future Sourcing & Procurement Trends in OEM Aluminium Mosquito Doors
The global architectural fenestration sector is experiencing a paradigm shift driven by urban sustainability mandates, vector-borne disease awareness, and extreme weather resilience. Importers, wholesalers, and project developers must align their supply chains with key upcoming trends:
1. Smart Motorization & Automated Retractable Screens
Modern architectural projects increasingly demand motorized roll-up fly screens integrated directly into aluminum door head transoms. Controlled via home automation systems, wind sensors, or remote controls, these systems deploy automatically during peak insect activity hours while remaining completely invisible when stowed.
2. Thermal-Break & Low-Carbon Extrusion Profiles
Global building codes (such as Australia's NCC 2022 and New Zealand's H1 Energy Clause) require improved solar heat gain coefficients (SHGC) and U-values. OEM factories are transitioning to recycled low-carbon aluminum billets extruded with multi-chamber polyamide thermal barriers that accept integrated double/triple glazing and fly screen sashes.
3. High-Security Dual-Function Mesh Systems
The boundary between insect screening and physical building security is blurring. Procurement managers favor 0.8mm high-tensile 304/316 stainless steel woven mesh systems over traditional soft meshes. These function as physical barriers against forced entry while providing continuous natural ventilation.
Manufacturing Capacity & Quality Management
SAGA Aluminum Doors & Windows Co., Ltd. brings over 16 years of direct factory export experience, delivering fully audited, customized fenestration solutions across global markets.
Certified Regional Compliance
Our complete aluminum door and window ranges are audited and compliant with key international standards: Australian AS2047:2014 & AS1288:2021 (AGWA Accredited), New Zealand NZS4211:2008, North American NAFS standards, and Florida Miami-Dade hurricane impact accreditations.
End-to-End Engineering Support
Every OEM order includes shop drawing creation, elevation layout reviews, profile section details, and structural calculation reports. Our engineering team assists architects, builders, and developers in matching exact project wind loads and code specifications.
Streamlined Global Logistics
Located in Fujian, China, orders ship directly via Fuzhou or Xiamen ports. Products are packed in reinforced, fully enclosed fumigated wooden crates with corner protections to ensure zero freight damage during sea transportation.
Frequently Asked Questions (FAQ) for Global Buyers
Answers to technical, logistics, and customization queries commonly raised by importers, architects, and building material distributors.
Q1: What buyer types does your factory support for custom OEM mosquito doors?
We work directly with distributors, wholesale dealers, commercial builders, residential developers, architects, and installation contractors. Custom shop drawings, packaging options, and structural calculations are provided based on the buyer's project requirements.
Q2: What is the typical factory lead time for custom OEM door orders?
Standard production lead time ranges between 35 to 50 days once final shop drawings, glass specifications, powder coating colors, and hardware configurations are signed off. Ocean freight timeline depends on the destination port.
Q3: Can SAGA supply custom window and door samples for testing?
Yes. Standard-size sample units can be produced and delivered for quality verification, corner crimping inspections, powder coating finish review, and screen mesh testing. Sample frames are provided free, with express air freight costs covered by the buyer.
Q4: How are mosquito net screens integrated into heavy-duty aluminum sliding/bifold doors?
We extrude dedicated screen channels into the aluminum frame profile or supply multi-track systems (e.g., double track glass + single track screen). For bifold doors, accordion pleated screens or spring-loaded roll-up screens are concealed within side jambs or top head tracks.
Q5: Do your integrated mosquito door products comply with Australian & NZ building codes?
Yes. Our systems are tested and audited under the AGWA program for AS2047:2014, AS1288:2021, and NCC 2022. For New Zealand, our certificates cover NZS4211:2008 across structural performance, durability (B2), external moisture (E2), and energy efficiency (H1).
Q6: What ports of loading are utilized for sea freight export?
All ocean container orders are loaded directly at our manufacturing facilities and shipped out of Fuzhou Port or Xiamen Port in Fujian Province, China.
Q7: What payment terms and security assurances are available?
We accept T/T bank transfer (30% deposit upon shop drawing approval, 70% balance prior to container dispatch) as well as Alibaba Trade Assurance to guarantee payment security and delivery performance.
Q8: What custom frame color and finish options are available?
Standard options include classic white, architectural matte black, dark bronze, and anodized silver. We offer complete RAL color matching via AkzoNobel powder coating, fluorocarbon PVDF finishes, and realistic woodgrain foil laminations.
Request Custom OEM Aluminium Mosquito Door Specifications
Partner with an experienced Chinese manufacturing factory. Submit your architectural floor plans, door schedules, or OEM customization briefs for detailed shop drawings and factory-direct pricing.
