Factory-Direct Portfolio
Featured Architectural Openable Door & Window Series
Precision-extruded 6063-T6 aluminum alloys paired with advanced thermal insulation and heavy-duty structural hardware for luxury residential and commercial developments.

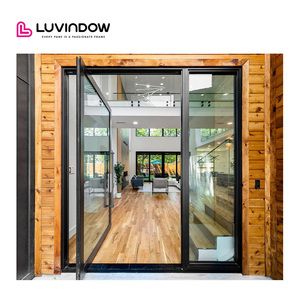

Modern Pivot Aluminum Door Glass Front Villa Entry US Made Thermal Break Energy Efficient
Send an Inquiry

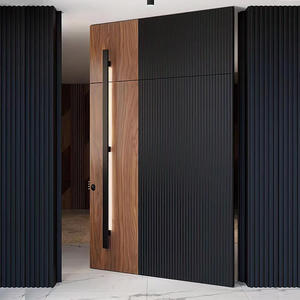

Double Door Villa Gate Cast Aluminum Central Axis Entrance Broken Bridge System Wood Grain Split Glass Eccentric Axis Pivot Door
Send an Inquiry

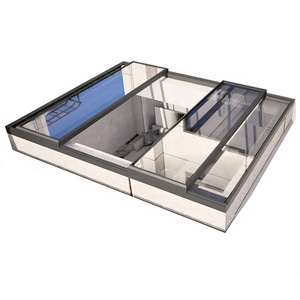

Modern Automatic Electric Skylight Window-Soundproof Vertical Sliding Aluminium Lifting Window for Ventilation
Send an Inquiry
Customized China Products Thermal Break Aluminum Sliding Patio Doors Lift Sliding Door Aluminium Sliding Glass Doors for Sale
Send an Inquiry
NFRC Aluminium Outdoor Accordion Door, Thermal Break Double Tempered Glass Exterior Bi-fold Sliding Patio Door
Send an Inquiry

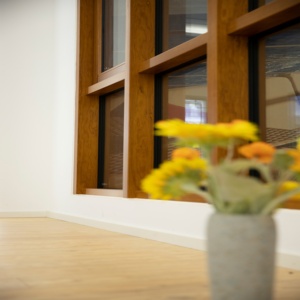

Energy Efficient Modern Aluminum Clad Wood Tilt and Turn Swing Open Windows for Bedroom and Green Buildings Wood Aluminum Window
Send an Inquiry

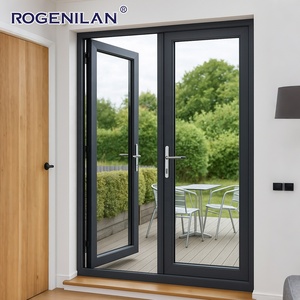

Rogenilan China Supplier Customized Size Aluminum Doors and Window Double Large Glass Fixed French Door for Houses
Send an Inquiry
Technical Whitepaper Insight
Engineering Principles of Architectural Openable Door Systems
In modern high-performance fenestration procurement, an openable door is far more than an aesthetic boundary—it is an engineered structural barrier subjected to cyclic wind load stresses, severe thermal gradients, forced entry forces, and driving rainwater penetration. SAGA Aluminum Doors & Windows Co., Ltd. approaches OEM manufacturing through the lens of strict mechanical integrity and thermal envelope thermodynamics.
Our openable door frameworks utilize 6063-T6 or 6060-T66 grade aluminum extrusions, yielding an ultimate tensile strength exceeding 205 MPa and a minimum yield strength of 170 MPa. By combining high-tensile structural alloys with Technoform Polyamide PA66GF25 thermal breaks, our profiles achieve thermal barrier continuity that mitigates condensation while driving overall system U-values down to Uw ≤ 1.2 W/m²K.
Core Metallurgical & Mechanical Standards
- Extrusion Alloy: High-precision 6063-T6 structural aluminum with controlled wall thicknesses (1.8mm to 3.0mm primary load-bearing walls).
- Thermal Insulation: 24mm to 34mm PA66-GF25 structural polyamide strips filled with aerogel insulation foam inserts.
- Surface Finishes: Qualicoat Class 2 / AAMA 2605 Architectural Fluorocarbon (PVDF) Powder Coating or 25-Micron Anodizing (ISO 7599).
- EPDM Gasket Seals: Triple-continuous co-extruded EPDM weatherstripping with vulcanized corner boots for air tightness.
16+
Years Manufacturing & OEM Expertise
25+
Global Export Markets Supplied
10-Yr
Comprehensive Quality Warranty
4500 Pa
Ultimate Structural Wind Pressure Rating
System Architecture
Architectural Openable Door Systems: Engineering Taxonomy
Different project typologies demand tailored opening mechanics, acoustic attenuation ratios, and weather-sealing geometry. Explore SAGA’s customized OEM door engineering categories.
1. Armored & Heavy-Duty Thermal Break Entrance Swing Doors
Engineered for luxury villa entries, luxury hotels, and secure commercial portals. Features multi-point gear locking mechanisms (3-point to 7-point systems by ROTO/Siegenia), reinforced anti-pry plates, bullet-resistant core option panels, and heavy-duty 3D-adjustable 304 stainless steel friction hinges supporting sash weights up to 250kg.
Acoustic Rating: Rw up to 42 dB | Security Standard: PAS 24 / RC3 Anti-Burglary Rated.
Send an Inquiry2. Central & Eccentric Axis Architectural Pivot Doors
Minimalist, grand-scale openable entry statements for modern residential architecture. Designed with hidden floor-spring hydraulic closers, German-engineered heavy-duty pivot bearings handling panel loads up to 500kg, double perimeter EPDM brush seals, and broken-bridge thermal insulation channels to prevent thermal bridging.
Max Panel Dimension: Height up to 6000mm | Width up to 2500mm.
Send an Inquiry3. Exterior Accordion & Bi-Fold Openable Patio Doors
NFRC-certified, high-transmittance bi-fold systems providing seamless indoor-outdoor transition. Utilizes top-hung or bottom-rolling heavy-duty stainless steel carriage rollers running on ultra-smooth extruded aluminum tracks. Equipped with corner-crimped mechanical joints and dual EPDM weather seals for water tightness under wind loads.
NFRC Certified U-Value: 0.28 BTU/h·ft²·°F (Uw ~ 1.59 W/m²K).
Send an Inquiry4. Lift-and-Slide / Parallel Openable Patio Systems
Engineered for wide-span expansive openings facing severe weather exposures. When turned to the lift position, the hardware mechanism elevates the sash off the weather seals, allowing frictionless glide. When locked down, gravity presses the sash firmly against continuous EPDM gasket lines, creating an impermeable environmental seal.
Water Penetration Resistance: Up to 700 Pa | Air Infiltration: < 0.1 L/s·m².
Send an Inquiry
Engineering Data Sheet
Technical Specification & Performance Matrix
A comprehensive benchmark comparison of SAGA's openable door profiles for specifiers, facade engineers, and volume importers.
| Door System Typology | Profile Depth & Wall Thickness | Thermal Break Strip | Thermal Transmittance (Uw) | Acoustic Rating (STC / Rw) | Max Wind Load (Serviceability) | Hardware System Partner |
|---|---|---|---|---|---|---|
| Armored Security Swing Entry Door | 100mm Depth / 2.5–3.0mm Wall | 34mm PA66-GF25 + Foam fill | 1.1 – 1.4 W/m²K | 40 – 44 dB | 4500 Pa (Structural limit) | ROTO Frank / German Heavy-Duty |
| Modern Architectural Pivot Door | 90mm Depth / 2.2–2.5mm Wall | 28mm PA66-GF25 Polyamide | 1.3 – 1.6 W/m²K | 36 – 40 dB | 3500 Pa | Dorma / FritsJurgens / SAGA Heavy |
| Outdoor Thermal Bi-Fold Accordion | 75mm Depth / 2.0mm Wall | 24mm PA66-GF25 Polyamide | 1.4 – 1.8 W/m²K | 35 – 38 dB | 3000 Pa | Siegenia / Kinlong Custom |
| Heavy-Duty Lift & Slide Door | 160mm System / 2.2mm Wall | 30mm Multi-Chamber PA66 | 1.2 – 1.5 W/m²K | 38 – 42 dB | 4000 Pa | ROTO DoorLine / Hautau |
| Passive House Tilt & Turn / French | 85mm System / 1.8–2.0mm Wall | 39mm Aerogel-Infused Bar | 0.79 – 1.0 W/m²K | 42 – 46 dB | 4500 Pa | ROTO NT / Siegenia Titan |
*Note: Performance values depend on specified glass makeup (e.g., Triple Glazed Low-E with Argon Fill vs Impact Laminated Glass).
Compliance & Audits
Global Building Code Certification & Compliance Architecture
Importers, builders, and developers face severe regulatory liability if installed fenestration fails to meet regional statutory compliance. SAGA maintains independently audited test credentials across major international jurisdictions.
Australia & New Zealand
Audited under the AGWA Accredited Compliance Program. Fully tested to AS2047:2014 (Windows and external glazed doors), AS1288:2021 (Glass in buildings), NCC 2022 energy standards, and NZS4211:2008 (NZ Building Code Clauses B1, B2, E2, F2, H1).
North America (NAFS)
Tested according to the North American Fenestration Standard (NAFS) / AAMA/WDMA/CSA 101/I.S.2/A440. Verifies uniform structural air leakage, static water resistance (ASTM E331), structural load deflection (ASTM E330), and forced-entry resistance.
Miami-Dade Hurricane Impact
Engineered for High-Velocity Hurricane Zones (HVHZ) in Florida and the Caribbean. Certified under TAS 201-94 (Large & Small Missile Impact), TAS 202-94 (Uniform Static Air Pressure), and TAS 203-94 (Cyclic Wind Pressure Loading).
NFRC Thermal Rating
Certified under National Fenestration Rating Council (NFRC) guidelines for U-factor, Solar Heat Gain Coefficient (SHGC), and Visible Transmittance (VT), ensuring complete energy compliance for green building certifications (LEED, Passivhaus).
Forward Outlook
Future Sourcing & Procurement Trends in Architectural Doors (2025–2030)
Global supply chain dynamics, tightening carbon regulations, and evolving architectural aesthetics are transforming aluminum door procurement. SAGA leads the industry across four key structural shifts:
1. Decarbonization & Low-Carbon Recycled Aluminum Extrusions
With the European Union's Carbon Border Adjustment Mechanism (CBAM) and global ESG compliance mandates, commercial developers are requiring low-embodied-carbon aluminum. SAGA is incorporating recycled secondary aluminum billets (up to 75% scrap content) and hydroelectric-smelted primary aluminum, reducing carbon intensity from 18 kg CO₂/kg Al down to < 4.0 kg CO₂/kg Al.
2. Integration of Smart Mechatronic Actuators & IoT Access Control
Mechanical-only door hardware is shifting toward concealed mechatronic locking systems. Future-ready OEM openable doors feature motorized multi-point locks, integrated biometric readers (facial recognition/fingerprint), automated door operators, and native compatibility with building management systems via KNX, Matter, or Zigbee protocols.
3. Ultra-Slim Sightlines Paired with Vacuum-Insulated Glass (VIG)
Architects demand minimal visible frame profiles without sacrificing structural stability. The adoption of Vacuum-Insulated Glass (VIG) unit technology—providing a 0.60 W/m²K U-value in a compact 8.3mm profile thickness—allows SAGA to produce ultra-slim aluminum openable doors with maximum glazing area and thermal envelope efficiency.
4. Modular OEM Prefabrication & DfMA (Design for Manufacture)
On-site labor shortages in North America, Australia, and Europe are driving demand for pre-hung, factory-tested door cassettes. SAGA's DfMA approach delivers complete door frame assemblies equipped with pre-milled sub-frame installation brackets, snap-in interior trim, and protective crate packaging to reduce jobsite assembly time by up to 60%.
Manufacturing Advantage
Why Global Builders & Wholesalers Partner with SAGA
SAGA Aluminum Doors & Windows Co., Ltd. operates a vertically integrated manufacturing footprint in Fujian, China. From raw profile extrusions to 5-axis CNC machining, structural corner crimping, and automated glazing, every step is executed under ISO 9001 quality management.
- Full OEM/ODM Customization: Custom extrusion die tooling, tailored profile cross-sections, and custom powder-coating color matching (RAL & Dulux spectrums).
- Strategic Port Logistics: Direct shipping from Fuzhou Port or Xiamen Port for optimized container loading and reduced ocean transit times.
- Rigorous Quality Control: 100% pre-shipment structural trial assembly, hardware cycle testing, air/water tight seal inspections, and mill certificates provided for every batch.
- Flexible Payment Terms: Supported by T/T bank transfers and Alibaba Trade Assurance buyer protection.
Supply Chain Ecosystem Partners
To maintain uncompromising system reliability, SAGA integrates hardware and profile components from world-class global supply chain leaders:
ROTO Frank
German Hardware Systems
Siegenia-Aubi
Multi-Point Window/Door Locking
VEKA & REHAU
Precision Polymer Extrusions
Kinlong Hardware
Architectural Stainless Fittings
Knowledge Base
Custom OEM Aluminium Openable Door Procurement FAQ
In-depth technical answers addressing common engineering, compliance, and logistical inquiries from global procurement managers.
Which buyer typologies and project sectors does SAGA supply custom openable doors to?
SAGA supplies wholesale distributors, window and door dealers, commercial general contractors, residential developers, architectural specifiers, and high-end residential project owners. Every custom order is supported by shop drawings, engineering calculation reports, section drawings, and installation manuals tailored to local structural building codes.
What is the standard production lead time and shipping workflow for custom OEM door orders?
Typical factory production lead time is 35 to 50 calendar days following final sign-off of CAD shop drawings, hardware specifications, and glass makeup approval. Ocean freight transit varies by destination port (approx. 14–22 days for Australia/New Zealand, 20–35 days for West/East Coast North America).
How does SAGA ensure compliance with Australian Standards AS2047:2014 and AS1288:2021?
Our manufacturing and testing protocols are independently audited under the AGWA (Australian Glass and Window Association) compliance framework. Profiles are engineered to meet specific design wind pressures (Serviceability Wind Pressure & Ultimate Limit State up to 4500 Pa), and safety glass is toughened or laminated according to AS1288 human impact standards and NCC 2022 energy performance requirements.
What aluminum extrusion alloy temper and surface treatment standards are utilized?
We strictly utilize primary 6063-T6 or 6060-T66 grade aluminum extrusions with guaranteed wall thickness tolerances. Surface treatment options include Qualicoat Class 2 certified electrostatic powder coating (with a 10-to-15 year weatherability guarantee), PVDF fluorocarbon coatings (AAMA 2605 compliant), and 25-micron anodized finishes for coastal marine environments.
Can SAGA supply engineering evaluation samples prior to full production runs?
Yes. We regularly supply standard or custom corner section samples, profile extrusion swatches, and full-scale sample windows/doors for client quality evaluation, certifier audit, or jobsite mock-up testing. Sample products are provided free of charge, with the buyer responsible for courier air freight fees.
What structural deflection criteria are enforced for heavy-duty pivot and bi-fold doors?
SAGA's façade engineers design door mullions and sashes to maintain deflection ratios stricter than L/175 under serviceability wind pressures, and L/250 for structural glazing applications. This prevents glass edge stress, seal degradation, and operational binding during extreme meteorological events.
What export packaging protocols are used to prevent transit damage during container transport?
All openable door panels and outer frames undergo multi-layer protection: 1) Protective blue adhesive tape across finished aluminum surfaces; 2) EPDM corner guards; 3) Bubble wrap and PE stretch film encasement; 4) Fumigated fully enclosed IPPC-certified wooden crates or steel-frame A-frame racks for crane-assisted site unloading.
Where are the designated loading ports and what international payment methods are accepted?
Shipments are containerized and loaded directly at Fuzhou Port or Xiamen Port in Fujian Province, China. We accept T/T (Telegraphic Transfer) bank payments with standard deposit schedules, Irrevocable Letters of Credit (L/C at sight), and Alibaba Trade Assurance orders.
Ready to Engineer Your Project's Openable Door Solution?
Partner with an established OEM/ODM factory equipped with 16+ years of engineering experience, rigorous international certifications, and global export infrastructure. Submit your architectural plans or door schedule today for an immediate technical estimate and shop drawing review.
