Featured OEM Exterior Aluminium Doors & Architectural Systems
Explore our flagship heavy-duty outdoor doors, engineered with thermal breaks, high-tensile 6063-T5 aluminium profiles, double Low-E safety glass, and multi-point locking mechanisms.
Energy Efficient Aluminum Clad Wood Casement Windows & Outdoor Doors

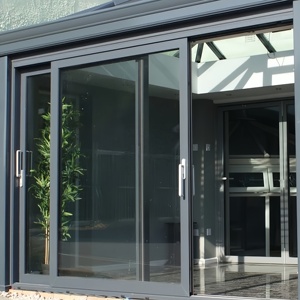

Sliding Door Customized New Design Balcony Glass Door Double Glass Exterior
Double Swing Thermal Break Aluminum Glass French Door Double Tempered
High Quality Aluminum Folding Windows & Outdoor Patio Double Glazed Bifold

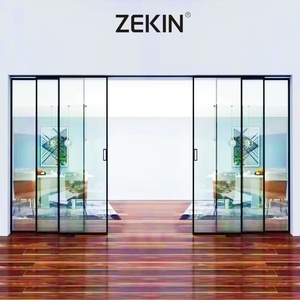

AS2047 NFRC Double Glass Stacker Doors Commercial Exterior Patio Stacking
Glass Casement Outdoor Door With Multi-Point Lock & Aluminium Frame
Modern White Aluminum Glass Door Waterproof Exterior & Interior Joinery
Thermal Break Aluminum Folding Door Double Glazing Patio Entrance Lock
Architectural Aluminium Outdoor Door Metallurgy & Structural Mechanics
Why profile wall thickness, alloy selection, and thermal break geometry dictate the 30-year lifespan of commercial exterior entrance systems.
6063-T5 vs 6063-T6 Extrusion Alloys: SAGA Technical Standard
When engineering high-traffic exterior doors, commercial entrances, and expansive folding door systems, material fatigue resistance and dimensional stability under thermal stress are non-negotiable. SAGA utilizes strictly primary, non-recycled 6063-T5 and 6063-T6 architectural aluminium alloys engineered for optimum tensile yield strength and surface finishing purity.
Standard door profiles frequently flex under localized wind loads exceeding 2.5 kPa, leading to seal degradation, air leakage, and operational binding. By enforcing profile wall thicknesses between 2.0mm and 3.0mm in structural weight-bearing jambs and mullions, SAGA doors meet stringent structural deflection limits (L/175 and L/240) mandated by Australian Standard AS2047:2014 and the North American Fenestration Standard (NAFS).
- Tensile Strength: ≥ 160 MPa for 6063-T5, ensuring zero frame distortion during heavy wind cycles.
- Polyamide Thermal Barriers: PA66-GF25 (25% Glass-Fiber Reinforced) strips physically isolate inner and outer aluminum frames, eliminating thermal bridging.
- Thermal Transmittance: Achieves overall door U-values as low as 1.2 to 1.6 W/m²K when combined with argon-filled, double Low-E glazing units.
- EPDM Multi-Crimp Weatherproofing: Dual-durometer EPDM gaskets prevent water ingress even under dynamic water pressure tests of 600 Pa.
Custom OEM Sourcing Tailored to Your Business Role
We configure CAD shop drawings, packaging formats, and compliance dossiers to align with your specific commercial channel.
Wholesalers & Distributors
Standardized profile extrusion series, cross-compatible hardware packages, barcoded wooden crate packaging, and unbranded promotional support designed for quick regional distribution.
OEM Private Labeling & Repetitive StockingCommercial Builders & Developers
Take-off calculations, unitized structural window/door schedules, pre-assembled frame deliveries, and engineering calculations validated for council certifiers and building code authorities.
AS2047, NZS4211 & NCC 2022 VerifiedArchitects & Envelope Consultants
BIM Level 2 Revit models, ultra-slim interlocking sightlines (30mm panoramic profiles), custom anodized hues, and engineered structural glass corner solutions.
Custom Dies & Bespoke SightlinesFuture Sourcing & Development Trends in Outdoor Aluminium Doors
Key technological shifts reshaping international procurement standards over the next decade.
1. Decarbonization & EPD Certification
Global architectural specifications increasingly require Environmental Product Declarations (EPDs). Future procurement prioritizes low-carbon primary aluminium smelted using renewable hydropower, alongside recycled aluminium profiles (Hydro CIRCAL equivalents) that drastically reduce embodied carbon metrics in Green Star and LEED v4.1 rated developments.
Low Embodied Carbon Aluminium2. Extreme Storm & Hurricane Resiliency
With changing weather patterns, building codes in coastal regions, Australia's Cyclonic Regions (C&D), and the Caribbean mandate stringent missile impact resistance. Next-generation OEM doors feature heavy-gauge laminated glass interlayers (SentryGlas® / PVB) tested under Miami-Dade TAS 201, 202, and 203 cyclic pressure regimes.
Large Missile Impact Certified3. Smart Access & Automated Micro-Seals
Modern exterior doors are evolving from passive barriers into intelligent building envelope interfaces. Procurement is surging for integrated biometric access, hidden motorized lock actuators, and automatic drop-down bottom weather seals that deliver zero-threshold accessibility while retaining high water resistance.
Automated Motorized Drive LocksGlobal Fenestration Testing Standards & SAGA Compliance
Direct comparison of test standards enforced across key international destination markets.
| Target Region | Primary Compliance Standard | Tested Physical Attributes | SAGA OEM System Capability |
|---|---|---|---|
| Australia & New Zealand | AS2047:2014, AS1288:2021, NZS4211:2008, NCC 2022 | Deflection (Wind Pressure), Air Infiltration, Water Penetration (up to 600Pa), Ultimate Strength | AGWA Accredited system designs with audited batch traceability and test certificates. |
| North America (USA & Canada) | NAFS (AAMA/WDMA/CSA 101/I.S.2/A440), NFRC | Structural Loading, Air Leakage (ASTM E283), Water Infiltration (ASTM E547/E331), U-Factor | High-performance thermal break profiles with Low-E glass units meeting Energy Star criteria. |
| Florida & Caribbean Coastal | Miami-Dade County NOA, TAS 201 / 202 / 203 | Large Missile Impact Test, Uniform Static Air Pressure, Dynamic Cyclic Wind Pressure Loading | Heavy-wall 3.0mm extrusions with laminated impact glass units and reinforced anchor brackets. |
| United Kingdom & Europe | BS EN 14351-1, CE Marking, UKCA Mark | Acoustic Isolation (EN ISO 717-1), Thermal Performance (EN ISO 10077-2), Burglar Resistance (RC2/RC3) | Multi-point locking gear paired with PA66GF25 thermal insulation strips and triple sealing. |
State-of-the-Art Factory Infrastructure & OEM Advantages
Precision manufacturing, total quality control, and streamlined export shipping from Fujian's leading fenestration hub.
Multi-axis automated CNC milling centers guarantee 0.1mm tolerance accuracy for corner crimping, lock mortising, and drain slot milling across every batch.
Certified Qualicoat Class 2 architectural powder coating lines ensure minimum 60-80 micron coating thickness, resistant to UV degradation and salt-spray corrosion.
Every exterior door undergoes pre-shipment trial assembly, squareness checks, hardware operation testing, and water sealing verification before crating.
Direct container loading out of Fuzhou and Xiamen deep-water ports reduces inland transit risk and guarantees reliable freight schedules to global destinations.
Frequently Asked Questions by Commercial Buyers & Importers
Detailed technical responses covering minimum order quantities, lead times, custom dies, and compliance support.
Q1: What is SAGA’s OEM customization scope for architectural aluminium outdoor doors?
Q2: How do your door systems comply with Australian (AS2047) and North American (NAFS) standards?
Q3: What is the typical production lead time and minimum order quantity (MOQ)?
Q4: What protective measures are implemented to prevent ocean freight transit damage?
Q5: Can SAGA provide structural engineering calculations and CAD shop drawings before manufacturing?
Q6: What warranty coverage is provided with SAGA custom aluminium outdoor doors?
Ready to Request an OEM Technical Proposal & Factory Price Quote?
Send your door schedule, project drawings, or technical specifications to our senior engineering team. We provide full quotation packages within 24 hours.
