Architectural Engineering Whitepaper: Modern OEM Aluminium Pivot Front Doors

Over the past decade, architectural trends in luxury residential properties, modern corporate headquarters, and high-end commercial hospitality developments have shifted decisively toward large-scale, statement entranceways. Standard side-hinged swing doors are increasingly being superseded by custom OEM aluminium pivot front doors. By rotating on a vertical axis offset from the frame rather than utilizing traditional butt hinges mounted to the side jamb, pivot entrance doors redistribute structural mass down to the subfloor. This structural engineering advantage frees architects from weight and dimensional constraints, allowing for grand openings that surpass 3 meters in height and 2 meters in width.

1. Structural Dynamics & Axis Mechanics of Pivot Doors

The core mechanical distinction of an OEM custom pivot entrance door lies in its customized pivot hinge assembly. SAGA engineers precision-machined top and bottom pivot hardware that can be configured with variable offset points—typically set at 150mm to 400mm from the jamb, or centrally positioned for balanced double-acting swing mechanisms. The floor-mounted pivot housing incorporates heavy-duty needle roller bearings and hydraulic damping systems, providing smooth, effortless manual operation regardless of the massive weight of the door leaf.

Furthermore, internal hydraulic floor springs feature adjustable two-speed closing controls (latching speed and closing speed), along with optional 90-degree hold-open functionality. For smart automation projects, these hardware tracks can be linked with concealed electro-mechanical operators, allowing the door to interface seamlessly with motorized keyless entry systems, biometric access controllers, or smart building automation networks.

2. Profile Metallurgy & Thermal Break Engineering

Aluminium’s high strength-to-weight ratio makes it the premier material choice for grand entrance doors. SAGA utilizes premium 6063-T5 and structural-grade 6063-T6 marine alloy extrusions. To meet stringent modern energy codes—such as Australia’s National Construction Code (NCC 2022), New Zealand’s H1 Energy Efficiency requirements, and North America’s Title 24—our thermal break aluminium pivot door profiles feature multi-chambered polyamide barrier strips (PA66 GF25 reinforced with 25% fiberglass).

These thermal breaks mechanically separate the outer aluminum extrusions exposed to harsh exterior weather from the inner profile facing the interior room. By eliminating the high thermal conductivity inherent to continuous metals, thermal bridging is effectively severed. Combined with low-emissivity (Low-E) double or triple insulated glass units (IGUs) filled with inert argon gas, SAGA thermal break pivot doors achieve overall system U-factors as low as 1.4 W/m²K, drastically reducing solar heat gain coefficients (SHGC) in warm climates and preventing interior heat loss during cold winter months.

3. Weatherproofing, Air Infiltration & Multi-Point Sealing Technology

Historically, the primary technical challenge associated with architectural pivot doors was achieving effective perimeter weatherproofing—especially along the bottom sill where the rotating axis disrupts standard continuous weatherstripping. SAGA solves this engineering hurdle through a multi-tiered sealing matrix:

• Automatic Drop-Down Bottom Seals: Spring-loaded mechanical bottom seals recessed into the lower rail of the door leaf automatically lower high-density EPDM gasket fins against the threshold when the door swings shut, forming a tight barrier against driving rain and draft.
• Magnetic Perimeter Gaskets: Dual-durometer EPDM magnetic sealing strips fitted along the vertical jambs and top frame snap together upon closure, creating an airtight seal that withstands high negative and positive wind pressures.
• Sub-Sill Drainage Channels: Custom extruded aluminum thresholds are engineered with concealed weep holes and non-return valves, rapidly channeling any wind-driven moisture away from the interior building envelope.

2025–2030 Global Procurement Trends for Architectural Entrance Systems

As commercial builders, real estate developers, andfenestration importers recalibrate their supply chain strategies for the 2025–2030 horizon, several key macro trends are shaping the procurement of OEM aluminium pivot doors:

Trend A: Smart Access & Touchless Motorized Automation

Biometric fingerprint scanners, facial recognition cameras, digital keypads, and smartphone RFID credentials are transitioning from luxury add-ons to standard commercial specifications. SAGA’s OEM factory lines integrate concealed multi-point electric lock bodies (such as ROTO E-Tec or KINLONG Smart systems) directly into the internal aluminum profile chambers during manufacturing. Wiring conduits are pre-routed through the top pivot pin, delivering a clean, wire-free visual aesthetic ready for quick job-site plug-and-play installation.

Trend B: Ultra-Slim Minimalist Sightlines & Cast Aluminum Armor Panels

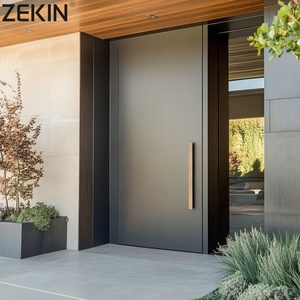

Modern architectural design language favors clean, uninterrupted geometric lines. In response, SAGA has developed minimalist narrow-frame pivot profiles with visible frame sightlines under 35mm. Simultaneously, for high-security residential villas and luxury commercial entries, buyers are demanding solid cast-aluminum decorative entrance panels and back-painted tempered glass facings. These composite panels deliver extreme impact resistance, high sound insulation (up to Rw 45dB), and elevated anti-theft security ratings.

Trend C: Decarbonization & Eco-Friendly Surface Finishing

Sustainability criteria are increasingly embedded into international building tenders via LEED, BREEAM, and Green Star accreditation schemes. SAGA prioritizes recycled low-carbon aluminium extrusions and utilizes zero-VOC (Volatile Organic Compounds) AkzoNobel powder coatings and PVDF (polyvinylidene fluoride) fluorocarbon finishes. These marine-grade surface treatments resist UV degradation, salt spray corrosion, and chemical chalking for over 25 years, ensuring maximum product lifecycle durability.

Trend D: High-Velocity Hurricane Zone (HVHZ) Certification

With extreme weather events increasing in frequency, coastal regions across North America, the Caribbean, Australia, and the Pacific Rim enforce strict impact-resistance building codes. SAGA’s heavy-duty hurricane pivot series incorporates laminated structural armor glass (utilizing Kuraray SentryGlas® ionoplast interlayers) and reinforced internal steel mullion stiffeners. Tested under Miami-Dade County protocols TAS 201 (Large Missile Impact), TAS 202 (Uniform Static Air Pressure), and TAS 203 (Cyclic Wind Pressure Loading), our hurricane pivot entrance doors withstand wind forces exceeding 5,000 Pascals.
