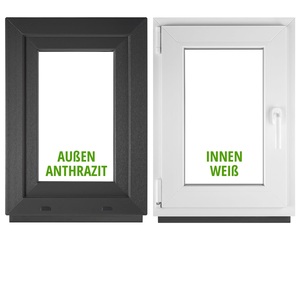

Basement Window DIN Left Outer Aluminum Anthracite White Interior Horizontal Double Glazing 32mm Heat Protection Sound
Get Catalog

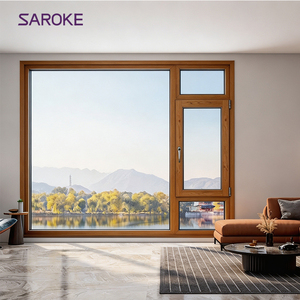

Tilt and Turn Aluminum Clad Wood Casement Windows Energy Saving for Exterior House Building
Get Catalog

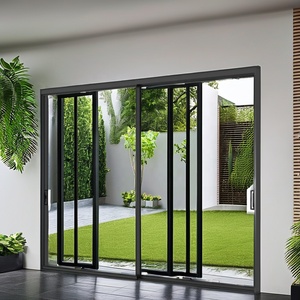

Zekin Double Glass Pocket Sliding Door NFRC House Exterior Thermal Break Aluminum Profiles Hurricane Impact Patio Living Room
Get Catalog

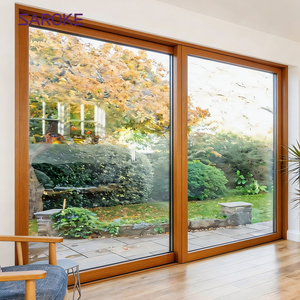

Suppliers Double Glazed Entrance Security Aluminum Wood Frame Sliding Glass Patio Door For 5m Width
Get Catalog

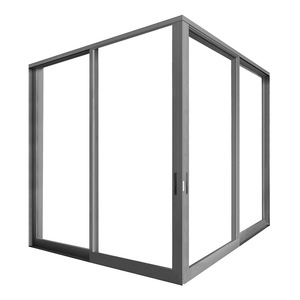

AS2047 Australian Customized Aluminium Pocket Glass Sliding Door Concealed Pocket Door Trackless Sliding Hidden Sliding Door
Get Catalog
European Style Aluminum Casement Windows Slim Frame Low E Glass Weather Sealed Exterior Windows for Homes
Get Catalog
Energy Efficient Villa Aluminum Arch Window Double Glazed Heat Insulated Grill Design French Style Fixed Glass Windows
Get Catalog
American Standard Thermal Break Soft Close Slim Double Glass Interior Aluminium Alloy Pivot Door
Get CatalogEngineering Whitepaper: Commercial Single Hung Aluminium Windows Profile Architecture
An exhaustive technical specification guide for structural engineers, facade consultants, and commercial window importers.
Structural Rigidity & Sash Kinematics
In modern high-rise and multi-family residential fenestration, the Aluminium Single Hung Window configuration represents an optimal balance of structural strength and functional ventilation. Unlike double hung systems where both top and bottom sashes move, a single hung window incorporates a fixed upper lite integrated directly into the master frame, paired with a vertically operating lower sash.
This fixed upper sash configuration eliminates dynamic weather-seal wear on the top rail, significantly reducing potential air infiltration points and increasing structural Design Pressure (DP) resistance under extreme wind loading conditions. When engineered with high-tensile 6063-T6 architectural aluminium alloy profiles, our single hung assemblies effortlessly achieve structural performance metrics exceeding 4500 Pa (equivalent to DP60–DP100 ratings).
Thermal Barrier Technology & Energy Efficiency
To comply with modern international green building standards (such as NCC 2022 in Australia, NZBC Clause H1 in New Zealand, and IECC code in the United States), our OEM single hung systems utilize advanced Polyamide 66 with 25% Fiberglass (PA66-GF25) structural thermal break strips.
By mechanically separating the exterior and interior extruded aluminium profiles, the thermal bridge is broken, reducing overall frame U-factors down to ≤1.3 W/m²K (0.23 BTU/hr·ft²·°F) when paired with warm-edge insulated glass units (IGU). Combined with argon-gas-filled Low-E double or triple glazing systems, solar heat gain coefficients (SHGC) can be customized precisely from 0.22 to 0.55 to match specific solar orientation requirements.
| Performance Feature | Standard Single Hung Profile | SAGA Thermal Break OEM Single Hung | Competitor Commercial Average |
|---|---|---|---|
| Extrusion Alloy & Temper | 6063-T5 (1.4mm wall thickness) | 6063-T6 Architectural Grade (1.8mm–2.2mm) | 6063-T5 (1.2mm–1.4mm) |
| Thermal Insulation (U-Factor) | U ~ 3.2 W/m²K (Non-Thermal) | U ≤ 1.3 to 1.8 W/m²K (PA66 Polyamide Break) | U ~ 2.4 W/m²K |
| Acoustic Rating (STC / OITC) | STC 28 dB | STC 38 to 44 dB (Asymmetric Laminated Glazing) | STC 32 dB |
| Structural Wind Load (DP Rating) | DP 35 (1680 Pa) | DP 60 to DP 100 (2880 Pa to 4800 Pa) | DP 45 (2160 Pa) |
| Water Penetration Resistance | 300 Pa | 700 Pa (Pressure-Equalized Weep Chamber) | 450 Pa |
| Hardware Counterbalance | Basic Block & Tackle | Heavy-Duty Constant-Force / Spiral Balance (100k Cycles) | Standard Friction Hinge / Wire Spring |
Industry Development & Technical Innovation Trends
How modern architectural requirements and strict carbon-neutrality mandates are reshaping single hung window engineering globally.
1. Ultra-Slim Sightline Minimalist Aesthetics
Modern architectural design favors maximum daylight transmission (VLT) and clean visual profiles. Next-generation single hung extrusions feature concealed sashes, slim meeting rails (under 45mm width), and hidden vertical balance mechanisms. This design allows for up to 15% more visible glass area while maintaining structural structural inertia (Ix/Iy values).
2. Extreme Weather & Hurricane Protection
With rising frequency of severe storm events across coastal North America, Northern Australia, and the Caribbean, single hung windows are increasingly specified with SentryGlas® (SGP) laminated interlayers. OEM designs now integrate heavy-duty hurricane impact profiles capable of passing Miami-Dade TAS 201 (Large Missile Impact) and TAS 203 (Cyclic Wind Pressure Loading).
3. Smart Fenestration & Automation
The integration of concealed low-voltage linear actuators allows single hung windows to seamlessly connect into Automated Building Management Systems (BMS). Automated natural night-purge ventilation, humidity-controlled opening cycles, and rain-sensor auto-closure are rapidly transitioning from luxury commercial options to standard enterprise project requirements.
Future Sourcing & Global Procurement Trends
Strategic insights for general contractors, wholesalers, and developers looking to mitigate supply chain risks and optimize project delivery cycles.
Pre-Engineered Sub-Frame & Flashing Integration
Procurement directors are shifting away from traditional jobsite-assembled window flashings toward factory-prefabricated integrated sub-frame systems (Sub-Head and Sub-Sill profiles). This trend drastically reduces on-site installation labor costs, eliminates installer waterproofing error, and guarantees strict compliance with water leakage standards such as Australian AS4420.4 and AS2047.
SAGA provides complete, tailor-made OEM sub-frame extrusions anodized or powder-coated to match the primary window frames, allowing fast push-fit installation into timber studs, steel framing, or concrete masonry units (CMU).
EPD Certification & Low-Carbon Recycled Aluminium
Global green building rating schemes (LEED v4.1, BREEAM, and Green Star Australia) now mandate verified Environmental Product Declarations (EPD) for architectural glass and aluminum joinery. SAGA is leading this transformation by offering recycled aluminum extrusions produced using hydroelectric power, dropping embodied carbon footprint by over 60% compared to virgin smelted aluminum.
Furthermore, non-toxic Qualicoat Class 2 powder coatings free of VOCs and heavy metals ensure that imported products comply with stringent environmental chemical import restrictions across North America and Europe.
Why Global Importers Partner with SAGA Doors & Windows
Over 16 years of factory-direct OEM/ODM expertise, world-class testing credentials, and robust export logistics.
Third-Party Audited Standards
Fully tested and audited under the AGWA program for AS2047:2014, AS1288:2021, and NCC 2022 (Australia), NZS4211:2008 (New Zealand), NAFS test standard (North America), and Miami-Dade TAS 201/202/203 hurricane certifications.
Full CAD & Engineering Support
Our in-house design team generates complete architectural shop drawings, 3D section details, BIM Revit models, and structural wind-load calculation reports for certifier sign-off prior to mass production.
Export Crate Packaging
All window units undergo 100% pre-shipment assembly inspection, fully wrapped in protective film, corner-protected, and packed into steel-reinforced fumigated wooden crates engineered for rough ocean freight handling.
Strategic Port Shipping
Located in Fujian, China, orders are dispatched directly from high-capacity deep-water shipping terminals at Fuzhou Port or Xiamen Port, assuring flexible container logistics and reliable ocean freight sailings.
Frequently Asked Sourcing & OEM Questions (FAQ)
Essential technical, financial, and logistical guidance for international purchasers.
Which types of buyers does SAGA supply custom aluminium single hung windows to?
SAGA is a specialized factory-direct OEM/ODM manufacturer supplying volume wholesalers, window distributors, commercial builders, property developers, general contractors, and facade architects. Every order is fully customized according to project-specific architectural shop drawings, local building code compliance standards, and custom dimension schedules.
What are the lead times for custom single hung window orders?
Our typical factory production lead time is 35 to 50 calendar days once detailed shop drawings are formally approved by your engineering team and deposit payment is confirmed. Production times may vary depending on powder-coat color customization, special glass fabrication (e.g., custom SGP laminated impact glass), and overall order volume. Ocean freight transit times depend on the destination port.
Do SAGA aluminium windows comply with Australian (AS2047) and North American (NAFS) standards?
Yes. Our compliance has been independently audited and certified under the AGWA program for Australian Standards AS2047:2014, AS1288:2021, and NCC 2022. Furthermore, our product lines carry audited compliance reports for New Zealand Standard NZS4211:2008 (covering Building Code clauses B1, B2, E2, F2, G4, G7, H1), North American NAFS standards, and Florida Miami-Dade TAS 201/202/203 hurricane impact protocols.
Can SAGA provide sample units for quality evaluation and certifier review?
Yes. We regularly manufacture standard or custom corner section samples as well as full-scale window sample units for structural evaluation, certifier audit, and client presentation. Sample unit fabrication is complimentary for qualified commercial projects, with the buyer responsible for express air freight charges.
What surface finishes and powder coating warranties are available?
We offer architectural-grade powder coating compliant with Qualicoat Class 2, AAMA 2604, and AAMA 2605 specifications utilizing premium AkzoNobel or PPG fluorocarbon powders (PVDF 3-coat finishes for high-salinity marine environments). Anodized finishes (Class I 18–25 microns) and heat-transfer woodgrain sublimations are also available. Warranties range from 10 years up to 25 years depending on coating selection and site exposure conditions.
What hardware balance systems are integrated into SAGA single hung windows?
Depending on sash weight, sash dimensions, and project budget, we integrate heavy-duty spiral balances, block & tackle counterweights, or constant-force spring balances sourced from leading global hardware manufacturers (such as Caldwell, Roto, or Kinlong). All hardware systems are tested to exceed 100,000 continuous opening and closing cycles without mechanical deflection or operational force deterioration.
What ports of loading and trade terms do you support?
All international orders are loaded and shipped directly from Fuzhou Port or Xiamen Port in Fujian Province, China. We support FOB, CIF, CFR, DDP, and DAP trade terms. Accepted payment methods include T/T bank transfer and Alibaba Trade Assurance for complete buyer security.
How do I start an OEM quote or request architectural shop drawings?
Simply send your window schedule, elevation drawings, architectural CAD files, or project specifications to our engineering team at [email protected] or click the "Get Catalog" button. Our technical estimation department will respond with a preliminary price quotation, thermal analysis, and initial shop drawings within 24 to 48 hours.
