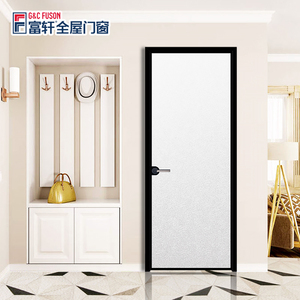

Hotel Room Glass Interior Casement Door With Lock Kitchen House Bedroom Door Office Aluminum Frame Swinging Glass Swing Door
Send an Inquiry

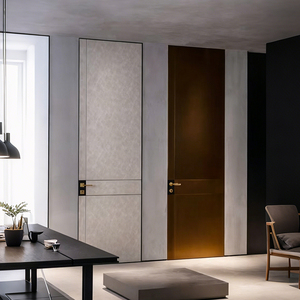

Premium Luxury Fire Rated Frameless Hidden Leather Finish Aluminium Interior Door for High-End Residential Project
Send an Inquiry

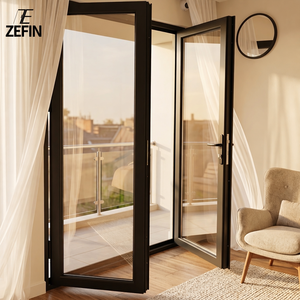

Thermal Break Aluminum Casement Door, Double Glazed Soundproof And Windproof Hinged Door, Energy Efficient Custom Size
Send an Inquiry
Architectural Grade Real Wood-Clad Insulated Aluminum Panel Stable Structure Smooth Operation Noise Reduction Garage Doors
Send an Inquiry1. Technical Engineering Standards for Custom OEM Aluminum Hopper Windows
In modern architectural fenestration, custom OEM aluminum hopper windows represent a vital inward-tilting sash design optimized for high-level ventilation, thermal control, and severe weather tightness. Unlike standard outward-projecting awning units, hopper windows hinge at the bottom and open inward from the top. This kinematic behavior makes them uniquely suitable for commercial basements, institution corridors, healthcare facilities, and high-density residential facades where exterior clearance is limited or safety restrictions apply.
From an OEM manufacturing perspective, producing high-performance aluminum hopper windows requires rigorous control over profile geometry, alloy selection, thermal break technology, and multi-point sealing perimeter systems. Leading factories employ 6063-T5 or 6060-T66 extruded aluminum profiles, engineered with wall thicknesses ranging from 1.4 mm for standard residential units up to 2.0 mm+ for heavy-duty commercial installations.
Information Gain Insight: Modern structural specifications require aluminum hopper windows to withstand extreme wind pressure differentials. SAGA's OEM manufacturing process integrates high-density Polyamide PA66GF25 thermal barrier strips, reducing overall frame U-factors to under 1.2 W/m²K when combined with Low-E double or triple-glazed Insulating Glass Units (IGUs).
Key Structural & Material Components:
- Extruded Aluminum Profiles: High-tensile 6063-T5 aluminum alloy offering superior structural rigidity, architectural-grade powder coating (AkzoNobel or PPG PVDF finishes), and sea-breeze corrosion resistance (C5 rating).
- Thermal Break Integration: Structural polyamide (PA66 with 25% glass fiber reinforcement) prevents conductive heat transfer between the interior and exterior profile chambers.
- Dual & Triple EPDM Weather Gaskets: Continuous, co-extruded EPDM rubber gasketing with vulcanized corners provides triple-stage acoustic and air-water tightness.
- Friction Stays & Scissor Stay Arms: Concealed stainless steel 304/316 friction stays allow calibrated opening angles (typically 15° to 45°) with integrated anti-slam drop-down restrictors.
2. Structural Performance & Technical Specification Matrix
Selecting the correct engineering configuration is critical for architects, general contractors, and trade importers. Below is the technical compliance baseline enforced by leading OEM factories for international trade orders:
| Performance Characteristic | Test Standard / Regulatory Baseline | Engineering Value / Range | OEM Customization Capability |
|---|---|---|---|
| Structural Wind Load | AS2047 / ASTM E330 / NZS4211 | Serviceability: Up to 3000 Pa Ultimate: Up to 6000 Pa |
Custom profile wall reinforcement (up to 2.5mm) & steel mullions |
| Water Penetration Resistance | AS4420.4 / ASTM E547 / EN 12208 | 450 Pa – 700 Pa static & dynamic pressure | Sub-head flashing, internal drainage channels, weep-hole baffles |
| Air Infiltration Rate | ASTM E283 / AS4420.2 | < 0.15 L/s·m² (Air Tight Grade) | Continuous compression EPDM multi-seal loops |
| Thermal Transmittance (U-Value) | ISO 10077-2 / NFRC 100/200 | U-Value: 0.85 – 1.4 W/m²K (0.15 - 0.25 BTU) | Technoform PA66GF25 thermal breaks + Argon warm edge IGUs |
| Acoustic Insulation (Rw/STC) | ISO 10140 / ASTM E90 | Rw 38 dB – 45 dB (Sound Reduction Grade) | Asymmetric acoustic laminated glass (e.g., 6mm + 1.52PVB + 8mm) |
| Impact Resistance | Miami-Dade TAS 201/202/203 / NAFS | Large Missile Level D (9-lb 2x4 lumber impact) | SentryGlas® (SGP) interlayer structural laminated glass options |
3. Technological Development Trends in Aluminum Hopper Windows
The global architectural fenestration sector is experiencing a paradigm shift driven by stringent energy efficiency codes (such as Australia's NCC 2022, Europe's EPBD, and North America's IECC 2024), intelligent building automation, and minimalistic architectural aesthetic demands. Custom aluminum hopper window manufacturing has evolved beyond simple opening frames into complex energy-harvesting and environmental control envelopes.
Motorized Chain Actuator Automation
Integration of concealed 24V DC electric chain winders synced with Building Management Systems (BMS). Allows automated smoke release, climate-sensing purge ventilation, and smart home remote operation.
Ultra-Slim Sightline Profiles
Minimalist OEM frame designs reducing visible aluminum profiles down to under 45mm. Maximizes natural daylight transmittance while retaining full structural moment of inertia.
Advanced Surface Treatment & Nanocoatings
Polyfluorinated (PVDF) powder coating systems combined with hydrophobic glass nanocoatings, ensuring high UV color stability, anti-graffiti resilience, and self-cleaning capabilities for high-rise facades.
4. Future Global B2B Procurement Trends for OEM Aluminum Windows
B2B importers, commercial developers, and regional distributors are altering their procurement models to mitigate supply chain risks, streamline compliance verification, and maximize project margins. Key strategic trends dominating the custom OEM window supply landscape include:
- Turnkey Shop Drawing & Structural Engineering Bundling: Importers no longer just request finished profiles; they require factory-direct BIM models, CAD section drawings, and wind load calculation reports pre-stamped for local building council approvals.
- Consolidated Multi-Product Container Loading: Wholesalers prefer OEM factories capable of supplying complete building envelope systems—combining custom aluminum hopper windows, tilt-and-turn units, interior glass doors, and hurricane shutters in unified container shipments.
- Strict Decarbonization & EPD Documentation: Commercial tenders increasingly mandate Environmental Product Declarations (EPDs) and low-carbon primary aluminum billet sourcing (utilizing hydro-powered smelting processes).
- Digital Quality Assurance (DQA) Portals: Real-time factory tracking where buyers monitor CNC precision cutting, corner-crimping torque tests, IGU seal integrity, and pre-shipment water spray test logs remotely.
5. Enterprise Competitive Advantages of SAGA Aluminum Doors & Windows
With over 16 years of continuous manufacturing experience and exports across 25+ countries, SAGA Aluminum Doors & Windows Co., Ltd. stands as a premier direct-factory partner for global builders, architectural specifiers, and window distributors.
Audited Global Certifications
Audited compliance under the AGWA program for Australian Standards (AS2047:2014, AS1288:2021, NCC 2022), New Zealand Building Code (NZS4211:2008), NAFS for North America, and Florida Miami-Dade TAS 201/202/203 hurricane approvals.
Full-Scale OEM/ODM Production Facility
Located in the Tieling Technical Zone, Fuzhou, our state-of-the-art facility features automated German CNC machining centers, dual-corner crimping systems, insulated glass production lines, and custom powder-coating booths.
Export-Grade Heavy Duty Packaging
Every custom window frame and glass panel undergoes strict 100% pre-shipment assembly inspection, wrapped in protective film, corner guards, and packed into fully enclosed fumigated plywood crates optimized for ocean transport via Fuzhou or Xiamen ports.
Frequently Asked Questions for B2B Importers & Buyers
Comprehensive procurement, technical, and logistics answers from SAGA's engineering team.
Which types of commercial buyers does SAGA supply custom windows to?
We supply wholesale stocking dealers, commercial and residential builders, estate developers, facade contractors, architects, and direct project importers. Every order includes tailored shop drawings matching the buyer's exact local building codes.
What is the typical production lead time for custom OEM hopper window orders?
Standard manufacturing lead time is 35 to 50 days following shop drawing sign-off and deposit receipt. Lead times vary depending on special anodizing, custom powder colors, or specialized glass availability.
Can SAGA provide sample units for quality evaluation and testing?
Yes. We provide standard-size corner cutaway samples or full-size window sample units for structural testing, architectural approval, and finish verification. Sample costs are refundable upon mass order placement.
What technical engineering support is included with custom OEM orders?
We provide full structural CAD section drawings, 3D BIM models, installation detail schematics, wind-load calculations, thermal analysis reports, and direct consultation with our Senior Mechanical Engineers.
Do SAGA aluminum hopper windows satisfy AS2047 and NZS4211 standards?
Yes. Our window configurations are fully tested and audited by independent accredited laboratories under AGWA for AS2047, AS1288, and NCC 2022 in Australia, as well as NZS4211 and NZBC Clauses B1, B2, E2, F2, G4, G7, and H1 in New Zealand.
What hardware options can be integrated into OEM aluminum hopper windows?
We offer top-tier international hardware options including German ROTO Frank, Siegenia-Aubi, Hoppe, and Kinlong friction hinges, concealed multi-point locking gearboxes, limiters, and motorized electric chain actuators.
What ocean freight loading ports are utilized for global shipping?
Orders are packaged in export-ready steel-reinforced wooden crates and dispatched directly from Fuzhou Port or Xiamen Port in Fujian Province, China.
What commercial trade terms and payment methods are accepted?
We accept T/T (Telegraphic Transfer), L/C at sight for large project orders, and Alibaba Trade Assurance for secured transaction protection. Trade terms include FOB, CIF, CFR, DDU, or DDP depending on destination.
