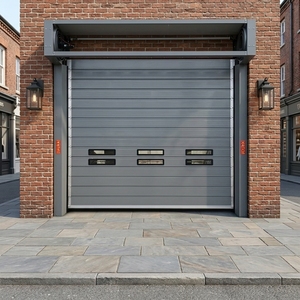

Heavy Duty Aluminum Spiral High Speed Door Windproof Anti-Theft Fast Door Aluminum Entrance Door for Retail Stores
Request OEM Quote
European Aluminum Alloy Basement Easy Clean Heat Insulation White 5 Year Plastic Double Hung Windows
Request OEM Quote

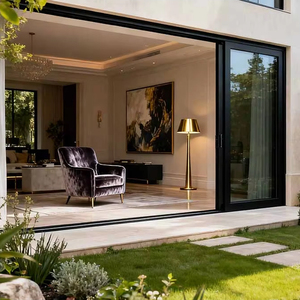

OUNA Canadian CSA Standard Heavy-Duty Modern Energy Efficient External Glass Large Sliding Patio Doors And Windows For Home
Request OEM Quote

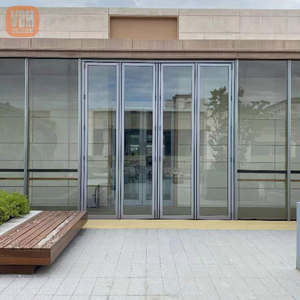

Insulation Design Aluminium Folding Door Glass Front for Northern Europe Villa Frontage Restaurant Hotel Plaza Entrance
Request OEM Quote

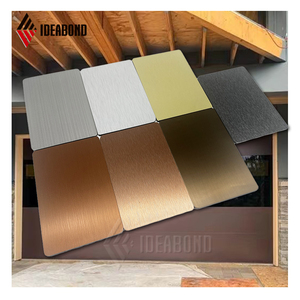

Competitive Price Commercial Insulated Garage Door 3mm 4mm ACP Metal Brushed Composite Aluminum Panels
Request OEM Quote

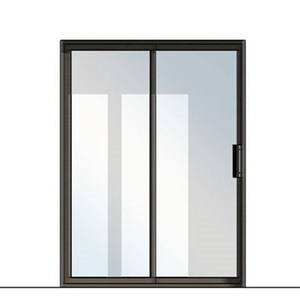

Partition Aluminium Fiber Glass exterior Sliding Door System and Doors Catalogue List
Request OEM Quote
Surfence Double sliding door With Upper Glide Track Wide Access In Tight Spaces
Request OEM Quote

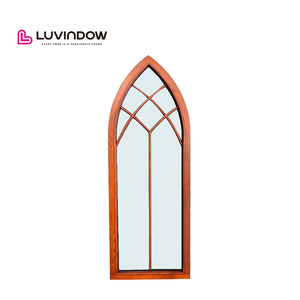

Modern House Designs Wooden Aluminium Casement Arch Window Custom Special Shape Glass Windows
Request OEM QuoteEngineering OEM Aluminum Single Pane Sliding Windows
An in-depth technical analysis for architects, facade consultants, real estate developers, and commercial procurement managers.
Architectural Utility & Structural Metallurgy
In modern architectural design, the demand for custom OEM aluminum single pane sliding windows spans multiple project typologies—from high-density tropical housing developments to sleek commercial interior partitions and modular building facades. While multi-glazed units dominate extreme heating climates, single-glazed aluminum sliding systems remain the optimal choice for structural lightness, slim sightlines, cost efficiency, and high-frequency operation in moderate, sub-tropical, and coastal building zones.
SAGA Aluminum Doors & Windows Co., Ltd. manufactures single pane sliding windows using primary-grade **6063-T5 and 6063-T6 extruded aluminum alloy profiles**. The metallurgical profile exhibits exceptional tensile strength (≥ 185 MPa) and yield strength (≥ 170 MPa), ensuring structural integrity under elevated design wind pressures without structural frame deformation.
- Wall Thickness Rigor: Structural frame wall thickness ranges from 1.4mm to 2.0mm, exceeding standard residential tolerances.
- Precision Surface Finishes: AAMA 2604 / Qualicoat Class 2 fluorocarbon powder coatings and 15–25 µm anodized treatments for superior anti-corrosion resistance.
- Glazing Flexibility: Engineered to accept 5mm, 6mm, 8mm, 10mm, or 12mm monolithic toughened glass (ASTM C1048 / BS EN 12150 standard).
Technical Benchmark Specifications
SAGA factory OEM single pane sliding window parameters under standardized testing protocols:
Engineering Data Matrix: Single Glazing vs. Double Glazing Systems
A comparative analysis detailing physical properties, weight distribution, structural load tolerances, and procurement cost factors.
| Performance Metrics | OEM Single Pane Sliding (5-8mm) | Double Glazed Sliding (5+12A+5mm) | Thermally Broken Double Sliding |
|---|---|---|---|
| Structural Self-Weight | 14 – 20 kg/m² (Lightweight, low track wear) | 28 – 35 kg/m² (Medium load on rollers) | 32 – 42 kg/m² (Heavy structural tracking required) |
| Visible Light Transmittance (VLT) | 82% – 88% (Maximum daylight penetration) | 70% – 78% (Depends on Low-E tinting) | 68% – 75% (Optically optimized) |
| Frame Sightline Width | 30mm – 55mm (Ultra-slim profile possibilities) | 65mm – 95mm (Broader extrusion cavity) | 75mm – 110mm (Deep polyamide thermal bridge) |
| Structural Wind Resistance | High (Low mass minimizes inertia flutter) | Very High (Structural glass stiffness) | Extreme (Hurricane & high-rise certified) |
| B2B Procurement Unit Cost | Baseline (Optimal for bulk commercial builds) | +45% to +65% Material Cost Increase | +90% to +140% Material Cost Increase |
| Primary Target Climate Zones | Tropical, Coastal, Interior Zoning, Mild Regions | Temperate, Four-Season Climate Zones | Extreme Cold / Extreme Heat High-Energy Zones |
Micro-Engineering & System Components
How SAGA resolves traditional sliding window failure points through custom extrusion geometry and premium hardware integration.
Dual-Tandem Roller Track Systems
Equipped with stainless steel (SUS304) housing and self-lubricating POM/nylon dual rollers. Eliminates track grinding, reduces friction coefficient to <0.05, and supports sash loads up to 120 kg per sliding leaf.
Multi-Point Mortise Security Locking
Upgraded from simple latch locks to multi-point anti-lift locking mechanisms. High-grade zinc alloy handles paired with stainless steel keeper plates prevent external forced entry and vertical sash manipulation.
Pressure-Equalized Drainage Channels
Stepped sill profiles engineered with internal baffle valves allow rapid water discharge (up to 450 Pa water pressure threshold) while preventing wind-driven back-pressure from injecting water into the interior track.
Triple Perimeter Brush Seal Weathering
High-density siliconized woven mohair brush seals with central polypropylene fins line all interlock rails and perimeter frame tracks to block dust infiltration, stop air leakage, and suppress high-frequency wind noise.
Structural Interlocking Stile Reinforcement
Meeting-rail interlocks feature internal heavy-duty aluminum fins. When closed, male and female interlock profiles hook together, distributing gust loads across both sashes to minimize deflection.
Modular Sub-Frame Installation Flanges
Custom OEM extrusion profiles can be customized with integrated nail fins (timber stud fixing), reveal clips, or masonry fixing legs tailored specifically to Australian, North American, or European building envelopes.
Future Procurement & Manufacturing Trends (2025–2035)
Strategic macro-trends shaping global fenestration sourcing, supply chain compliance, and architectural product development.
Transition to Low-Carbon & Recycled Aluminum Billets
Global green building standards (LEED v4.1, BREEAM, and NCC 2022 embodied carbon limits) are accelerating the demand for low-carbon primary aluminum extrusions. Future OEM procurement prioritizes factories utilizing hydro-powered aluminum smelting and pre-consumer recycled content to minimize carbon tariffs (CBAM compliance).
Micro-Slim Sightlines & Structural Glass Bonding
Architectural preferences are pushing traditional 50mm window frames toward ultra-narrow 18mm–25mm interlocking stiles. Achieving structural compliance with minimal aluminum frames requires factory-applied structural silicone glazing (SSG) techniques to bond the single pane glass directly to the frame.
Automated DFM & CAD/CAM Factory Integration
Leading OEM exporters are shifting from standard catalog order processing to automated Design-for-Manufacturability (DFM) workflows. BIM (Building Information Modeling) objects automatically generate shop drawings and direct-to-CNC machining G-code, eliminating manual fabrication errors and shortening lead times by 15–20 days.
Integrated Surface Solar Control Single Glazing
To meet energy budgets without incurring the cost and weight of double glazing, single pane sliding windows are increasingly adopting advanced online hard-coat Pyrolytic Low-E and Solar Reflective tinted glass. This innovation achieves Solar Heat Gain Coefficients (SHGC) below 0.45 on a single 6mm lite.
Enterprise Strengths & Factory Excellence
Why Tier-1 builders, architects, and international distributors partner with SAGA Aluminum Doors & Windows Co., Ltd.
16 Years of Advanced Manufacturing & Global Compliance
Located in the Tieling Technical and Economic Development Zone, Minhou County, Fuzhou, Fujian, China, SAGA operates a modern, high-precision window and door fabrication facility equipped with automated double-head cutting saws, CNC corner crimping systems, and automated glass handling lines.
Our engineering team delivers comprehensive technical governance, providing CAD section drawings, wind load calculations, and installation detailing tailored to destination building codes across **Australia, New Zealand, North America, Europe, and the Caribbean**.
Audited Global Standards Compliance
Verified compliance certificates for AGWA AS2047:2014 & AS1288:2021 (Australia), NZS4211:2008 (New Zealand), NAFS (North America), and Miami-Dade TAS 201/202/203 high-velocity hurricane impact requirements.
Tier-1 Supply Chain Hardware Integration
Strategic sourcing partnerships with global profile and hardware manufacturers including Veka, Rehau, Zhongcai, ROTO, Siegenia Aubi, and Kinlong ensures reliable component quality.
Export Logistics & Crate Packaging
Direct container loading from Fuzhou and Xiamen sea ports. Windows are protected with protective film, corner guards, and fully sealed fumigated plywood steel-strapped crates to guarantee zero transit damage.
SAGA Factory Quality Control Protocol
- Raw Aluminum Inspection: Spectrometer alloy verification to confirm 6063 chemical composition before extrusion cutting.
- Anodizing & Paint Thickness: Eddy-current coating thickness testing to verify micron compliance (AAMA 2604/2605).
- Dimensional Tolerance Checking: Laser diagonal measurement ensuring frame squareness tolerance within ±1.0mm.
- Hydrostatic Chamber Testing: In-house mock-up chamber testing for air infiltration and water penetration under forced pressure.
- Final Pre-Shipment Inspection: 100% operational hardware cycle checks and protective film verification prior to crating.
Frequently Asked Procurement Questions (FAQ)
Essential technical and commercial answers for international buyers, importers, project managers, and wholesalers.
- Australia / New Zealand: AGWA audited for AS2047:2014 (windows in buildings), AS1288:2021 (glass selection and installation), NCC 2022, and NZS4211:2008.
- North America: NAFS (North American Fenestration Standard) structural deflection, air infiltration, and water resistance test reports.
- Coastal & Storm Zones: Selected hurricane impact lines comply with Miami-Dade County TAS 201-94, TAS 202-94, and TAS 203-94 testing standards.
- Detail 1:1 scale profile cross-section drawings showing wall thickness and thermal breaks (if applicable).
- Elevation shop drawings with exact overall frame sizes, sash reveals, and opening directions.
- Glass configuration schedules (temper logo placements, solar coatings, thickness tolerances).
- Installation anchorage and waterproofing flashing integration details.
Partner with a Certified OEM Aluminum Window Factory
Whether you need custom extrusions, project shop drawings, or container-load factory pricing, our engineering team is ready to analyze your window schedule.
