Featured Anthracite Aluminium Window Systems
Custom-fabricated OEM/ODM window configurations engineered for extreme structural loads, superior thermal efficiency, and sleek modern aesthetics.
Architectural Dominance & Metallurgy of Anthracite Grey (RAL 7016) Aluminium Windows
Over the past decade, the global architectural joinery landscape has witnessed a definitive shift toward dark neutral palettes, with Anthracite Grey (RAL 7016) emerging as the preferred standard across luxury residential, multi-family, and institutional developments. As an established OEM/ODM factory and global exporter, our engineering team integrates high-grade architectural aluminium alloys with advanced surface treatment technologies to fulfill the rigorous performance criteria specified by structural engineers and facade consultants worldwide.
1. The Architectural Psychology & Visual Integration of RAL 7016
Anthracite Grey provides a subtle, sophisticated bridge between stark architectural black and industrial metallic silver. Its deep charcoal hue with cool blue-grey undertones serves several functional design purposes:
- Visual Frame Reduction: RAL 7016 naturally visually recedes, creating a seamless transition between interior living zones and external landscapes, enhancing the perception of glass transparency.
- Complementary Materiality: Anthracite profiles effortlessly harmonize with modern building envelopes—including exposed off-form concrete, timber cladding, standing seam zinc panels, and light-toned brickwork.
- Biophilic Framing: By crisping up daylight boundaries without high contrast reflection, Anthracite windows optimize light transmission while framing natural surroundings cleanly.
2. Surface Finishing Engineering: QUALICOAT & PVDF Standards
Standard architectural powder coating fails rapidly under high solar radiation and corrosive atmospheric conditions. As a dedicated OEM exporter, our manufacturing processes employ electrostatic dry powder coating compliant with international durability standards:
- QUALICOAT Class 2 (Superdurable Polyurethane/Polyester): Engineered specifically for high-UV environments such as Australia, New Zealand, and southern US regions. Tested to withstand 3 years of Florida weathering exposure without color fading or gloss degradation exceeding ISO limits.
- Fluorocarbon (PVDF / Kynar 500) Liquid Spraying: Applied for severe coastal applications within 1km of saltwater environments. Utilizing a 3-coat/2-bake process, PVDF coatings deliver maximum chemical inertness and salt-spray resistance exceeding 4,000 hours under ASTM B117 testing.
- Micro-Texture and Matt Finishes: Providing 20% to 30% low-gloss matt textures that obscure fingerprints, minimize surface glare, and resist micro-abrasions during site handling.
System Capabilities & Customization Engineering
Explore the technical foundation that makes our custom aluminium fenestration systems compliant with global building codes.

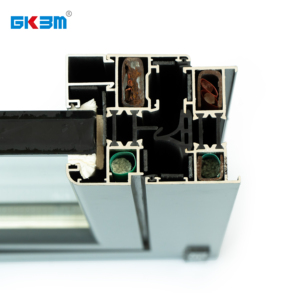

Polyamide Thermal Barriers
Utilizing high-grade PA66GF25 (25% fiberglass reinforced polyamide) thermal break strips to eliminate thermal bridging, achieving U-values as low as 1.1 W/m²K in double-glazed thermal break casement assemblies.
Multi-Point Lock Security
Integrated European-standard hardware channels supporting heavy-duty multi-point locking gear from ROTO, Siegenia, and Hoppe, delivering RC2/RC3 burglar resistance ratings.
Sound Insulation & Acoustics
Acoustically tuned double and triple glass units featuring sound-dampening PVB laminated interlayers, reducing noise transmission by up to 45 dB (Rw rating) for hotel and urban project applications.
Future Procurement Trends in OEM/ODM Aluminium Windows (2025–2035)
As international energy codes become increasingly stringent—such as the National Construction Code (NCC 2022) in Australia, NZBC Clause H1 in New Zealand, and Energy Star Version 7.0 in North America—the procurement strategy for real estate developers and wholesalers must evolve.
1. Shift Toward Decarbonized & Low-Carbon Primary Aluminium
Global architectural specifications increasingly require Environmental Product Declarations (EPDs). SOURCING strategy in 2025 and beyond prioritizes 6063-T5 / T6 virgin extrusion billets processed using hydro-electric power, reducing embodied carbon footprints to under 4.0 kg CO2e/kg Al. OEM factories that provide carbon traceability offer a decisive competitive advantage for green building certifications (LEED v4, BREEAM, Green Star).
2. Ultra-Slim Sightlines & Structural Silicone Glazing (SSG)
Modern commercial and residential architectural blueprints demand maximized glass-to-frame ratios. Future fenestration trends favor hidden frame casements and flush structural glazing where outer frame profiles are concealed behind exterior wall reveals. Achieving these slim sightlines requires precision CNC profile machining, high moment of inertia ($I_x$, $I_y$) extrusion design, and automated corner crimping with dual-component adhesive injection.
3. Pre-Engineered Compliance for Rapid Regional Certification
The traditional model of importing non-certified window frames and attempting local modification is obsolete due to rising liability risks. Smart importers partner with factories that hold fully documented, audited test reports for target export zones:
| Target Region | Governing Building Code / Standard | Required Verification Metrics | Factory Technical Support |
|---|---|---|---|
| Australia | AS2047:2014, AS1288:2021, NCC 2022 | Deflection (N1-N6, C1-C4), Water Penetration (Pa), Air Infiltration, Human Impact Safety | AGWA Audit Documentation, Custom Structural Winder & Flashing Detail Shop Drawings |
| New Zealand | NZS4211:2008, NZBC Clauses B1, E2, H1 | Thermal Performance (R-value ≥ 0.46 m²K/W), Weathertightness, Durability | High-Performance Thermal Break Profiles, Warm-Edge Spacer Triple Glazing Units |
| North America | NAFS (AAMA/WDMA/CSA 101/I.S.2/A440) | Air Leakage, Water Resistance, Structural Uniform Load, Forced Entry (ASTM F588) | Design Pressure (DP) Rated Systems, NFRC Thermal Simulation Reports |
| Caribbean & Coastal USA | Miami-Dade High Velocity Hurricane Zone (HVHZ) | TAS 201 (Impact), TAS 202 (Uniform Load), TAS 203 (Cyclic Pressure) | Heavy-Gauge 6063-T6 Profiles, Laminated Impact Glass, Stainless Steel 316 Anchors |
4. Complete Building Envelope Single-Sourcing
Importers, master builders, and commercial general contractors are actively consolidating supply chains. Rather than managing fragmented vendors, buyers prefer working with integrated OEM factories capable of supplying matching Anthracite Grey window systems alongside complementary building products—such as sectional garage doors, structural glass balustrades, frameless shower screens, exterior louvers, and motorized hurricane shutters.
Material Matrix: Non-Thermal Break vs. Thermal Break vs. Aluminium-Clad Timber
Choosing the correct frame composition is critical for balancing thermal compliance (U-value/SHGC) with initial capital expenditure. Our production lines support all three major structural options in Anthracite Grey RAL 7016:
| Performance Metric | Standard Aluminium (Non-Thermal) | Thermally Broken Aluminium | Aluminium-Clad Timber (Composite) |
|---|---|---|---|
| Typical Frame U-Value | 4.5 - 6.0 W/m²K | 1.4 - 2.2 W/m²K | 0.9 - 1.4 W/m²K |
| Structural Load Limit | Very High (Ideal for large spans) | High to Very High | High (Timber adds structural mass) |
| Exterior Finish | QUALICOAT Powder Coat / Anodized | QUALICOAT Powder Coat / PVDF | Powder Coated Aluminium Shell |
| Interior Aesthetic | Metallic / Powder Coated | Metallic / Dual-Color Powder Coated | Natural Solid Hardwood / Oak / Pine |
| Ideal Project Applications | Warm climate high-rises, commercial storefronts | Modern residential villas, passive solar design | Luxury mountain chalets, high-end estates |
| Maintenance Profile | Extremely Low | Extremely Low | Low Exterior / Occasional Interior Timber Care |
State-of-the-Art OEM/ODM Manufacturing Infrastructure
Why leading window brands, real estate developers, and construction hardware distributors partner with SAGA Windows & Doors.
Fully Automated CNC Machining
Equipped with multi-axis German CNC profile milling equipment ensuring micron-level accuracy for hardware cutouts, drainage channels, and corner mitres.
Rigorous Quality Control Protocols
100% pre-shipment assembly and water tightness testing. Every batch undergoes coating thickness verification, adhesion cross-hatch testing, and hardware smooth-operation auditing.
Heavy Export Steel Crating
Custom-built steel-framed wooden crates with foam corner protectors and moisture-proof plastic wrapping guarantee zero surface scratches or glass breakage during ocean transit.
Frequently Asked Procurement Questions (FAQ)
Direct answers from our Senior Structural & Glazing Engineers regarding window procurement, testing, and custom manufacturing.
Partner With a Premier OEM/ODM Window Manufacturer
Request our latest technical architectural catalog, system section CAD details, and competitive factory-direct pricing for your upcoming commercial or residential project.
