Featured OEM/ODM Aluminium Back Door Systems
Precision-engineered rear entrance solutions certified to AS2047, NZS4211, NAFS, and Miami-Dade structural standards. Made to custom architectural measurements.
OUNA NFRC Exterior Entry Door with Glass Security Aluminium Designs
Contact Us

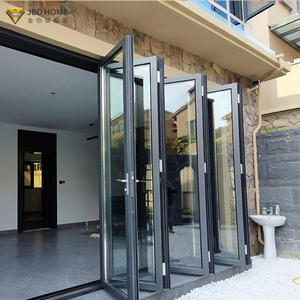

Custom Aluminum Folding Accordion Bi-Fold Doors Double Glazed Hurricane Proof
Contact Us

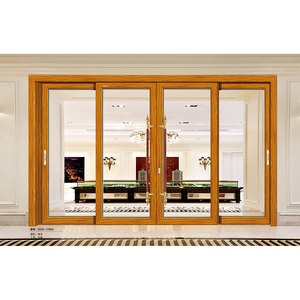

Architectural Grade Wood-Clad Insulated Aluminum Panel Doors Noise Reduction
Contact Us

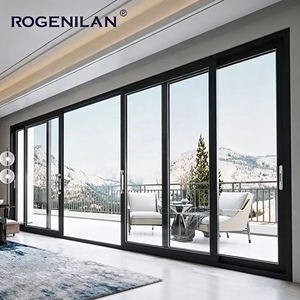

Commercial Heavy Duty Sliding Balcony Patio Aluminum Double Glass Doors
Contact Us

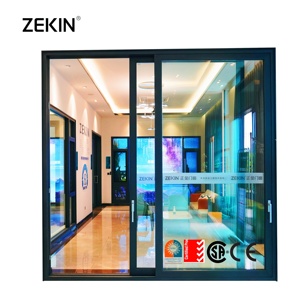

AS2047 Certified Modern Aluminium Alloy Frame Sliding Doors Low E Glass
Contact Us

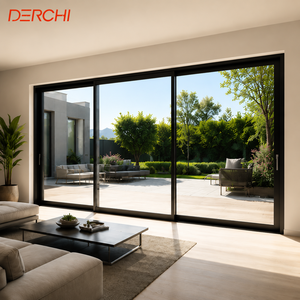

Heavy Duty Thermal Break Automatic Sliding Patio Aluminum Glass Door
Contact Us
NFRC Soundproof Double/Triple Low E Glazed Aluminum Tilt & Turn Doors
Contact Us
Whitepaper & Procurement Benchmark
Architectural Engineering of OEM/ODM Aluminium Back Doors
An authoritative technical guide for architects, volume builders, property developers, and international fenestration distributors specifying rear entrance joinery.
Information Gain Executive Summary: Unlike standard interior doors or front entry doors, aluminium back doors serve a critical structural role in maintaining building envelope thermal performance, forced-entry security, and moisture barrier integrity under extreme differential pressures. OEM/ODM customization allows commercial and residential projects to balance structural wind load requirements (up to 6000 Pa) with ultra-slim sightlines, integrated flyscreens, and multi-point smart locking hardware.
Recommended OEM/ODM Aluminium Back Door Typologies for Global B2B Projects
Select the optimal door system based on climate zone exposure, spatial layout, structural deflection limits, and building code compliance.
1. Thermally Broken Sliding Back Doors
Engineered with polyamide PA66GF25 thermal insulation strips, heavy-duty tandem stainless steel rollers, and multi-track configurations. Ideal for connecting indoor living spaces to rear patios with minimal threshold transition heights.
2. Heavy-Duty Bifold & Accordion Back Doors
Top-hung or bottom-rolling multi-panel systems capable of opening up to 90% of the structural aperture. Manufactured with extruded EN AW-6063 T6 aluminium alloys to prevent panel sag across spans exceeding 8 meters.
3. High-Security French & Single Utility Back Doors
Designed for side and rear utility access requiring high security. Features multi-point shootbolt locking, security mesh integration, heavy-duty 3D adjustable friction hinges, and laminated safety glazing.
Engineering Specification Matrix: OEM/ODM Profile & Performance Standards
Standard factory benchmarks for custom aluminium back door production for export markets.
| Technical Parameter | Standard Aluminium Profile | Thermally Broken Aluminium | Aluminium-Wood Composite |
|---|---|---|---|
| Aluminium Alloy Spec | EN AW-6063-T6 / T5 extruded | EN AW-6063-T6 precision extruded | Structural 6063-T6 + Solid Timber interior |
| Thermal Insulation (U-Factor) | 3.2 – 4.5 W/m²K | 1.2 – 2.0 W/m²K (Low-E Double) | 0.9 – 1.4 W/m²K (Passive House Spec) |
| Acoustic Rating (STC / Rw) | STC 28 – 34 dB | STC 38 – 45 dB | STC 40 – 48 dB (Triple Glazed) |
| Wind Load Resistance | Up to 3000 Pa (AS2047 N4/N5) | Up to 4500 Pa (Commercial Grade) | Up to 6000 Pa (Miami-Dade TAS 202) |
| Water Penetration Resistance | 300 Pa - 450 Pa | 600 Pa - 900 Pa | 750 Pa - 1050 Pa |
| Hardware Compatibility | Kinlong / Standard OEM | ROTO / Siegenia / HOPPE | ROTO Frank / German Mechatronic |
| Surface Treatment | Qualicoat Powder Coating (60µm) | AkzoNobel Interpon / PVDF (25µm) | Fluorocarbon Marine Anodizing (25µm) |
Industry Insight
Future Procurement Trends in Aluminium Back Door Sourcing (2025–2030)
Global building energy codes and supply chain dynamics are fundamentally transforming how developers and importers procure OEM joinery.
1. Net-Zero & 7-Star Energy Efficiency Mandates
With stringent implementation of Australia's NCC 2022 7-Star thermal energy targets, North America's Energy Star 7.0, and Europe's EPBD requirements, rear back doors can no longer be non-thermal thermal bridges. Sourcing has shifted heavily toward PA66GF25 double polyamide thermal barrier profiles filled with insulating polyolefin foam, reducing whole-window U-values below 1.4 W/m²K.
2. Prefabricated Sub-Frame & Quick-Install Flashing Systems
Labor costs in destination markets (Australia, New Zealand, USA, UK) continue to escalate. Global buyers now demand OEM suppliers supply complete integrated sub-head, sub-sill, and sub-jamb extrusion channels with pre-assembled weather flashings, reducing on-site installation labor time by over 40% while eliminating water leakage liabilities.
3. Smart Access Control & Invisible Security Hardware
Modern residential developments require rear entrance back doors to integrate seamlessly into smart home automation ecosystems. OEM factories are embedding concealed electronic multi-point locking drives, biometric fingerprint readers, and automated motor-assisted sliding mechanisms directly into the door sash extrusions.
4. Low-Carbon Circular Aluminium Billets
ESG compliance and green building certifications (LEED, BREEAM, Green Star Australia) are driving buyers toward suppliers using recycled low-carbon aluminium billets smelted using renewable hydro-power (carbon footprint < 4.0 kg CO2/kg Al), complete with Environmental Product Declarations (EPD).
Technological Innovations in OEM Aluminium Door Manufacturing
Key material advancements utilized by advanced factories to achieve extreme weather resistance and acoustic attenuation.
Co-Extruded EPDM Gaskets
Continuous vulcanized EPDM rubber gaskets combined with silicone sponge weather-stripping guarantee long-term elastic recovery, preventing air infiltration under severe negative pressure loads.
Extreme Salt-Spray Coatings
For coastal C5 environments, profiles undergo pre-anodizing followed by 25-micron PVDF fluorocarbon spraying, delivering over 3,000 hours of continuous salt-spray corrosion resistance without blistering.
Warm Edge Gas Glazing
Double and triple glazed IGUs utilize stainless steel composite warm-edge spacers filled with 95% pure Argon gas, eliminating perimeter condensation and glass thermal stress cracking.
Manufacturing Capability
SAGA Doors & Windows: Enterprise Strengths & Factory Advantage
As a direct OEM/ODM manufacturer with 16+ years of specialized export experience, SAGA Aluminum Doors & Windows Co., Ltd. delivers institutional-grade fenestration products directly from our production base in Fujian, China.
- Rigorous International Testing Compliance: Audited under the AGWA program for Australian Standards AS2047:2014, AS1288:2021, and NCC 2022. New Zealand standard NZS4211:2008 verified. North American NAFS and Florida Miami-Dade TAS 201/202/203 impact certified.
- Complete Envelope Consolidation: Simplify container freight by sourcing complementary joinery from one factory — including thermally broken back doors, casement/sliding windows, garage doors, interior glass doors, frameless glass pool railings, shower screens, and sunshade shutter series.
- Global Tier-1 Supply Chain Integration: Strategic profile partnerships with Veka, Rehau, and Zhongcai; hardware integration with premium German brands ROTO Frank, Siegenia-Aubi, and high-performance Kinlong systems.
- Full Technical & Shop Drawing Engineering: Dedicated project engineering team producing complete CAD elevation drawings, structural section details, BIM objects, and step-by-step installation guides tailored to your regional building code before production starts.
- Export Logistics & Safe Crating: Goods are loaded at Fuzhou or Xiamen ports in custom IPPC-certified fully enclosed wooden crates with protective film and corner guards, ensuring zero glass breakage during ocean transport.
- Flexible B2B Trade Terms: Full support for T/T bank transfers and Alibaba Trade Assurance, protected by a 10-Year Factory Warranty.
Procurement Guide
Frequently Asked Questions by Importers & Builders
Essential answers to technical and operational questions regarding custom OEM/ODM aluminium back door orders.
Q1 What custom OEM/ODM parameters can SAGA modify for aluminium back door orders?
We offer complete customization across profile wall thickness (1.4mm to 3.0mm structural frame), thermal break strip depth, powder-coating or anodizing color matching (RAL & Dulux spectrums), glass specification (double/triple Low-E, acoustic laminated, toughened, tinted, smart electrochromic glass), track counts, insect screen integrations (stainless steel mesh, high-clarity pleated screens), and hardware configurations (ROTO, Siegenia, Kinlong, or client-specified mortise locks).
Q2 How does SAGA verify compliance with Australian (AS2047) and North American (NAFS) standards?
Our products undergo independent laboratory testing and annual factory quality audits under accredited auditing programs. We supply complete test reports verifying deflection under wind pressure (AS4055/AS2047), air infiltration (AS2047 / NAFS), water penetration resistance (Pa ratings), structural ultimate strength, and glass safety compliance under AS1288/ANSI Z97.1. Certifier-ready compliance documentation is issued for every job.
Q3 What is the typical production lead time and sample protocol for custom orders?
Manufacturing lead time is typically 35 to 50 days following shop drawing sign-off and deposit receipt. We provide free standard-sized window and profile samples for quality evaluation (buyer covers express courier freight). For volume commercial projects, full-scale mockup samples can be produced for laboratory testing or client sign-off.
Q4 What packing methods are used to prevent transit damage during long-distance ocean shipping?
All assembled door frames and sashes are protected with protective polyethylene film, corner protectors, waterproof wrapping, and packed into custom-built, heavy-duty fumigation-free wooden crates or steel-framed export pallets. Products are loaded and secured inside 20GP or 40HQ containers at Fuzhou or Xiamen ports using heavy-duty webbing straps to prevent movement during sea transit.
Q5 What hardware options and multi-point locking security systems are available for rear access doors?
Because rear back doors are high-risk targets for forced entry, we equip them with multi-point stainless steel shootbolt locking gear, anti-lift security blocks on sliding doors, 5-point key-locking hardware, and heavy-duty 3D adjustable security hinges. Smart electronic locks with keypad, IC card, Bluetooth, and biometric fingerprint access can also be integrated into custom profiles.
Q6 How do you ensure proper water shedding and sill performance on exposed rear patio openings?
We engineer custom sill profiles incorporating integrated water drainage slots, continuous weep hole covers, high-sub sill flashings, and cascade drainage channels. For flush-threshold zero-transition requirements, we utilize heavy-duty stainless steel linear drain channels designed to shed water under high wind-driven rainwater conditions (tested up to 600 Pa water resistance).
Request an Engineering Proposal & Factory Quote
Partner directly with SAGA Doors & Windows for your upcoming residential or commercial development. Our engineering department will review your architectural drawings, window schedules, and climate requirements to deliver a detailed technical quote within 24 hours.
