16+
Years Extrusion & Joinery Mastery
25+
Global Export Markets Supplied
10-Yr
Comprehensive Factory Warranty
35-50
Days Standard Production Lead Time
Product Catalog Showcase
Featured OEM/ODM Aluminum Cupboard & Cabinet Door Systems
Engineered from premium 6063-T5 aluminum alloy and reinforced tempered glass, optimized for kitchen cabinets, wardrobes, office partitions, and high-end sideboards.

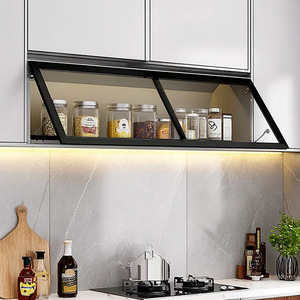

Custom 45mm Wide Aluminum Alloy Cabinet Doors & Frame Profiles
Modern Water-Resistant Aluminum Alloy Sliding Bedroom Wardrobe Doors
American Style Office Pocket Door Cupboard System with Frosted Glass
CE Certified Custom 6063 Aluminum Cupboard Door Sections & CNC Milling
Anti-Scratch 6000 Series T5 Aluminum Glass Cabinet Doors for Hotels
Ultra-Slim Aluminum Profile Door Frame Systems for Kitchen & Bathroom

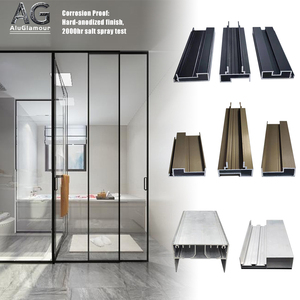

Modern Minimalist Waterproof Sliding Aluminum Cabinet Doors with Glass
Engineering White Paper
Metallurgical Performance, Precision Extrusion & Finishing Standards
Understanding the material science, mechanical tolerances, and surface chemistry required for commercial-grade OEM/ODM aluminum cupboard door manufacturing.
1. Alloy Selection & Mechanical Properties: 6063-T5 vs 6061-T6
In high-end architectural cabinet joinery, frame performance relies on the balance between structural rigidity, miter precision, and surface finish uniformity. We primarily utilize 6063-T5 aluminum alloy, specifically formulated for intricate extrusions with smooth surface aesthetics, excellent corrosion resistance, and optimal anodizing response.
Key Metallurgical Metric: Our 6063-T5 profile extrusions maintain a minimum tensile strength of 175 MPa, a yield strength of 130 MPa, and a Webster Hardness of ≥ 8–12 HW, guaranteeing zero sash deflection over extended operational cycles.
For heavy-duty commercial sliding doors or large pocket systems exceeding 2.8 meters in height, we engineer reinforced internal ribbing and utilize selective 6061-T6 tempers to maximize structural moment of inertia without compromising profile slimness.
Technical Specification & Manufacturing Capability Matrix
| Specification Parameter | Standard OEM Capability | Advanced ODM Customization Option | Compliance Test Standard |
|---|---|---|---|
| Extrusion Alloy & Temper | 6063-T5 (Standard Architectural) | 6063-T6, 6061-T6 (High-Load Structural) | EN 755-9, ANSI H35.2 |
| Profile Wall Thickness | 1.2mm – 1.8mm Precision Frame | 2.0mm – 3.0mm Heavy Duty Pocket/Track | GB/T 5237.1-2017 |
| Anodizing Coating Film | 10μm – 15μm Matte Silver / Black | 18μm – 25μm Hard-Coat Brushed Finish | ISO 7599, Qualanod Certified |
| Powder Coating Tolerance | 60μm – 80μm Architectural Grade | 100μm+ PVDF Fluorocarbon Coating | AAMA 2604 / AAMA 2605 |
| Glass Infill Thickness | 4mm / 5mm Toughened Safety Glass | 6mm Fluted (Moru), Low-E, Laminated | AS/NZS 2208, ANSI Z97.1 |
| Corrosion Resistance | Neutral Salt Spray (NSS) ≥ 480 Hours | CASS Accelerated Spray ≥ 1000 Hours | ASTM B117, ISO 9227 |
Strategic Market Intelligence
Future Procurement & Architectural Design Trends (2025–2030)
As global buyers shift toward sustainable, modular, and smart architectural interiors, OEM/ODM aluminum cupboard door specifications are evolving rapidly.
1. Micro-Slim Frame Sightlines
Modern minimalist architecture demands visible aluminum frame sightlines reduced from traditional 45mm profiles down to ultra-narrow 10mm–16mm visible bezels, maximizing glass transparency while retaining miter rigidity.
2. Integrated LED Lighting Channels
Forward-thinking cabinetry manufacturers are integrating extruded diffuser channels directly into door profiles, allowing seamless insertion of low-voltage LED strip lights without external wiring conduits.
3. Anti-Fingerprint Nano Coatings
Anodized matte black and bronze aluminum surfaces now feature oleophobic chemical vapor deposition (CVD) treatments, eliminating smudges in high-touch residential kitchen environments.
4. Smart Electrochromic Glass Infill
High-end office pocket doors and display cupboards are adopting switchable privacy glass (PDLC) housed within insulated aluminum frames, transitioning from opaque to crystal clear via smart home interfaces.
5. Low-Carbon Recycled Aluminum
With stringent carbon border adjustment mechanisms (CBAM) entering international trade, global importers prioritize suppliers utilizing green hydro-powered recycled aluminum billets to meet LEED and BREEAM standards.
6. Flat-Pack Modular Knock-Down (KD)
To combat elevated ocean freight logistics rates, custom door frames are engineered with CNC-mitered corner keys, enabling flat-pack container shipping and rapid on-site assembly by regional distributors.
Enterprise Reliability & E-E-A-T Credentials
Why Leading Global Brands Partner With SAGA
Backing your supply chain with 16+ years of factory-direct manufacturing experience, international testing compliance, and comprehensive quality auditing.
Global Building Code Compliance & Rigorous Testing
Our aluminum frame systems and glass joinery undergo rigorous independent testing. Our manufacturing facility and product compliance are audited under the AGWA program for AS2047:2014, AS1288:2021, and NCC 2022. Furthermore, our products satisfy New Zealand Building Code (NZS4211:2008) requirements, North American Fenestration Standard (NAFS) impact metrics, and Miami-Dade County TAS 201/202/203 hurricane resistance protocols.
- Strict QC Inspection: 100% pre-shipment miter checking, finish thickness measurement, and hardware cycle testing.
- Export Logistics: Heavy-duty fully enclosed plywood crate packaging designed for sea freight vibration protection.
- Port Loading Options: Direct container loading from Fuzhou or Xiamen ports in Fujian, China.
Our Standard 7-Step OEM/ODM Procurement Workflow
1
Engineering Review
Analysis of CAD drawings, profile sections, and glass schedules.
2
Prototyping
Sample profile extrusion & corner joint evaluation dispatch.
3
Shop Approval
Final sign-off on shop drawings and hardware specifications.
4
Precision CNC
Extrusion cutting, miter routing, hinge pocket milling.
5
Assembly & QC
Glass gasket insertion, structural sealing & 100% dry-fit check.
6
Export Crating
Fumigated plywood crating with moisture-barrier wrapping.
7
After-Sales Support
Installation guidance, spare hardware supply & 10-yr warranty.
Frequently Asked Questions
OEM/ODM Aluminum Cupboard Doors Technical Procurement FAQ
Addressing key engineering, commercial, and logistical questions for international wholesalers, project contractors, and furniture brands.
Q1 What alloy grades and tempers do you use for aluminum cupboard doors, and why?
We primarily use 6063-T5 aluminum alloy. This grade offers an exceptional surface finish suitable for high-grade anodizing and powder coating, alongside optimal mechanical strength (tensile strength ≥ 175 MPa). For large commercial sliding partitions or high-stress pocket doors, we can supply 6061-T6 tempers for heightened bending strength.
Q2 What is the Minimum Order Quantity (MOQ) for custom OEM profile extrusions and color matching?
For standard stock finishes (Matte Black, Anodized Silver, Brushed Gold), our MOQ starts at 300 square meters of finished door assemblies. For custom custom profile tooling (new extrusion die creation) or specialized RAL powder coating matches, the profile extrusion MOQ is typically 500 kg per die section.
Q3 What glass options can be integrated into your slim aluminum cupboard frames?
Our frames accommodate glass infills from 4mm to 6mm thickness. Available types include clear toughened, ultra-clear low-iron glass, tinted grey/bronze, acid-etched frosted glass, Moru/reeded fluted architectural glass, and explosion-proof film laminated safety glass complying with AS/NZS 2208 and ANSI Z97.1.
Q4 What hardware and hinge systems are compatible with your cabinet door frames?
Our profiles are engineered with standard CNC milling channels compatible with major international hardware brands including Blum, Salice, Grass, Roto, Siegenia, and Kinlong. We also manufacture custom integrated continuous aluminum pull handles extruded directly into the sash frame.
Q5 What is your typical production lead time and export loading port?
Our standard manufacturing lead time is 35 to 50 days following shop drawing approval and deposit receipt. Orders are securely crated and shipped directly from Fuzhou or Xiamen port in Fujian, China.
Q6 How do you prevent frame twisting and glass rattle during shipping and thermal expansion?
Each door sash utilizes 45-degree CNC mitered joints secured with internal cast-aluminum heavy-duty corner cleats and corner keys. Glass infills are seated with high-grade UV-resistant EPDM rubber gaskets and structural silicone, preventing any internal movement, rattling, or seal degradation across varying temperature ranges.
Q7 Can you provide physical sample kits prior to bulk order production?
Yes. We supply free standard profile corner sample boxes showcasing frame cross-sections, corner joint construction, and anodized/powder-coated finish samples. The buyer covers express air freight charges, which are fully credited against the subsequent commercial order.
Q8 What warranties and international quality certifications cover your cupboard door systems?
All products carry a 10-year factory warranty covering structural frame integrity and anodizing/powder-coating surface adhesion against peeling or excessive fading under indoor operating conditions. Our facilities adhere to ISO 9001 quality management, with test reports supporting AGWA, AS2047, AS1288, NZS4211, NAFS, and CE standards.
Ready to Scale Your Cabinetry Supply Chain with Direct Factory Pricing?
Consult with our senior architectural engineering team today. Send us your project schedules, CAD drawings, or custom profile specifications for a comprehensive technical quote within 24 hours.
