Precision-Engineered Architectural Door Systems
Factory-direct OEM & ODM manufacturing solutions engineered to exceed Australian (AS2047), New Zealand (NZS4211), North American (NAFS), and Florida Hurricane (Miami-Dade) structural and thermal performance standards.
High Performance Thermal Insulation Wide Access Aluminum Pivot Entry Doors for Luxury Builder Residential Projects
Engineered with multi-chambered polyamide thermal breaks, heavy-duty floor pivots, and multi-point locking systems for expansive architectural grand entrances.
Get Catalog
XIYATECH Aluminum Bi Fold Door AS2047 Certified Aluminum Track Multi Panel Stacking Residential Mansion Doors
Top-hung or bottom-rolling stainless steel track bi-fold assemblies delivering ultra-smooth operation, seamless indoor-outdoor transitions, and weatherproofing.
Get Catalog
Prettyhouse Custom Exterior Pivot Door Luxury Security Aluminum Entrance Door Modern Security Antitheft Home Front Entry Door
Bespoke heavy-gauge aluminum alloy profile construction reinforced with internal steel plates, biometric lock integration, and weather-sealed EPDM gaskets.
Get Catalog
Modern Aluminum Glass Fireproof Double Entry Door Exit Design Finished for Hotel Commercial Warehouse School Interior Use
Certified fire-resistant double door systems utilizing insulated fire-rated glass and panic hardware configurations tailored for commercial code compliance.
Get Catalog
Aluminum Tempered Glass Sliding Balcony Veranda Door For House Metal Modern Sliding Doors Decorative Soundproof Patio Doors
Double or triple glazed acoustic insulated sliding door profile featuring precision tandem rollers, stainless steel sills, and high wind-load resistance.
Get Catalog
USA Hot Sale Modern Aluminum Front Sliding Back Doors for House Thermal Break Multi Panel Glass Sliding Door Patio
Thermal break sliding doors designed for the North American market, featuring narrow sightlines, energy-efficient Low-E argon glass, and heavy-duty screen frames.
Get Catalog
ZEKIN Outdoor Back Painted Glass Anti-theft Exterior Security Aluminum Cast Pivot Door Sound Insulation Front Entry Main Doors
Luxury cast aluminum structural entrance panel combined with back-painted toughened safety glass, offering high sound insulation and anti-burglary defense.
Get Catalog

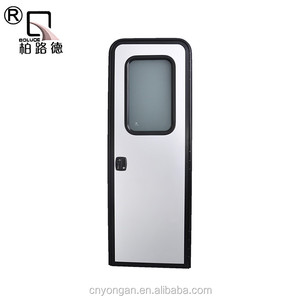

Aluminum Frame Rv Access Doors caravan Door Lightweight Custom Extrusions
Lightweight aluminum profile access door fabrication custom-built for recreational vehicles, caravans, and modular commercial structures requiring tight weather seals.
Get Catalog1. Executive Summary: The Evolution of Architectural Aluminum Fabrication
In modern architectural engineering, exterior glazed door assemblies serve as critical envelope components responsible for structural integrity, energy conservation, acoustic insulation, and security. As global building codes tighten—exemplified by Australia’s NCC 2022 energy mandates, New Zealand’s updated H1 thermal standards, and Florida’s rigorous High-Velocity Hurricane Zone (HVHZ) requirements—commercial developers, architects, and importers require specialized OEM/ODM aluminum door manufacturers capable of precise profile extrusion, thermal break crimping, structural glass integration, and verified third-party laboratory certification.
Aluminum fabrication for doors has evolved far beyond basic mill-finish extrusions and standard single-glazed sliding panels. Today's market demands custom-engineered 6063-T5/T6 structural alloys integrated with polyamide (PA66 GF25) thermal barriers, fluoropolymer PVDF surface coatings, automated multi-point lock hardware, and high-performance double or triple insulated glass units (IGUs). Manufacturing suppliers must balance high structural wind-load deflection capabilities with ultra-slim profile sightlines that maximize daylight harvesting.
2. Structural Metallurgy & Profile Engineering Standards
The foundation of premium aluminum door manufacturing lies in precise metallurgy and extrusion geometry. SAGA Aluminum Doors & Windows utilizes high-purity primary aluminum ingots to extrude profiles adhering to strict global structural guidelines.
6063-T5 vs. 6063-T6 Alloys
6063-T5 aluminum provides optimal surface finish quality for powder coating and anodizing, with tensile strength ≥160 MPa. For heavy-duty wide-span pivot doors and hurricane impact assemblies, T6 artificial aging treatment elevates yield strength beyond 210 MPa, ensuring zero frame warp under high wind pressures ($P_3 \ge 5000\text{ Pa}$).
PA66 GF25 Thermal Barriers
To prevent heat transfer across metal frames, internal profile cavities are mechanically crimped with 25% glass-fiber reinforced polyamide strips (PA66 GF25). This matches the thermal expansion coefficient of aluminum, preventing structural delamination across extreme ambient temperature differentials (-30°C to +80°C).
Surface Finish Integrity
Finishes conform to AAMA 2605 and Qualicoat Class 2 standards. Options include electrostatic fluoropolymer PVDF spray coatings (10-year to 20-year color retention in high-UV coastal zones), marine-grade anodic oxidation ($15\text{--}25\mu\text{m}$ film thickness), and advanced sublimation woodgrain finishes for interior warmth.
3. OEM vs. ODM Custom Fabrication Workflows
Understanding the distinction between Original Equipment Manufacturing (OEM) and Original Design Manufacturing (ODM) is essential for project managers and procurement executives seeking optimal cost structures and technical alignment.
Original Equipment Manufacturing (OEM) Workflow
Under OEM procurement, the client provides fully developed architectural drawings, extrusion die designs, hardware specifications, and glass build-ups. SAGA acts as the precision contract fabricator, executing:
- Custom Die Tooling: Precision extrusion die development with wall thickness tolerances controlled within $\pm 0.15\text{mm}$ (ISO 2768-m standards).
- CNC Machining & Milling: 5-axis computer-numerical-controlled milling for hardware cutouts, concealed hinges, lock bodies, and drainage weeping channels.
- Automated Corner Assembly: Hydraulic corner crimping combined with dual-component structural epoxy injection to guarantee joint rigidity and air-tight seal integrity.
Original Design Manufacturing (ODM) Workflow
For buyers requiring complete engineering design assistance, SAGA’s R&D department delivers turnkey ODM services. From conceptual sketches or site elevation drawings, our engineers calculate structural deflection ($L/175$ or $L/240$ limits), simulate thermal transmittance using LBNL THERM/WINDOW software, and produce comprehensive CAD/BIM shop drawings for certifier sign-off prior to production.
4. Technical Performance & Specification Matrix
The matrix below outlines technical performance benchmarks across core architectural aluminum door typologies engineered within SAGA’s manufacturing facilities.
| Door Typology | Profile Depth & Wall | Max Leaf Dimensions | Thermal Performance (U-Value) | Acoustic Rating (STC / Rw) | Wind Pressure Resistance |
|---|---|---|---|---|---|
| Architectural Pivot Doors | 75mm -- 100mm frame 2.0mm -- 3.0mm wall |
Width: up to 2200mm Height: up to 4000mm |
$U \le 1.6 \text{ W/m}^2\text{K}$ (Thermally Broken) |
STC 38 -- 42 dB (Laminated IGU) |
Serviceability: 2500 Pa Ultimate: 5000 Pa |
| Heavy-Duty Lift & Slide | 160mm -- 220mm track 2.0mm wall profile |
Width: up to 3300mm/panel Height: up to 3500mm |
$U \le 1.4 \text{ W/m}^2\text{K}$ (Double Low-E Argon) |
STC 36 -- 40 dB | Water Tightness: 600 Pa Structural: 4500 Pa |
| Multi-Panel Bi-Fold Doors | 75mm frame depth 1.8mm -- 2.2mm wall |
Width: up to 1000mm/panel Height: up to 3000mm |
$U \le 1.8 \text{ W/m}^2\text{K}$ | STC 34 -- 38 dB | AS2047 Passed (N6 / Cyclonic) |
| Commercial Fire-Rated Exit | 65mm -- 80mm frame 2.0mm wall profile |
Width: up to 1300mm/panel Height: up to 2500mm |
$U \le 2.2 \text{ W/m}^2\text{K}$ | STC 35 -- 40 dB | Fire Rating: 60 / 90 / 120 mins (Intumescent Seal) |
5. Future Procurement & Technological Trends (2025–2030)
As the international construction landscape adapts to climate change, carbon neutrality goals, and smart building integration, several key technological shifts are redefining aluminum door procurement:
1. Decarbonized & Recycled Low-Carbon Billets
Leading European and North American buyers now require Environmental Product Declarations (EPDs) evaluating embodied carbon content. Manufacturing using low-carbon primary aluminum smelted via hydroelectricity, or utilizing post-consumer recycled aluminum alloys (e.g., Hydro CIRCAL with $\ge 75\%$ recycled content), reduces greenhouse gas intensity from $18\text{kg CO}_2\text{e/kg Al}$ down to under $4.0\text{kg CO}_2\text{e/kg Al}$.
2. Vacuum Insulated Glass (VIG) Integration
While double and triple IGUs filled with argon gas achieve U-values between $1.2\text{--}1.8\text{ W/m}^2\text{K}$, the emergence of Vacuum Insulated Glass (VIG) allows profile depth reductions while driving center-of-glass thermal performance down to $U \le 0.6\text{ W/m}^2\text{K}$. VIG eliminates the gas gap, enabling ultra-slim door profiles with thermal resistance comparable to solid masonry walls.
3. Smart Access Automation & Mechatronic Locking
Modern luxury residential and commercial developments are shifting from purely mechanical key cylinders to concealed motorized actuators, electronic multi-point lock systems (e.g., Roto E-Tec Drive, Siegenia Genius), and biometric/RFID access control embedded directly within the aluminum profile stiles.
Partner With SAGA: Factory-Direct Engineering Excellence
Looking to optimize your supply chain, ensure code compliance across international markets, and secure wholesale OEM/ODM pricing direct from China’s leading aluminum window and door manufacturer? Contact our technical engineering sales team today for detailed section drawings, test reports, and customized project quotations.
Get Catalog6. SAGA Enterprise Advantages & Global Quality Compliance
SAGA Aluminum Doors & Windows Co., Ltd. operates a vertically integrated production facility in Fujian, China, delivering factory-direct doors and windows to builders, wholesalers, and architects across more than 25 export destinations.
AGWA & AS2047 Accredited
Audited annually under the Australian Glass and Window Association (AGWA) compliance scheme. Fully certified to AS2047:2014, AS1288:2021, and NCC 2022 standards for structural, air infiltration, and water penetration performance.
Miami-Dade Hurricane Impact
Engineered for extreme wind pressure and coastal storms. Tested and certified under Florida Miami-Dade Protocols TAS 201-94 (Large Missile Impact), TAS 202-94 (Static Air Pressure), and TAS 203-94 (Cyclic Pressure Loading).
NAFS & NZS4211 Compliance
Complete test documentation matching North American Fenestration Standard (NAFS) requirements and New Zealand Building Code clauses including B1 (Structure), E2 (External Moisture), and H1 (Energy Efficiency).
Frequently Asked Questions (FAQ)
Essential technical and commercial insights for importers, developers, and trade contractors sourcing custom aluminum fabrication doors.
We directly supply wholesale distributors, project developers, commercial builders, specialty door contractors, and architectural firms. Every client receives tailored structural shop drawings, hardware options, and custom packaging aligned with their project or retail sales network.
Typical factory production time ranges between 35 to 50 calendar days after shop drawings and order specifications are officially approved by the client. Ocean freight transit times vary depending on the destination port (e.g., 14-20 days to Australia/NZ, 25-35 days to USA East Coast).
Yes. We provide standard profile corner samples showing thermal break construction, anodized/powder-coated surface finishes, and hardware cutouts free of charge. The buyer covers express courier freight charges, which are fully credited upon final container order placement.
Our engineering division provides complete 2D/3D CAD section drawings, BIM models, elevation schedules, wind load deflection calculations, glass thermal analysis reports, and step-by-step installation manuals to assist site installation teams and local building certifiers.
Yes. Our doors undergo annual independent audits under the AGWA accreditation program for AS2047:2014, AS1288:2021, and NCC 2022 compliance. New Zealand orders are certified to NZS4211:2008 and fulfill Building Code clauses B1, B2, E2, F2, G4, G7, and H1.
All orders are custom packaged in fumigated plywood crates with protective foam film and corner guards, then container-loaded directly from Fuzhou Port or Xiamen Port in Fujian Province, China.
We accept T/T (Telegraphic Transfer bank payment) and Alibaba Trade Assurance, offering secure financial protection for overseas buyers. Standard trade terms include FOB, CIF, CFR, and DDP (Delivered Duty Paid) upon request.
Standard stock finishes include architectural matt black, traffic white, monument grey, and clear anodized. Custom RAL color matching, dual-color profile options (different interior/exterior colors), PVDF fluoropolymer, and textured woodgrain sublimation finishes are available for custom project orders.
