High-Performance Custom Impact Windows & Doors
Explore our flagship OEM/ODM fenestration product lines, manufactured with heavy-duty 6063-T5/T6 aluminum alloys, PA66 thermal barriers, and impact-laminated glass configurations.
Australia Standard Aluminum Clad Timber Armored Door
- Profile: Wood-Aluminum Composite
- Testing: AS2047 & AS1288 Compliant
- Security: Multi-point Camlock System
Heavy-Duty Aluminum Vertical Grill Bi-Fold Patio Door
- Frame: Powder-Coated 6063-T5
- Glazing: Double Toughened Low-E
- Track: Stainless Steel Bottom Rolling

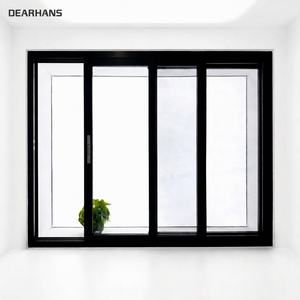

100 Series 3-Track Thermal Break Aluminum Sliding Window
- Structure: 3-Track with Flyscreen
- Insulation: PA66 Nylon Thermal Strip
- Rating: High Wind Pressure Rated
Silent Opening French Style Outward Swing Casement Door
- Sealing: EPDM Anti-Collision Strip
- Style: Vintage Architectural Narrow Grid
- Acoustics: STC Up to 42 dB
Modern Minimalist Exterior Aluminum Folding Patio Door
- Hardware: ROTO / Siegenia German Locks
- Impact: SGP Laminated Safety Glass
- Finish: Weather-Resistant PVDF Coating

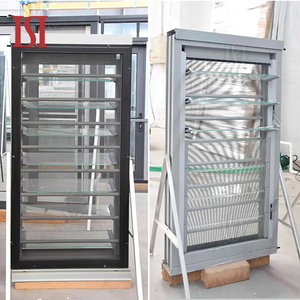

Minimalist Architectural Aluminum Glass Louver Window
- Operation: Adjustable Glass Blades
- Application: Kitchen & Facade Airflow
- Thermal: Heat Insulating Frame
Circular Aluminum HVAC Access Door with Camlock System
- Design: Precision Circular Geometry
- Locking: Camlocked Air-Tight Seal
- Utility: Commercial HVAC Inspection
Horizontal 32mm Double-Glazed Acoustic Basement Window
- Specification: DIN Standard Opening
- Glazing: 32mm Heat & Sound Barrier
- Color: Anthracite Exterior / White Interior
Evolution & Future Trends in Architectural Aluminum Impact Windows
As global building regulations tighten around climate resilience, energy performance, and occupant safety, the architectural fenestration market is undergoing a rapid technological evolution.
Next-Gen Structural SGP Interlayers
Modern hurricane impact windows have transitioned from standard PVB to SentryGlas® Plus (SGP) ionoplast interlayers. SGP provides 5 times the tear strength and 100 times the rigidity of traditional PVB, ensuring that even if glass fractures under severe missile impacts during Category 5 storms, the laminate maintains structural barrier integrity against cyclonic wind pressures up to 9,000 Pa.
Polyamide PA66 Thermal Break Systems
Historical aluminum fenestration suffered from high thermal conductivity. Contemporary OEM/ODM manufacturing incorporates multi-chambered PA66 GF25 (25% glass fiber reinforced polyamide) structural insulation bars. This decoupling of outer and inner aluminum profiles lowers system U-values below 1.4 W/m²K while preserving structural deflection strength required by high-rise coastal developments.
Ultra-Slim Sightlines & Concealed Hardware
Architectural trends favor maximal daylighting and minimalist profiles. Engineering innovations allow frame sightlines to be reduced to under 45mm without sacrificing wind-load resistance. Concealed multi-point lock mechanisms, heavy-duty stainless steel friction hinges, and flush threshold drainages seamlessly combine luxury aesthetics with uncompromising storm resistance.
Future Procurement Trends for Global B2B Buyers
Commercial developers, wholesalers, and general contractors are optimizing fenestration supply chains to mitigate risks, lower installation costs, and guarantee regional compliance.
1. Shift Toward Fully Integrated Prefab Joinery Kits
Labor shortages in destination markets like Australia, North America, and Europe are driving demand for pre-glazed, pre-assembled modular fenestration packages. B2B importers increasingly procure factory-assembled window units with integrated sub-frames, flashing fins, and pre-adjusted hardware. This plug-and-play procurement reduces job-site installation labor hours by over 40%.
2. Digital BIM & Revit LOD 350 Submittal Integration
Procurement decisions are moving upstream into the design phase. Modern B2B buyers require export suppliers to deliver complete Building Information Modeling (BIM) files and Revit LOD 350 structural drawings. Standardized digital shop drawings enable seamless architectural integration, clash detection, and direct engineering submittals for local building code approvals.
3. Multi-Standard Compliance Consolidation
Global developers operating across multiple jurisdictions favor factories capable of producing unified profile systems certified to AS2047 (Australia), NZS4211 (New Zealand), NAFS (North America), and Miami-Dade TAS (Caribbean/Florida). Sourcing from a multi-accredited OEM manufacturer eliminates duplicate extrusion tooling costs and simplifies cross-border inventory management.
4. Rigorous Containerized Packaging & Supply Chain Traceability
Damage during ocean transit is a major concern for glass importers. Sourcing trends prioritize factory-direct shipping utilization of A-frame steel crates, vacuum plastic wrapping, and barcode-tracked piece labelling loaded directly at major deep-water ports like Fuzhou and Xiamen, ensuring 0% breakage upon job-site arrival.
Structural & Thermal Performance Matrix
A technical comparison of key aluminum fenestration structural configurations manufactured for global commercial export.
| Performance Standard | Architectural Aluminum Impact | Thermally Broken Impact | Wood-Clad Armored Impact |
|---|---|---|---|
| Primary Alloy Grade | 6063-T5 / T6 Extruded Aluminum | 6063-T6 High Tensile Strength | Aluminum Exterior / Solid Wood Interior |
| Wind Pressure Resistance (Pa) | Up to 6,000 Pa (Serviceability) | Up to 7,500 Pa (Design Pressure) | Up to 5,500 Pa |
| Large Missile Impact (TAS 201) | 9 lb 2x4 Lumber @ 50 ft/sec Pass | 9 lb 2x4 Lumber @ 50 ft/sec Pass | Custom Reinforced SGP Pass |
| Thermal Transmittance (U-Value) | 2.8 - 3.4 W/m²K | 1.2 - 1.8 W/m²K | 1.1 - 1.5 W/m²K |
| Acoustic Isolation (STC Rating) | STC 36 - 40 dB | STC 40 - 45 dB | STC 42 - 48 dB |
| Water Penetration Resistance | 600 Pa - 900 Pa | 700 Pa - 1,050 Pa | 450 Pa - 750 Pa |
| Global Certification Compliance | AS2047, NAFS, CE | AS2047, NZS4211, NAFS, Miami-Dade | AS2047, CE, ISO9001 |
Why Partner with SAGA Aluminum Doors & Windows
Backed by 16 years of direct factory export experience, state-of-the-art extrusion lines, and rigorous independent testing auditing.
16+ Years Export Experience
Established manufacturing footprint supplying custom fenestration products to over 25 countries across Australia, New Zealand, North America, Europe, and the Caribbean.
AGWA & Miami-Dade Audited
Annual third-party audits ensure absolute adherence to AS2047:2014, AS1288:2021, NCC 2022, NZS4211:2008, NAFS, and Miami-Dade TAS 201/202/203 protocol specs.
Full OEM/ODM Engineering
Complete in-house design team providing custom extrusion die development, structural section calculations, installation detail drawings, and CAD/BIM support.
Strategic Port Logistics
Located in Tieling Technical Zone, Minhou, Fuzhou, with direct container loading at Fuzhou and Xiamen ports for seamless ocean freight scheduling worldwide.
Flexible Trade Terms
We support T/T bank transfers and Alibaba Trade Assurance, offering buyer security, structured milestone payment terms, and direct factory invoicing.
100% Pre-Shipment QC
Every unit undergoes strict dimensional verification, air/water tight testing, powder coat thickness measurement, and hardware cycle testing prior to crating.
Frequently Asked Questions for Sourcing & Engineering Teams
In-depth answers addressing structural engineering, local compliance, custom tooling, and global shipping logistics.
What structural differences separate impact-rated aluminum windows from standard commercial profiles?
Impact-rated aluminum windows utilize heavier wall-thickness extrusions (typically 2.0mm to 3.0mm primary wall thickness in 6063-T6 alloy) engineered to withstand extreme structural deflection under positive and negative wind loads. Additionally, impact frames incorporate deeper glass insertion channels (up to 22mm bite) and heavy-duty structural silicone glazing (such as Dow Corning 995) to anchor laminated glass panels permanently to the aluminum frame, preventing glass fallout under severe atmospheric pressure drops or missile impacts.
How does SAGA ensure compliance with Miami-Dade TAS 201, 202, and 203 hurricane testing?
Our hurricane impact window series undergoes rigorous testing in accredited independent laboratories. TAS 201 evaluates Large Missile Impact resistance by firing a 9-lb 2x4 wooden board at 50 feet per second directly at critical points of the window assembly. TAS 202 measures uniform static air pressure and water resistance. TAS 203 subjects the impacted unit to 9,000 cycles of positive and negative wind pressure. Only complete window assemblies maintaining structural seals through all three tests receive Miami-Dade compliance verification.
Can SAGA develop custom extrusion dies for proprietary wholesale or architectural profile designs?
Yes. As a comprehensive OEM/ODM manufacturer, SAGA operates an in-house tooling division. We can custom-engineer extrusion dies according to your CAD drawings or physical samples. Typical die development takes 12 to 18 days. Once prototype extrusions are inspected and certified for tensile strength and dimensional tolerances, full-scale production begins. We also offer dedicated profile exclusivity agreements for qualified volume distributors.
What thermal break technology is utilized to balance insulation with hurricane wind load resistance?
We utilize high-precision crimped Polyamide PA66 GF25 thermal barrier strips. Unlike pour-and-debridge polyurethane breaks which can shear under high mechanical stress, PA66 structural polyamide strips are mechanically locked into inner and outer aluminum extrusions. This provides outstanding mechanical shear strength necessary to pass high design pressure (DP70+) wind load tests while dramatically reducing frame heat conduction to meet stringent energy codes (such as NCC 2022 H1 in Australia or Title 24 in North America).
What is the standard production lead time and minimum order quantity (MOQ) for custom OEM orders?
Standard factory lead time is 35 to 50 calendar days from the date final CAD shop drawings are signed off and deposit payment is received. For standard stock profile colors (such as Matt Black, Monument, or Traffic White), there is no strict MOQ restriction for complete project orders. For specialized custom powder-coating colors (Kynar 500/PVDF, Interpon, AkzoNobel) or custom extrusion shapes, MOQ criteria apply based on profile total tonnage.
How are oversized glass and heavy window units packaged to prevent transit damage during ocean freight?
All products are packed using our export protection protocol: 1) Individual frames are wrapped in protective polyethylene foam film and corner protectors; 2) Units are placed into fully enclosed, fumigated solid plywood crates or heavy-duty steel A-frames; 3) Crates are secured inside ocean containers using heavy-duty polyester strapping and timber bracing. Containers loaded at Fuzhou or Xiamen ports are inspected and photo-documented prior to seal closing.
What technical documentation is provided to assist with local building certifier approvals?
With every confirmed project, SAGA provides a complete technical submittal package including: detailed CAD section drawings, elevation schedules, glass specification datasheets, test reports for AS2047 / NZS4211 / NAFS / Miami-Dade, hardware operational schematics, and structural engineering calculation reports stamped for site-specific wind pressures.
Which premium hardware brands can be specified for SAGA custom windows and doors?
We collaborate with global tier-one hardware manufacturers to guarantee long-term operational durability. Options include German ROTO Frank, Siegenia-Aubi, HOPPE handles, and Kinlong architectural hardware. For coastal salt-spray environments, we supply marine-grade 316 stainless steel hinges, rollers, and multi-point locking rods capable of passing 1,000-hour neutral salt spray (NSS) corrosion testing.
How do Australian AS2047 window testing standards compare with North American NAFS standards?
Both AS2047 and NAFS evaluate core structural performance metrics: air infiltration, water penetration resistance, and structural deflection under pressure. AS2047 classifies windows according to housing type and wind region (e.g., N1 to N6, C1 to C4), specifying minimum water pressures based on design wind speed. NAFS (AAMA/WDMA/CSA 101/I.S.2/A440) categorizes windows by Performance Class (R, LC, CW, AW) and Performance Grade (PG). SAGA profiles are engineered so that cross-testing satisfies both Australian NCC compliance and North American NAFS rating codes.
What warranty coverage is provided for commercial project orders?
SAGA provides a comprehensive 10-year factory warranty covering aluminum extrusion structural integrity, thermal break adhesion, and powder coating durability against peeling or flaking under standard atmospheric exposure. Double-glazed insulated glass units carry a 10-year warranty against seal failure and internal condensation. Operating hardware carries a 5-year replacement warranty.
Ready to Start Your Fenestration Project?
Send your architectural elevation drawings, window schedules, or custom OEM profile requirements directly to our senior fenestration engineering team for an accurate quote and technical evaluation within 24 hours.
