Custom Architectural Joinery & Roller Shutter Portfolio
Explore our engineering-grade OEM/ODM commercial roller doors, hurricane-rated shutters, and custom glass architectural systems designed for global export markets.

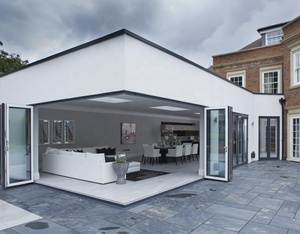

Aluminum Patio/balcony Double Glass Exterior Accordion Folding Door

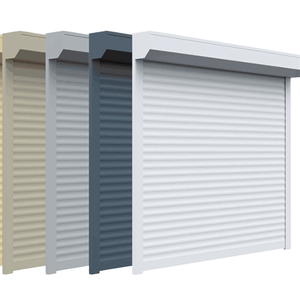

2026 Customized Aluminum Alloy Anti-Theft Warehouse Roll Door with Powerful Motor Windproof Remote Control Roller Shutter Doors

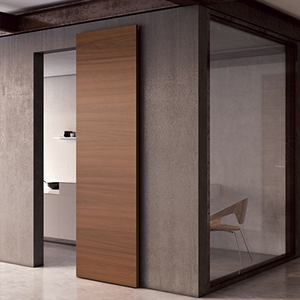

Ghost Door Sliding Hidden Doors Hardware Sliding Door System Aluminum Track Hanging Wheel Hanging Roller

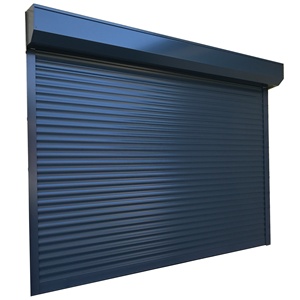

Cheap Electric Aluminum Rolling Shutter Automatic Garage Door Storage Manual Roller Shutter Doors

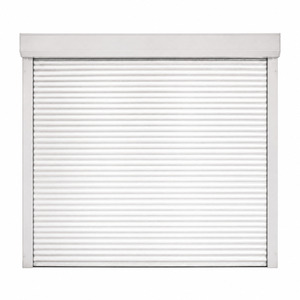

Aluminum Alloy Roller Shutter Door Electric Security Design For Warehouse Villa Shop Hotel Custom Size Wholesale

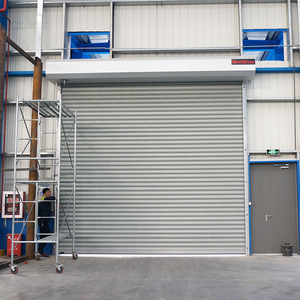

Windproof Roller Shutter Door Automatic Hurricane Steel Roll Up Door

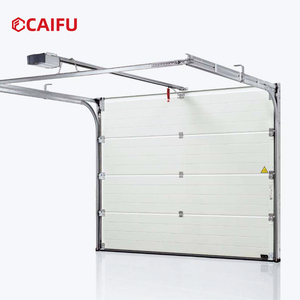

Sectional Flip-up Garage Door Vertical-sliding Segmented Lift Door Electric Roller Shutter Door with Sectional Up-down Movement
Aluminum Folding Glass Door, Bi-Fold Patio Door with Clear Tempered Glass for Villa Living Room Office Meeting Room Projects
Technical Whitepaper: OEM/ODM Aluminum Roller Door Engineering Standards
An in-depth specification guide for architectural specifiers, procurement managers, and commercial building contractors evaluating roll-up shutter mechanics, material science, and custom extrusion capabilities.
In modern architectural fenestration and industrial site design, selecting an optimal OEM/ODM aluminum roller door supplier requires a thorough understanding of structural metallurgy, dynamic wind-load resistance, acoustic damping profiles, and smart automation protocol integration. Aluminum alloy roller doors have evolved far beyond basic perimeter security; today, they function as critical thermal envelope barriers, high-velocity hurricane impact shields, and aesthetically integrated building facades.
1. Metallurgical Composition and Structural Slat Engineering
The foundational strength of commercial aluminum roll-up doors lies in the precision extrusion of AA6063-T5 and T6 grade aluminum alloys. Unlike standard commercial steel doors which are prone to edge oxidation and weight fatigue, architectural-grade extruded aluminum slats provide exceptional strength-to-weight ratios (tensile strength exceeding 205 MPa, yield strength above 170 MPa).
When specifying OEM roll-up doors for large industrial spans or high-rise residential bays, engineering teams must evaluate two primary slat geometries:
- Double-Wall Extruded Hollow Profiles: Engineered with interior structural ribbing to resist deflection under extreme wind load pressures. Ideal for heavy-duty commercial logistics centers, storefront security, and spans exceeding 6.0 meters.
- Insulated Polyurethane-Cored Slats: Fabricated by roll-forming high-density aluminum coils injected with CFC-free polyurethane rigid foam (density ranging between 45 kg/m³ to 55 kg/m³). This profile delivers superior thermal insulation coefficients (U-values down to 1.8 W/m²K) and sound reduction factors up to 28 dB.
2. Wind-Resistance Mechanics and Storm Lock Integration
For coastal developments and typhoon-prone geographical zones, wind pressure calculation is the ultimate safety metric. A standard roller shutter subjected to high wind speeds can experience slat disengagement from its vertical guide channels due to lateral deflection.
To overcome this structural vulnerability, our OEM/ODM custom designs incorporate heavy-duty extruded guide channels equipped with continuous rubber or nylon brush seals and cast-steel anti-breakout end-locks. When wind loads exert outward pressure, the wind-lock clips mechanically grip the internal lip of the reinforced guide rail. This structural assembly allows our hurricane series to withstand design wind pressures up to 55 m/s (equivalent to Category 5 hurricane wind loads under TAS 202-94 standards).
Extrusion Customization (OEM/ODM)
Full CAD/BIM Revit modeling support, proprietary extrusion die tooling development, custom wall thicknesses (0.8mm to 2.5mm), and tailored slat curtain heights to meet exacting site elevations.
Hurricane & Anti-Burglary Protection
Certified against Miami-Dade hurricane impact criteria (TAS 201/202/203) and forced-entry resistance ratings (RC2 to RC4 standards), protecting critical assets against extreme weather and physical intrusion.
Smart Automation & Tubular Drives
Integrated high-torque tubular motors (20Nm to 300Nm output) supporting RS485, Zigbee, Somfy protocols, automatic safety stop sensors, manual override mechanisms, and remote smartphone control.
2026-2030 Commercial Procurement & Future Market Trends
Key market drivers shaping global demand for architectural aluminum roll-up doors, thermal performance standards, and automated access control systems.
As international building energy codes tighten—such as Australia’s National Construction Code (NCC 2022 update), New Zealand’s H1 Energy Efficiency revisions, and North America’s NAFS performance standards—the fenestration industry is undergoing a structural transition toward decarbonized, high-durability building envelopes.
1. Net-Zero Energy Performance & Thermal Insulation Alignment
Modern commercial buildings demand strict thermal boundary isolation. Future procurement trends indicate a steep drop in uninsulated single-skin steel shutters in favor of thermally broken aluminum roller doors and polyurethane-insulated composite slats. By mitigating thermal bridging at building envelope openings, commercial facilities achieve lower HVAC operational expenses and contribute directly to LEED and Green Star certification points.
2. Surface Finishing Durability in Marine & Corrosive Environments
Commercial doors installed in coastal hotels, beachfront residential villas, and chemical logistics hubs face severe salt-spray oxidation. Premium OEM suppliers are migrating toward Qualicoat Class 2 / Class 3 thermosetting powder coatings and PVDF (polyvinylidene fluoride) fluorocarbon spray treatments. These advanced surface finishes undergo rigorous 3,000-hour neutral salt spray (NSS) lab testing without blistering or filiform corrosion, providing a guaranteed color-retention lifespan of 15 to 25 years.
3. IoT-Connected Automation and Safety Redundancy
Smart building management systems (BMS) now require real-time status feedback from all access points. OEM aluminum roller doors are increasingly fitted with optical infrared safety edges, anti-drop safety brake devices (compliant with DIN EN 12604), and integrated wireless gateway modules. In emergency power outage scenarios, rapid-engagement manual override cranks or UPS backup battery packs ensure unhindered egress and operational continuity.
Technical Specification & Engineering Matrix
Comprehensive comparative performance metrics for standard vs. engineered roller door configurations.
| Slat Configuration Profile | Alloy & Wall Thickness | Max Span Width | Wind Load Resistance | Thermal / Acoustic Rating | Target Architectural Application |
|---|---|---|---|---|---|
| 55mm Insulated Foam Slat | AA3003 Aluminum / 0.35mm Roll-formed | 3.5 Meters | Class 2 (Up to 28 m/s) | U-Value: 2.2 W/m²K | 22 dB | Residential Garages, Boutique Shopfronts |
| 77mm Commercial Foam Slat | AA3003 Aluminum / 0.48mm Roll-formed | 5.0 Meters | Class 3 (Up to 34 m/s) | U-Value: 1.8 W/m²K | 26 dB | Commercial Garages, Warehouse Loading Bays |
| 80mm Extruded Heavy-Duty | AA6063-T5 / 1.2mm Extruded Hollow | 6.5 Meters | Class 4 (Up to 42 m/s) | U-Value: 4.5 W/m²K | 18 dB | High-Security Bank Storage, Industrial Plants |
| 100mm Windproof Hurricane Profile | AA6063-T6 / 2.0mm Extruded Double-Wall | 8.5 Meters | Miami-Dade TAS 202 (55 m/s) | U-Value: 3.8 W/m²K | 24 dB | Coastal Harbors, Hurricane Zones, Logistics Hubs |
Why Partner with SAGA Aluminum Doors & Windows Co., Ltd.
Combining 16+ years of export manufacturing mastery, rigorous multi-national compliance testing, and direct factory-to-site support.
End-to-End Factory Direct OEM/ODM Capability
Located in the Tieling Technical and Economic Development Zone, Minhou County, Fuzhou, Fujian, China, SAGA Aluminum Doors & Windows Co., Ltd. operates state-of-the-art manufacturing facilities equipped with automated CNC aluminum extrusion cutting lines, precision slat assembly benches, automated powder coating booths, and dynamic roll-up testing rigs.
Whether you are a building materials wholesaler seeking private-label crate packaging, a commercial developer requiring custom shop drawings for certifier sign-off, or an architect designing a bespoke glass-and-aluminum facade, SAGA delivers fully documented, code-compliant solutions shipped directly from Fuzhou or Xiamen ports.
Verified Multi-National Regulatory Accreditation
We eliminate regulatory compliance risk for importers and builders by maintaining comprehensive, audited test reports across major global jurisdictions:
- Australia & New Zealand: Audited under the AGWA compliance scheme for AS2047:2014, AS1288:2021, NCC 2022, and NZS4211:2008 (spanning structural integrity, water penetration, durability, and H1 thermal efficiency clauses).
- North America (USA & Canada): Tested to North American Fenestration Standard (NAFS) specifications covering air infiltration, water penetration resistance, structural deflection, and forced-entry security.
- Florida & Caribbean Islands: Certified under Miami-Dade TAS 201-94 (Large Missile Impact), TAS 202-94 (Uniform Static Air Pressure), and TAS 203-94 (Cyclic Wind Pressure Loading).
Procurement & Technical FAQ for B2B Importers
Direct answers from our senior engineering team to help you streamline project bidding, specification reviews, and international freight scheduling.
What information is required to receive a formal technical quote and CAD shop drawings?
To generate an accurate quotation, please provide your structural opening dimensions (width x height), desired slat type (insulated polyurethane vs. heavy-duty extruded hollow), wind load or geographical site location, motor drive voltage/frequency requirements, surface powder coating color (RAL code), and project target delivery date.
Can SAGA fabricate OEM roller doors to custom architectural colors and woodgrain textures?
Yes. We offer complete custom OEM finishing capabilities including standard RAL powder coating colors, anodized matte/glossy treatments (15µm to 25µm), PVDF fluorocarbon coatings for coastal installations, and heat-transfer woodgrain foils designed for high-UV exposure resistance.
How does SAGA ensure structural door alignment and motor performance prior to ocean shipping?
Every roll-up shutter order undergoes 100% full-height vertical test assembly on our automated quality assurance rigs prior to packaging. We verify curtain alignment, motor limit setting accuracy, noise decibel levels, and safety brake engagement before packing items in fully enclosed steel-reinforced wooden crates.
What is the typical production lead time for commercial container orders?
Standard custom production lead time is 35 to 50 calendar days following shop drawing sign-off and deposit confirmation. Expedited sample orders or small batch engineering prototypes can be produced within 15 to 20 days upon request.
Do SAGA's aluminum roller doors comply with Australian AS2047 and AS1288 standards?
Yes. SAGA's product range is independently audited under the AGWA (Australian Glass and Window Association) program to satisfy AS2047:2014, AS1288:2021, and NCC 2022 requirements, providing full compliance documentation for Australian certifiers and building surveyors.
What payment terms and trade protection methods are available for overseas buyers?
We support standard international trade terms including T/T (Telegraphic Transfer) bank transfer and Alibaba Trade Assurance, providing complete payment protection, on-time delivery guarantees, and order quality assurance for global importers.
What options exist for windproof side guide channels on wide-span roller doors?
For wide spans (over 5.0 meters) or exposed coastal sites, we supply deep-groove extruded aluminum guide channels (up to 120mm depth) equipped with heavy-duty retention hooks, dual PVC brush seals, and structural mounting anchors to prevent curtain blow-out under extreme wind suction.
Can you provide free sample pieces for quality evaluation by our architectural client?
Yes. We supply free hand-held profile sample kits displaying slat extrusions, polyurethane foam density cross-sections, guide channel profiles, and color swatches. Importers or architects only cover the courier express freight charge.
Ready to Engineer Your OEM/ODM Roller Door Order?
Consult directly with SAGA’s senior engineering team for CAD drawings, wind load calculations, compliance certificates, and factory-direct wholesale pricing.
