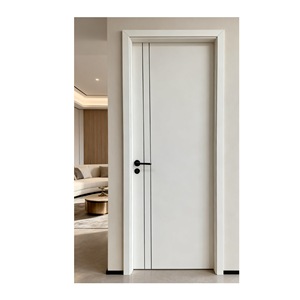

High End Minimalist Fluted Single Room Door Custom Aluminum Frame Stable Structure For Indoor

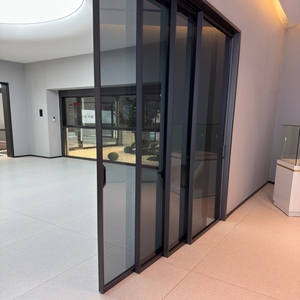

Modern Top Hung No Bottom Track Design Glass Sliding Door For Kitchen Living Room

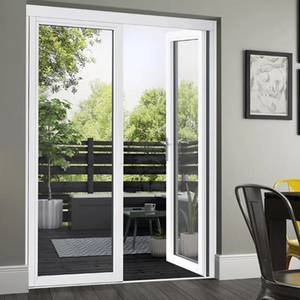

Aluminum Alloy Craftsman Style Security Windproof Waterproof Exterior Front Entry Door for Apartment Wine Cellar Basement

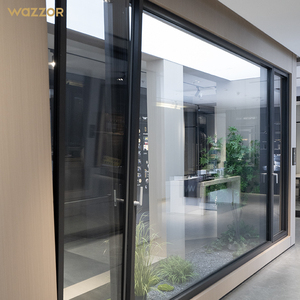

Wazzor Customizable New Style Villa Professional Design Double Glazed Window Aluminium Casement Windows With Screen

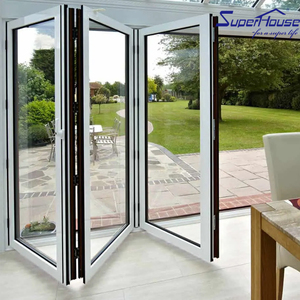

Foldable Sliding Glass Doors Aluminum Alloy Modern Passive House Windows Movable Bi FoldFrameless Folding Door
Customized for Engineering Projects Aluminum Window Double Tempered Glass NFRC AS2047 Hurricane Certification Casement Window
Comprehensive OEM/ODM Procurement Guide for Commercial & Residential Architectural Windows
An authoritative technical analysis of structural extrusion metallurgy, thermal barrier mechanics, surface finishing durability, and global fenestration compliance standards.
1. Metallurgical Foundations: Profile Extrusion & Structural Alloy Engineering
In high-load architectural envelope design, selecting an accomplished OEM/ODM aluminum window exporter requires detailed scrutiny of raw material metallurgy. Premium architectural windows rely predominantly on 6000-series magnesium-silicon aluminum alloys—specifically 6063-T5, 6063-T6, and 6061-T6. These alloys deliver an optimal synthesis of high tensile strength, exceptional surface finish capabilities, and superior corrosion resistance under atmospheric degradation.
The mechanical integrity of an extruded frame is defined by its artificial aging process (T5 vs. T6 tempering). T5 temper profile extrusions are cooled rapidly from an elevated temperature shaping process and artificially aged, achieving a yield strength exceeding 170 MPa. For structural curtain walls, expansive high-rise sliders, and hurricane impact-rated casement systems, 6063-T6 and 6061-T6 alloys are deployed to reach ultimate tensile strength thresholds of up to 290 MPa. This structural rigidity ensures structural deflection remains within strict L/175 or L/240 tolerances under peak wind load design pressures.
6063-T5 Structural Profiles
Wall thickness ranging from 1.4mm to 2.2mm. Formulated for optimal extrusion complexity, allowing intricate multi-chamber internal webbing for acoustic dampening and concealed drainage channels.
PA66-GF25 Thermal Break
Integrated 25% glass-fiber reinforced Polyamide 66 structural thermal barrier strips. Reduces frame thermal conductivity (K-value) from 200 W/m·K down to less than 0.3 W/m·K.
Surface Coating Armor
PVDF Fluoropolymer (AAMA 2605 standard) and AkzoNobel Interpon powder coatings providing 25+ years of resistance against coastal salt spray, UV fading, and atmospheric oxidation.
2. Thermal Physics & Energy Efficiency Performance Metrics
Modern international building energy standards—such as the National Construction Code (NCC 2022) in Australia, Title 24 in California, and H1 Energy Efficiency updates in New Zealand—mandate stringent U-factor (thermal transmittance) and Solar Heat Gain Coefficient (SHGC) limits. As an established OEM/ODM exporter, SAGA Doors & Windows incorporates multi-chamber thermal breaks and advanced insulated glass units (IGUs) to meet ultra-low thermal transmittance requirements.
By breaking the conductive aluminum pathway using structural PA66-GF25 polyamide strips, the overall window frame assembly prevents thermal bridging. Combined with Argon gas-filled, warm-edge spacer double or triple-glazed units featuring spectrally selective Low-Emissivity (Low-E) coatings, overall window U-values are reduced to range between 0.8 W/m²K and 1.6 W/m²K.
| Frame Material & Configuration | Thermal Break Tech | U-Factor Range (W/m²K) | SHGC Range | Acoustic Rating (STC / Rw) | Max Wind Load (Pa) |
|---|---|---|---|---|---|
| Standard Non-Thermal Aluminum | N/A (Monolithic Profile) | 3.8 – 5.2 | 0.45 – 0.72 | 28 – 32 dB | 1500 – 2500 Pa |
| Thermally Broken Aluminum (14.8mm Strip) | PA66-GF25 Polyamide | 1.8 – 2.4 | 0.25 – 0.55 | 35 – 40 dB | 3000 – 4500 Pa |
| Ultra-Insulated Thermal Break (24mm–34mm) | PA66-GF25 + Aerogel Foam fill | 0.8 – 1.4 | 0.18 – 0.40 | 40 – 48 dB | 4500 – 6000+ Pa |
| Aluminium-Timber Composite | Natural Solid Timber Interior | 1.1 – 1.6 | 0.22 – 0.45 | 38 – 45 dB | 3500 – 5000 Pa |
International Engineering & Regulatory Compliance
Direct factory production certified under world-standard fenestration test regimes for seamless architectural approval.
Australia & New Zealand (AGWA / AS2047 / NZS4211)
Independently audited under the Australian Glass and Window Association (AGWA) compliance scheme. Tested strictly against:
- AS2047:2014: Windows and external glazed doors in buildings (Deflection, Water Penetration up to 600Pa, Ultimate Wind Pressure up to 4500Pa).
- AS1288:2021: Glass in buildings - Selection and installation for safety compliance.
- NZS4211:2008 & NZBC: Clauses B1, B2, E2 (External Moisture), F2, G4, G7, and H1.
North America & Caribbean (NAFS / Miami-Dade TAS)
High-velocity hurricane zone (HVHZ) and North American structural compliance certified:
- NAFS (AAMA/WDMA/CSA 101/I.S.2/A440): Structural loading, air infiltration, and forced-entry resistance.
- Miami-Dade TAS 201-94: Large and small missile impact testing procedures.
- Miami-Dade TAS 202-94 & 203-94: Uniform static air pressure & cyclic wind pressure loading (up to ±100 PSF).
Global Sourcing & Procurement Trends in Aluminum Fenestration
Key technological shifts shaping commercial architectural procurement for developers, wholesalers, and general contractors over the coming decade.
1. Decarbonization & Low Embodied Carbon Profiles
Global developers are prioritizing recycled aluminum billets produced via renewable hydro-powered electrolysis. SAGA offers low-carbon profiles (<4.0 kg CO2e/kg Al) to help projects earn LEED Gold/Platinum and BREEAM certifications.
2. Slimline Minimalist & Concealed Motorization
Demand is surging for ultra-slim interlocking stiles (down to 21mm sightlines) equipped with fully integrated electric actuators, multi-point automated locking mechanisms, and smart home IoT synchronization.
3. Integrated Modular B2B Logistics & BIM Workflows
Modern OEM/ODM partnerships require direct Revit/BIM library integration, precision CAD shop drawing approval protocols, and heavy-duty steel-reinforced ocean crate packaging designed for rapid crane offloading on commercial construction sites.
Frequently Asked Questions (FAQ) for Global Importers & Builders
In-depth technical answers addressing custom manufacturing, certification verification, logistics, and quality assurance.
What distinguishes SAGA as a premier OEM/ODM aluminum window exporter?
SAGA operates a factory-direct 16+ year manufacturing footprint in Fujian, China, delivering complete customization across profile geometry, alloy selection (6063-T5/T6), thermal breaks (PA66-GF25), hardware integration (Siegenia, Roto, CMECH), and glass specifications. Every batch undergoes rigorous pre-shipment dimensional, water-tightness, and air-filtration testing fully accredited to Australian (AS2047), North American (NAFS), and hurricane impact standards (Miami-Dade).
What is the typical production lead time for custom commercial window orders?
Standard production lead time ranges between 35 and 50 days following shop drawing sign-off and deposit receipt. Lead times accommodate precision CNC profile cutting, thermal break crimping, powder coating/PVDF spraying, double/triple glazing assembly, sealant curing, and 100% pre-shipment quality inspection. Ocean transit times vary from 12 to 35 days depending on the target port (e.g., Sydney, Auckland, Los Angeles, Miami).
How do you guarantee frame coating longevity in harsh marine environments?
We apply AkzoNobel Interpon or PPG fluoropolymer powder coatings conforming strictly to AAMA 2604 and AAMA 2605 specifications. Profiles undergo a multi-stage pre-treatment wash (chromate or zirconium pre-treatment) to create an impermeable bonding layer that withstands salt spray testing up to 3,000 to 5,000 hours without blistering, chalking, or edge corrosion.
Can SAGA provide engineering support and custom CAD shop drawings for local certifiers?
Yes. Every custom project includes comprehensive technical support: detailed elevation schedules, section drawings, structural wind load deflection calculations, installation flashing details, and glass engineering certificates required by local building surveyors and certifiers prior to manufacturing commencement.
What protective export packaging is utilized to prevent damage during container transport?
Products are encased in a 5-layer protective system: 1) Protective film over all aluminum profiles, 2) Corner guard protection, 3) Bubble wrap cushioning, 4) Waterproof polyethylene shrink wrap, and 5) Fully enclosed A-frame fumigated plywood crates or steel racks designed for forklift unloading on construction sites.
Why Leading Global Developers Partner with SAGA
Streamlined manufacturing logistics, certified quality assurance, and uncompromised architectural customization.
Direct Factory Manufacturing
Eliminate middleman markups. Direct access to our Fujian production facility featuring automated Elumatec CNC machining centers and automated glass assembly lines.
10-Year Total System Warranty
Comprehensive 10-year warranty covering aluminum profile structural integrity, powder coating adhesion, sealed glass unit anti-fogging, and hardware mechanical operation.
Flexible Trade & Shipping
Flexible trade terms including FOB Fuzhou/Xiamen, CIF, DDU, and DDP to site. Secure T/T bank transfer and Alibaba Trade Assurance payment options accepted.
Accelerate Your Architectural Project Specifications
Request our comprehensive 2025 Product Catalogue, technical CAD binder, and certified test reports today. Our engineering sales team will review your window schedule within 24 hours.
