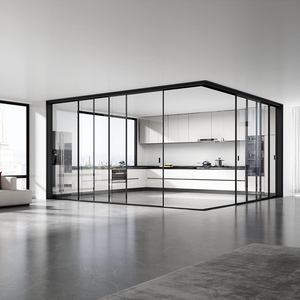

Modern Concealed Frame Aluminum Sliding Door Crittall Style Soundproof Thermal Insulation Double Glazing Tempered Wine Cellar
Send an Inquiry
M&W Furniture Luxury Panel Glass Divider Modular Wall Clear Aluminium Soundproof Office Partition
Send an Inquiry
Safety Glass Equipped Aluminum Swing Door Anti Theft Structure for Commercial Office Room Entry Application
Send an Inquiry
Window Low Profile Bevel Aluminum Glass Anthracite Powder Top Hung Modern Building Facade Windows
Send an Inquiry
High Quality Anti-Static Acp Decorative Bathroom Doors Modern Design Building Construction Materials Aluminium Composite Panel
Send an Inquiry
Wood Aluminum Passive House Windows and Doors for Home Residential Clad Wood Hopper Window
Send an Inquiry
Sound Insulation Exterior Hall & School Aluminum Alloy Door with Anti-Fog Interior Manual Opening for Villa Bathroom Bedroom
Send an Inquiry
French Folded Aluminum Tempered Glass Folding Sliding Door System Screen Waterproof for Apartment Exterior Bedroom Farmhouse Use
Send an InquiryThe Architecture of Modern Concertina Doors
Navigating structural wind pressure, acoustic ratings, and thermal break engineering in commercial & luxury residential joinery.
Structural Engineering & Information Gain Overview
Aluminium concertina doors—frequently referenced as bi-fold, folding-sliding, or multi-panel accordion doors—have evolved from luxury architectural features into primary structural components of modern building envelopes. Global procurement demand across Australia, North America, Europe, and coastal hurricane zones requires profile systems that reconcile ultra-narrow sightlines with extreme structural load resistance.
Unlike standard sliding doors where glass panels operate on parallel tracks within a fixed sub-frame, concertina door systems rely on articulated hinge pivots and top or bottom carriage rollers. This operational mechanism introduces complex vector forces: vertical deadweight shear, lateral wind load deflection, and torsional strain across multi-point locking rods. Selecting an OEM/ODM manufacturing partner requires rigorous auditing of alloy composition, thermal break integration, hardware carriage ratings, and weather-seal longevity.
Top 10 Aluminium Concertina Doors Manufacturers & Exporters
Evaluated on Extrusion Precision, Testing Certifications, Customization Depth, and Supply Chain Stability.
SAGA Doors & Windows
China (Global Direct Export Hub)SAGA Aluminum Doors & Windows Co., Ltd. leads the global direct-export sector, operating factory facilities accredited under rigorous international building standards. Specializing in bespoke thermally broken aluminium concertina doors, uPVC, and aluminium-timber composite systems, SAGA provides direct engineering support, shop drawings, and structural calculations for builders, wholesalers, and architects.
- Certifications: AS2047:2014, AS1288:2021 (AGWA), NZS4211, NAFS, Miami-Dade TAS 201/202/203
- Thermal System: Technoform PA66-GF25 Polyamide Struts
- Max Panel Height: Up to 3,500 mm | Load Capacity: 300 kg / Panel
- Lead Time: 35–50 Days | Direct Shipping from Fuzhou & Xiamen Ports
Solarlux GmbH
GermanyRenowned across Europe for pioneer bi-folding glass doors (Highline & Megaline series). Solarlux emphasizes passive-house level U-values, refined stainless steel roller bearings, and exceptionally slim vertical stiles down to 99 mm at the panel joint.
- Certifications: CE Mark, DIN EN ISO 9001, Passive House Institute Certified
- Key Strength: Architectural ultra-large openings and winter garden integration
Schüco International
GermanyA global benchmark for system engineering. Schüco’s AS FD series (Folding Door) offers high structural resistance, integrated building automation, and burglar resistance up to RC 2 (WK2) ratings. Ideal for high-end commercial facades.
- Certifications: EN 14351-1, Cradle to Cradle Certified Silver
- Key Strength: Commercial facade integration and smart home locking automation
Origin Frames Ltd
United Kingdom / USAOrigin specializes in bespoke residential aluminium bi-fold systems (OB-60 and OB-72 profiles). Features include finger-safe gasket designs, extensive powder-coating RAL color palettes, and rapid lead-time manufacturing networks.
- Certifications: Secured by Design (SBD), PAS 24:2016, Florida Building Code
- Key Strength: Finger-safe anti-wedge seals and rapid consumer customization
Centor Integrated Doors
AustraliaInventors of the world's first weather-sealed bi-fold door hardware mechanism. Centor excels in integrated concertina doors featuring drop-down insect screens and light-proof blackout shades built seamlessly into the architectural frame.
- Certifications: AS2047, Red Dot Design Award Winner
- Key Strength: Fully integrated retractable screen & blind screening hardware
Reynaers Aluminium
BelgiumReynaers’ CF 77 (Concept Folding) system represents high modularity. Offered in Functional, SlimLine, and Co-planar design variants, Reynaers provides exceptional thermal insulation performance coupled with heavy leaf capacities.
- Certifications: Qualicoat, Minergie Certified, Burglar Resistance RC2
- Key Strength: Architectural flexibility and high wind load performance
Andersen Architectural
United StatesProducing luxury multi-folding door systems under the Enterprise Series. Andersen combines heavy gauge exterior aluminum extrusions with real timber interior veneers, targeted at premium North American residential estates.
- Certifications: NAFS CW-PG40, Energy Star Most Efficient
- Key Strength: Aluminium-clad timber interior aesthetic options
Western Window Systems
United StatesFocusing on modern indoor-outdoor living solutions across the American Sunbelt and coastal regions. Western’s Series 7950 aluminum folding door offers outstanding thermal performance and slim sightline profiles.
- Certifications: AAMA/WDMA/CSA 101/I.S.2/A440, NFRC Rated
- Key Strength: Monumental size options and smooth top-hung roller systems
Alumil Aluminium Industry
GreeceOne of Southern Europe’s largest industrial extruders. The Supreme SF85 folding door system engineered by Alumil achieves minimal sightlines with heavy weight-bearing stainless steel hardware designed for Mediterranean coastal exposures.
- Certifications: IFT Rosenheim Tested, Qualanod Anodizing
- Key Strength: Large extrusion capacity and marine-grade surface finishes
YKK AP Building Products
Japan / GlobalJapanese precision manufacturing applied to architectural fenestration. YKK AP manufactures commercial folding doors capable of withstanding heavy traffic loads, featuring heavy-duty gaskets and self-cleaning track mechanisms.
- Certifications: ISO 14001, JIS Standards, ASTM E283/E330/E331
- Key Strength: Industrial hardware longevity and automated production consistency
Engineering Specification & Performance Matrix
Compare crucial structural parameters across leading concertina door system tiers.
| Performance Criteria | SAGA Premium (Thermal Break) | European High-End Benchmark | Standard Non-Thermal Tier |
|---|---|---|---|
| Alloy & Temper | 6063-T6 High-Precision Extrusion (1.8 - 2.5mm wall thickness) | 6060-T66 / 6063-T6 Precision Profile | 6063-T5 Commercial Grade (1.2 - 1.4mm) |
| Thermal Barrier Material | Polyamide PA66-GF25 (24mm to 34mm depth) | Polyamide PA66-GF25 Insulating Bars | PVC Strip or Non-Thermally Broken |
| Thermal Transmittance (U-Value) | Uw ≤ 1.3 to 1.8 W/m²K (Low-E Double/Triple) | Uw ≤ 1.1 to 1.5 W/m²K | Uw ≥ 3.5 to 5.2 W/m²K |
| Max Leaf Height / Weight | 3,500 mm / 300 kg per Leaf | 3,200 mm / 250 kg per Leaf | 2,400 mm / 90 kg per Leaf |
| Air Infiltration Resistance | ASTM E283 / AS4420.2 (Passes < 0.5 L/s·m²) | EN 12207 Class 4 | Basic Weather Strip (< 2.0 L/s·m²) |
| Water Penetration Rating | 750 Pa (High Water Threshold Option) | 900 Pa (Sub-Sill Flush Track System) | 150 Pa to 300 Pa Standard Track |
| Structural Wind Pressure | Up to 4,500 Pa (Cyclic & Static Wind Tested) | Up to 3,000 Pa | 1,200 Pa Standard Residential |
| Glazing Compatibility | 24mm - 44mm Double / Triple Toughened / Laminated | 28mm - 52mm Triple Argon Low-E Glass | 5mm - 12mm Single Glazing |
| Audit Certifications | AGWA AS2047, NZS4211, NAFS, Miami-Dade TAS 201-203 | CE, IFT Rosenheim, Passive House | Factory Internal Self-Declaration |
Future Procurement & Sourcing Trends (2026–2032)
Strategic Shifts Reshaping How Architects, Wholesalers, and Developers Purchase Folding Door Systems.
1. Micro-Sightlines (< 45mm Vertical Profile)
Architectural preference has decisively moved away from heavy frame sightlines. The market demands ultra-narrow interlocking stiles under 45mm that maximize daylight transmission without compromising deflection resistance under extreme wind pressure loads.
2. Stringent Carbon & U-Factor Regulations
Energy codes (such as NCC 2022 in Australia and ASHRAE 90.1 in North America) now penalize thermal bridging. Sourcing is shifting rapidly toward multi-chamber polyamide thermal breaks (PA66-GF25) paired with Low-E double or triple-glazed argon fills.
3. Coastal Hurricane & Impact Resilience
With shifting climate patterns, coastal real estate developments in Florida, the Caribbean, and Australasia specify Miami-Dade TAS 201/202/203 and AS1288 safety compliance. Importers are bypassing non-tested fabricators in favor of audited factories.
4. Direct Factory CAD/BIM Integration
B2B buyers no longer accept simple off-the-shelf window dimensions. Successful procurement models demand manufacturers who furnish custom 2D DWG section drawings, 3D Revit models, and detailed schedule quotes within 24–48 hours of project plan submission.
Key Technical Innovations in Concertina Door Design
Understanding mechanics, hardware loading, and moisture management systems.
Top-Hung vs. Bottom-Hung Roller Load Distribution
A critical engineering decision during project specification is selecting between top-hung and bottom-supported structural configurations:
Top-Hung Systems
The primary leaf weight is suspended from the head track overhead. This layout guarantees ultra-smooth, effortless sliding motion and protects roller bearings from floor dirt and debris. However, it requires a structural lintel (steel beam) designed to carry heavy suspended loads without sag.
Bottom-Hung Systems
The panel weight rests directly on the floor track. This configuration eliminates the necessity for heavy reinforced overhead support beams, making it optimal for retrofits and wood-frame construction. Roller assemblies feature sealed stainless steel needle bearings with built-in height adjustment bolts.
Sub-Sill Drainage & Multi-Fin EPDM Gaskets
Water penetration failure during storm conditions typically occurs at the panel base track or vertical hinge joints. Advanced concertina engineering incorporates concealed weep-hole drainage channels combined with continuous EPDM multi-fin gaskets. When closed, twin-compression locks force the EPDM seals firmly against aluminum thermal breaks, blocking driven rain pressures exceeding 750 Pascals.
Why Global Buyers Partner With SAGA Doors & Windows
Direct Manufacturing Rigor, Comprehensive Compliance Audits, and End-to-End Export Logistics.
16+ Years Direct Export Expertise
With over 16 years of focused aluminum and uPVC joinery manufacturing experience, SAGA has delivered custom window and door schedules to builders, developers, and dealers across 25+ countries worldwide.
AGWA, AS2047 & NAFS Audited
Our manufacturing protocols undergo annual third-party audits. SAGA products strictly adhere to Australian AS2047:2014, AS1288:2021, NZS4211, North American NAFS, and Miami-Dade hurricane impact certifications.
Full CAD & Engineering Support
Before any extrusion is cut, SAGA provides detailed elevation drawings, cross-sectional profiles, and installation detailing to ensure absolute alignment with local building codes and site structural lintels.
Fuzhou & Xiamen Port Logistics
Located strategically near major container ocean ports (Fuzhou & Xiamen), SAGA manages custom fumigated steel-crate packaging, container loading optimization, and seamless export documentation.
Frequently Asked Procurement Questions (FAQ)
Essential answers for B2B importers, project managers, and fenestration buyers.
Which buyer categories does SAGA supply customized windows and doors to?
SAGA supplies a diverse global customer base including commercial builders, residential developers, regional window wholesalers and dealers, general contractors, architectural firms, and individual custom homeowners requiring project-tailored joinery.
What is the standard production lead time for customized aluminium concertina doors?
Typical factory manufacturing lead time is 35 to 50 days following shop drawing approval and deposit receipt. Lead time accounts for precision aluminum extrusion, powder coating or anodizing, insulated glass unit fabrication, CNC hardware machining, and pre-shipment assembly testing.
Can SAGA provide sample corner sections or full window samples prior to bulk production?
Yes. SAGA provides standard or custom profile corner samples showing thermal breaks, frame finishes, and weather-seal construction. Standard-size window samples can also be fabricated for compliance testing and buyer quality evaluation.
How does SAGA ensure compliance with Australian Standards (AS2047 / AS1288) and New Zealand Standards (NZS4211)?
SAGA window and door profiles undergo rigorous testing by accredited NATA / AGWA laboratories. Compliance documentation verifies structural deflection, air infiltration, water penetration resistance, and safety glass performance in accordance with AS2047:2014, AS1288:2021, NCC 2022, and NZS4211:2008 building codes.
What hardware brand options are integrated into SAGA concertina door systems?
SAGA partners with top-tier hardware manufacturers to ensure long-term mechanical reliability. Options include German ROTO, Siegenia Aubi, Hoppe, Australian Centor, Kinlong, and proprietary heavy-duty stainless steel multi-point locking carriage systems rated up to 300 kg per door leaf.
What frame surface finishes and colors are available for export orders?
Finishes include architectural powder coating (AkzoNobel / Interpon RAL colors with 10 to 25-year durability warranties), anodized surface treatments (silver, bronze, black), and timber-grain thermal transfer foils suited for extreme UV coastal exposures.
What export packaging protocols are used to prevent transit damage?
All door panels and frames are wrapped in protective PE film, corner-shielded with high-density foam, encased in water-resistant plastic wrapping, and secured inside fully enclosed plywood or steel-frame crates to prevent freight damage during ocean transport.
What port options and payment terms apply to international orders?
Shipments load directly from Fuzhou Port or Xiamen Port in Fujian Province, China. Standard payment methods include T/T bank transfer (30% deposit, 70% balance prior to container dispatch) and Alibaba Trade Assurance for complete buyer order protection.
