Featured Export Windows & Doors Systems
Explore our certified architectural joinery systems engineered for high thermal efficiency, extreme weather resistance, and multi-lock security compliance.
Basement Window DIN Left Outer Aluminum Anthracite White Interior Horizontal Double Glazing 32mm Heat Protection Sound
Customization Large Aluminum Sliding Window Stainless Steel Mesh Double Glazed Tempered Hurricane Impact Resistant Window

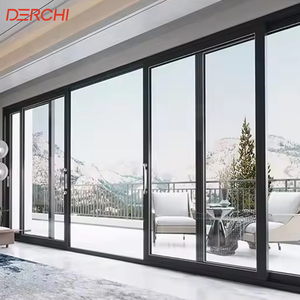

Heavy-Duty Commercial Modern Energy Efficient Office Door External Glass Slide Large Sliding Patio Doors And Windows For Home
Modern Cast Aluminum Front Entrance Door Dark Grey Brushed Security Exterior Door With Verticalt Theft Custom Main Entry Door
Modern Aluminum Folding Window Double Glazed Glass Soundproof Bifold Opening for Kitchen Shop Balcony
Heavy Duty Coastal Glass Commercial Doors Folding Glass Door Thermal Breaking Glass Bifold Doors
Modern Aluminium Window Design Energy Efficient Noise Reduction Casement Windows For Home Office
16+
Years Manufacturing Excellence
25+
Global Export Markets
10-Yr
Structural Assurance Warranty
35-50
Days Precision Production Lead Time
Industry Benchmark & Sourcing Audit
Evaluation Framework for Top Aluminium Tilt & Turn Window Manufacturers
An in-depth structural, energy, and procurement analysis for architectural specifiers, developers, and trade importers.
Tilt and turn window systems represent the pinnacle of European fenestration engineering, combining dual-action dual-functionality—inward tilting from top hinges for secure background ventilation, and inward swinging side-turn for 100% full opening area and effortless exterior glass maintenance. In high-rise residential complexes, luxury commercial developments, and energy-conscious Passive House builds, aluminium tilt & turn windows have increasingly outperformed traditional casement and sliding joinery due to their superior airtightness, sound insulation, and structural resistance under high wind loads.
When selecting a top 10 aluminium tilt & turn windows factory and exporter, commercial procurement teams must evaluate manufacturers beyond raw profile cost per square meter. A holistic audit requires assessing thermal break design (PA66 polyamide insulation strips), corner crimping technology, multi-point gear drive locking systems, and verified compliance with stringent international building codes including AS2047 / AS1288 (Australia), NZS4211 (New Zealand), NAFS / AAMA (North America), and Miami-Dade TAS 201/202/203 (High-Velocity Hurricane Zones).
Structural Integrity & Wind Load
Engineered extrusion alloys (6063-T5/T6) with minimum 1.8mm–2.2mm frame wall thickness. Designed to withstand wind pressures up to 4500 Pa (Ultimate Limit State), ideal for coastal and high-rise applications.
Thermal Break Efficiency
Integrated multi-chamber Technoform PA66 GF25 polyamide insulation breaks. Prevents thermal bridging, lowering total window U-factors (Uw) down to 0.8–1.4 W/m²K when combined with Low-E argon IGUs.
Perimeter Multi-Point Locking
Concealed heavy-duty gearboxes and perimeter mushroom locking cams engineered by ROTO Frank or Siegenia. Provides multi-point mechanical compression against triple EPDM weather seals.
Evaluation Metrics: Comparing Frame Technologies for Global Projects
To assist architects, developers, and volume importers in selecting the ideal joinery system, the comparison table below outlines key technical, energy, and maintenance parameters across common fenestration materials manufactured by leading Chinese export factories.
| Performance Specification | Standard Non-Thermal Aluminium | Thermally Broken Aluminium (Tilt & Turn) | uPVC (Vinyl) Multi-Chamber | Aluminium-Timber Composite |
|---|---|---|---|---|
| Thermal Insulation (Uw Value) | 3.8 – 5.2 W/m²K | 0.8 – 1.6 W/m²K | 1.0 – 1.8 W/m²K | 0.9 – 1.4 W/m²K |
| Acoustic Rating (STC / Rw) | 28 – 32 dB | 38 – 48 dB | 35 – 42 dB | 40 – 46 dB |
| Structural Frame Profile Strength | Moderate | Exceptional (High Structural) | Moderate (Steel Reinforced) | Very High |
| Airtightness & Water Penetration | 300 Pa Water / Class 3 Air | 700+ Pa Water / Class 4 Air | 600 Pa Water / Class 4 Air | 650 Pa Water / Class 4 Air |
| Design Sightlines & Aesthetics | Slim (45mm - 60mm) | Ultra-Slim Architectural | Bulky (70mm - 88mm) | Medium - Large Profile |
| Color / Surface Finish Options | Powder Coating / Anodized | Qualicoat Powder / Anodized / PVDF | Laminated Foils (Renolit) | Timber Interior / Powder Exterior |
Engineering Tip for B2B Sourcing Directors
When requesting export quotes for high-wind or coastal projects, always specify your structural wind load requirements (e.g., Serviceability Wind Pressure and Ultimate Wind Pressure in Pascals). A top-tier factory will provide finite element analysis (FEA) and profile section inertia (Ix / Iy values) to prove frame deflection remains within L/250 or L/175 limits.
Future Sourcing Trends for Aluminium Tilt & Turn Windows (2025–2030)
The global fenestration market is undergoing a rapid transition driven by carbon-neutral building codes, net-zero architectural mandates, and smart building automation. Importers and commercial contractors must align with factories capable of integrating next-generation window technologies:
- Ultra-Low U-Value Glass Integration: Shift toward 44mm–52mm triple and quadruple insulated glass units (IGUs) incorporating dual Low-E coatings, warm-edge composite spacers (TGI/Chromatech), and 95% argon gas filling to meet Passive House Standard (Uw ≤ 0.8 W/m²K).
- Concealed Hardware & Flush Sash Profiles: Modern architectural aesthetics favor completely hidden hinges capable of carrying sash weights up to 180 kg–300 kg, providing clean interior lines and uninterrupted 90-degree opening angles.
- Smart Home Motorization & Actuation: Integration of automated tilt actuators connected to building management systems (BMS) or smart phone ecosystems for automated night purge ventilation, rainfall sensor closure, and motorized access.
- High-Durability Surface Coatings for Severe Coastal Environments: Factory adoption of Class 2 & Class 3 Qualicoat fluorocarbon (PVDF) powder coatings and 25-micron hard anodization capable of enduring 3,000+ hours of continuous salt spray testing without blistering or color fading.
- Integrated Micro-Ventilation & Security Screens: Dual-track tilt & turn windows equipped with high-tensile 304/316 stainless steel security mesh screens (0.8mm wire width) allowing secure, bug-free tilt ventilation without compromising burglar resistance.
Why SAGA Doors & Windows Ranks Among Leading Chinese Exporters
SAGA Aluminum Doors & Windows Co., Ltd. brings over 16 years of OEM/ODM custom manufacturing experience to commercial builders, architects, trade distributors, and developers across North America, Australia, New Zealand, Europe, and the Caribbean.
AGWA & AS2047 Accredited Compliance
Audited under the Australian Glass and Window Association (AGWA) program for AS2047:2014, AS1288:2021, and NCC 2022 building code compliance.
Strict Laboratory Tested Systems
Extensive third-party test reports covering NAFS (North America), NZS4211 (New Zealand), and Miami-Dade TAS 201/202/203 hurricane impact standards.
Full BIM & CAD Shop Drawing Support
Every commercial order includes free elevation drawings, sectional detail CADs, dynamic 3D renderings, and precise installation guidance.
Flexible Global Logistics & Loading
Direct export loading via Fuzhou or Xiamen ports. Heavy-duty steel-stillages and fumigated plywood crate packing eliminate ocean transit breakage.
Procurement Knowledge Base
Frequently Asked Questions by Importers & Builders
Essential guidance for international buyers purchasing custom aluminium tilt & turn windows directly from China manufacturers.
Which types of commercial buyers does SAGA supply custom windows and doors to?
We supply window wholesalers, regional dealers, commercial builders, residential developers, installation contractors, architectural firms, and individual custom homeowners. Each order receives tailored technical support, shop drawings, and packaging suited to the specific trade buyer profile and local building code requirements.
What is the standard factory production lead time for customized aluminium tilt & turn orders?
Typical manufacturing lead times range from 35 to 50 days following final sign-off of shop drawings and deposit confirmation. Specialty finishes (such as custom AkzoNobel powder coating colors or rare woodgrain foils) or high-volume project orders may require additional lead time.
Can SAGA provide physical sample windows for structural quality and hardware evaluation?
Yes, we provide standard-size corner sample sections or complete functional window samples (e.g., 600mm x 600mm tilt & turn window) for architectural review, corner joint inspection, and hardware testing. Sample units are provided free of charge, with the buyer covering air express freight.
What technical engineering support is included prior to order confirmation?
Our engineering design team provides comprehensive 2D CAD shop drawings, 3D section details, thermal simulation calculations, glass performance values (U-factor, SHGC, VLT), and step-by-step installation anchor detail diagrams to ensure frictionless approval from local building certifiers.
Do SAGA aluminium tilt & turn windows comply with Australian (AS2047) and New Zealand (NZS4211) codes?
Yes. Our window systems undergo annual independent audits by AGWA-accredited inspectors to verify compliance with AS2047:2014, AS1288:2021, and NCC 2022. For New Zealand, our certified window series complies with NZS4211:2008 and satisfies NZ Building Code clauses B1 (Structure), B2 (Durability), E2 (External Moisture), and H1 (Energy Efficiency).
What are the primary ports of loading and payment terms for ocean container freight?
All shipments are securely loaded and dispatched directly from Fuzhou Port or Xiamen Port in Fujian Province, China. Standard payment methods accepted include T/T (Telegraphic Transfer) bank transfer and Alibaba Trade Assurance for full payment security.
Ready to Accelerate Your Project Fenestration Procurement?
Connect directly with our senior structural engineers and global sales directors to request factory-direct quotations, CAD shop drawings, or accredited compliance certificates.
