Featured Export-Grade Architectural Windows & Doors
Tested and verified systems engineered for international building codes, structural deflection specs, and thermal compliance.
Profile Aluminum Interior Hurricane Proof Front Houses Modern Aluminum Casement Door
Inquire Now
Soundproof Cast Aluminum High Security Hinge Entry Door with Minimalist Design for Apartment and Mall Exterior Use
Inquire Now

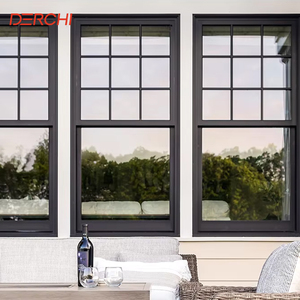

Double Hung Windows Modern Design High Quality Of Aluminium Sash Windows Custom Hung Windows
Inquire Now

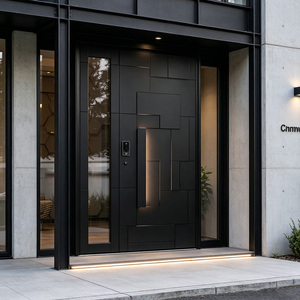

Cast Aluminum Single Security Door Custom Panel Design with Multi Point Lock and Zinc Alloy Hardware for Residential Use
Inquire Now
Custom Triple Glazed Tempered Glass Soundproof Windows with Aluminum Alloy Frame System for Bathroom Porch Storefront Design
Inquire Now
4 Panel Center Opening Europe Exterior Aluminium Sliding Patio Doors with Screen
Inquire Now

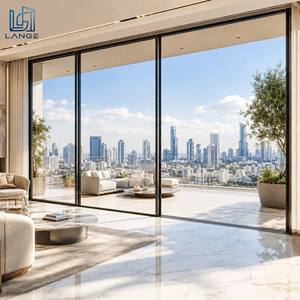

Lange Minimalist Design Heavy Duty Sliding Door Patio Aluminum Door Beautiful Balcony Sliding Glass Doors
Inquire Now
Top Brand Custom Double Glazed Casement Windows Modern Design Swing Open Style Aluminum Frame EPDM Home Compliant Picture Window
Inquire NowState of the Industry: The Evolution of Vertical Sliding Sash Windows
Vertical sliding sash windows, historically rooted in Georgian and Victorian architecture, have undergone a material revolution. Timber sashes suffer from wood rot, warping, and frequent painting cycles, while early uPVC replacements lacked the slender sightlines demanded by high-end modern developments and historic restoration codes. Today, thermally broken extruded aluminium alloy (6063-T6) has emerged as the global standard for high-performance vertical sash window systems.
Why Aluminium Over Timber & uPVC?
Commercial developers, architects, and volume importers are shifting toward custom aluminium vertical sliding sash windows due to key engineering advantages:
- Structural Integrity: High tensile 6063-T6 aluminium handles heavy double and triple glazed IGUs without sags or frame twisting.
- Slimmer Sightlines: Profile widths down to 35mm-45mm replicate historic wooden sashes while maximizing daylight transmittance.
- Polyamide Thermal Barriers: Advanced PA66 GF25 thermal breaks prevent conductive heat transfer, achieving system U-values down to 1.4 W/m²K.
- Low Maintenance & Finish Durability: Qualicoat Class 2 powder coating and anodized finishes withstand coastal salt spray (ASTM B117 tested).
B2B Evaluation Criteria for Exporters
When selecting an OEM/ODM vertical sliding sash window manufacturer, procurement officers evaluate technical compliance indicators:
- Spring Balance Hardware Reliability: Spiral counterbalances vs. constant-force spring balances rated for 20,000+ operational cycles.
- Compliance & Certifications: Audit reports for AGWA (AS2047/AS1288), NZS4211, NAFS, and Miami-Dade TAS 201/202/203.
- Weather Sealing Architecture: EPDM multi-gasket perimeter seals combined with high-density woven pile weatherstripping.
- Bespoke CAD & BIM Support: In-house drafting teams providing shop drawings, shop section cuts, and anchorage detailing.
Top 10 Aluminium Vertical Sliding Sash Windows Suppliers & Exporters
A detailed evaluation of leading manufacturers based on engineering capabilities, certification scope, export volume, and technical customization.
| Manufacturer / Brand | Primary HQ | Key Standard Certifications | Hardware & Spring Balance Systems | Primary Export Markets | Strategic Advantage |
|---|---|---|---|---|---|
| SAGA Doors & Windows | China (Fujian) | AS2047, AS1288, NZS4211, NAFS, Miami-Dade | Caldwell, ROTO, Kinlong Constant Force | Australia, NZ, USA, Caribbean, Europe | Factory-direct custom sizing, direct structural testing reports, fast 35-50 day lead times. |
| Smart Architectural Aluminium | United Kingdom | BS 6375, PAS 24, Q-Mark | Bespoke Spiral Balances | UK, Western Europe | Heritage sash profile replication for conservation zones across Britain. |
| Reynaers Aluminium | Belgium | EN 14351-1, Qualicoat, Minergie | Concealed Mechanical Balances | Global Tier-1 Commercial | High-end thermal efficiency systems and ultra-slim architectural profiles. |
| Aluk Group | Luxembourg / UK | CWCT, PAS 24, BS EN 12207 | Heavy-Duty Spiral Tensioners | Europe, Middle East, Asia | Robust commercial sliding sashes with integrated multi-point locking mechanisms. |
| Schüco International | Germany | DIN EN ISO 9001, Passive House Institute | Custom German Spring Tensions | Global Enterprise Projects | State-of-the-art automation and smart-building sash drive integrations. |
| JELD-WEN Windows & Doors | United States | AAMA, WDMA, CSA, NFRC | Block & Tackle, Constant Force | North America, Caribbean | Established distribution networks across North American residential markets. |
| Marvin Windows & Doors | United States | NFRC, Energy Star, NAFS DP70 | Commercial Grade Spring Systems | North America | Architectural grade wood-clad aluminium double hung vertical sliders. |
| Origin Frames | United Kingdom | ISO 14001, Florida Building Code | Precision Torlock & Spiral Balances | UK, USA, UAE | Bespoke color matching, powder coating finish consistency, and lifetime warranties. |
| YKK AP Inc. | Japan / USA | AAMA 101, ASTM E283/E330/E331 | Heavy-Duty Commercial Balances | Asia-Pacific, North America | Engineered high-rise commercial curtain wall vertical sliding sash inserts. |
| MasterLine (Aluminium System) | Poland / EU | CE Mark, EN 12208 Water Tightness | Standard Mechanical Balances | Eastern Europe, UK | Cost-competitive European profile extrusion and standard modular sizing. |
*Data compiled from independent testing reports, manufacturer product disclosures, and industry export registries.
Architectural & Procurement Trends for Vertical Sliding Sash Windows
The global fenestration sector is experiencing significant technological transformations. Importers and commercial builders must align their supply chains with incoming architectural trends and energy regulations.
Ultra-Low U-Values & Passive Thermal Breaks
National energy codes (such as NCC 2022 in Australia, NZBC Clause H1, and EU EPBD directives) demand lower U-values. Future vertical sash windows feature multi-chamber PA66 thermal barriers, polyurethane foam-filled profile cavities, and warm-edge spacer glass units capable of delivering U-values below 1.2 W/m²K.
Severe Weather & Hurricane Impact Engineering
Coastal developments in Florida, the Caribbean, and cyclone-prone Australian territories require tested wind-load resistance. Future sash windows incorporate heavy-gauge wall profiles (2.0mm+), internal steel rebar reinforcements, and laminated impact glass rated under Miami-Dade TAS 201/202/203 testing standards.
Tilt-In Cleaning & Concealed Balances
Modern buyers demand maintenance accessibility. Advanced vertical sliders incorporate quick-release tilt latches, allowing both top and bottom sashes to tilt inward at 45 degrees for easy glass cleaning from inside upper-floor apartments, eliminating expensive external scaffolding maintenance.
Concealed Automated Actuators
Smart building integration is driving demand for electric chain drives and concealed motorized sash lifters. Automated vertical sliding sash windows interface directly with HVAC systems to provide motorized natural ventilation, rain sensor shutoff, and remote smartphone control.
Sustainable Low-Carbon Aluminium
Green building certifications (LEED, BREEAM, Green Star) are prioritizing primary metal sourcing. Global exporters are adopting hydro-powered, recycled content aluminium billets to reduce embodied carbon, backed by Environmental Product Declarations (EPDs).
Anatomy of an Export-Grade Aluminium Sash Window
High-performance vertical sliding sash windows require precise mechanical engineering to balance structural deflection, water resistance, and effortless manual operation.
Structural & Mechanical Sub-Systems
Unlike standard horizontal sliding windows, vertical sliding sash systems must support the full dead weight of heavy double glazed units while delivering effortless operation across thousands of cycles.
1. Constant-Force Spring Counterbalances
Industrial-grade spiral or stainless steel constant-force spring balances are calibrated to the exact weight of each sash assembly (sash frame + glass package). This engineering ensures smooth fingertip operation without sash drop or binding.
2. Corner Jointing: Mechanical Crimping vs. Welding
High-grade aluminium profiles utilize heavy-duty cast aluminum corner cleats with stainless steel locking pins and two-component structural epoxy. This creates rigid joints capable of resisting wind pressures up to 3000 Pa (DP60/DP80 ratings).
3. Multi-Gasket Water Management
Water ingress is prevented via stepped sill profiles, internal drainage channels with non-return flap valves, and continuous EPDM gaskets at the meeting rail and sash perimeters.
International Building Code Matrix
| Testing Standard | Key Performance Metric | SAGA Certified Value |
|---|---|---|
| AS2047 / AS1288 (Australia) | Wind Pressure & Water Resistance | Serviceability: 1500Pa Ultimate: 4500Pa Water: 450Pa |
| NZS4211:2008 (New Zealand) | Structural, Water & Weathertightness | Compliant for Extra High (EH) Wind Zones |
| NAFS / AAMA 101 (North America) | Air Infiltration & Structural Load | Performance Class: CW-PG50 / AW-PG65 |
| Miami-Dade TAS 201/202/203 | Large Missile Impact & Wind Cycles | Passed 30ft/sec impact & 9,000 cyclic pressure loadings |
| Acoustic ISO 10140-2 | Sound Transmission Reduction | STC 38 to STC 42 (With Laminated Double IGU) |
Why Direct Sourcing from SAGA Guarantees Project Success
SAGA Doors & Windows combines 16+ years of specialized fenestration manufacturing with global engineering compliance to deliver factory-direct value for major development projects.
State-of-the-Art Factory
Operating out of the Tieling Technical & Economic Development Zone in Fuzhou, Fujian, our fully automated CNC cutting, milling, and assembly lines maintain strict dimensional tolerances within ±0.5mm.
Full CAD/BIM Drafting Support
Our senior fenestration engineers generate comprehensive elevation schedules, profile section drawings, and installation anchorage details to ensure seamless municipal plan approvals.
Direct Port Logistics & Packing
Shipped directly via Fuzhou or Xiamen ports in fully enclosed, fumigated wooden crates with protective corner guards, steel strap banding, and plastic wrapping to guarantee zero shipping damage.
Tier-1 Supply Chain Partners
We integrate premium global profile systems and hardware components from industry leaders including Veka, Rehau, Zhongcai, ROTO, Siegenia Aubi, and Kinlong.
AGWA Audited Quality Control
Subject to rigorous annual third-party audits under the Australian Glass and Window Association (AGWA) program, ensuring batch-to-batch compliance for AS2047 and NCC 2022 standards.
Frequently Asked Questions (FAQ) for Global Buyers
Addressing the critical engineering, shipping, and customization questions asked by importers, architects, and volume builders.
Q: Which buyer types does SAGA supply custom aluminium sash windows to?
We directly supply window wholesalers, regional distributors, commercial builders, property developers, framing contractors, architects, and custom home builders. Every order includes tailor-made CAD shop drawings engineered to meet the specific building code of the destination country.
Q: How do you prevent sash drop and ensure smooth operation over time?
SAGA uses factory-calibrated spring balances (such as Caldwell or Kinlong systems) matched precisely to the calculated weight of the glazed sash. Each balance is load-tested prior to assembly to prevent premature tension loss, ensuring smooth upward and downward movement for decades.
Q: What is the typical production lead time for commercial sash window orders?
Standard production lead time is 35 to 50 days following final CAD shop drawing sign-off and deposit confirmation. For large-scale multi-family or commercial projects, staged containerized delivery schedules can be established.
Q: Can SAGA supply standard-sized samples for structural and aesthetic evaluation?
Yes. We supply standard-size window corner sections or full window samples for architects and certifiers to inspect profile thickness, thermal break assembly, surface finish quality, and hardware operation. Sample units are free, with international express freight covered by the buyer.
Q: How do SAGA aluminium sash windows perform in hurricane and high-wind coastal environments?
Our heavy-duty storm sash series features reinforced extrusion walls, heavy structural interlocks, and laminated impact glass options tested under Miami-Dade TAS 201/202/203 standards and Australian AS2047 high-wind pressure ratings up to 4500 Pa.
Q: What glazing configurations are available for acoustic and thermal insulation?
We offer double glazed (5mm + 12Ar + 5mm) and triple glazed insulated glass units (IGUs), toughened safety glass, Low-E thermal coatings, argon gas filling, and acoustic laminated PVB glass options capable of noise reduction up to STC 42.
Q: What surface finishes and frame colors can be specified?
We provide Qualicoat-certified architectural powder coatings in full RAL color spectrums, anodized finishes (15µm to 25µm film thickness for marine environments), and interior timber-grain heat-transfer foils for a warm interior aesthetic.
Q: What ports are used for ocean freight loading, and how are goods secured?
All shipments are loaded at Fuzhou or Xiamen ports in Fujian Province. Windows are protected with adhesive plastic films, fitted with high-impact foam corner protectors, packed into fully enclosed fumigated plywood crates, and secured with steel strapping inside sea containers.
Get an Engineering Estimate for Your Project
Send your window schedule, CAD elevation drawings, or project specifications directly to our engineering team. We deliver itemized technical proposals, compliance documentation, and factory-direct pricing within 24 hours.
