Featured China Aluminium Sliding & Architectural Joinery Systems
Engineered to stringent international standards (AS2047, NZS4211, NAFS, Miami-Dade TAS 201-203), our factory-direct custom aluminium sliding windows deliver unmatched thermal insulation, hurricane resistance, and acoustic dampening.

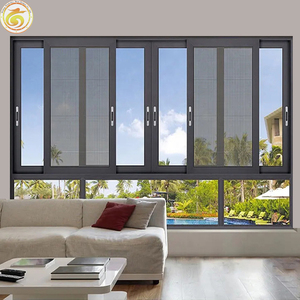

Soundproof Aluminum Standard Double Glass Sliding Window Manufacturer Thermal Break Aluminum
Get Catalog

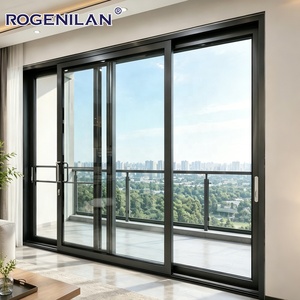

Rogenilan Foshan Custom Hurricane Proof Aluminium Sliding Slide Glass Doors and windows for House Hotel Office Balcony
Get Catalog
High Quality Double Tempered Glazed Custom Made Aluminum Glass Sliding Windows for House
Get Catalog
20 Year Warranty Wholesale Exterior Patio Black Folding Aluminum Frame Glass Stack Bifold Door in China
Get Catalog

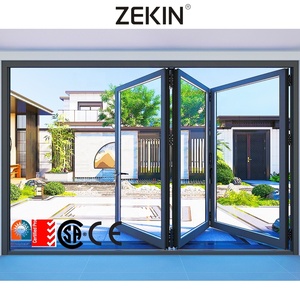

Customized Aluminum Profile Bi-fold Doors Energy Efficient Luxury Villas Hurricane Proof NFRC AS2047 Certification Folding Door
Get Catalog
OUNA Hurricane Proof High Impact Black Aluminum Alloy Thin Profile Aluminium Windows And Doors Casement Window S For USA
Get Catalog
Elegant Minimalist French Style Aluminum Bi-old Interior House Door with Tempered Glass for Modern Home Decoration
Get Catalog
Modern Aluminium Window Design Energy Efficient Noise Reduction Casement Windows For Home Office
Get CatalogSAGA Doors & Windows: Enterprise Profile & Manufacturing Excellence
Operating out of Fujian, China, SAGA Aluminum Doors & Windows Co., Ltd. represents the peak of custom architectural joinery, supplying commercial developers, wholesalers, builders, and architects across Australia, New Zealand, North America, and the Caribbean.
Rigorous Multi-Code Compliance
Audited under the Australian AGWA program for AS2047:2014, AS1288:2021, and NCC 2022. Certified for NZS4211:2008, NAFS testing methods, and Florida Miami-Dade high-velocity hurricane impact standard TAS 201/202/203.
Precision Thermal & Structural Engineering
Utilizing 6063-T5 high-tensile aluminium profiles, PA66-GF25 polyamide thermal barriers, double/triple tempered Low-E glazing with Argon fills, achieving U-factors down to 1.1 W/m²K and STC sound ratings up to 45 dB.
Dual-Port Strategic Export Logistics
Direct container loading from Fuzhou and Xiamen sea ports. Export-grade steel-framed wooden crates with heavy-duty moisture barrier film ensure 100% damage-free oceanic transport.
Architectural Blueprint: Technical Specification & Information Gain
When sourcing aluminium sliding windows from China factories, procurement officers must balance structural deflection, thermal resistance, air infiltration, and water tightness. Below is a granular technical evaluation compiled by SAGA senior fenestration engineers.
4.1 Thermal Break Mechanics: Polyamide Struts (PA66-GF25) vs Non-Thermal Profiles
In modern architectural design, thermal bridging accounts for up to 40% of residential energy loss through frame extrusions. Standard non-thermal aluminium profiles exhibit a high thermal conductivity of approximately K = 200 W/(m·K). To mitigate energy transfer, SAGA incorporates structural PA66-GF25 (Polyamide 66 reinforced with 25% glass fiber) thermal barriers within dual-extrusion profile chambers.
This thermal break separation dramatically lowers the frame U-factor from ~6.5 W/m²K to < 1.6 W/m²K when paired with double-glazed Insulated Glass Units (IGU). Combined with Spectrally Selective Low-Emissivity (Low-E) coatings and 90% Argon gas fills, our sliding windows meet passive solar requirements across stringent climatic zones, reducing heating and cooling loads by over 32% annually.
4.2 Wind Pressure Deflection & High-Velocity Hurricane Impact Integrity
Sliding window configurations installed in high-rise coastal towers or cyclone-prone regions face immense wind pressure dynamic loads. Under Australian standard AS2047:2014, fenestration products must undergo rigorous Ultimate Limit State (ULS) wind load testing reaching up to 4,500 Pascals.
SAGA custom hurricane impact sliding series utilizes heavy-wall extruded aluminium profiles (2.0mm to 3.0mm nominal wall thickness) reinforced with internal stainless steel stiffness plates. For Florida Miami-Dade compliance (TAS 201, 202, 203), the glass unit consists of multi-layer laminated safety glass (6mm Tempered + 1.52mm SentryGlas/PVB + 6mm Tempered). This setup withstands 9-lb 2x4 timber missile strikes at 50 ft/s followed by 9,000 cycles of positive/negative wind pressure loading without frame seal rupture or pane dislodgement.
| Performance Indicator | Standard Non-Thermal Sliding | SAGA Thermally Broken Sliding | SAGA Hurricane Impact Series |
|---|---|---|---|
| Frame Profile Alloy | 6063-T5 (1.4mm Wall) | 6063-T5 Heavy-Duty (1.8 - 2.0mm) | 6063-T6 Structural (2.2 - 3.0mm) |
| Thermal Barrier Material | None (Solid Profile) | PA66-GF25 Polyamide Strut | Reinforced PA66-GF25 + Foam Inserts |
| Glass Specification | 5mm + 12A + 5mm Clear | 6mm Low-E + 12Ar + 6mm Toughened | 6mm + 1.52PVB/SGP + 6mm Laminated |
| U-Factor (W/m²K) | 4.5 - 5.8 W/m²K | 1.4 - 1.8 W/m²K | 1.1 - 1.5 W/m²K |
| Acoustic Rating (STC / Rw) | 28 - 32 dB | 38 - 42 dB | 42 - 46 dB |
| Wind Load Resistance | 1500 - 2200 Pa | 3000 - 4500 Pa (AS2047) | Miami-Dade TAS 201/202/203 |
| Hardware & Roller System | Single Nylon Roller | Heavy-Duty Stainless Steel Roller | Precision Quad Tandem Stainless Rollers |
4.3 Water Tightness, Hidden Drainage Channels & Acoustic Sealing
A primary failure point in budget sliding windows is rainwater leakage during driving storms. SAGA engineers solved this through an Advanced Multi-Chamber Sub-Sill & Hidden Drainage System. Water entering the track is guided through stepped internal baffles with anti-backflow check valves, preventing wind-driven water ingress at pressures exceeding 600 Pa.
To deliver superior acoustic isolation for urban dwellings near airports or highways, we incorporate continuous EPDM (Ethylene Propylene Diene Monomer) weatherstripping combined with high-density silicone wool piles. Dual-seal interlockers significantly decrease ambient noise penetration across 125 Hz – 4000 Hz frequency bands.
Future Sourcing & Industry Trends for Global Window Procurement (2025–2030)
The international window and door market is experiencing paradigm shifts driven by net-zero building codes, architectural aesthetic evolution, and supply chain digitization.
1. Ultra-Slim Sightline Minimalist Systems
Architects are demanding maximum daylight glass ratios. Trend forecasting indicates a 45% surge in demand for ultra-narrow interlock profiles (21mm to 28mm visible width) with fully concealed outer frame tracks embedded flush into floor slabs.
2. ESG Decarbonization & Low-Carbon Aluminium
European Union CBAM and North American green building codes now require Environmental Product Declarations (EPD). Modern factories are shifting to primary aluminium smelted via hydro-power, reducing embodied carbon to below 4.0 kg CO2/kg Al.
3. Smart Home Automation & Concealed Actuators
Commercial and luxury residential builds are rapidly adopting motorized automatic sliding doors integrated into KNX/Zigbee smart automation, complete with hidden rain sensors, motorized multi-point locks, and pinch-safety sensors.
B2B Procurement Playbook: Supplier Qualification Matrix
Avoiding quality pitfalls requires a structured vetting workflow. SAGA provides full transparency across technical drawings, raw material trace certificates, and factory audits.
Step 1: Code Accreditation Verification
Ensure the factory holds independent, third-party test laboratory reports. SAGA provides AGWA certificates for Australian AS2047, New Zealand NZS4211, and USA NAFS reports with verifiable laboratory accreditation numbers.
Step 2: CAD Shop Drawing Sign-Off
Never issue production deposits without detailed section drawings. Our engineering team prepares complete 2D/3D shop drawings showing jamb connections, sub-sill flashings, frame anchors, and glass bite dimensions.
Step 3: Quality Control Gates
Our manufacturing plant executes 7 mandatory QC inspections: Raw extrusion wall thickness check, powder-coating micron gauge test, IGU dew-point measurement, corner crimping pull test, hardware cycle test, air/water bench test, and packaging crate inspection.
Step 4: Logistics & Freight Protection
Custom joinery must arrive ready to install. SAGA wraps each frame in protective scratch-resistant film, packs sashes into fully enclosed plywood crates with corner bumpers, and provides direct loading supervision at Fuzhou / Xiamen ports.
China Aluminium Sliding Window Procurement FAQs
Answers to critical questions asked by commercial buyers, builders, importers, and architects when sourcing custom windows from China.
Which buyer profiles does SAGA OEM/ODM factory supply to?
We supply directly to window & door wholesalers/dealers, commercial & residential builders, real estate developers, structural contractors, architects, and custom luxury homeowners. Each project receives tailored CAD section drawings and certification packages compliant with local building authority regulations.
What is the standard factory lead time for custom sliding window orders?
Our standard manufacturing lead time is 35 to 50 calendar days starting from the formal sign-off of final CAD shop drawings and initial deposit confirmation. Trans-oceanic shipping duration varies between 14 to 35 days depending on the destination port (e.g., Sydney, Auckland, Long Beach, or Miami).
Can SAGA supply physical sample windows prior to full production runs?
Yes. We regularly assemble standard or custom-sized corner samples or complete sample windows for structural evaluation, finish inspection, and hardware testing. Sample units are provided complimentary, with the buyer responsible only for express air courier freight charges.
Do SAGA aluminium sliding windows comply with Australian & New Zealand standards?
Absolutely. SAGA window systems have been independently audited and certified under the AGWA scheme for compliance with Australian standards AS2047:2014 (Windows and external glazed doors in buildings), AS1288:2021 (Glass in buildings selection and installation), and NCC 2022. For New Zealand, our products comply with NZS4211:2008 and relevant Building Code clauses B1, B2, E2, F2, G4, G7, and H1 energy efficiency requirements.
Which loading ports in China are utilized for container shipping?
Orders are packed into full container loads (FCL) or less-than-container loads (LCL) and shipped directly out of Fuzhou Port or Xiamen Port in Fujian Province, China. Both ports offer direct express container routes to major global destinations.
What payment methods and trade terms are supported?
We accept T/T (Telegraphic Transfer) wire transfers and Alibaba Trade Assurance for complete buyer payment protection. Standard commercial trade terms include FOB (Free on Board), CIF (Cost, Insurance, Freight), and DDP (Delivered Duty Paid) based on buyer preference.
What surface finishes and profile color choices are available?
We offer advanced powder coating (AkzoNobel / Interpon guarantees), Fluorocarbon (PVDF) coating for coastal salt-spray durability, Anodized electro-polished finishes, and realistic heat-transfer Woodgrain finishes. Popular stock colors include Matt Black, Architectural White, Monument Grey, Charcoal, and Anodized Silver.
What technical drawings and engineering support are provided?
Every project is assigned a dedicated fenestration engineer. We provide complete CAD architectural elevation drawings, horizontal/vertical profile section drawings, wall anchorage detail drawings, installation step guides, and wind load structural calculation sheets before production commences.
Partner with China's Premier Aluminium Sliding Window Manufacturer
Whether you are seeking custom-engineered window schedules for an upcoming multi-family project or establishing an ongoing wholesale supply chain, SAGA delivers code-compliant engineering, competitive factory pricing, and world-class quality assurance.
