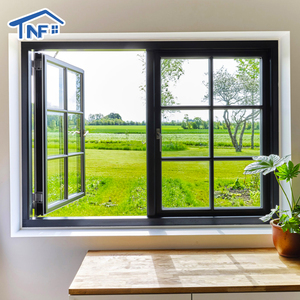

Aluminum Arched French Casement Windows and Doors for Houses

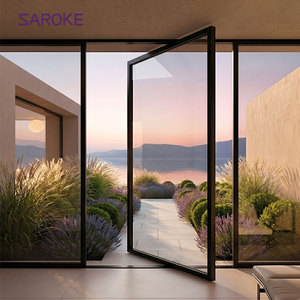

American Standard Thermal Break Soft Close Slim Double Glass Interior Aluminium Alloy Pivot Door

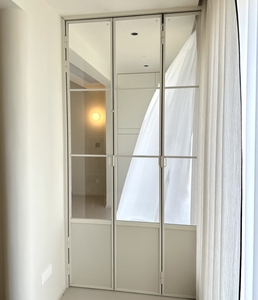

Elegant Minimalist French Style Aluminum Bi-fold Interior House Door with Tempered Glass

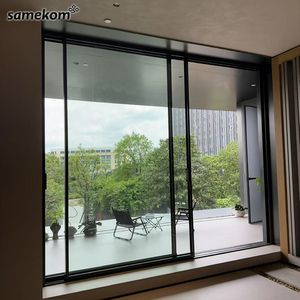

Double Panel Frosted Glass Hinged Aluminum Door Ensuite Privacy Lock Anti Steam Bathroom Aluminum Door

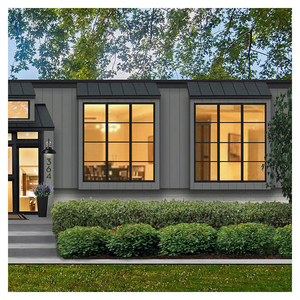

Hihaus New Custom Luxury Villas Black Crittall Aluminum Steel windows Fixed

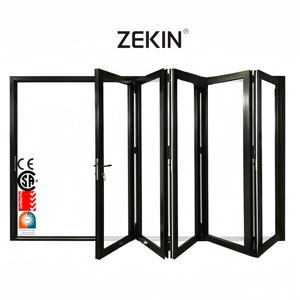

High Quality Aluminum Double Glass Energy Efficient Bi-fold Doors - NFRC AS2047 Exterior Patio Door
Modern Aluminum-clad Wood Folding Door Triple Insulated Tempered Glass Energy Star Qualified
High-Grade Aluminum Clad Wood Tilt and Turn Windows Custom Standard Slimline Soundproof Windows
Structural Integration & Thermal Dynamics of Aluminium Dormer Windows
An in-depth technical examination of attic fenestration design, flashing mechanics, structural wind resistance, and thermal efficiency for modern construction.
Structural Wind-Load & Roof Pitch Engineering
Unlike standard vertical wall installations, aluminium dormer windows elevated on roof slopes are subjected to localized negative pressure vortexes and intensified wind-driven rain. High-grade 6063-T5/T6 extruded aluminium framing delivers superior structural rigidity compared to timber or PVC alternatives, supporting heavy double- and triple-glazed units without frame deflection.
Polyamide Thermal Break Technology (PA66GF25)
Thermal bridging in attic dormer assemblies often causes attic heat loss during winter and solar heat buildup in summer. By incorporating multi-chambered glass-fiber reinforced polyamide thermal break strips (PA66GF25), top-tier aluminium dormer windows achieve U-values as low as 1.1 W/m²K, guaranteeing full energy code compliance (NCC 2022 / Energy Star / H1 Code).
| Engineering Parameter | Standard Aluminium Dormer | SAGA Thermally Broken Dormer System | Verification / Standard Compliance |
|---|---|---|---|
| Aluminium Alloy Standard | Commercial 6063-T5 (1.4mm wall thickness) | Architectural Grade 6063-T6 (2.0mm - 3.0mm wall thickness) | GB/T 5237 / ASTM B221 |
| Thermal Insulation (U-Factor) | 2.8 - 3.5 W/m²K (Non-thermal break) | 1.1 - 1.6 W/m²K (Triple/Double Low-E Argon Filled) | ISO 10077-2 / NFRC 100 |
| Water Infiltration Resistance | 300 Pa Static Test | 700 Pa High Dynamic Water Pressure Deflection | AS2047 / NZS4211 / ASTM E331 |
| Weathering & Surface Finish | Standard Anodizing (10-15 microns) | AkzoNobel Interpon Powder Coating / Fluorocarbon (PVDF 30+ microns) | AAMA 2605 / QUALICOAT Class 2 |
| Hardware & Gasket System | Generic Multi-point Lock / PVC Gaskets | German Siegenia / ROTO Frank / Continuous EPDM Triple Sealing | EN 13126 / DIN 18055 |
Future Procurement Trends in Modern Aluminium Dormer Windows
Key market shifts driving global B2B procurement, architectural specification, and structural fenestration sourcing over the next decade.
1. Prefabricated Modular Dormer Flashing Systems
Global developers and builders are shifting away from on-site custom lead/copper apron flashing toward factory-engineered, pre-crimped aluminium flashing kits. Integrated dormer sill trays and corner boots reduce installation labor by 60% while eliminating human error in water-tightness execution at roof intersections.
2. Ultra-Slim Sightline Architectural Extrusions
Modern architectural aesthetic dictates maximum natural daylight harvesting. Sourcing demand has surged for ultra-narrow sightline aluminium profiles (down to 38mm visible frame width) that maximize glass surface area while maintaining high moment-of-inertia structural values for extreme wind zones.
3. Hurricane-Impact & Extreme Weather Ratings
Due to unpredictable global climate volatility, coastal markets across North America, Australia, and the Caribbean now require dormer fenestration certified to Miami-Dade TAS 201/202/203 missile impact standards. Laminated heat-strengthened glass panels bonded with SentryGlas® interlayers are rapidly becoming standard B2B procurement specifications.
Aluminium Dormer Window Development & Material Breakthroughs
How advanced metallurgy, precision CNC fabrication, and smart glass engineering are transforming attic living spaces.
Multi-Functional Opening Configurations
Contemporary dormer windows are evolving beyond static fixed or simple hinged units. Industry-leading suppliers now integrate multi-axis hardware systems allowing seamless operation as dual-action Tilt & Turn, parallel opening, or top-hung awning configurations. This provides natural stack ventilation for attic levels without risking rainwater ingress during unexpected rainstorms.
Solar Control & Low-E Electrochromic Glazing
Roof windows absorb high intensities of solar radiation. Advanced glazing trends feature spectrally selective Low-E coatings, solar-control argon-filled units, and integral sunshade louvers embedded directly inside vacuum double-glazed chambers. Electrochromic dynamic tinting glass is also gaining traction, allowing occupants to alter solar heat gain coefficient (SHGC) via smart home automation.
SAGA Doors & Windows: Direct-Factory B2B Enterprise Advantages
With 16+ years of specialized fenestration manufacturing experience and exports across 25+ countries, SAGA stands as a premier manufacturing partner for global builders, wholesalers, developers, and architects.
Global Compliance Accredited
Audited under AGWA program for AS2047/AS1288/NCC 2022, New Zealand NZS4211, North American NAFS, and Florida Miami-Dade TAS 201-203.
Tier-1 Hardware Supply Chain
Strategic partnerships with Veka, Rehau, Zhongcai, ROTO Frank, Siegenia Aubi, and Kinlong to guarantee unyielding mechanical reliability.
Dual Loading Port Logistics
Streamlined direct shipments from Fuzhou and Xiamen ports in Fujian, China, delivering 35-50 day predictable production lead times.
Full BIM/CAD Shop Drawing Support
In-house architectural engineering team providing structural section drawings, installation details, and free evaluation samples.
Frequently Asked Questions for Sourcing & Engineering Teams
Clear answers to key commercial, technical, and compliance questions asked by international buyers.
Which buyer categories does SAGA supply custom aluminium dormer windows to?
SAGA supplies factory-direct joinery to wholesalers, building product dealers, general contractors, commercial developers, architects, and custom homebuilders. Each order is backed by tailored structural calculations, shop drawings, and packaging engineered to match your local market requirements.
How does SAGA ensure water leakage prevention on dormer windows at varying roof pitches?
Our engineering team designs custom sill flap extensions, continuous EPDM gasket lines, and dual-drainage sub-frame systems calibrated to your exact roof angle (from 15° to 75° pitch). All window systems are tested under dynamic water head pressure (up to 700 Pa) to prevent water ingress during severe storm conditions.
What testing certifications cover SAGA aluminium windows for North American and Australian markets?
Our products hold independent audited compliance certificates for AGWA (AS2047:2014, AS1288:2021, NCC 2022), New Zealand Building Code (NZS4211:2008), North American NAFS standards, and Florida Miami-Dade Hurricane Impact certifications (TAS 201, 202, 203).
What is the typical production lead time and loading port procedure?
Standard production lead time is 35 to 50 days following final CAD shop drawing sign-off and deposit receipt. Orders are securely packed in steel-framed, reinforced wooden crates and loaded directly at Fuzhou or Xiamen ports in Fujian, China, minimizing container handling risk.
Can SAGA provide customized evaluation samples for commercial architectural tenders?
Yes. We manufacture physical corner samples and full-scale standard window samples for structural testing, architectural approval, and client mock-ups. Physical samples are free of charge, with courier freight covered by the buyer.
Ready to Specify or Procure Custom Aluminium Dormer Windows?
Consult with our structural engineering team today to receive detailed section CAD drawings, comprehensive thermal performance schedules, and factory-direct wholesale quotations.
