Featured Architectural Aluminum Open Windows & Exterior Joinery
Engineered with high-tensile 6063-T5/T6 aluminum extrusions, energy-efficient thermal break profiles, and certified impact-resistant glass options. Tailored for commercial developments, modern villas, and wholesale distribution networks.
High-end Villa Energy Efficient Thermal Break Aluminum Double Glazing Tempered Glass Impact Sliding Patio Doors
- Polyamide PA66 thermal barrier strip
- Double glazed tempered safety glass
- Multi-point perimeter locking hardware

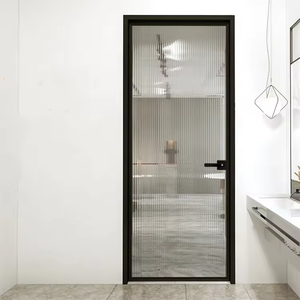

Modern Design Interior Door Aluminum Frame Tempered Glass/Frosted Glass Doors for Kitchen/Bathroom
- Slimline modern aluminum profile
- Privacy frosted or clear tempered glass
- Silent hinge operation & durable seals
Modern Design Arch Windows for Villa Specialty Shapes Window Factory
- Precision CNC curved aluminum frame
- Custom radius & architectural shapes
- High-performance Low-E double glazing
Profile Aluminum Interior Hurricane Proof Front Houses Modern Aluminum Casement Door
- Heavy-duty wind pressure resistance
- Laminated impact safety glass
- Flush perimeter seal against air/water
Windproof Roller Shutter Door Automatic Hurricane Steel Roll Up Door
- Automated electric motor drive system
- High wind load retention side tracks
- Thermal & sound insulation slats
XIYATECH Aluminum Bi Fold Door AS2047 Certified Aluminum Track Multi Panel Stacking Residential Mansion Doors
- AS2047 tested & compliance certified
- Smooth stainless steel roller track
- Multi-panel wide opening configuration

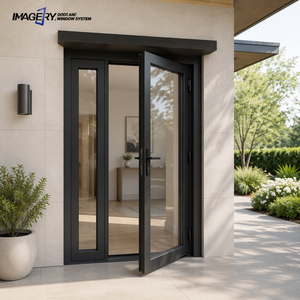

Wholesale Aluminum French Doors Thermal Insulation Hurricane Resistant Powder Coated Surface Patio Access Door Easy Maintenance
- AkzoNobel weatherable powder coating
- Double French swing outward/inward
- High-durability EPDM compression gaskets
Aluminum Back Door with Dog Hole Openable Panel to Go Out 316 Stainless Steel Hinged Support Swing Door
- 316 marine-grade stainless hinges
- Integrated pet pass door section
- Heavy-duty security lock points
B2B Technical Blueprint: High-Performance Aluminum Open Window Systems
A comprehensive guide for architects, fenestration buyers, and structural consultants evaluating aluminum open window specifications, structural framing, thermal breaks, and hardware mechanics.
1. Kinematic Mechanics & Window Types
Aluminum open windows provide distinct ventilation and sealing capabilities compared to fixed or sliding windows. SAGA manufactures five primary open window configurations:
- Side-Hung Casement Windows: Outward or inward swing delivering maximum unobstructed airflow and tight compression sealing.
- Top-Hung Awning Windows: Hinged at the top, offering rain protection while remaining open for continuous natural ventilation.
- Inward Tilt-and-Turn Windows: Dual-action European mechanism enabling top tilting for draft-free ventilation and full inward swing for easy glass cleaning.
- Gas-Strut Servery Windows: Overhead opening with gas cylinders, popular for commercial hospitality pass-throughs.
- Parallel Opening Windows: Sashes extend outward parallel to the frame, optimizing full perimeter ventilation while maintaining structural stability under wind load.
2. Alloy Selection & Structural Integrity
The structural performance of aluminum open windows depends directly on profile alloy chemistry and wall thickness:
- Aluminum Alloy 6063-T5 / T6: Delivers high tensile strength (≥ 185 MPa) and yield strength (≥ 110 MPa), resisting flexure under heavy wind pressure.
- Extrusion Wall Thickness: SAGA architectural open window frames maintain wall thicknesses ranging from 1.4mm for residential up to 2.0mm–3.0mm for commercial high-rise structures.
- Corner Joint Assembly: Frame corners feature mechanical cleats combined with automated hydraulic corner crimping and two-component structural epoxy injection, ensuring zero frame joint distortion and long-term waterproof integrity.
3. Thermal Barrier & Glazing Engineering
To stop thermal conductivity across raw aluminum profiles, SAGA integrates engineered polyamide thermal breaks:
- PA66-GF25 Polyamide Strips: Reinforced with 25% glass fiber, matching aluminum’s thermal expansion coefficient while reducing frame thermal conductivity by over 60%.
- Insulating Glass Units (IGU): Double (5mm+12Ar+5mm) or triple glass configurations equipped with Low-Emissivity (Low-E) coatings, Argon gas filling, and warm edge composite spacers.
- U-Factor Performance: Reaches low U-values down to 1.1 - 1.4 W/m²K, supporting Passive House and low-energy building design requirements.
Key Engineering Insight: Triple-Gasket Sealing System
Unlike standard sliding systems, SAGA open casement windows utilize a continuous triple EPDM (Ethylene Propylene Diene Monomer) gasket system—comprising an outer weather seal, central equalizer chamber gasket, and inner acoustic gasket. This multi-stage air cavity design prevents water infiltration under pressure up to 600–1500 Pa and delivers acoustic isolation up to STC 45 dB.
Future Procurement & Architectural Trends in Aluminum Open Windows
Strategic insights for global importers, builders, and developers preparing for evolving building codes, climate adaptation, and automated manufacturing requirements.
1. Low-Carbon Recycled Aluminum Profiles
Global carbon border adjustments and green building certifications (LEED, BREEAM, Green Star) are driving demand for sustainable extrusion billets. SAGA is expanding its procurement of low-carbon aluminum produced using renewable hydroelectric power, incorporating up to 75% recycled scrap content to lower embodied carbon emissions without sacrificing structural alloy strength.
2. Extreme Weather & Hurricane Protection
Increasing climate volatility has made high wind load and hurricane-resistant open windows mandatory beyond traditional storm zones. SAGA's upcoming open window series features laminated SentryGlas® (SG) interlayers and reinforced heavy-duty 316 stainless steel multi-point hinges, certified to withstand Miami-Dade missile impact (TAS 201) and cyclic wind pressures (TAS 203).
3. Smart Motorized Actuators & BMS Integration
Commercial and luxury residential developments are rapidly incorporating concealed motorized chain winders linked to automated Building Management Systems (BMS). Integrated wind, rain, and air quality sensors automatically operate top-hung awning or casement sashes, supporting natural night-purge cooling and emergency smoke extraction management.
4. Ultra-Slim Sightlines & Flush Profiles
Architects increasingly prefer minimal frame sightlines to maximize glass surface ratios and daylight transmission. SAGA's modern open window designs feature concealed hinges, flush frame-to-sash transitions, and ultra-narrow visible profile widths down to 38mm, combining minimalist visual appeal with structural wind load resistance.
5. Prefabricated Modular Sub-Frame Solutions
With off-site modular timber and steel frame construction expanding globally, window buyers require pre-engineered sub-frame attachment flanges. SAGA provides integrated perimeter reveal fins and timber sub-buck adaptors, streamlining site fitting and ensuring water seal reliability across Australian, New Zealand, and North American construction methods.
Global Fenestration Testing Standards & Certification Matrix
SAGA products undergo independent laboratory testing to verify compliance with major regional building codes. Below is our standard testing comparison matrix.
| Target Region | Certification Standard | Key Verified Parameters | SAGA Window Systems Performance |
|---|---|---|---|
| Australia & New Zealand | AS2047:2014 / AS1288:2021 / NZS4211 | Structural Deflection (Serviceability/Ultimate), Air Infiltration, Water Penetration Resistance | Passes Ultimate Limit State (ULS) wind pressure up to 4500Pa; Water Resistance up to 600–1000Pa. AGWA Audited. |
| North America (USA & Canada) | NAFS (AAMA / WDMA / CSA 101/I.S.2/A440) | Structural Performance Grade (CW/AW), Air Leakage, Operating Force, Forced Entry Resistance | Performance Class AW-PG65 to PG80; Forced Entry Resistance Grade 10 compliant. |
| Florida & Caribbean | Miami-Dade TAS 201 / 202 / 203 | Large Missile Impact Test (TAS 201), Uniform Static Air Pressure (TAS 202), Cyclic Wind Load (TAS 203) | Impact resistant laminated IGU configurations engineered for high-velocity hurricane zones (HVHZ). |
| European Union & UK | EN 14351-1 / CE Marking / BS 6375 | Watertightness, Air Permeability, Wind Load Resistance, Thermal Transmittance (U-Value) | Air Permeability Class 4, Watertightness Class E1200, Thermal U-value down to 1.1 W/m²K. |
Manufacturing Mastery & B2B Supply Chain Reliability
From digital shop drawings to overseas container shipping, SAGA provides direct factory manufacturing, rigorous quality control, and end-to-end technical support.
16+ Years Manufacturing & Global Export Experience
SAGA Aluminum Doors & Windows Co., Ltd. operates state-of-the-art production facilities in Fujian, China. With 16 years of dedicated export experience to Australia, New Zealand, North America, Europe, and the Caribbean, our engineering team understands local building codes, structural wind loads, and regional glazing mandates inside out.
Advanced CNC Precision & AkzoNobel Powder Coating
Our production lines feature automated 5-axis German CNC profile machining centers, multi-angle corner crimping systems, and automated glass assembly lines. Profile surfaces are finished with certified AkzoNobel or PPG powder coatings or fluorocarbon (PVDF) spray lines, backed by a 25-year anti-fading and anti-corrosion guarantee.
100% Pre-Shipment Quality Control & Mock-up Testing
Every order undergoes rigorous quality checks before packing. Our internal QC team tests sash dimensions, diagonal squareness, EPDM gasket sealing, hardware torque, and water tightness. Pre-assembly mock-ups are conducted for complex custom orders, with complete inspection documentation delivered to the client.
Custom CAD/BIM Shop Drawings & Heavy-Duty Crating
We provide detailed AutoCAD shop drawings, section profiles, and installation details for client review prior to manufacturing. Products are packed in fully enclosed fumigated wooden crates or steel frame pallets with protective corner caps, ensuring safe container transport loading at Fuzhou or Xiamen ports.
B2B Procurement & Technical FAQ
Answers to essential technical, engineering, logistics, and compliance questions asked by window importers, builders, and developers.
What distinguishes SAGA's thermally broken aluminum open windows from non-thermal profiles?
Thermally broken aluminum open windows feature a structural polyamide (PA66GF25) barrier separating the inner and outer aluminum extrusions. This barrier stops the high thermal conductivity of aluminum, preventing heat loss in winter, heat gain in summer, and internal frame condensation. Non-thermal windows lack this structural barrier, leading to higher energy consumption and potential moisture accumulation.
What structural standards do SAGA aluminum open windows comply with for high wind zones?
SAGA aluminum open windows are engineered and audited under major international fenestration standards, including AS2047:2014 / AS1288:2021 (Australia), NZS4211 (New Zealand), NAFS AAMA/WDMA/CSA (North America), and Miami-Dade TAS 201/202/203 hurricane standards. Our windows are engineered to withstand ultimate wind pressures up to 4500 Pa (equivalent to Category 5 cyclone loads).
Can SAGA supply custom window extrusion profiles and hardware tailored to local building codes?
Yes. We specialize in custom OEM and ODM manufacturing. Our engineering team customizes profile frame depths (e.g., 55mm, 65mm, 75mm, 100mm, 120mm), glass cavity dimensions, sub-frame nail fins, and hardware configurations to match your local installation methods and certifier requirements.
What is the standard production lead time for bulk B2B aluminum open window orders?
Standard production lead time is typically 35 to 50 days following shop drawing sign-off and deposit receipt. Special powder coating finishes or custom extruded profile dies may require an additional 7 to 10 days. Ocean freight delivery timelines depend on the destination port.
How does SAGA protect glass units and painted aluminum frames during container transit?
All windows are wrapped in protective plastic film, fitted with impact-resistant corner guards, and placed inside fully enclosed, fumigated wooden crates or heavy-duty steel A-frames. Airbags and strapping are placed inside shipping containers to prevent movement during ocean freight transit.
Can SAGA provide sample window units for certifier inspection or client mock-ups?
Yes. We supply full-scale or corner sample units for quality evaluation, hardware inspection, and certifier approval. Standard samples are provided free of charge, with the buyer handling express air courier charges.
Which hardware brands are integrated into SAGA open window assemblies?
We partner with premier global hardware manufacturers, including ROTO Frank, Siegenia Aubi, G-U (Germany), and Kinlong. We also supply heavy-duty 316 marine-grade stainless steel friction stays, chain winders, and multi-point security locks built to resist salt-spray corrosion in coastal locations.
What surface treatment options are available for harsh marine or coastal installations?
For marine and coastal environments (within 1km of saltwater), we recommend high-durability fluorocarbon (PVDF) spray coating or coastal-grade powder coating (AAMA 2604 / AAMA 2605 compliant) using AkzoNobel or PPG powders, accompanied by 25-year anti-corrosion warranties.
What engineering and shop drawing support does SAGA offer before manufacturing starts?
Every project receives complete engineering support, including CAD shop drawings, elevation schedules, section details, structural load calculations, and installation guides. Production begins only after drawings are approved and signed off by your project architect or engineering team.
What are SAGA's standard payment terms and quality warranty terms for B2B orders?
Our standard payment terms are T/T (30% deposit upon drawing sign-off, 70% balance prior to shipment loading) or Alibaba Trade Assurance. All SAGA aluminum open window systems are backed by our 10-year factory warranty covering extrusion structure, glass seal integrity, and operational hardware.
Ready to Source Code-Compliant Aluminum Open Windows Directly From the Factory?
Connect with SAGA's fenestration engineering team today. Send us your architectural drawings or window schedule for an accurate quote, CAD shop drawings, and custom technical proposal within 24 hours.
