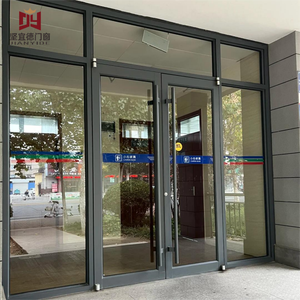

Heavy Duty Commercial Aluminum Entrance Door | KFC Style Windproof Double Glazed Shopfront Door With High Thermal Insulation

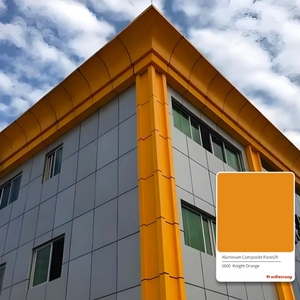

High Quality Anti-Static Acp Decorative Bathroom Doors Modern Design Building Construction Materials Aluminium Composite Panel
YY Florida Approval 10 Year Warranty Wholesale Exterior Patio Black Aluminum Frame Glass Stack Bifold Folding Door

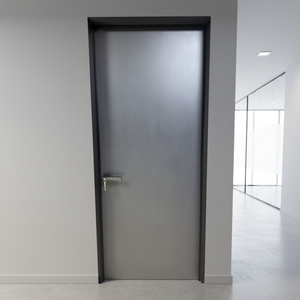

Modern Interior Aluminum Alloy Finished Bathroom Slab Door Frosted Glass Waterproof Vertical Hinged Toilet Doors Total Solution

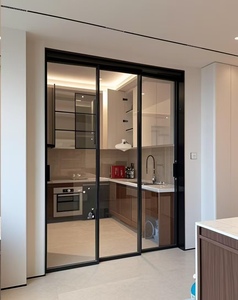

Modern Urban Loft Style Aluminum Bifold Patio Door Easy Installation Competitive Price Aluminum Alloy Door
Factory Customized Colors Aluminum Commercial Door Double Glazing Thermal Insulation Exterior Commercial Doors For Shop

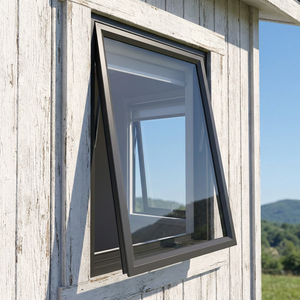

AS2047 Thermally Broken Aluminum Chain Winder Awning Windows Double Glazing Glass Black Windows for Houses

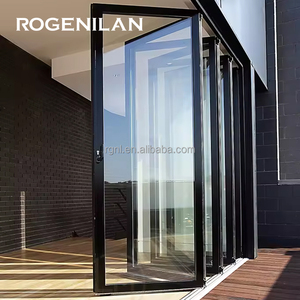

Rogenilan AS2047 Outdoor Aluminium Double Glazed Bi Fold Patio Door Soundproof Folding Glass Accordion Doors
1. Technical Executive Summary: OEM Aluminum Bay Window Manufacturing for Kuwait
Bridging Chinese Tier-1 precision engineering with the stringent structural & energy codes of the State of Kuwait.
The architectural landscape of Kuwait is defined by a bold synthesis of expansive luxury villa styling, modern vertical commercial towers, and severe hyper-arid environmental conditions. As real estate developers, contractors, and architectural consultants in Kuwait City, Hawalli, Al Ahmadi, and Sabah Al Ahmad Sea City expand the boundaries of daylight-harvesting design, Custom OEM Aluminum Bay Windows have emerged as a critical architectural envelope element. Bay windows—projecting outward from the primary structural face of a building—create dramatic multi-dimensional views, optimize floor plate utilization, and enhance interior natural illumination.
However, importing bay windows into Kuwait presents engineering challenges that standard fenestration products cannot overcome. Aluminum profiles installed in the Arabian Gulf region are subjected to extreme ambient summer temperatures exceeding 50°C to 55°C (with exterior metal surface temperatures reaching over 75°C), high solar irradiance index ratings, persistent silica sandstorms (khamsin dust pressure), and severe coastal salinity along the Arabian Gulf shoreline.
2. Tailored Engineering for Kuwait’s Diverse Architectural Projects
Specific structural configurations optimized for Kuwait’s coastal, urban, and luxury residential sectors.
Coastal Villa Projects: Sabah Al Ahmad Sea City & Fintas
Marine-grade coastal applications require extreme resistance to atmospheric chloride corrosion and humidity. Our OEM bay window systems utilize 25-micron fluorocarbon (PVDF) or Qualicoat Seaside anodized surface treatments paired with 316 stainless steel multi-point hardware, preventing pitting corrosion while enduring heavy coastal wind loads.
Luxury Private Residences: Salwa, Al-Daiya & Yarmouk
High-end private villas demand wide panoramic bay vistas, soundproofing (STC rating 42+ dB) against traffic noise, and solar heat control. We configure 90°, 135°, and custom angled bay window units with double/triple-pane solar control Low-E glass (SHGC ≤ 0.20) and concealed chain winder hardware for seamless luxury aesthetics.
Commercial Showrooms & Towers: Kuwait City & Shuwaikh
Commercial developments require heavy-duty structural mullion reinforcement to sustain wind deflection pressures up to 3500 Pa. Our OEM factory provides custom extrusions integrated with heavy-duty commercial shopfront doors, structural curtain wall adapters, and automated sunshade louvers for zero-maintenance operation.
3. OEM Material Science & Structural Architecture
Uncompromising profile integrity, glass performance, and hardware resilience engineered in our factory.
Structural Profile Metallurgy & Thermal Breaks
- 6063-T6 Architectural Grade Aluminum: High tensile strength alloy precision-extruded to 2.0mm–3.0mm wall thickness for maximum structural rigidity on large bay openings.
- Polyamide PA66 GF25 Thermal Barrier: 24mm to 34mm glass-fiber reinforced polyamide thermal struts physically isolate exterior and interior aluminum profiles, reducing heat conduction by over 70%.
- Surface Finishes: AkzoNobel Interpon powder coatings engineered to withstand 10,000+ hours of intense UV radiation without chalking or color degradation.
Advanced Glazing & Dust Sealing Systems
- Solar Control Low-E Double/Triple IGU: 6mm Solar-Control Low-E + 16A Argon Gap + 6mm Clear Toughened Glass. Achieves solar heat gain coefficient (SHGC) down to 0.18.
- Triple EPDM Santoprene Gaskets: Continuous co-extruded EPDM gaskets provide multi-stage air tightness, preventing micro-fine Kuwait sand dust from reaching interior tracks.
- Pressure-Equalized Drainage: Concealed drainage slots with non-return flap valves prevent water ingress during heavy desert downpours while preventing back-draft winds.
Technical Comparison: Standard Aluminum vs. SAGA OEM Thermal Bay Windows
| Performance Parameter | Standard Non-Thermal Aluminum | SAGA OEM Thermal Break Bay Window | Kuwait MEW Code Compliance |
|---|---|---|---|
| U-Value (Thermal Transmittance) | 5.8 - 6.2 W/m²K (High heat conduction) | 1.3 - 1.8 W/m²K (Superior insulation) | Passes MEW Code R-7 (< 2.1 W/m²K) |
| Solar Heat Gain Coefficient (SHGC) | 0.65 - 0.75 (Extreme interior heat build-up) | 0.18 - 0.24 (Blocks 80%+ solar heat) | Passes Kuwait Standard (< 0.30) |
| Air Infiltration Sealing | Basic mohair brush seal (Dust penetrates) | IP65 Triple EPDM Gasket System | Sandstorm & dust-tight tested |
| Acoustic Rating (STC / Soundproofing) | 25 - 28 dB (Road noise audible) | 40 - 45 dB (Quiet living interior) | Exceeds residential luxury standards |
| Structural Wind Load Resistance | 1500 Pa (Risk of deflection on tall bays) | 3000 - 3800 Pa (Heavy duty reinforced) | Designed for Gulf coastal wind pressure |
4. Emerging Trends in Kuwait’s Fenestration & Building Envelope Sector
Key design shifts driving demand for high-end custom aluminum bay window imports.
1. Kuwait Vision 2035 & Sustainable Building Mandates
Under New Kuwait Vision 2035, energy efficiency is paramount. Residential and commercial developers are replacing outdated single-glazed joinery with factory-certified thermally broken bay windows to minimize HVAC power consumption and obtain municipal green building permits.
2. Ultra-Slim Sightline Minimalist Architecture
Modern Kuwaiti architects favor narrow aluminum profile sightlines that maximize glass surface area without compromising structural integrity. Our OEM factory produces custom corner bay units with structural glass-to-glass corner joints that eliminate heavy corner posts.
3. Automated Smart Solar Shading Integration
Integrate motorized magnetic blinds inside double-glazed units or external motorized roller shutters directly into the OEM bay window frame. This offers dynamic privacy and solar control controlled via smart home automation systems.
5. OEM Manufacturing Capabilities & Global Quality Assurance
Over 16 years of direct export manufacturing, accredited under global window standard audit programs.
Advanced CNC Manufacturing & Quality Control
Our 30,000+ sqm production facility utilizes 5-axis CNC machining centers, automated corner crimping, and dual-component structural silicone dispensing. Every custom bay window assembly undergoes rigorous air-tightness, water-tightness, and dimensional tolerance checks prior to sea packaging.
International Accreditation & Kuwait Import Ease
Our engineering quality program is audited for Australian AGWA (AS2047/AS1288), North American NAFS, and Miami-Dade hurricane impact compliance. We provide full factory test reports, CAD/BIM shop drawings, and KUCAS certification documentation to ensure seamless clearance at Shuwaikh Port.
Our 6-Step OEM Project Delivery Workflow for Kuwait Buyers
Architectural Schedule & CAD Review
We review your floor plans, elevation drawings, and structural bay angle requirements.
Thermal & Wind Load Engineering
Engineers calculate mullion deflection, frame thermal break depth, and U-value parameters.
Detailed Shop Drawings Sign-off
Issue millimeter-accurate CAD elevation & sectional drawings for consultant approval.
Precision Precision Fabrication
CNC profile cutting, corner crimping, PA66 thermal insertion, and glass assembly.
Full Pre-Assembly & Inspection
Frame squareness, hardware cycling, and glass seal quality checked before crating.
Seaworthy Steel Crate Shipping
Packed in fully enclosed steel-framed plywood crates with desiccant protection to Shuwaikh Port.
6. Kuwait B2B Importer & Contractor Procurement FAQ
Everything you need to know about ordering custom OEM aluminum bay windows from our factory.
Request an OEM Engineering Proposal & Factory Quote for Your Kuwait Project
Send us your architectural window schedules or project elevation drawings. Our fenestration engineers will provide CAD shop drawings, thermal calculations, and competitive factory-direct pricing within 24–48 hours.
